Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

12 part groups · 2 illustrations

Illustrations

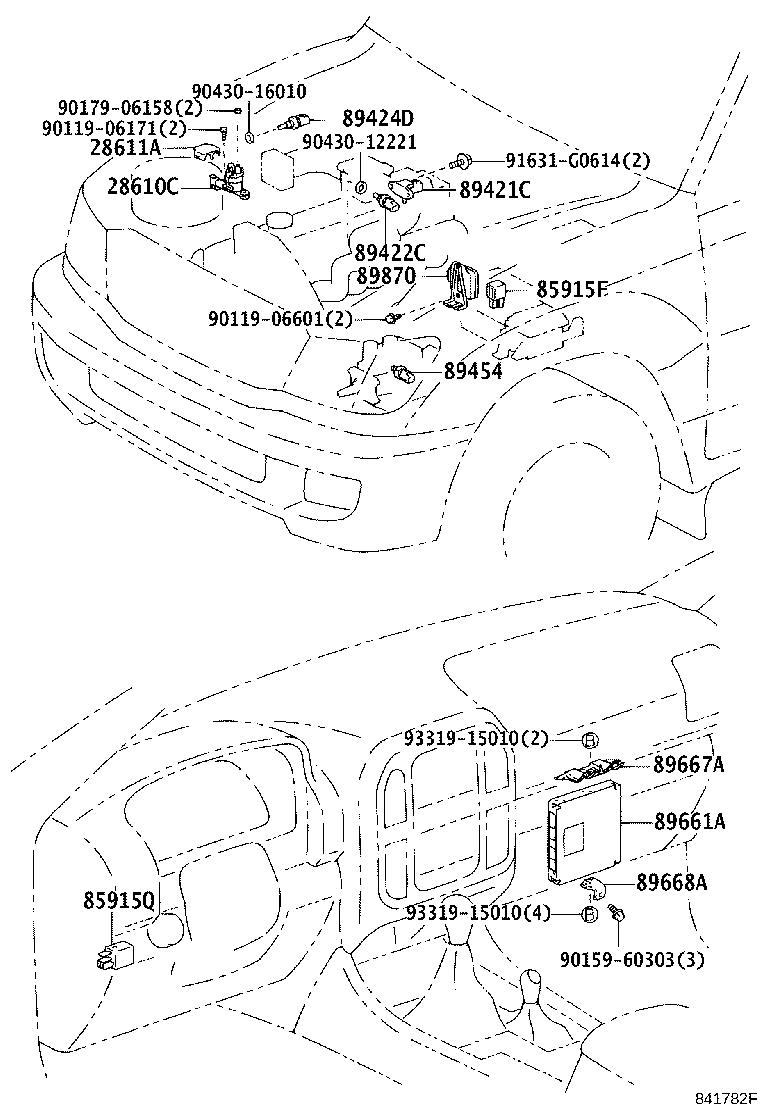

Figure 841781F 841781F 1998-01 → — Figure 841782F 841782F 1998-01 → —

Part groups

PNCDescription
28610C Relay Assy, Intake Heater
28611A Cover, Intake Heater Relay
85915F Relay, Spill Valve
85915Q Relay, Computer (FOR DIESEL)
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424D Sensor, Inlet Air Temperature
89454 Sensor, Fuel Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89870 Driver Assy, Spill Valve Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
