Factory parts data · Europe

Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

3 part groups · 2 illustrations

Illustrations

Figure 841950C

841950C 1998-01 → 2002-08

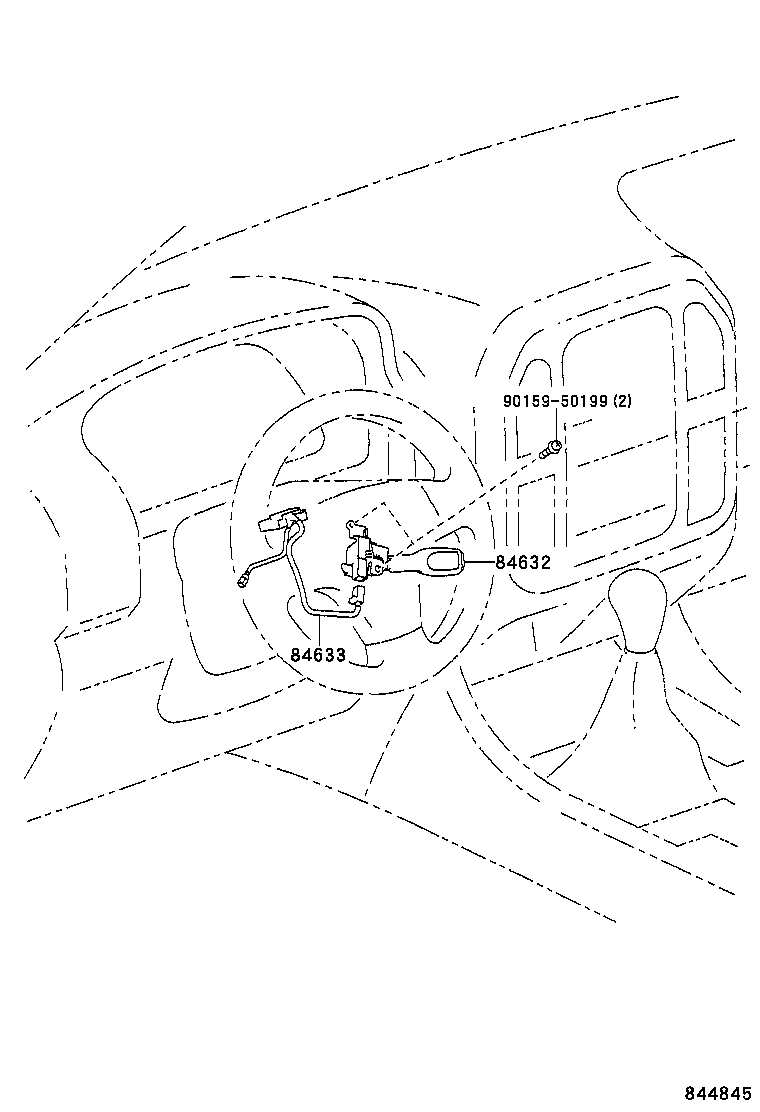

844845 2002-08 → —

Part groups

PNC	Description
84632	Switch, Cruise Control Main
84633	Wire, Cruise Control Switch
88285	Switch, Cruise Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
