Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01
Overdrive & Electronic Controlled Transmission
13 part groups · 5 illustrations
Part groups

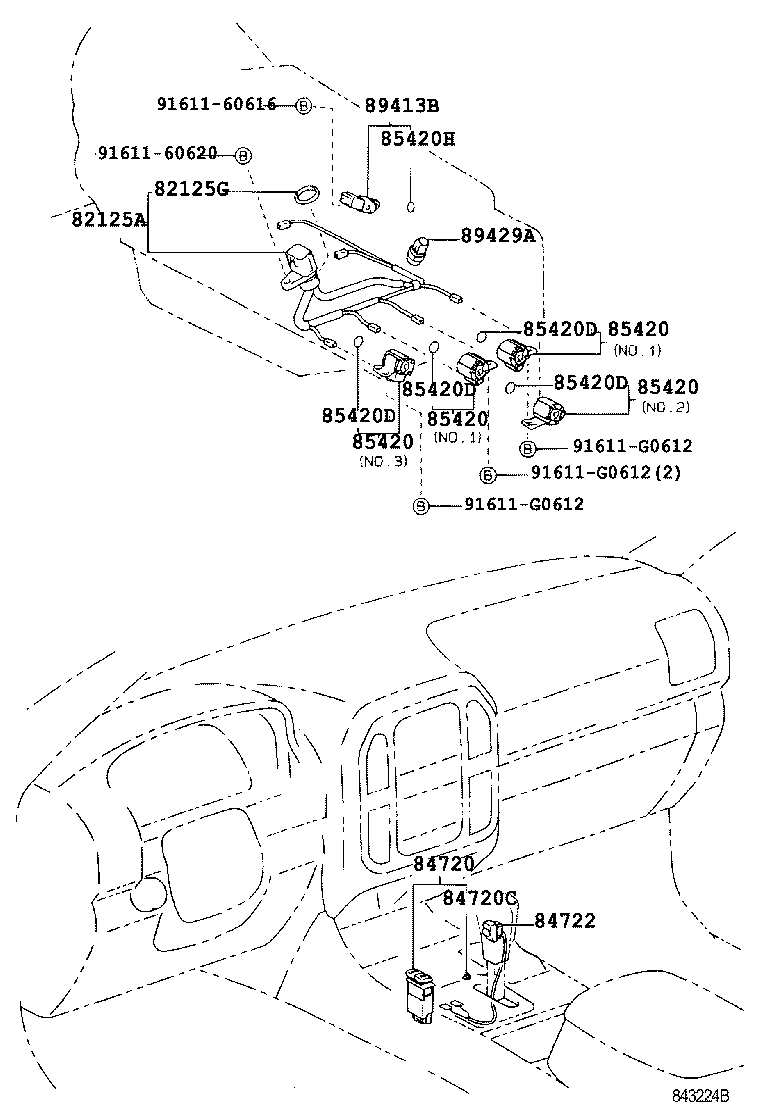

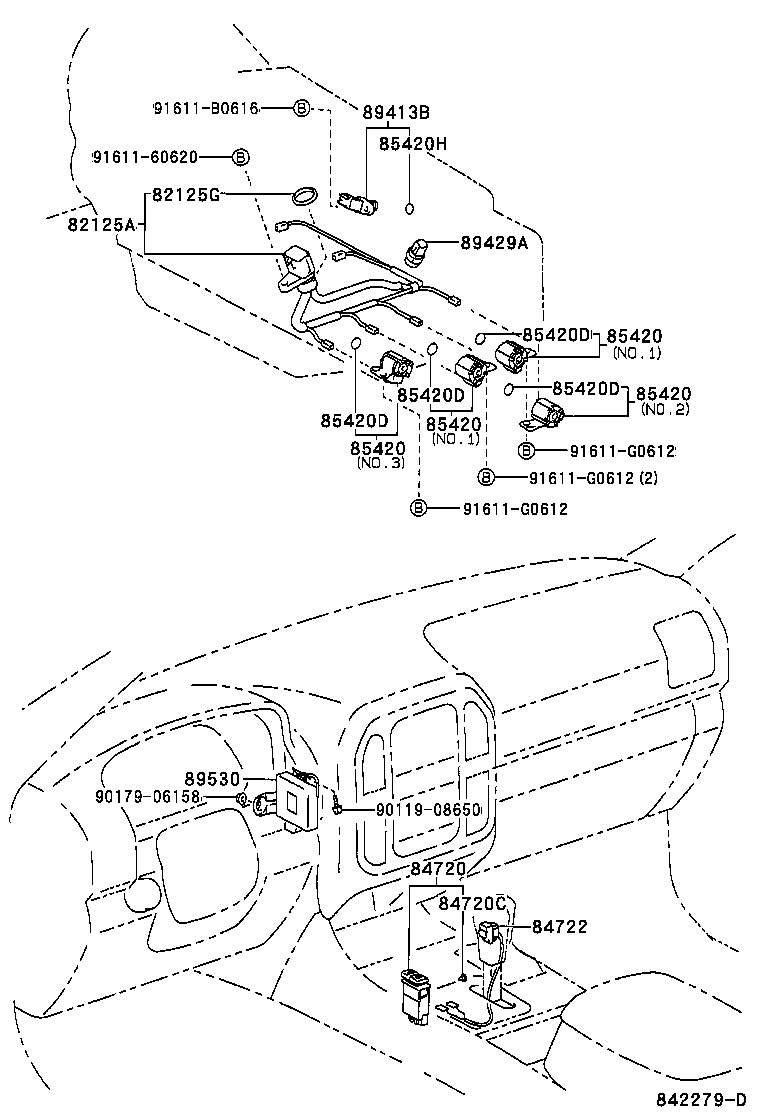

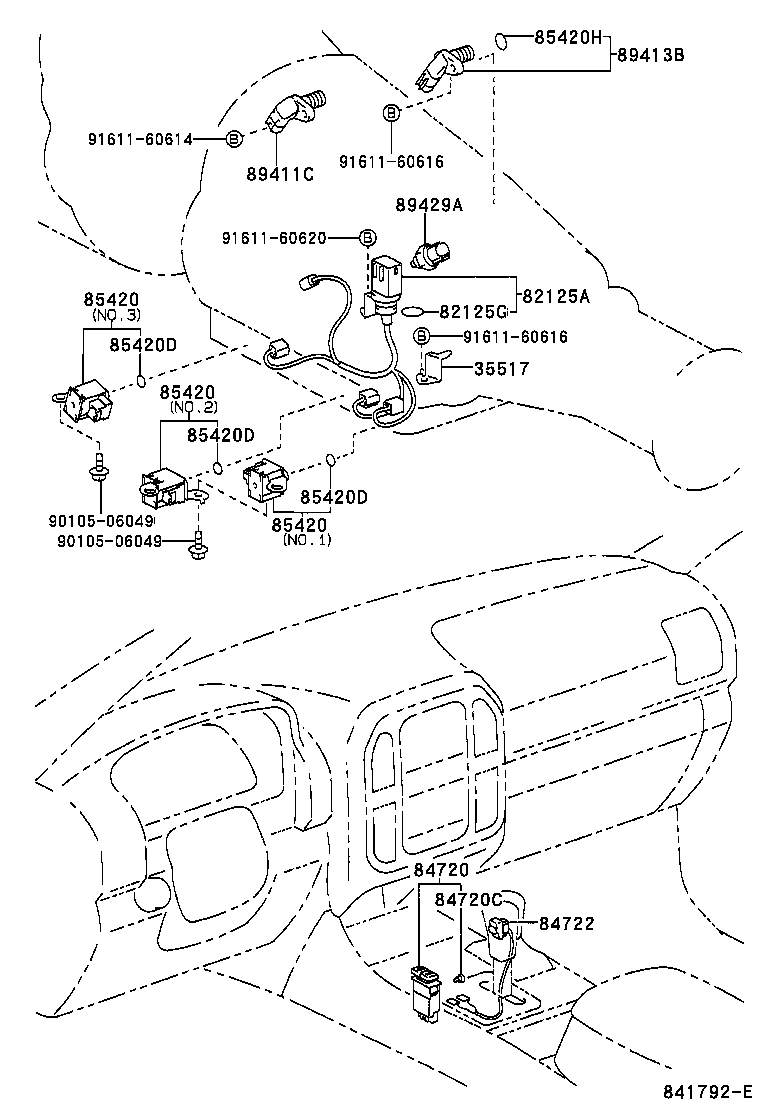

| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82125A | Wire, Transmission |
| 82125G | Ring, O(FOR TRANSMISSION WIRE) |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85420H | Ring, O(FOR SPEED SENSOR) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89429A | Sensor, Temperature |
| 89530 | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
