Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

10 part groups · 5 illustrations

Illustrations

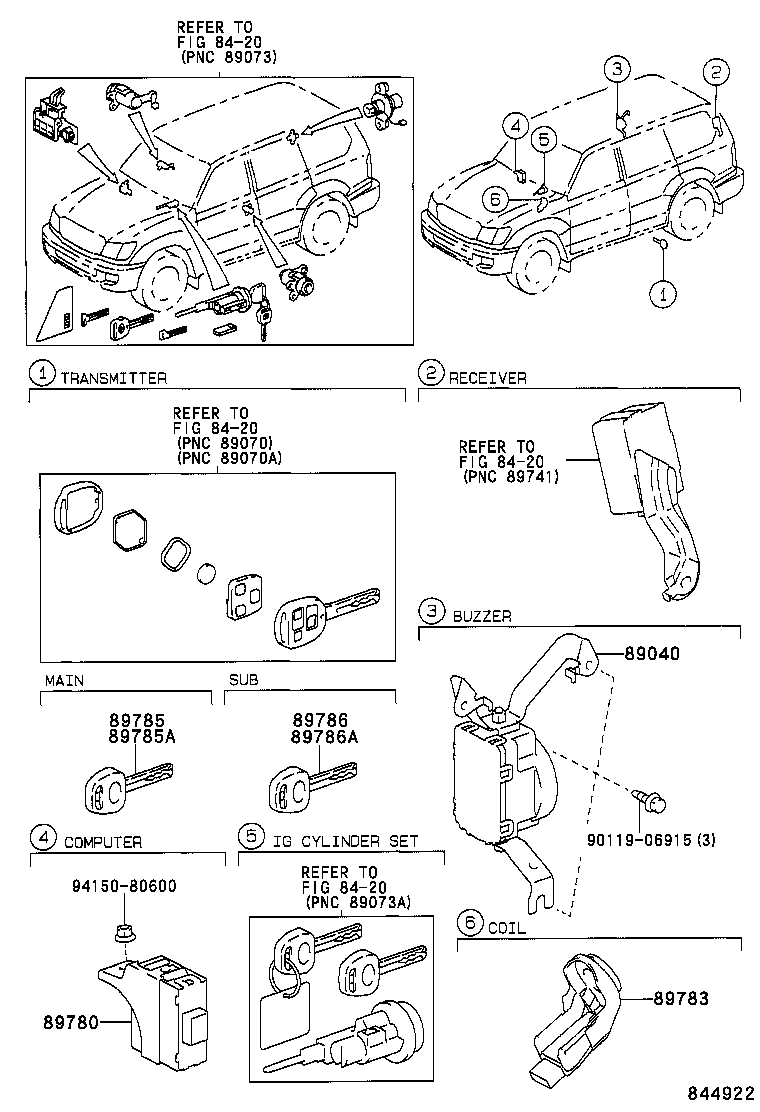

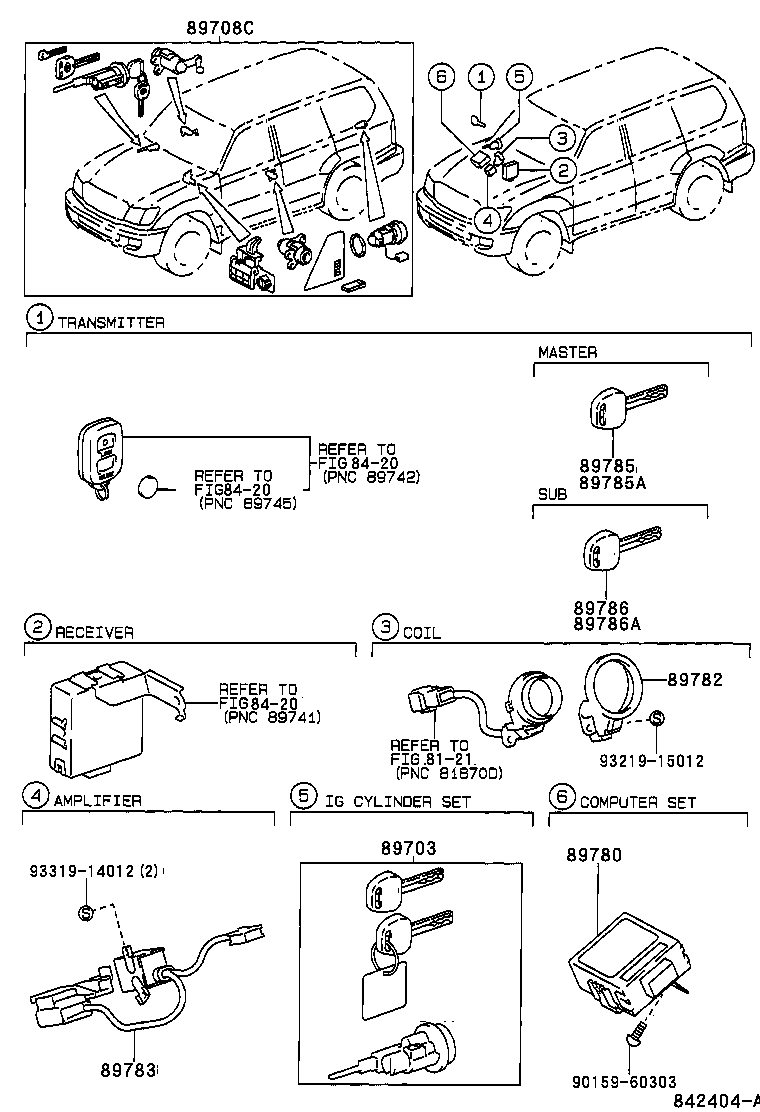

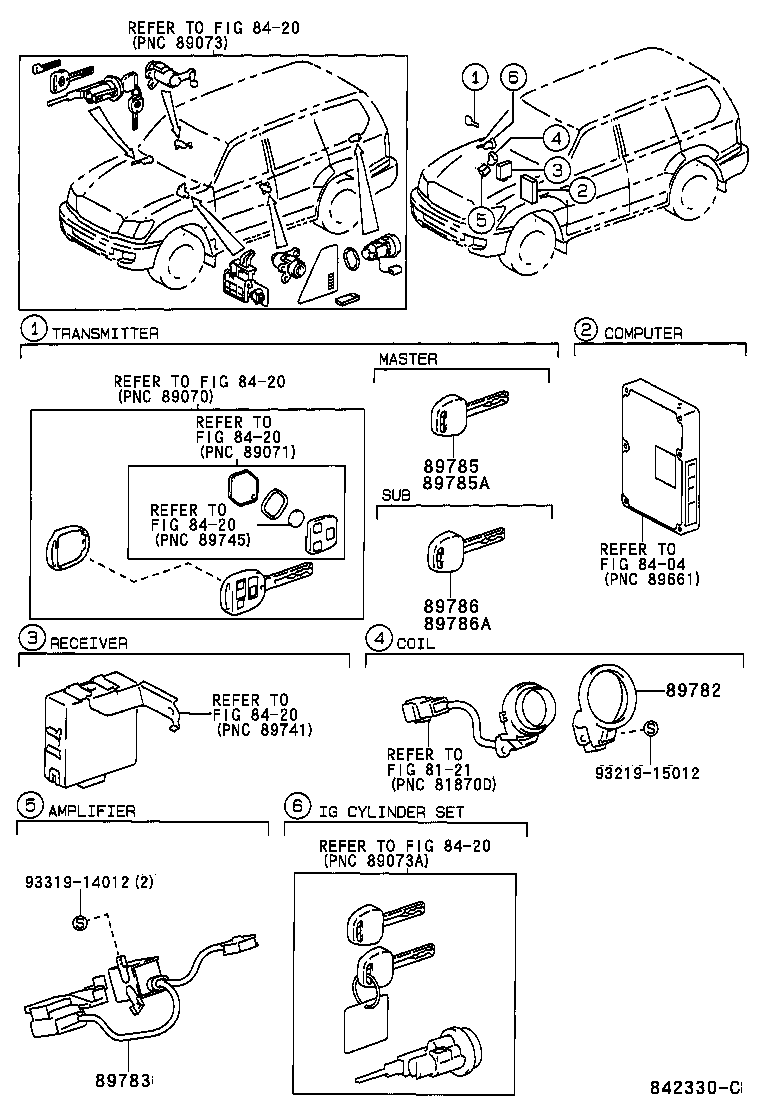

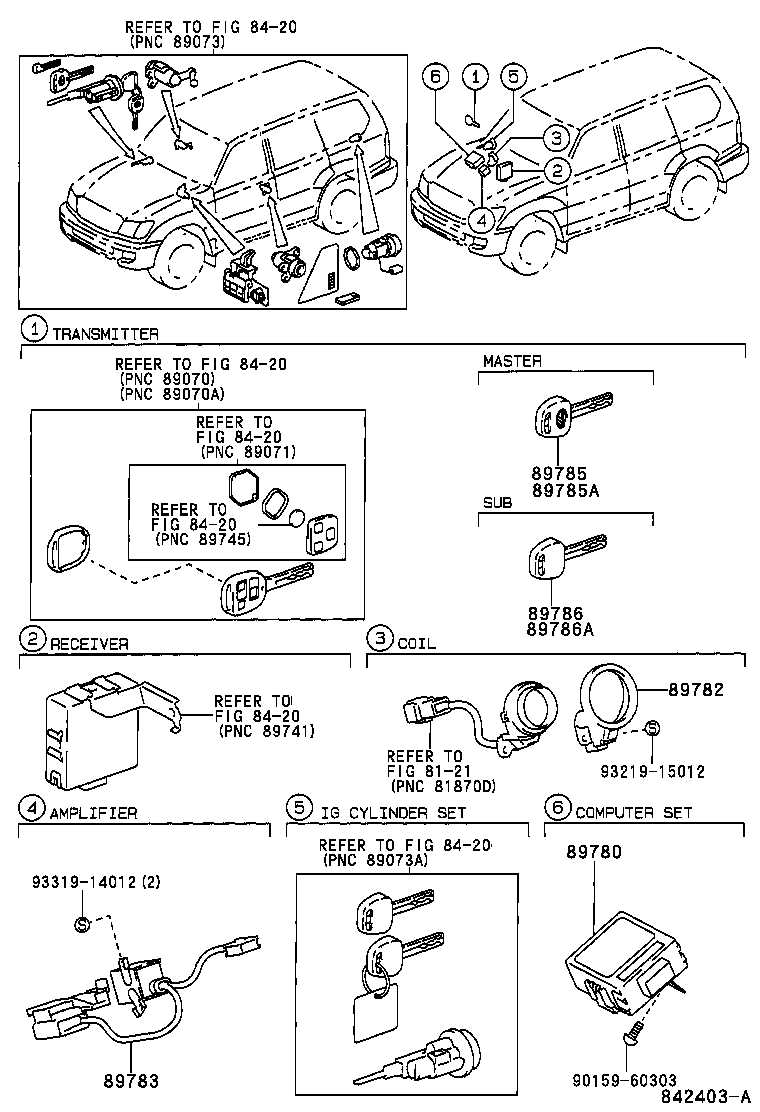

Figure 842335C 842335C 1998-01 → 1998-08 Figure 842330C 842330C 1998-01 → 2002-08 Figure 842404A 842404A 1998-01 → 1998-08 Figure 842403A 842403A 1998-01 → 2002-08 Figure 844922 844922 2002-08 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89703 Cylinder & Key Set, Ignition W/Transponder
89708C Cylinder Set, Lock W/Transponder Key Transmitter
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89785A Transmitter, Transponder Cut Key Master
89786 Transmitter, Transponder Key Sub
89786A Transmitter, Transponder Cut Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
