Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

17 part groups · 3 illustrations

Illustrations

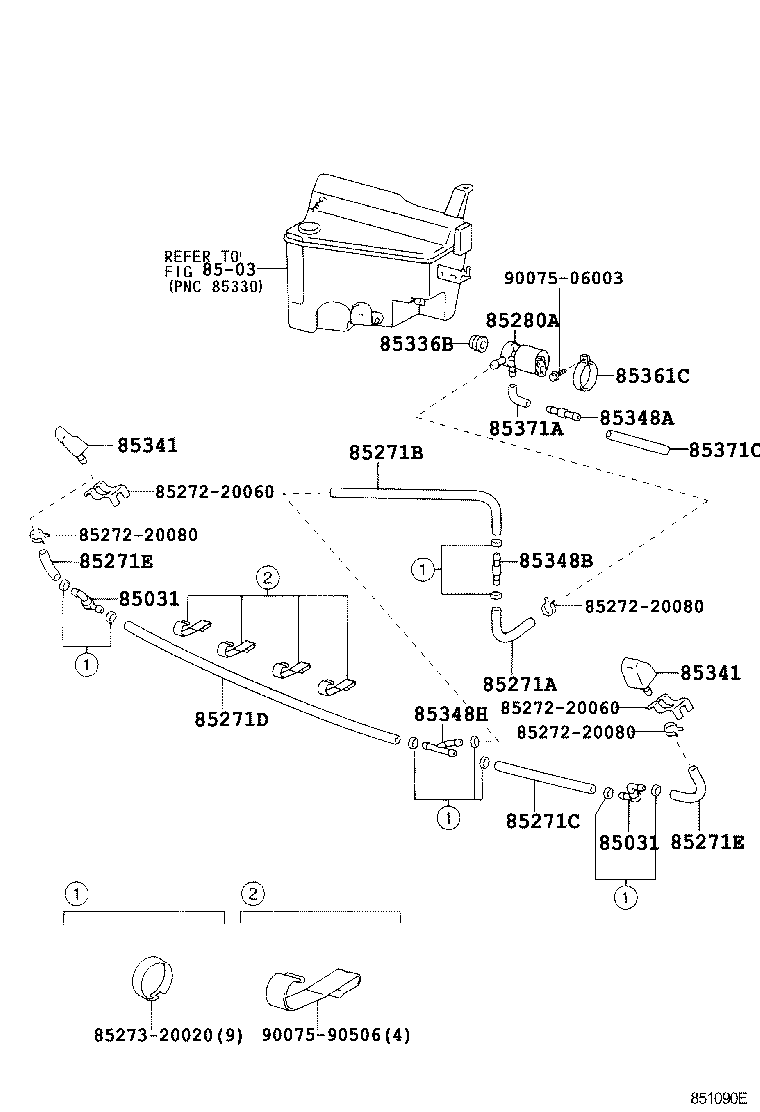

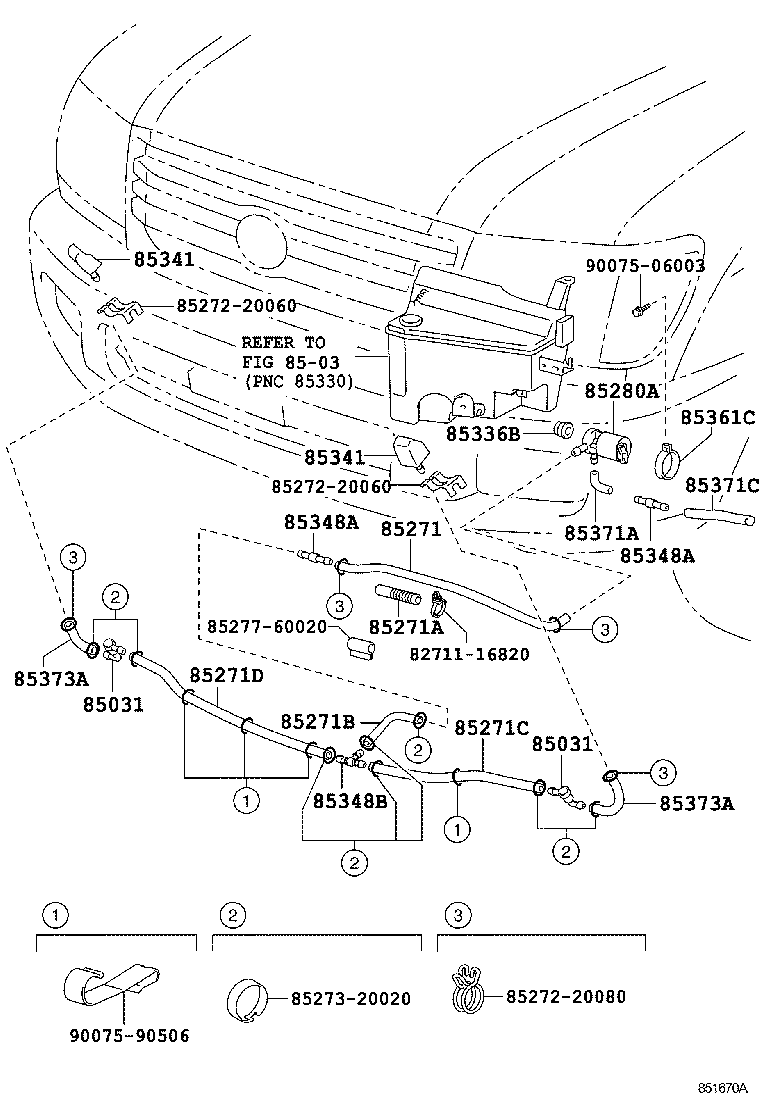

Figure 850422B 850422B 1998-01 → 2002-08 Figure 851090E 851090E 2002-08 → 2005-05 Figure 851670A 851670A 2005-05 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85271E Hose, Headlamp Cleaner, NO.6
85280A Motor And Pump Assy, Headlamp Cleaner
85336B Packing, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348H Joint, Headlamp Cleaner Hose, NO.4
85361C Bracket, Washer
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
