Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 2 illustrations

Illustrations

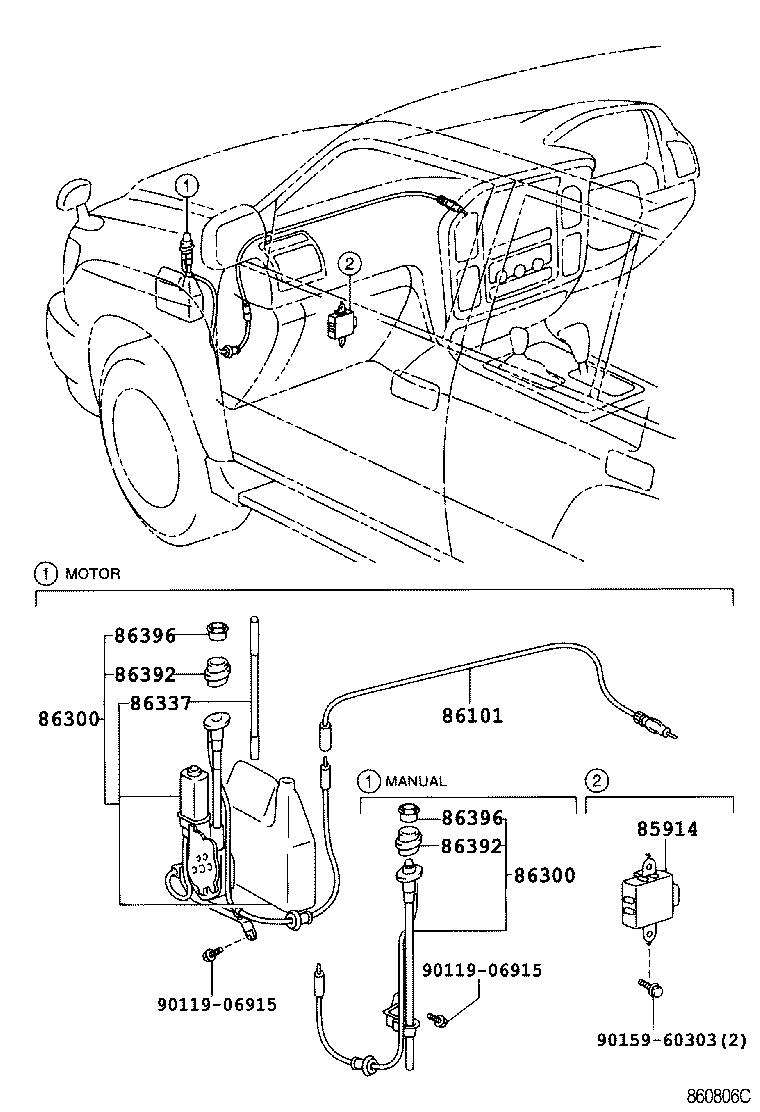

Figure 860641C 860641C 1998-01 → — Figure 860806C 860806C 1998-01 → —

Part groups

PNCDescription
85914 Relay, Motor Antenna Control
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
