Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis HDJ100,UZJ100 · catalogue 791550 · Europe
Discontinued model
Data version 2008-01
Heating & Air Conditioning - Heater Unit & Blower
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55909B | Cable Sub-assy, Airmix Damper Control |

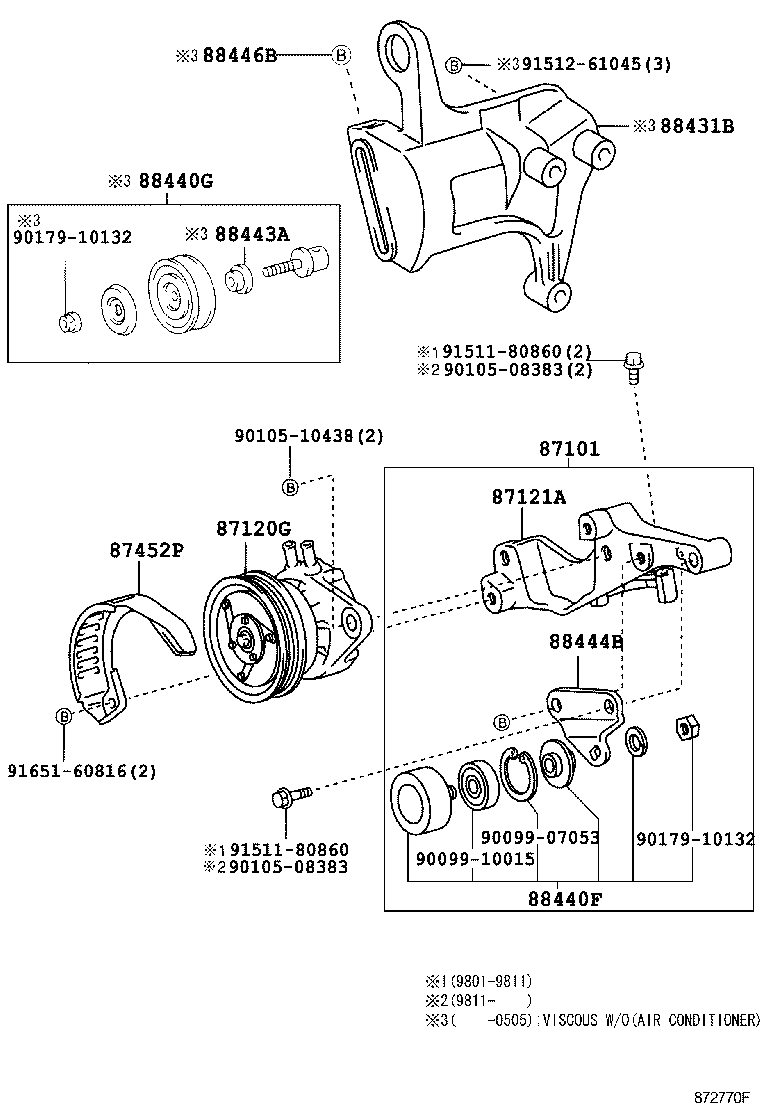

| 87101 | Bracket Sub-assy, Viscous Heater NO.1 |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87106C | Servo Sub-assy, Damper(FOR BLOWER) |
| 87106M | Servo Sub-assy, Damper, NO.2 |
| 87106P | Servo Sub-assy, Damper(FOR REAR HEATER) |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |

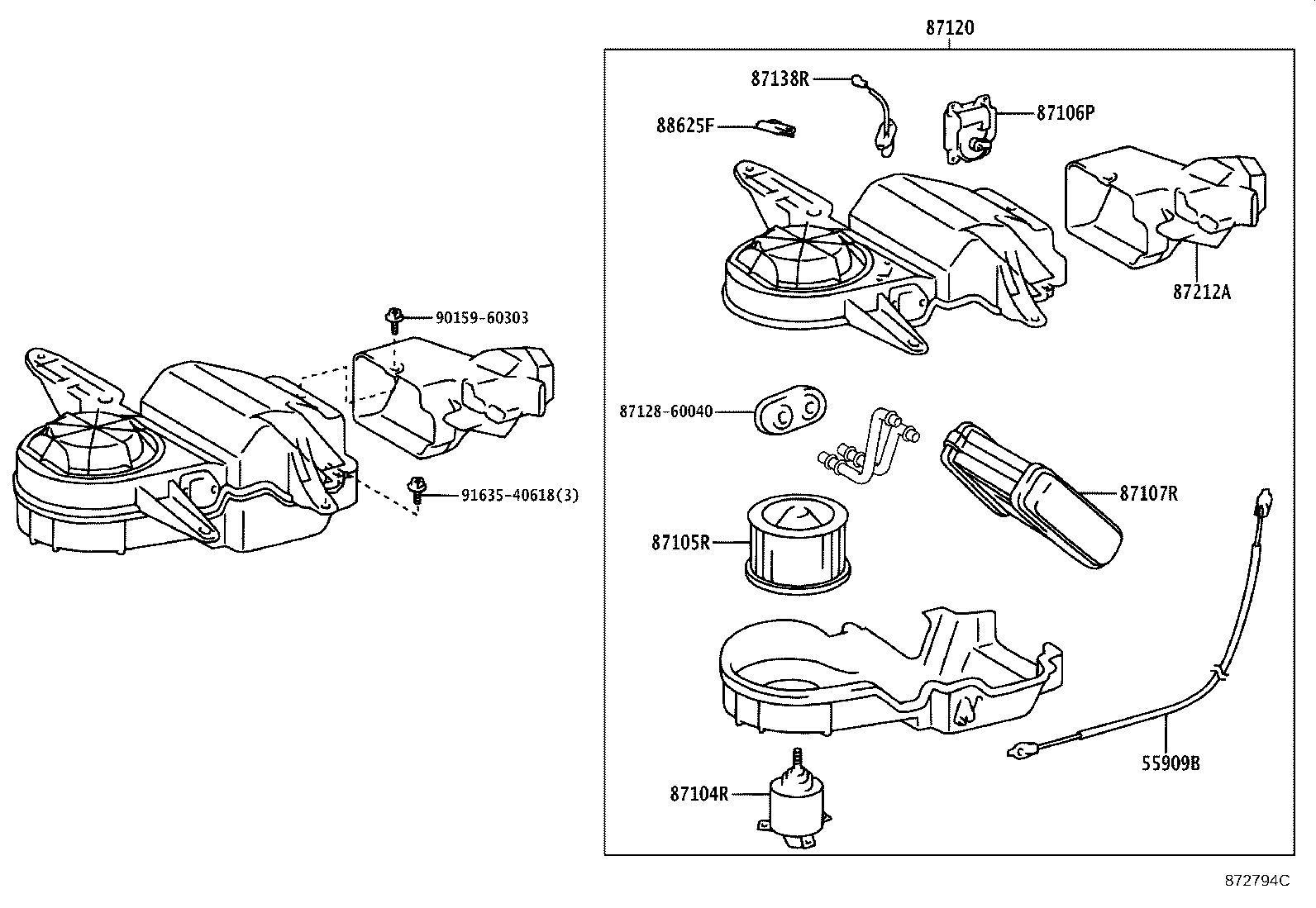

| 87120 | Heater Assy, Rear |
| 87120G | Heater Assy, Viscous W/Magnet Clutch |
| 87121A | Bracket, Heater |

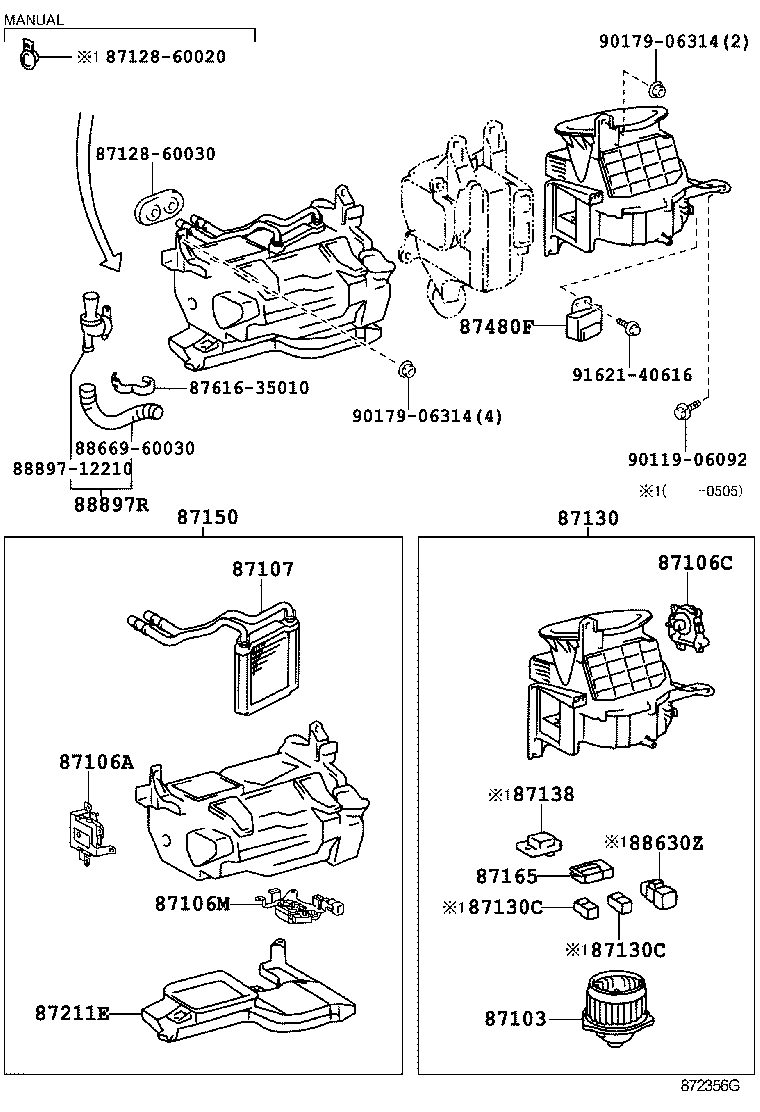

| 87130 | Blower Assy, Heater, Front |
| 87130C | Relay, Heater Blower Motor |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87165 | Control, Blower Motor, NO.1 |
| 87211E | Duct, Air |
| 87212A | Duct, Air, Rear NO.1 |
| 87452P | Bracket, Viscous Heater, NO.2 |
| 87480F | Amplifier Assy, Heater |
| 88431B | Bracket, Compressor Mounting |
| 88440F | Pulley Assy, Idle NO.1 |
| 88440G | Pulley Assy, Idle NO.2 |
| 88443A | Collar, Idle Pulley |
| 88444B | Bracket, Idle Pulley |
| 88446B | Bolt, Cooler |
| 88625F | Sensor, Temperature |
| 88630Z | Relay, Blower Extra High |
| 88897R | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
