Heating & Air Conditioning - Cooler Unit

44 part groups · 7 illustrations

Illustrations

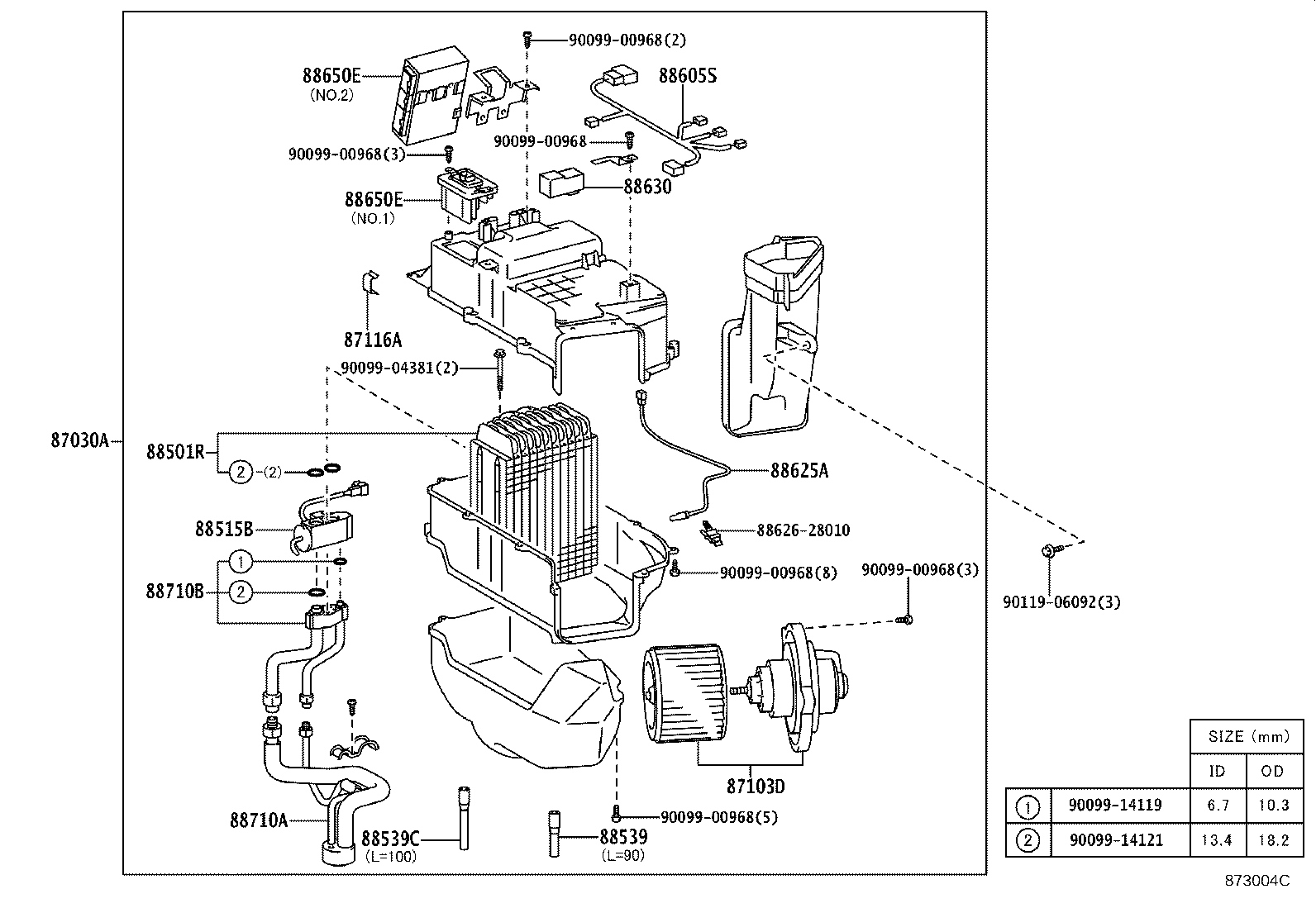

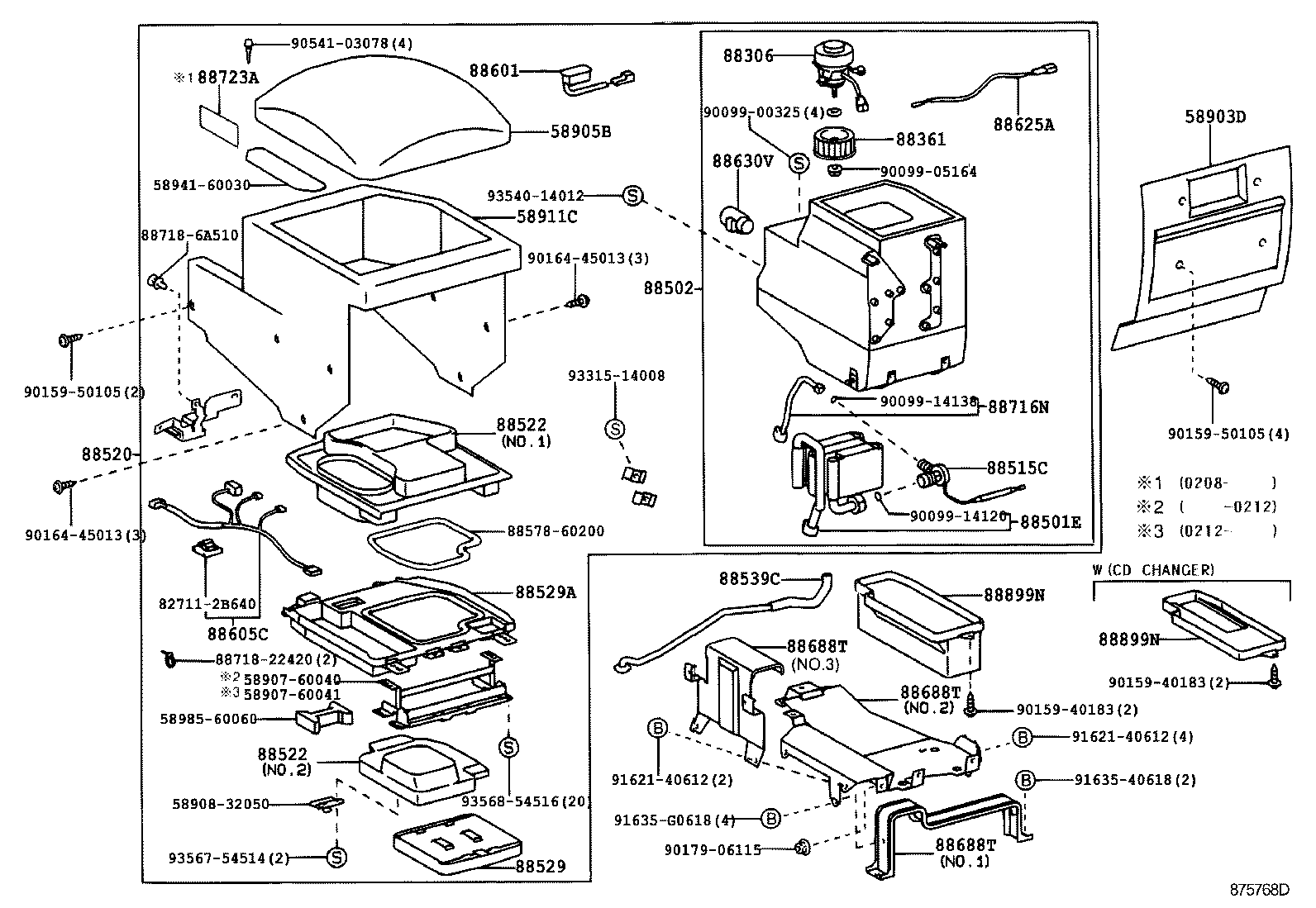

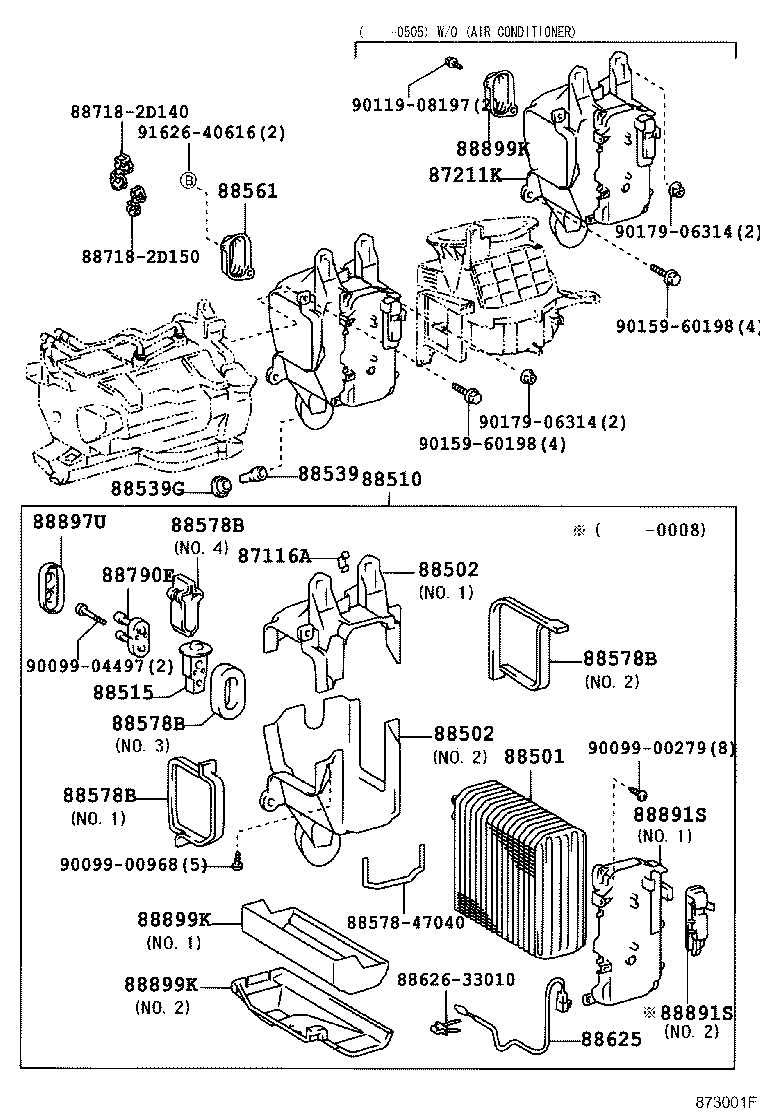

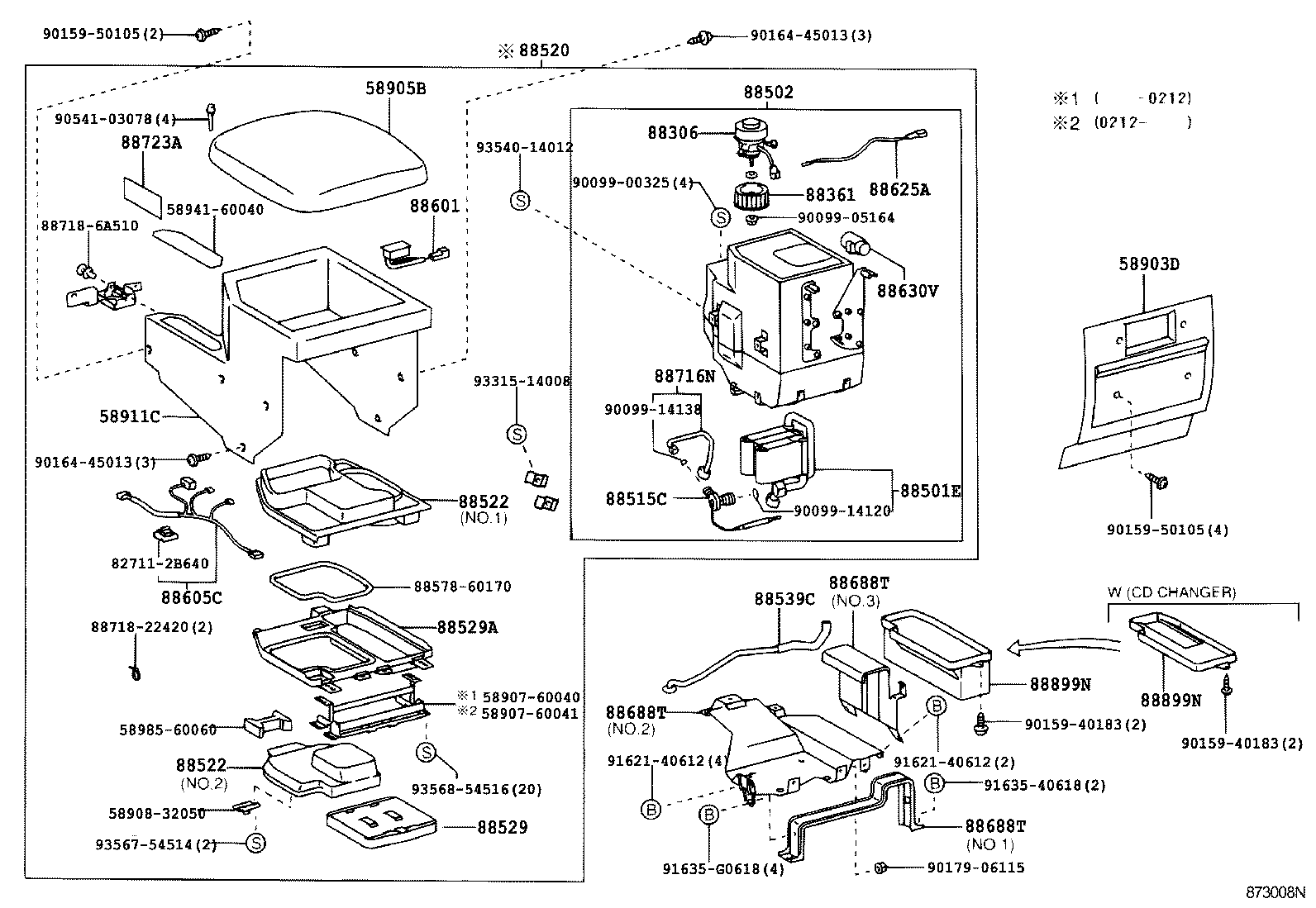

Figure 872999F 872999F 1998-01 → — Figure 873001F 873001F 1998-01 → — Figure 873004C 873004C 2000-01 → 2002-08 Figure 873004C 873004C 2002-08 → — Figure 875768D 875768D 2002-08 → — Figure 873008N 873008N 2000-01 → — Figure 873011B 873011B 1998-01 → —

Part groups

PNCDescription
58903D Panel Sub-assy, Console Rear End(FOR COOL BOX)
58905B Door Sub-assy, Console Compartment(FOR COOL BOX)
58911C Panel, Box, NO.1(FOR COOL BOX)
87030A Unit Assy, Cooling, Rear
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87116A Spring, Holding (FOR COOLER UNIT CASE)
87211K Duct, Air
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515C Valve, Cooling Box Expansion
88520 Box Assy, Cooling
88522 Door, Cooling Unit
88529 Tray, Cooling Box
88529A Tray, Cooling Box
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88561 Cover, Cooler Unit
88578B Packing, Cooling Unit, NO.1
88601 Switch Sub-assy, Cooler Control
88605C Harness Sub-assy, Cooler Wiring, NO.2
88605S Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88630 Relay Assy, Cooler
88630V Relay Assy
88650E Amplifier Assy, Air Conditioner, NO.1
88688T Bracket (FOR COOL BOX)
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88716N Pipe, Cooler Refrigerant Liquid, N
88723A Label, Cooler Service Caution
88790E Tube & Accessory Assy, Airconditioner
88891S Cover, Cooler, NO.1
88897U Pipe, Aspirator
88899K Plate, Cover
88899N Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
