Heating & Air Conditioning - Water Piping

21 part groups · 5 illustrations

Illustrations

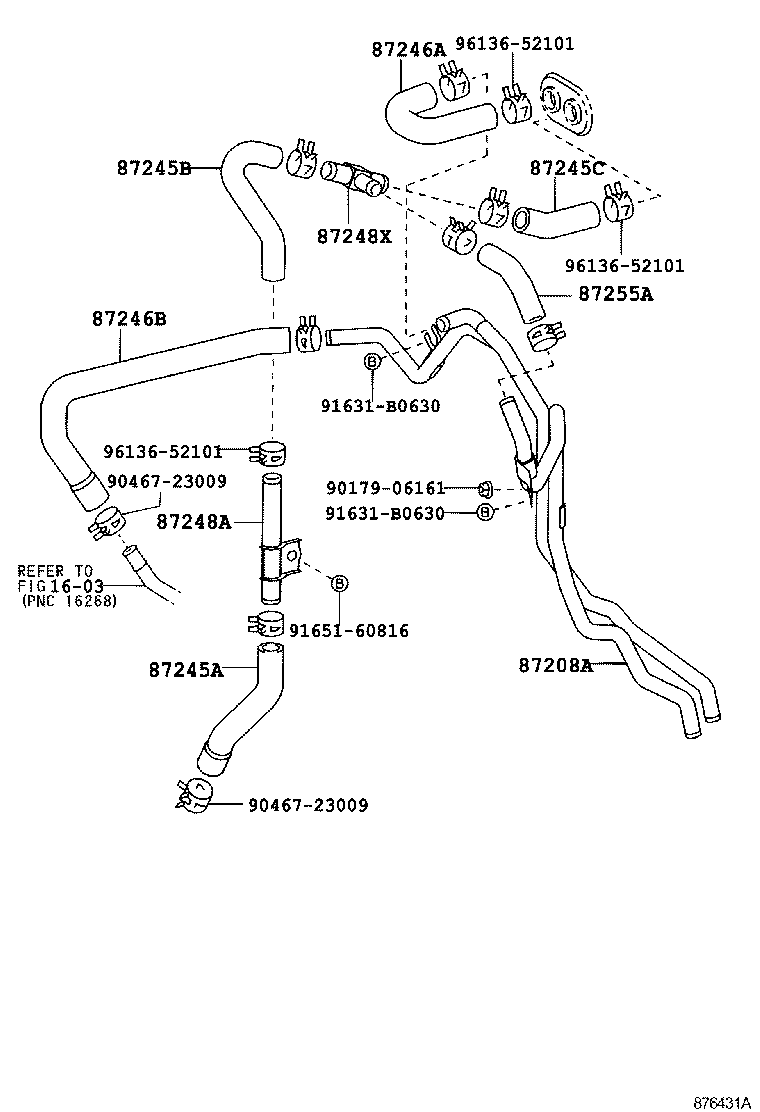

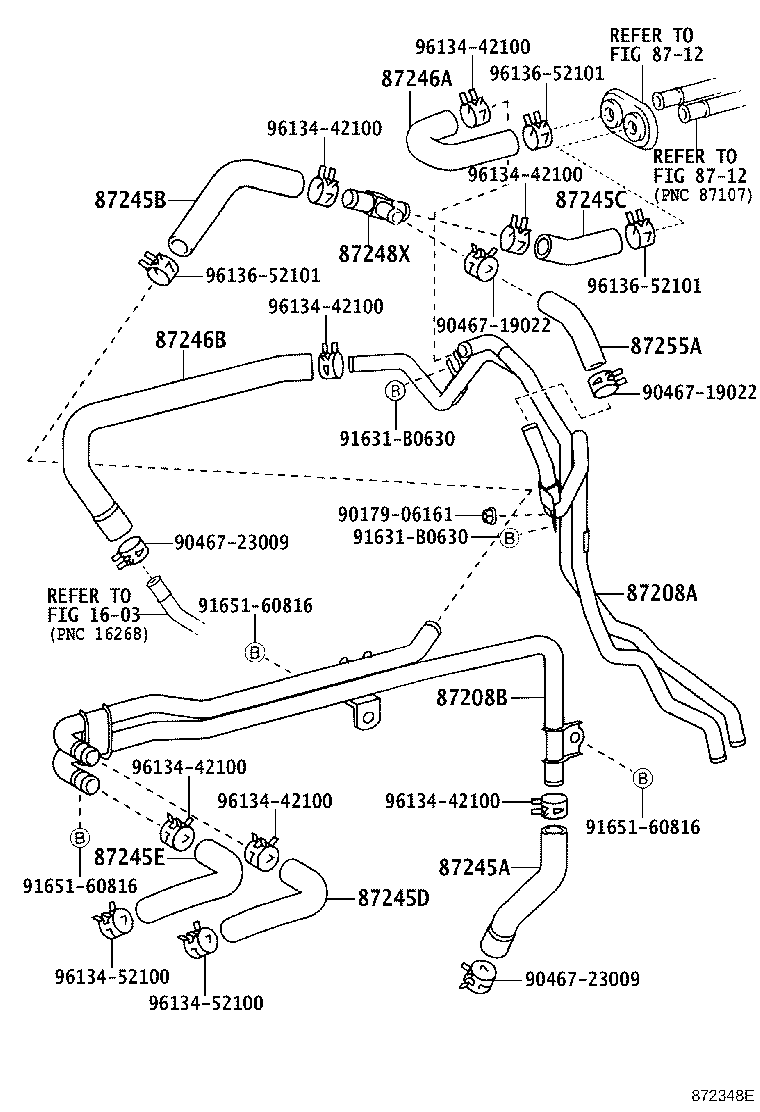

Figure 875687K 875687K 1998-01 → — Figure 872416C 872416C 1998-01 → — Figure 876431A 876431A 1998-01 → — Figure 872348E 872348E 1998-01 → — Figure 872871C 872871C 1998-01 → —

Part groups

PNCDescription
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248X Pipe, Heater Water
87248Y Pipe, Heater Water, NO.2
87249B Pipe, Heater Water Outlet, B
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
