Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08

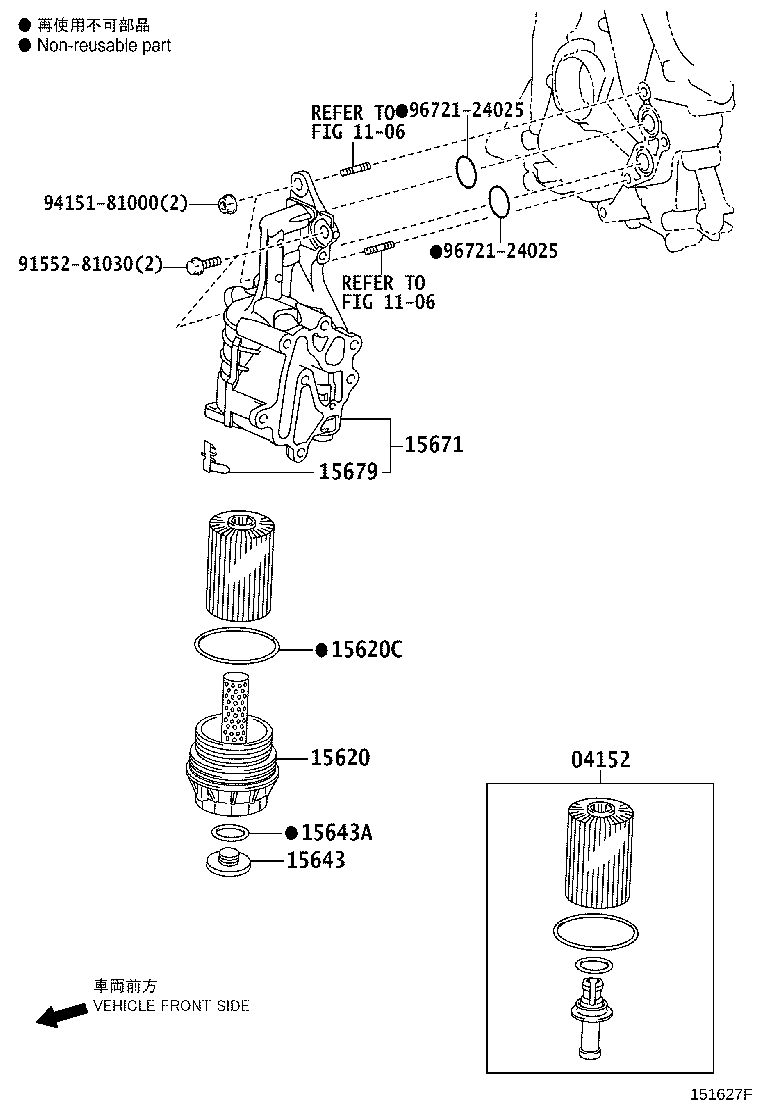

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-38020 |
Element Kit, Oil Filter
2007-09 → 2012-01
ended
|
1VDFTV VDJ200 | — | |
| 04152-38020 |
Element Kit, Oil Filter
2012-01 → 2015-08
ended
|
1VDFTV VDJ200 | — | |
| 04152-38020 |
Element Kit, Oil Filter
2012-01 → 2015-08
ended
|
1URFE URJ202 | — | |
| 04152-38020 |
Element Kit, Oil Filter
2015-08 → 2021-03
ended
|
1URFE URJ202 VXR;1URFE URJ202 +1 | — | |
| 04152-38020 |
Element Kit, Oil Filter
2015-08 → 2021-03
ended
|
1VDFTV VDJ200 RHD VX;1VDFTV +3 | — | |
| 04152-38020 |
Element Kit, Oil Filter
2015-08 → 2021-04
ended
|
1URFE URJ202 08S VX | — | |
| 04152-38020 |
Element Kit, Oil Filter
2015-08 → 2021-04
ended
|
1VDFTV VDJ200 05S;1VDFTV VDJ200 +2 | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-38010 |
Cap Assy, Oil Filter
2012-01 → 2015-08
ended
|
1URFE URJ202 | — | |
| 15620-38010 |
Cap Assy, Oil Filter
2015-08 → 2021-03
ended
|
1URFE URJ202 VXR;1URFE URJ202 +1 | — | |
| 15620-38010 |
Cap Assy, Oil Filter
2015-08 → 2021-04
ended
|
1URFE URJ202 08S VX | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2012-01 → 2015-08
ended
|
1URFE URJ202 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2015-08 → 2021-03
ended
|
1URFE URJ202 VXR;1URFE URJ202 +1 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2015-08 → 2021-04
ended
|
1URFE URJ202 08S VX | — | |
| 15643 — Plug, Oil Filter Drain | ||||
| 15643-31050 |
Plug, Oil Filter Drain
2007-09 → 2012-01
ended
|
1VDFTV VDJ200 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2012-01 → 2015-08
ended
|
1VDFTV VDJ200 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2012-01 → 2015-08
ended
|
1URFE URJ202 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2015-08 → 2021-04
ended
|
1VDFTV VDJ200 05S;1VDFTV VDJ200 +2 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2015-08 → 2021-03
ended
|
1VDFTV VDJ200 RHD VX;1VDFTV +3 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2015-08 → 2021-04
ended
|
1URFE URJ202 08S VX | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2015-08 → 2021-03
ended
|
1URFE URJ202 VXR;1URFE URJ202 +1 | — | |
| 15643A — Ring, O(FOR OIL FILTER DRAIN PLUG) | ||||
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2007-09 → 2012-01
ended
|
1VDFTV VDJ200 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2012-01 → 2015-08
ended
|
1VDFTV VDJ200 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2012-01 → 2015-08
ended
|
1URFE URJ202 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-08 → 2021-03
ended
|
1URFE URJ202 VXR;1URFE URJ202 +1 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-08 → 2021-03
ended
|
1VDFTV VDJ200 RHD VX;1VDFTV +3 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-08 → 2021-04
ended
|
1URFE URJ202 08S VX | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-08 → 2021-04
ended
|
1VDFTV VDJ200 05S;1VDFTV VDJ200 +2 | — | |
| 15671 — Bracket, Oil Filter | ||||
| 15670-38011 |
Bracket, Oil Filter
2012-01 → 2015-08
ended
|
1URFE URJ202 | — | |
| 15670-38011 |
Bracket, Oil Filter
2015-08 → 2021-03
ended
|
1URFE URJ202 VXR;1URFE URJ202 +1 | — | |
| 15670-38011 |
Bracket, Oil Filter
2015-08 → 2021-04
ended
|
1URFE URJ202 08S VX | — | |
| 15679 — Clip, Oil Filter Bracket | ||||
| 15679-37010 |
Clip, Oil Filter Bracket
2012-01 → 2015-08
ended
|
1URFE URJ202 | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2015-08 → 2015-09
ended
|
1URFE URJ202 | — | |
| 15679-37011 |
Clip, Oil Filter Bracket
2015-09 → 2021-03
ended
|
1URFE URJ202 VXR;1URFE URJ202 +1 | — | |
| 15679-37011 |
Clip, Oil Filter Bracket
2015-09 → 2021-04
ended
|
1URFE URJ202 08S VX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
