Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

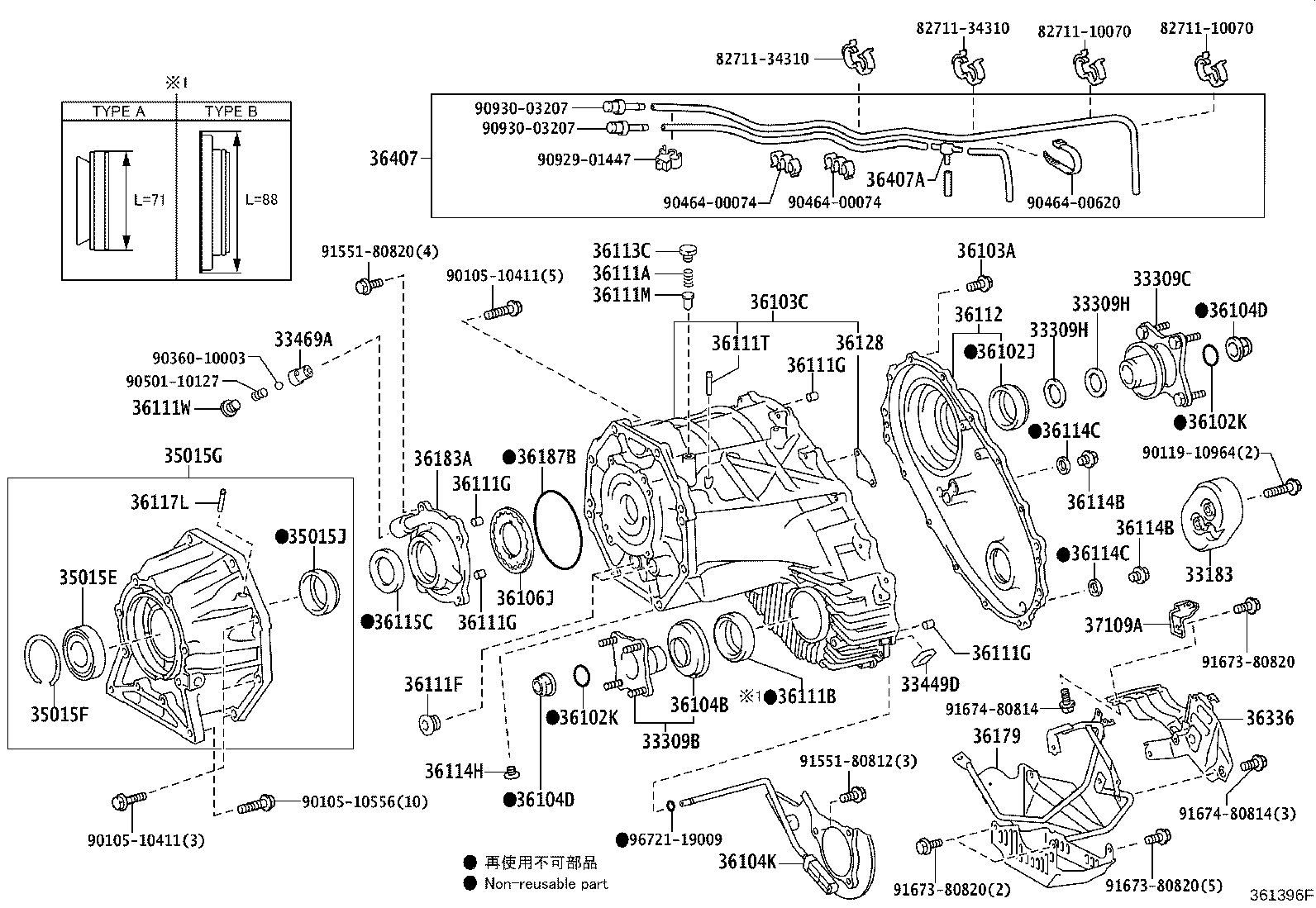

Exploded illustration 361396F 36115C — SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) (4 parts) 33449D — MAGNET (FOR TRANSFER CASE) (4 parts) 36103C — CASE, TRANSFER, FRONT (5 parts) 36128 — DEFLECTOR, BREATHER OIL (4 parts) 36111T — TUBE (FOR TRANSFER CASE) (4 parts) 36111B — SEAL, OIL (FOR TRANSFER CASE) (5 parts) 36104K — SEPARATOR SUB-ASSY, TRANSFER OIL (4 parts) 36112 — CASE, TRANSFER, REAR (6 parts) 36102J — SEAL, TYPE T OIL (FOR TRANSFER COVER) (4 parts) 36106J — ROTOR, TRANSFER OIL PUMP (4 parts) 33469A — SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING) (4 parts) 36183A — PLATE, TRANSFER OIL PUMP (4 parts) 36111W — PLUG, TIGHT NO.2(FOR TRANSFER CASE) (4 parts) 9036010003 — not listed in this catalogue 9050110127 — not listed in this catalogue 36111M — PIN, SLOTTED SPRING (FOR TRANSFER CASE) (4 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (4 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (4 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (4 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (4 parts) 36114H — PLUG, NO.2 (FOR TRANSFER CASE) (4 parts) 36113C — PLUG (FOR TRANSFER CASE) (4 parts) 36114B — PLUG, NO.1 (FOR TRANSFER CASE) (4 parts) 36114B — PLUG, NO.1 (FOR TRANSFER CASE) (4 parts) 36111F — PLUG (FOR TRANSFER CASE) (4 parts) 36114C — GASKET, NO.1 (FOR TRANSFER CASE) (4 parts) 36114C — GASKET, NO.1 (FOR TRANSFER CASE) (4 parts) 36111A — SPRING, COMPRESSION (FOR TRANSFER CASE) (4 parts) 36103A — BOLT (FOR TRANSFER CASE) (4 parts) 9155180812 — not listed in this catalogue 9167380820 — not listed in this catalogue 9167480814 — not listed in this catalogue 9167480814 — not listed in this catalogue 9167380820 — not listed in this catalogue 9155180820 — not listed in this catalogue 9672119009 — not listed in this catalogue 36187B — RING, O (FOR TRANSFER OIL STRAINER) (4 parts) 33309B — FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION (6 parts) 33309C — FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION (4 parts) 36104B — DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) (5 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (4 parts) 36102K — RING, O (4 parts) 33183 — DAMPER, TRANSFER DYNAMIC (4 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (4 parts) 36102K — RING, O (4 parts) 36179 — PROTECTOR, TRANSFER CASE LOWER (4 parts) 36336 — INSULATOR, TRANSFER HEAT (4 parts) 37109A — BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR (4 parts) 9167380820 — not listed in this catalogue 9011910964 — not listed in this catalogue 35015F — RING, HOLE SNAP(FOR TRANSFER ADAPTER) (4 parts) 35015E — BEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER) (5 parts) 36117L — TUBE(FOR TRANSFER ADAPTER) (4 parts) 35015J — SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR) (4 parts) 35015G — ADAPTER, TRANSFER, REAR (5 parts) 9010510556 — not listed in this catalogue 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (8 parts) 36407A — WAY, 3(FOR TRANSFER BREATHER HOSE) (4 parts) 9046400074 — not listed in this catalogue 9046400074 — not listed in this catalogue 9046400620 — not listed in this catalogue 9092901447 — not listed in this catalogue 9093003207 — not listed in this catalogue 9093003207 — not listed in this catalogue 8271110070 — not listed in this catalogue 8271110070 — not listed in this catalogue 8271134310 — not listed in this catalogue 8271134310 — not listed in this catalogue 33309H — WASHER, TRANSFER OUTPUT SHAFT (4 parts) 33309H — WASHER, TRANSFER OUTPUT SHAFT (4 parts) 9010510411 — not listed in this catalogue 9010510411 — not listed in this catalogue
361396F · 48 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
173 parts on this figure
Part number Description Fitment Price
33183 — Damper, Transfer Dynamic
33183-60060 Damper, Transfer Dynamic
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
33183-60060 Damper, Transfer Dynamic
2012-01 → 2015-08 ended
URJ202,VDJ200 —
33183-60060 Damper, Transfer Dynamic
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
33183-60060 Damper, Transfer Dynamic
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
33309B — Flange Sub-assy, Output Shaft Companion
33309-34020 Flange Sub-assy, Output Shaft Companion
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
33309-34020 note Flange Sub-assy, Output Shaft Companion
2012-01 → 2015-02 ended
URJ202,VDJ200 —
33309-34030 note Flange Sub-assy, Output Shaft Companion
2015-02 → 2015-08 ended
URJ202,VDJ200 —
33309-34030 Flange Sub-assy, Output Shaft Companion
2015-08 → 2018-11 ended
URJ202,VDJ200 —
33309-34031 Flange Sub-assy, Output Shaft Companion
2018-11 → 2021-03 ended
URJ202,VDJ200 —
33309-60170 Flange Sub-assy, Output Shaft Companion
2021-03 → 2021-04 ended
VDJ200 05S;URJ202 08S VX —
33309C — Flange Sub-assy, Output Shaft Companion
33309-60110 Flange Sub-assy, Output Shaft Companion
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
33309-60110 Flange Sub-assy, Output Shaft Companion
2012-01 → 2015-08 ended
URJ202,VDJ200 —
33309-60110 Flange Sub-assy, Output Shaft Companion
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
33309-60110 Flange Sub-assy, Output Shaft Companion
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
33309H — Washer, Transfer Output Shaft
36275-34010 note Washer, Transfer Output Shaft
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
36275-34010 note Washer, Transfer Output Shaft
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36275-34010 note Washer, Transfer Output Shaft
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36275-34010 note Washer, Transfer Output Shaft
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
33449D — Magnet (FOR TRANSFER CASE)
33449-60010 Magnet (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
33449-60010 Magnet (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
33449-60010 Magnet (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
33449-60010 Magnet (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
33469A — Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
33469-60020 Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
33469-60020 Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
33469-60020 Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
33469-60020 Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
35015E — Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER)
90363-35067 Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER)
2007-09 → 2012-01 ended
UZJ200 —
90363-40084 Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER)
2007-09 → 2012-01 ended
VDJ200 —
90363-40084 Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90363-40084 Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90363-40084 Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
35015F — Ring, Hole Snap(FOR TRANSFER ADAPTER)
90521-80004 Ring, Hole Snap(FOR TRANSFER ADAPTER)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90521-80004 Ring, Hole Snap(FOR TRANSFER ADAPTER)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90521-80004 Ring, Hole Snap(FOR TRANSFER ADAPTER)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90521-80004 Ring, Hole Snap(FOR TRANSFER ADAPTER)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
35015G — Adapter, Transfer, Rear
35015-60200 Adapter, Transfer, Rear
2007-09 → 2012-01 ended
UZJ200 —
35015-60210 Adapter, Transfer, Rear
2007-09 → 2012-01 ended
VDJ200 —
35015-60210 Adapter, Transfer, Rear
2012-01 → 2015-08 ended
URJ202,VDJ200 —
35015-60210 Adapter, Transfer, Rear
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
35015-60210 Adapter, Transfer, Rear
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
35015J — Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
90311-51008 Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90311-51008 Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90311-51008 Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90311-51008 Seal, Oil(FOR TRANSFER CASE ADAPTER REAR)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36102J — Seal, Type T Oil (FOR TRANSFER COVER)
90311-50040 Seal, Type T Oil (FOR TRANSFER COVER)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90311-50040 Seal, Type T Oil (FOR TRANSFER COVER)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90311-50040 Seal, Type T Oil (FOR TRANSFER COVER)
2015-08 → 2021-02 ended
URJ202,VDJ200 —
90311-50065 Seal, Type T Oil (FOR TRANSFER COVER)
2021-03 → 2021-04 ended
VDJ200 05S;URJ202 08S VX —
36102K — Ring, O
90301-31003 Ring, O
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90301-31003 Ring, O
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90301-31003 Ring, O
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90301-31003 Ring, O
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36103A — Bolt (FOR TRANSFER CASE)
91551-00845 note Bolt (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
91551-00845 note Bolt (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
91551-00845 note Bolt (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
91551-00845 note Bolt (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36103C — Case, Transfer, Front
36103-60360 Case, Transfer, Front
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
36103-60360 Case, Transfer, Front
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36103-60360 Case, Transfer, Front
2015-08 → 2019-05 ended
URJ202,VDJ200 —
36103-60361 Case, Transfer, Front
2019-05 → 2021-03 ended
VDJ200 08S;URJ202 VXR;URJ202 05S —
36103-60361 Case, Transfer, Front
2019-05 → 2021-04 ended
VDJ200 05S;URJ202 08S VX —
36104B — Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
33325-34020 Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
33325-34020 note Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2012-01 → 2015-02 ended
URJ202,VDJ200 —
33325-34030 note Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2015-02 → 2015-08 ended
URJ202,VDJ200 —
33325-34030 Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2015-08 → 2018-11 ended
URJ202,VDJ200 —
33325-34031 Deflector, Dust (FOR TRANSFER OUTPUT SHAFT)
2018-11 → 2021-03 ended
URJ202,VDJ200 —
36104D — Nut (FOR TRANSFER OUTPUT SHAFT)
90179-24011 Nut (FOR TRANSFER OUTPUT SHAFT)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90179-24011 Nut (FOR TRANSFER OUTPUT SHAFT)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90179-24011 Nut (FOR TRANSFER OUTPUT SHAFT)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90179-24011 Nut (FOR TRANSFER OUTPUT SHAFT)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36104K — Separator Sub-assy, Transfer Oil
36104-34010 Separator Sub-assy, Transfer Oil
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
36104-34010 Separator Sub-assy, Transfer Oil
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36104-34010 Separator Sub-assy, Transfer Oil
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36104-34010 Separator Sub-assy, Transfer Oil
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36106J — Rotor, Transfer Oil Pump
36106-34010 Rotor, Transfer Oil Pump
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
36106-34010 Rotor, Transfer Oil Pump
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36106-34010 Rotor, Transfer Oil Pump
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36106-34010 Rotor, Transfer Oil Pump
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36111A — Spring, Compression (FOR TRANSFER CASE)
90501-20091 Spring, Compression (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90501-20091 Spring, Compression (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90501-20091 Spring, Compression (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90501-20091 Spring, Compression (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36111B — Seal, Oil (FOR TRANSFER CASE)
90311-50039 Seal, Oil (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90311-50039 note Seal, Oil (FOR TRANSFER CASE)
2012-01 → 2015-02 ended
URJ202,VDJ200 —
90311-50055 note Seal, Oil (FOR TRANSFER CASE)
2015-02 → 2015-08 ended
URJ202,VDJ200 —
90311-50055 Seal, Oil (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202,VDJ200 —
90311-50066 Seal, Oil (FOR TRANSFER CASE)
2021-03 → 2021-04 ended
VDJ200 05S;URJ202 08S VX —
36111F — Plug (FOR TRANSFER CASE)
90341-24006 Plug (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90341-24006 Plug (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90341-24006 Plug (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
90341-24006 Plug (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36111G — Pin, Straight (FOR TRANSFER CASE)
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36111M — Pin, Slotted Spring (FOR TRANSFER CASE)
90241-07003 Pin, Slotted Spring (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90241-07003 Pin, Slotted Spring (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90241-07003 Pin, Slotted Spring (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90241-07003 Pin, Slotted Spring (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36111T — Tube (FOR TRANSFER CASE)
90441-05001 Tube (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90441-05001 Tube (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90441-05001 Tube (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90441-05001 Tube (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36111W — Plug, Tight NO.2(FOR TRANSFER CASE)
90341-18039 Plug, Tight NO.2(FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90341-18039 Plug, Tight NO.2(FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90341-18039 Plug, Tight NO.2(FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90341-18039 Plug, Tight NO.2(FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36112 — Case, Transfer, Rear
36104-60051 Case, Transfer, Rear
2007-09 → 2010-09 ended
UZJ200,VDJ200 —
36104-60052 Case, Transfer, Rear
2010-09 → 2012-01 ended
UZJ200,VDJ200 —
36104-60052 Case, Transfer, Rear
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36104-60052 Case, Transfer, Rear
2015-08 → 2019-05 ended
URJ202,VDJ200 —
36104-60053 Case, Transfer, Rear
2019-05 → 2021-04 ended
VDJ200 05S;URJ202 08S VX —
36104-60053 Case, Transfer, Rear
2019-05 → 2021-03 ended
VDJ200 08S;URJ202 VXR;URJ202 05S —
36113C — Plug (FOR TRANSFER CASE)
90341-14012 Plug (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90341-14012 Plug (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90341-14012 Plug (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90341-14012 Plug (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36114B — Plug, NO.1 (FOR TRANSFER CASE)
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90341-18006 Plug, NO.1 (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36114C — Gasket, NO.1 (FOR TRANSFER CASE)
90430-18008 Gasket, NO.1 (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90430-18008 Gasket, NO.1 (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90430-18008 Gasket, NO.1 (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90430-18008 Gasket, NO.1 (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36114H — Plug, NO.2 (FOR TRANSFER CASE)
90341-14008 Plug, NO.2 (FOR TRANSFER CASE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90341-14008 Plug, NO.2 (FOR TRANSFER CASE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90341-14008 Plug, NO.2 (FOR TRANSFER CASE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90341-14008 Plug, NO.2 (FOR TRANSFER CASE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36115C — Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
90311-51009 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90311-51009 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90311-51009 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
90311-51009 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36117L — Tube(FOR TRANSFER ADAPTER)
90441-05001 Tube(FOR TRANSFER ADAPTER)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90441-05001 Tube(FOR TRANSFER ADAPTER)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36128 — Deflector, Breather Oil
36128-34010 Deflector, Breather Oil
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
36128-34010 Deflector, Breather Oil
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36128-34010 note Deflector, Breather Oil
2015-08 → 2021-03 ended
URJ202,VDJ200 —
36128-60080 note Deflector, Breather Oil
2021-03 → 2021-04 ended
VDJ200 05S;URJ202 08S VX —
36179 — Protector, Transfer Case Lower
36179-60010 Protector, Transfer Case Lower
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
36179-60010 Protector, Transfer Case Lower
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36179-60010 Protector, Transfer Case Lower
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36179-60010 Protector, Transfer Case Lower
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36183A — Plate, Transfer Oil Pump
36183-34011 Plate, Transfer Oil Pump
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
36183-34011 Plate, Transfer Oil Pump
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36183-34011 Plate, Transfer Oil Pump
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36183-34011 Plate, Transfer Oil Pump
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36187B — Ring, O (FOR TRANSFER OIL STRAINER)
96721-31130 Ring, O (FOR TRANSFER OIL STRAINER)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
96721-31130 Ring, O (FOR TRANSFER OIL STRAINER)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
96721-31130 Ring, O (FOR TRANSFER OIL STRAINER)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
96721-31130 Ring, O (FOR TRANSFER OIL STRAINER)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36336 — Insulator, Transfer Heat
36336-60030 Insulator, Transfer Heat
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
36336-60030 Insulator, Transfer Heat
2012-01 → 2015-08 ended
URJ202,VDJ200 —
36336-60030 Insulator, Transfer Heat
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
36336-60030 Insulator, Transfer Heat
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
36407 — Hose Sub-assy, Transfer Breather
36407-60180 Hose Sub-assy, Transfer Breather
2007-09 → 2012-01 ended
UZJ200 —
36407-60200 Hose Sub-assy, Transfer Breather
2007-09 → 2012-01 ended
VDJ200 —
36407-60200 Hose Sub-assy, Transfer Breather
2012-01 → 2015-08 ended
VDJ200 —
36407-60290 Hose Sub-assy, Transfer Breather
2012-01 → 2015-08 ended
URJ202 —
36407-60290 Hose Sub-assy, Transfer Breather
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S —
36407-60290 Hose Sub-assy, Transfer Breather
2015-08 → 2021-04 ended
URJ202 08S VX —
36407-60370 Hose Sub-assy, Transfer Breather
2015-08 → 2021-03 ended
VDJ200 RHD VX;VDJ200 LHD +1 —
36407-60370 Hose Sub-assy, Transfer Breather
2015-08 → 2021-04 ended
VDJ200 05S;VDJ200 RHD VXR —
36407A — Way, 3(FOR TRANSFER BREATHER HOSE)
90413-04001 Way, 3(FOR TRANSFER BREATHER HOSE)
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
90413-04001 Way, 3(FOR TRANSFER BREATHER HOSE)
2012-01 → 2015-08 ended
URJ202,VDJ200 —
90413-04001 Way, 3(FOR TRANSFER BREATHER HOSE)
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
90413-04001 Way, 3(FOR TRANSFER BREATHER HOSE)
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
37109A — Bracket Sub-assy, Propeller Shaft Heat Insulator
37109-60080 Bracket Sub-assy, Propeller Shaft Heat Insulator
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
37109-60080 Bracket Sub-assy, Propeller Shaft Heat Insulator
2012-01 → 2015-08 ended
URJ202,VDJ200 —
37109-60080 Bracket Sub-assy, Propeller Shaft Heat Insulator
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
37109-60080 Bracket Sub-assy, Propeller Shaft Heat Insulator
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
