Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

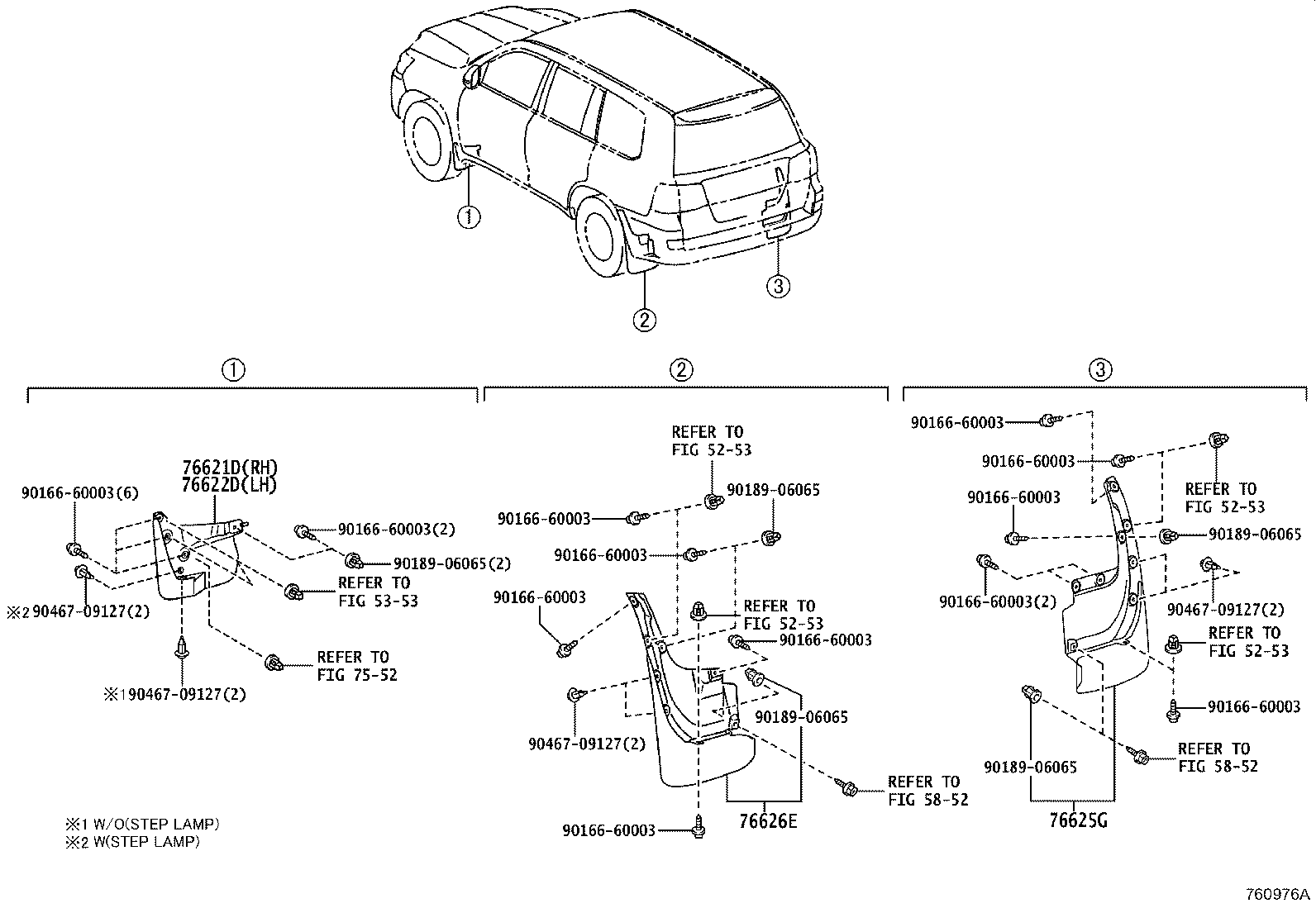

Exploded illustration 760976A 9046709127 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 9018906065 — not listed in this catalogue 76621D — MUDGUARD, FRONT FENDER, RH (31 parts) 76622D — MUDGUARD, FRONT FENDER, LH (31 parts) 5353 — not listed in this catalogue 7552 — not listed in this catalogue 9046709127 — not listed in this catalogue 5253 — not listed in this catalogue 5253 — not listed in this catalogue 9046709127 — not listed in this catalogue 9046709127 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 5253 — not listed in this catalogue 5253 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 9016660003 — not listed in this catalogue 9018906065 — not listed in this catalogue 9018906065 — not listed in this catalogue 9018906065 — not listed in this catalogue 9018906065 — not listed in this catalogue 76626E — MUDGUARD, QUARTER PANEL, REAR LH (4 parts) 76625G — MUDGUARD, QUARTER PANEL, REAR RH (4 parts) 5852 — not listed in this catalogue 5852 — not listed in this catalogue
760976A · 4 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
76621D — Mudguard, Front Fender, RH
76621-60150 Mudguard, Front Fender, RH
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
76621-60150 Mudguard, Front Fender, RH
2012-01 → 2015-08 ended
URJ202,VDJ200 —
76621-60160 note Mudguard, Front Fender, RH
2013-01 → 2015-08 ended
URJ202,VDJ200 LHD —
76621-60150 note Mudguard, Front Fender, RH
2019-08 → 2021-03 ended
URJ202 05S —
76621-60150 note Mudguard, Front Fender, RH
2019-08 → 2021-03 ended
URJ202 VXR;URJ202 05S —
76621-60150 Mudguard, Front Fender, RH
2015-08 → 2021-04 ended
VDJ200 05S;VDJ200 RHD VXR —
76621-60150 Mudguard, Front Fender, RH
2015-08 → 2021-03 ended
VDJ200 RHD VX;VDJ200 LHD +1 —
76621-60150 note Mudguard, Front Fender, RH
2019-08 → 2021-04 ended
URJ202 08S VX —
76621-60150 Mudguard, Front Fender, RH
2015-08 → 2019-08 ended
URJ202 —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2021-04 ended
VDJ200 05S VXR —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2021-04 ended
VDJ200 05S VXR —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2021-04 ended
VDJ200 05S VXR —
76621-60160 note Mudguard, Front Fender, RH
2017-11 → 2021-04 ended
VDJ200 05S VXR —
76621-60160 note Mudguard, Front Fender, RH
2017-11 → 2021-04 ended
VDJ200 05S VXR —
76621-60160 note Mudguard, Front Fender, RH
2015-08 → 2021-04 ended
VDJ200 05S VX —
76621-60160 Mudguard, Front Fender, RH
2019-08 → 2021-03 ended
URJ202 VXR;URJ202 05S —
76621-60160 Mudguard, Front Fender, RH
2019-08 → 2021-04 ended
URJ202 08S VX —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2021-04 ended
VDJ200 05S VXR —
76621-60160 note Mudguard, Front Fender, RH
2017-11 → 2021-03 ended
VDJ200 08S VXR —
76621-60160 note Mudguard, Front Fender, RH
2015-08 → 2017-11 ended
URJ202,VDJ200 LHD VXR —
76621-60160 note Mudguard, Front Fender, RH
2015-08 → 2017-11 ended
URJ202,VDJ200 LHD VXR —
76621-60160 note Mudguard, Front Fender, RH
2015-08 → 2019-08 ended
URJ202 VX —
76621-60160 note Mudguard, Front Fender, RH
2017-11 → 2019-08 ended
URJ202 VXR —
76621-60160 note Mudguard, Front Fender, RH
2017-11 → 2019-08 ended
URJ202 VXR —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2019-08 ended
URJ202 VXR —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2021-03 ended
VDJ200 08S VXR —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2019-08 ended
URJ202 VXR —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2019-08 ended
URJ202 VXR —
76621-60160 note Mudguard, Front Fender, RH
2018-08 → 2019-08 ended
URJ202 VXR —
76621-60160 note Mudguard, Front Fender, RH
2015-08 → 2021-03 ended
VDJ200 LHD 08S VX —
76621-60160 note Mudguard, Front Fender, RH
2017-11 → 2021-03 ended
VDJ200 08S VXR —
76622D — Mudguard, Front Fender, LH
76622-60120 Mudguard, Front Fender, LH
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
76622-60120 Mudguard, Front Fender, LH
2012-01 → 2015-08 ended
URJ202,VDJ200 —
76622-60130 note Mudguard, Front Fender, LH
2013-01 → 2015-08 ended
URJ202,VDJ200 LHD —
76622-60120 note Mudguard, Front Fender, LH
2019-08 → 2021-03 ended
URJ202 VXR;URJ202 05S —
76622-60120 note Mudguard, Front Fender, LH
2019-08 → 2021-03 ended
URJ202 05S —
76622-60120 Mudguard, Front Fender, LH
2015-08 → 2021-04 ended
VDJ200 05S;VDJ200 RHD VXR —
76622-60120 Mudguard, Front Fender, LH
2015-08 → 2021-03 ended
VDJ200 RHD VX;VDJ200 LHD +1 —
76622-60120 note Mudguard, Front Fender, LH
2019-08 → 2021-04 ended
URJ202 08S VX —
76622-60120 Mudguard, Front Fender, LH
2015-08 → 2019-08 ended
URJ202 —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2021-04 ended
VDJ200 05S VXR —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2021-04 ended
VDJ200 05S VXR —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2021-04 ended
VDJ200 05S VXR —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2021-04 ended
VDJ200 05S VXR —
76622-60130 note Mudguard, Front Fender, LH
2017-11 → 2021-04 ended
VDJ200 05S VXR —
76622-60130 note Mudguard, Front Fender, LH
2017-11 → 2021-04 ended
VDJ200 05S VXR —
76622-60130 note Mudguard, Front Fender, LH
2015-08 → 2021-04 ended
VDJ200 05S VX —
76622-60130 Mudguard, Front Fender, LH
2019-08 → 2021-03 ended
URJ202 VXR;URJ202 05S —
76622-60130 Mudguard, Front Fender, LH
2019-08 → 2021-04 ended
URJ202 08S VX —
76622-60130 note Mudguard, Front Fender, LH
2015-08 → 2017-11 ended
URJ202,VDJ200 LHD VXR —
76622-60130 note Mudguard, Front Fender, LH
2017-11 → 2021-03 ended
VDJ200 08S VXR —
76622-60130 note Mudguard, Front Fender, LH
2015-08 → 2017-11 ended
URJ202,VDJ200 LHD VXR —
76622-60130 note Mudguard, Front Fender, LH
2015-08 → 2019-08 ended
URJ202 VX —
76622-60130 note Mudguard, Front Fender, LH
2017-11 → 2019-08 ended
URJ202 VXR —
76622-60130 note Mudguard, Front Fender, LH
2017-11 → 2019-08 ended
URJ202 VXR —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2019-08 ended
URJ202 VXR —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2019-08 ended
URJ202 VXR —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2019-08 ended
URJ202 VXR —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2019-08 ended
URJ202 VXR —
76622-60130 note Mudguard, Front Fender, LH
2015-08 → 2021-03 ended
VDJ200 LHD 08S VX —
76622-60130 note Mudguard, Front Fender, LH
2017-11 → 2021-03 ended
VDJ200 08S VXR —
76622-60130 note Mudguard, Front Fender, LH
2018-08 → 2021-03 ended
VDJ200 08S VXR —
76625G — Mudguard, Quarter Panel, Rear RH
76625-60240 Mudguard, Quarter Panel, Rear RH
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
76625-60240 Mudguard, Quarter Panel, Rear RH
2012-01 → 2015-08 ended
URJ202,VDJ200 —
76625-60350 Mudguard, Quarter Panel, Rear RH
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
76625-60350 Mudguard, Quarter Panel, Rear RH
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
76626E — Mudguard, Quarter Panel, Rear LH
76626-60240 Mudguard, Quarter Panel, Rear LH
2007-09 → 2012-01 ended
UZJ200,VDJ200 —
76626-60240 Mudguard, Quarter Panel, Rear LH
2012-01 → 2015-08 ended
URJ202,VDJ200 —
76626-60350 Mudguard, Quarter Panel, Rear LH
2015-08 → 2021-03 ended
URJ202 VXR;URJ202 05S;VDJ200 RHD +3 —
76626-60350 Mudguard, Quarter Panel, Rear LH
2015-08 → 2021-04 ended
VDJ200 05S;URJ202 08S VX;VDJ200 +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
