Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

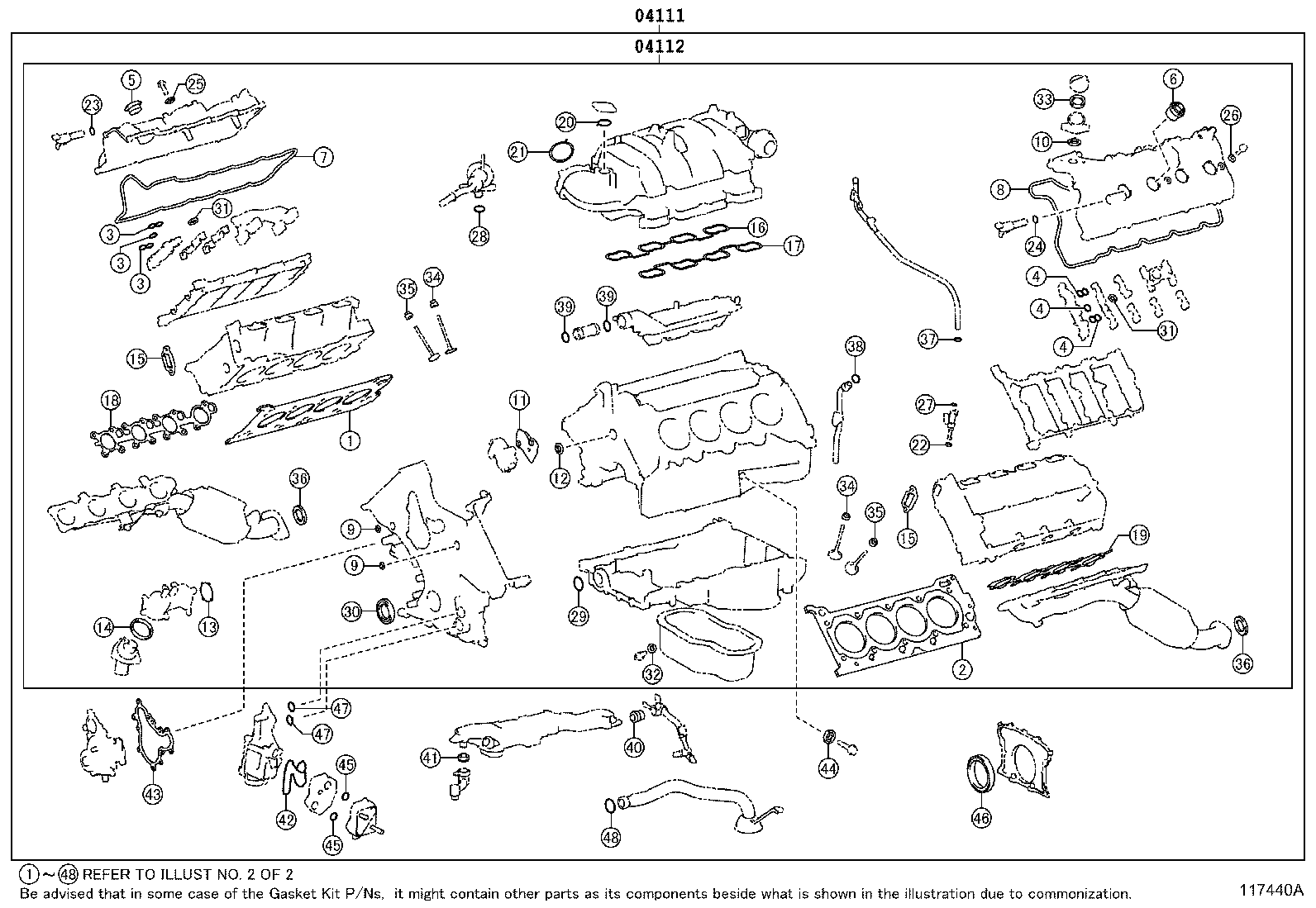

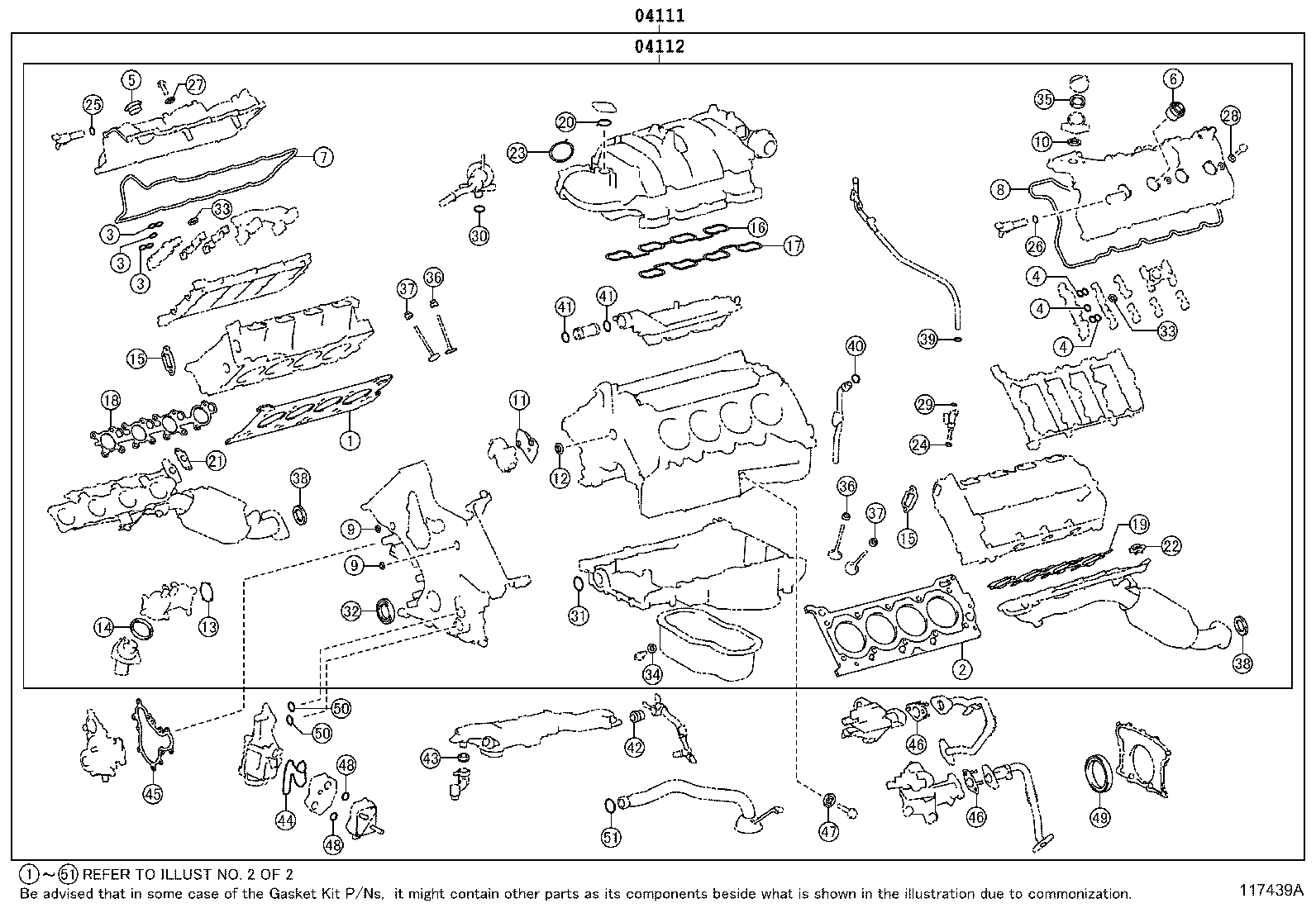

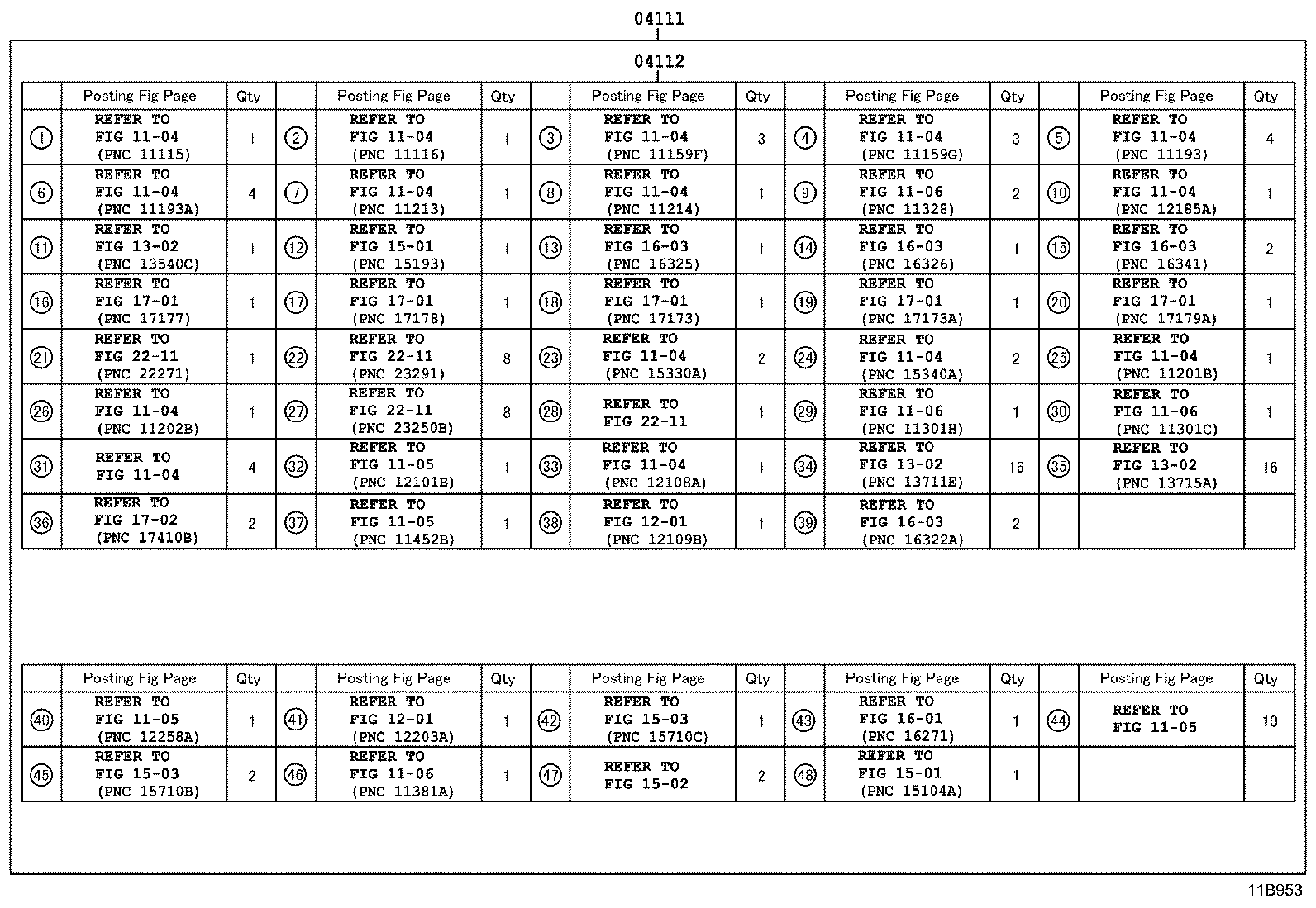

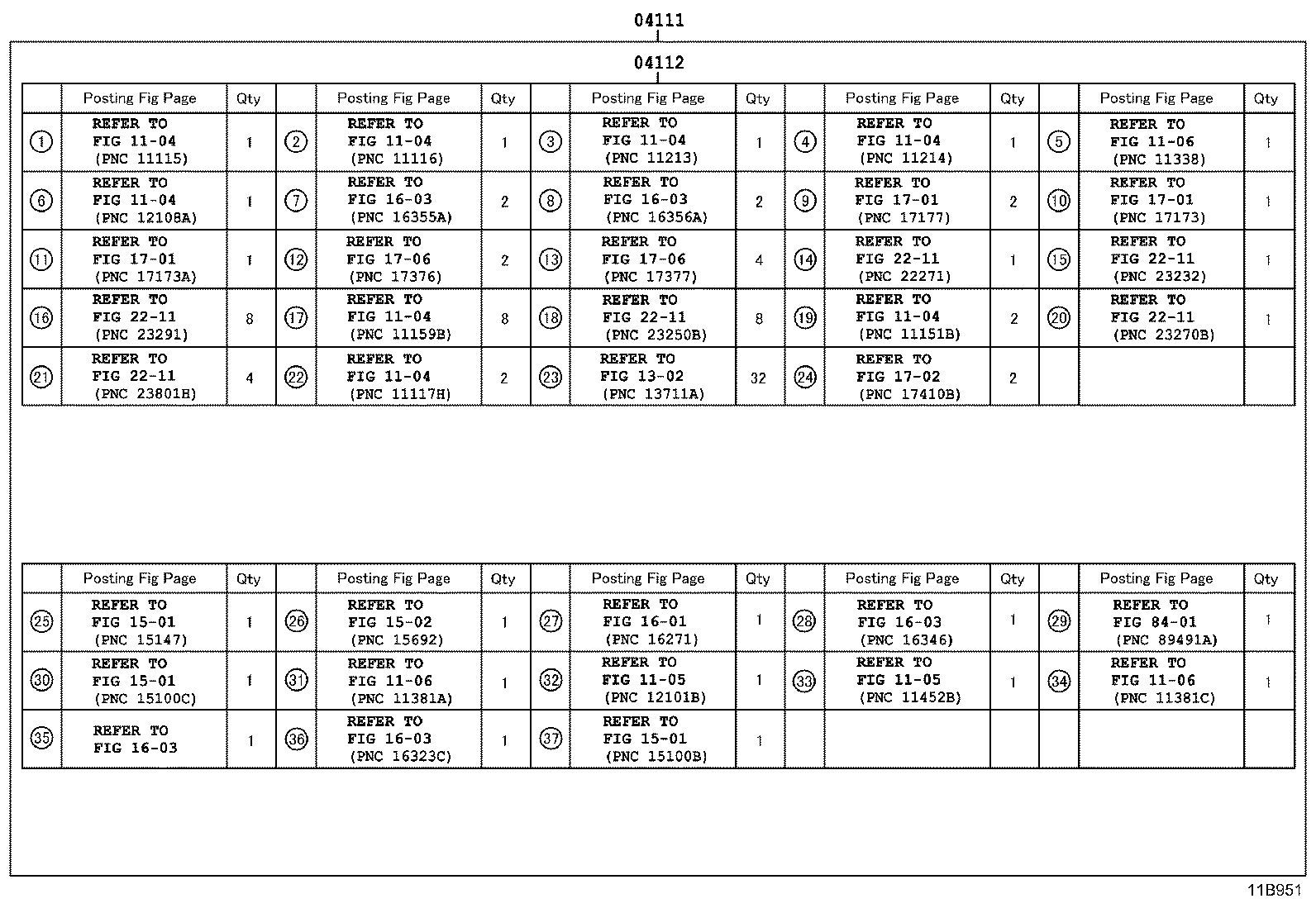

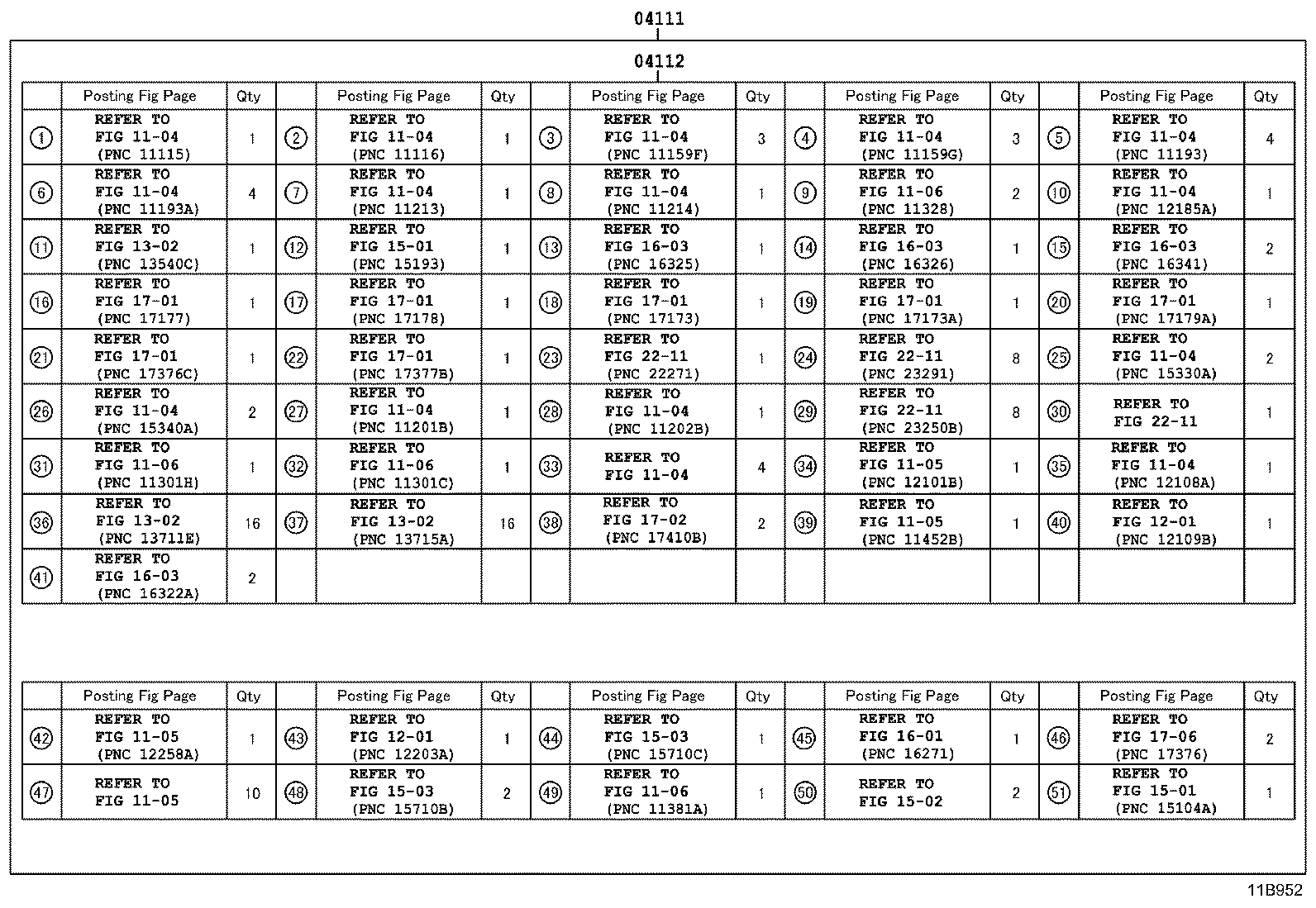

Figure 115111A 115111A 2007-09 → 2012-01 Figure 11B951 11B951 2007-09 → 2012-01 Figure 117439A 117439A 2012-01 → — Figure 11B952 11B952 2012-01 → — Figure 117440A 117440A 2012-01 → — Figure 11B953 11B953 2012-01 → — Figure 115091B 115091B 2007-09 → — Figure 11C092 11C092 2012-01 → — Figure 117427A 117427A 2012-01 → — Figure 11C093 11C093 2012-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
