Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08
Cylinder Head

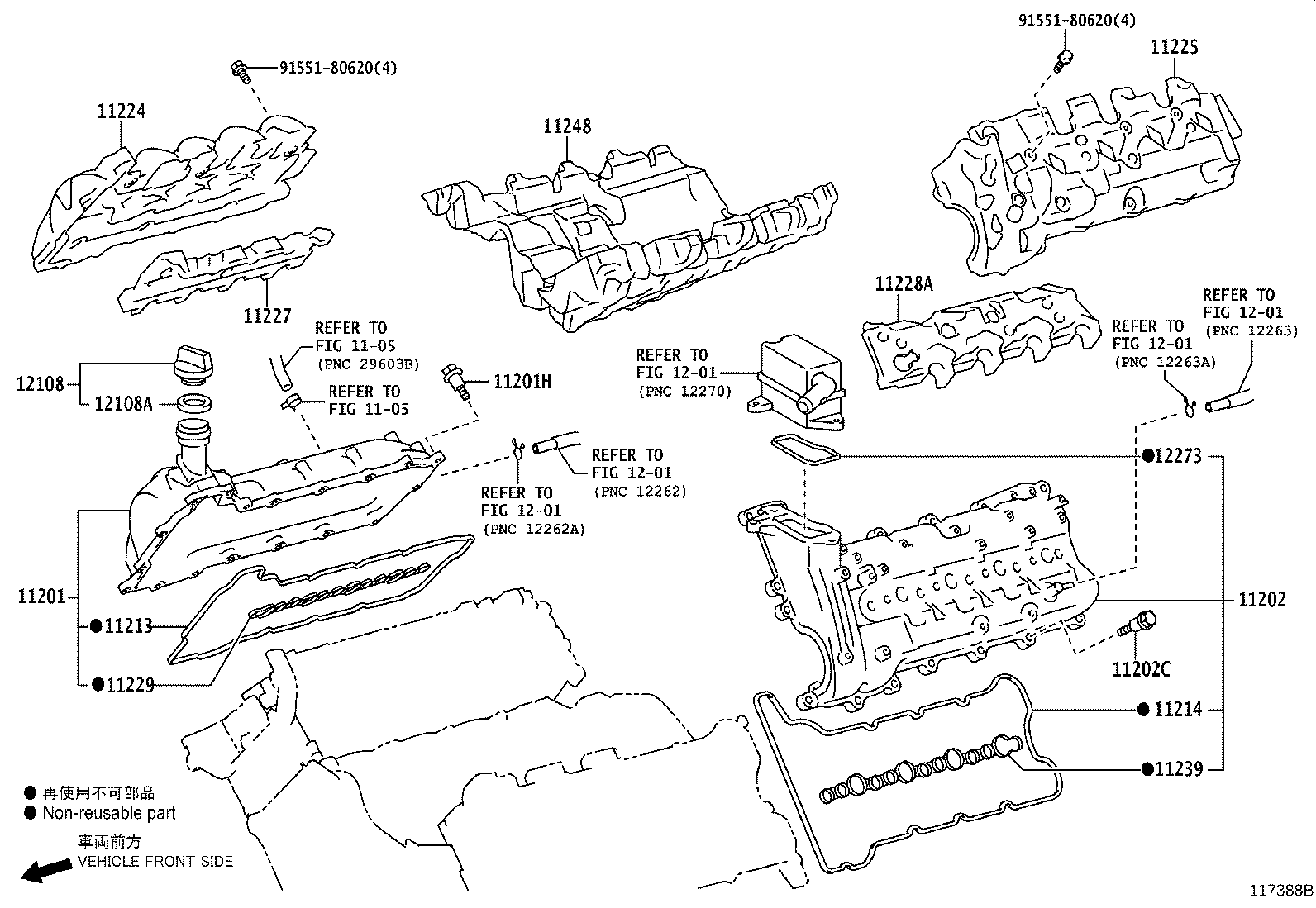

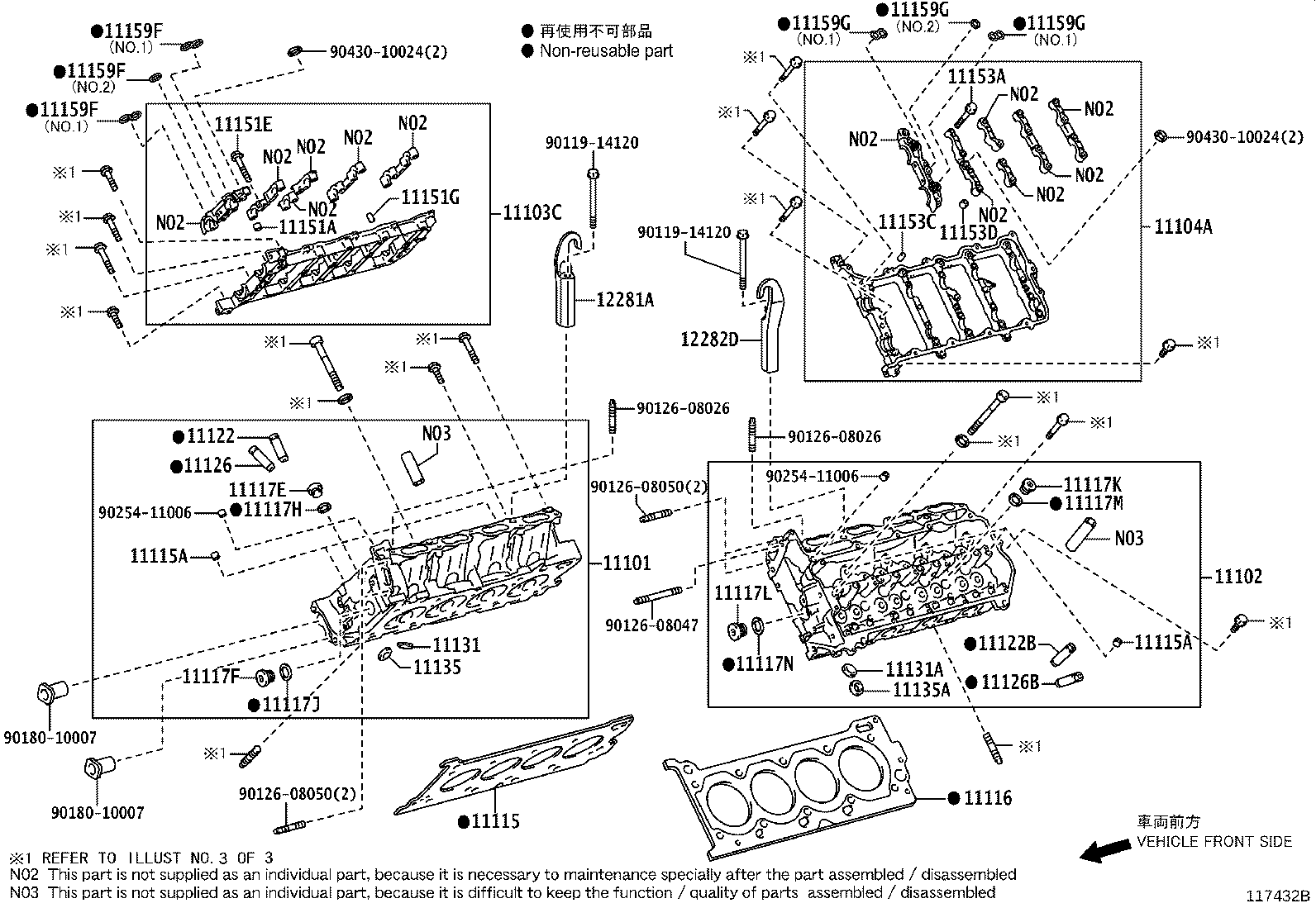

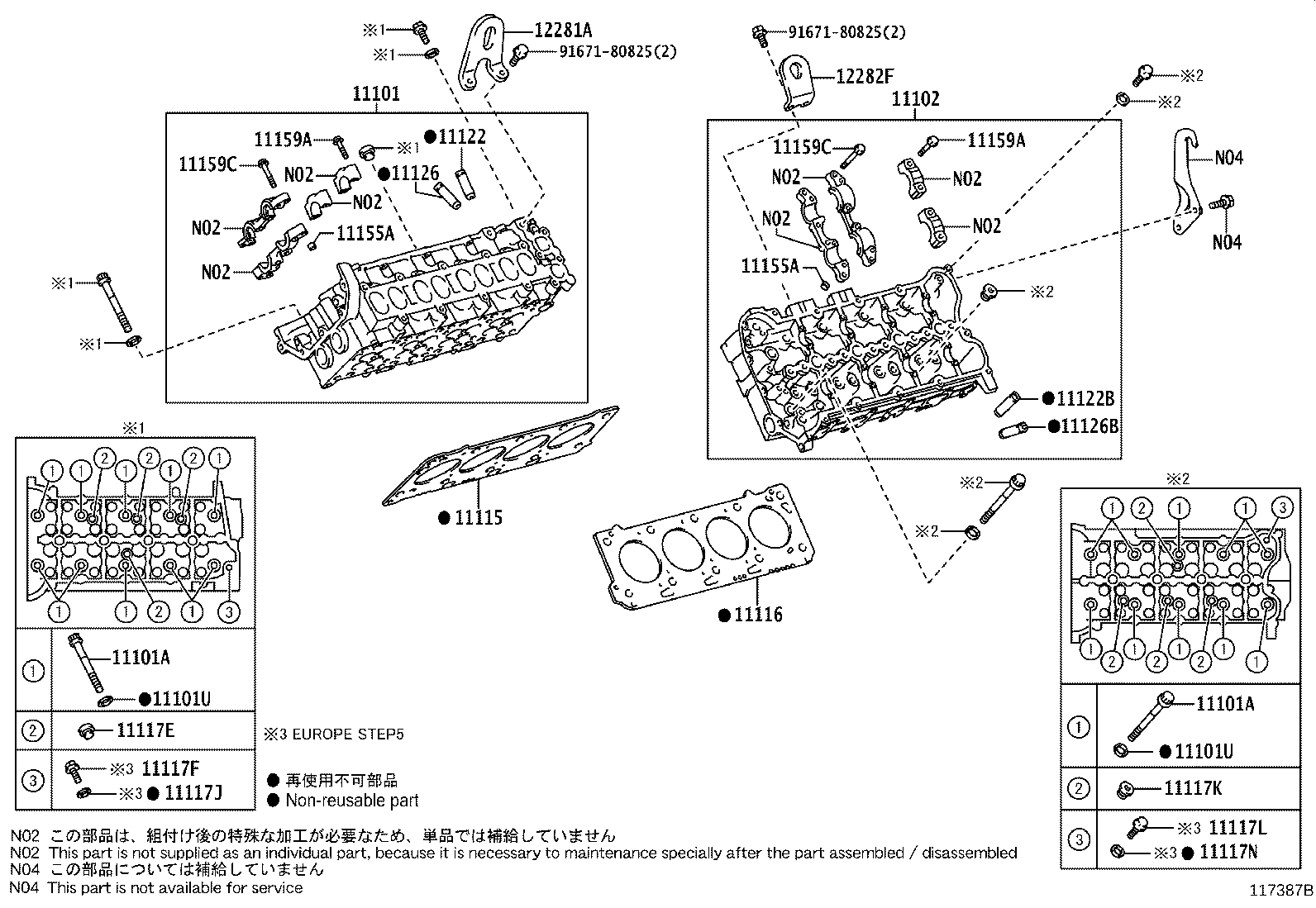

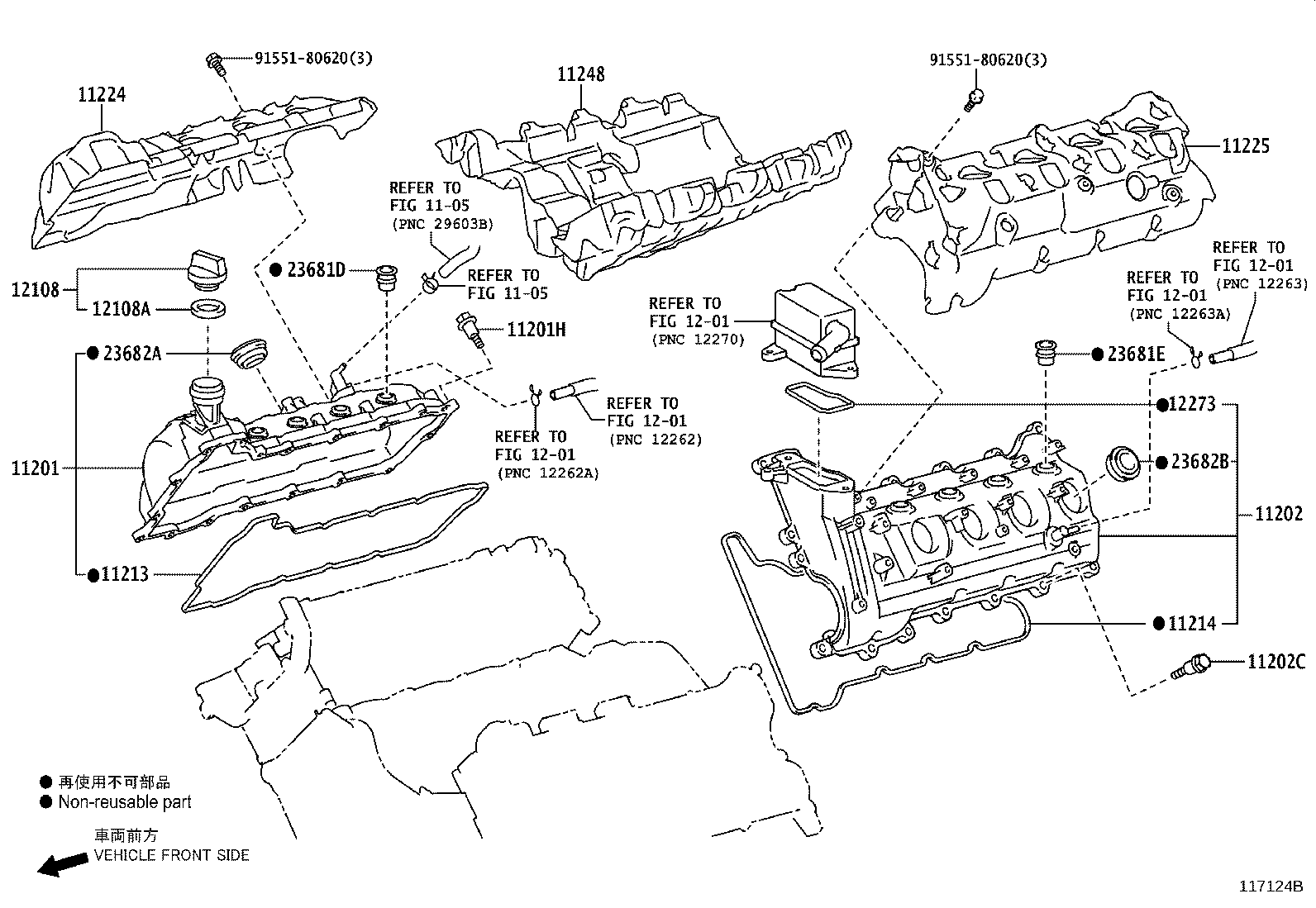

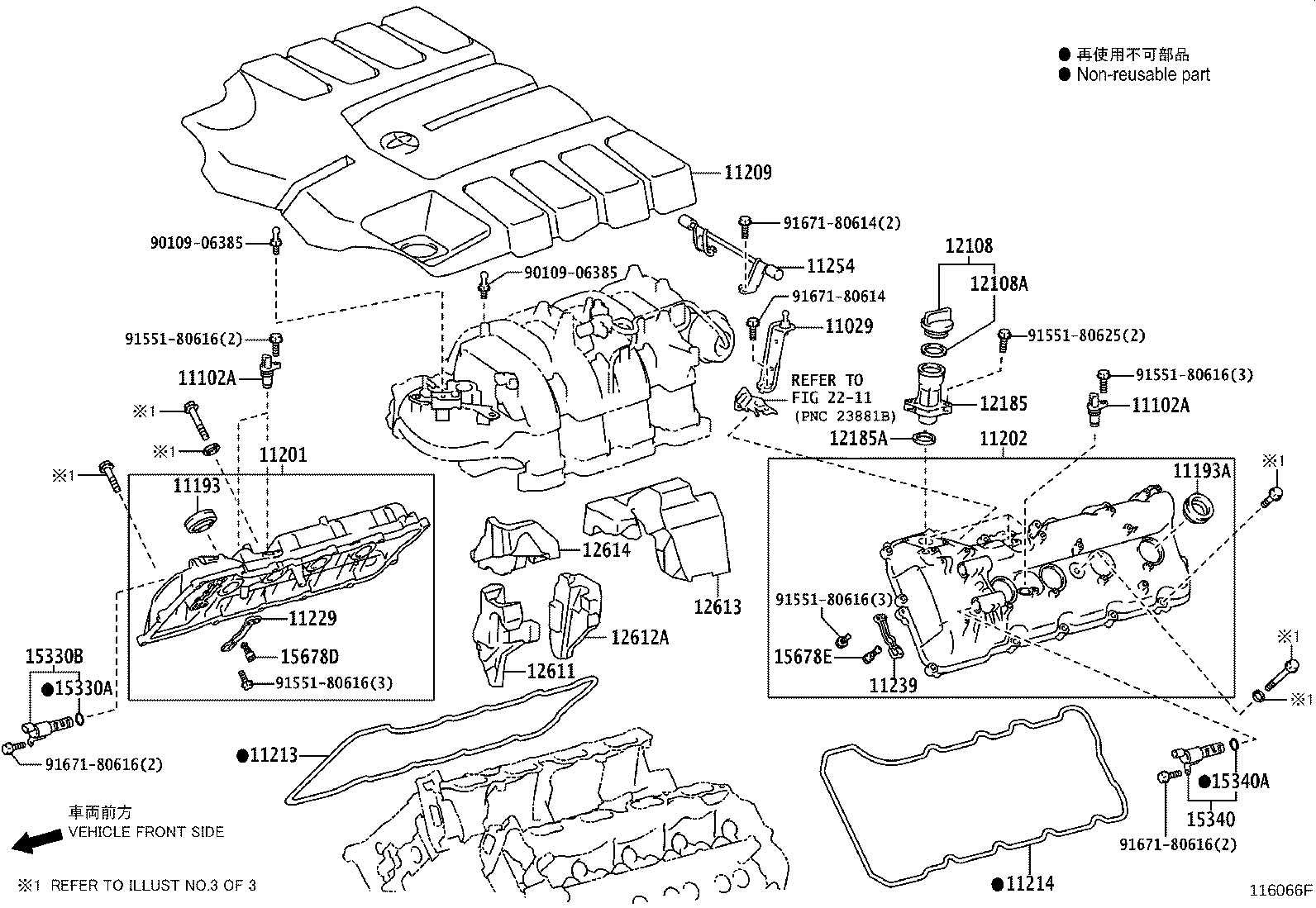

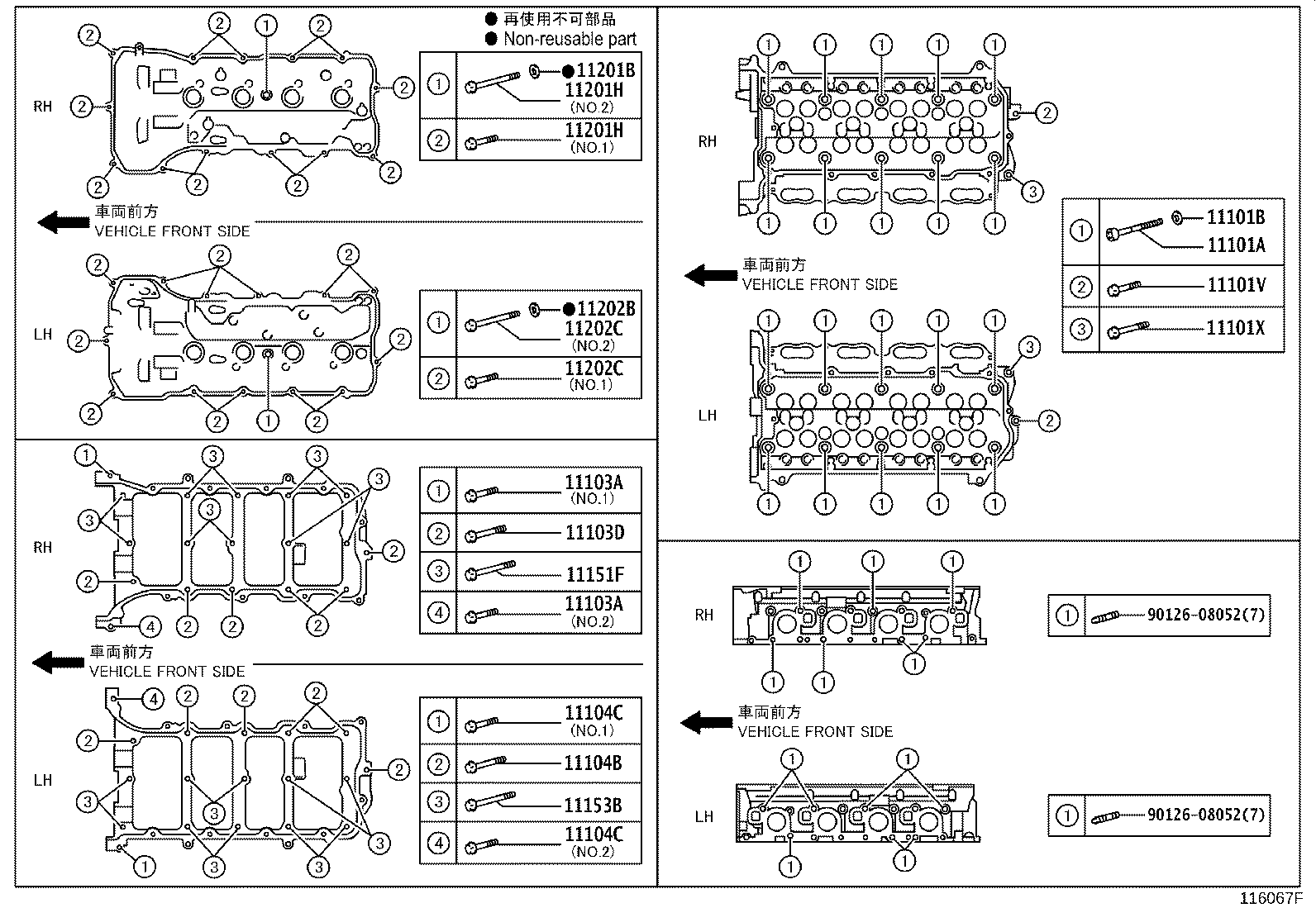

99 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 11029 | Bracket Sub-assy, V-bank Cover |
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101E | Sensor, Cam Position |
| 11101U | Spacer(FOR CYLINDER HEAD SET BOLT) |
| 11101V | Bolt(FOR CYLINDER HEAD SET SUB) |
| 11101X | Bolt(FOR CYLINDER HEAD SET SUB) |
| 11102 | Head, Cylinder, LH |
| 11102A | Sensor, Camshaft Position |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11103C | Housing Sub-assy, Camshaft, RH |
| 11103D | Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) |
| 11104A | Housing Sub-assy, Camshaft, LH |
| 11104B | Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) |
| 11104C | Bolt(FOR CAMSHAFT HOUSING SET LH) |
| 11115 | Gasket, Cylinder Head |
| 11115A | Pin, Ring |
| 11116 | Gasket, Cylinder Head, NO.2 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11117K | Plug, W/Head Straight Screw, LH NO.1 |
| 11117L | Plug, W/Head Straight Screw, LH NO.2 |
| 11117M | Gasket(FOR WATER HOLE NO.2) |
| 11117N | Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2) |
| 11122 | Bush, Intake Valve Guide |
| 11122B | Bush, Intake Valve Guide, NO.2 |
| 11126 | Bush, Exhaust Valve Guide |
| 11126B | Bush, Exhaust Valve Guide, NO.2 |
| 11131 | Seat, Intake Valve |
| 11131A | Seat, Intake Valve, NO.2 |
| 11135 | Seat, Exhaust Valve |
| 11135A | Seat, Exhaust Valve, NO.2 |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11151B | Seal, Oil(FOR CAMSHAFT SETTING) |
| 11151E | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) |
| 11151F | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) |
| 11151G | Pin, Straight(FOR CAMSHAFT HOUSING RH) |
| 11153A | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) |
| 11153B | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) |
| 11153C | Pin, Straight(FOR CAMSHAFT HOUSING LH) |
| 11153D | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING LH) |
| 11155A | Pin, Ring W/Head |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159B | Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159C | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159E | Bolt(FOR CAMSHAFT OIL FEED PIPE) |
| 11159F | Gasket, Camshaft Bearing Cap Oil Hole, RH |
| 11159G | Gasket, Camshaft Bearing Cap Oil Hole, LH |
| 11183 | Plug, Semicircular |
| 11188 | Plug, Camshaft Housing |
| 11193 | Gasket, Spark Plug Tube |
| 11193A | Gasket, Spark Plug Tube, LH |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11202 | Cover Sub-assy, Cylinder Head, LH |
| 11202B | Washer, Seal(FOR CYLINDER HEAD COVER, LH) |
| 11202C | Bolt(FOR CYLINDER HEAD COVER LH) |
| 11209 | Cover Sub-assy, V-bank |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11224 | Silencer, Cylinder Head Cover |
| 11225 | Silencer, Cylinder Head Cover LH |
| 11227 | Insulator, Cylinder Head Cover, RH |
| 11228A | Insulator, Cylinder Head Cover, LH |
| 11229 | Gasket, Cylinder Head Cover, NO.3 |
| 11239 | Gasket, Clinder Head Coner, NO.4 |
| 11248 | Silencer, V-bank |
| 11254 | Bracket, V-bank Cover, NO.1 |
| 11256 | Bracket, V-bank Cover, NO.2 |
| 11258B | Bracket, V-bank Cover, NO.4 |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12185 | Housing, Oil Filler Cap |
| 12185A | Gasket, Oil Filler Cap Housing |
| 12273 | Gasket, Oil Separator |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 12282F | Hanger, Engine, NO.2 |
| 12611 | Cover, Engine, NO.1 |
| 12612A | Cover, Engine, NO.2 |
| 12613 | Cover, Engine, NO.3 |
| 12614 | Cover, Engine, NO.4 |
| 12635A | Joint, Engine Cover |
| 15044 | Pipe Sub-assy, Camshaft Oil Feed |
| 15330A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15330B | Valve Assy, Cam Timing Oil Control, RH |
| 15340 | Valve Assy, Cam Timing Oil Control, LH |
| 15340A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15678A | Filter, Oil Control Valve |
| 15678D | Filter, Oil Control Valve, RH |
| 15678E | Filter, Oil Control Valve, LH |
| 23681D | Seal, Nozzle Holder, RH |
| 23681E | Seal, Nozzle Holder, LH |
| 23682A | Gasket, Nozzle Holder, RH |
| 23682B | Gasket, Nozzle Holder, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
