Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08

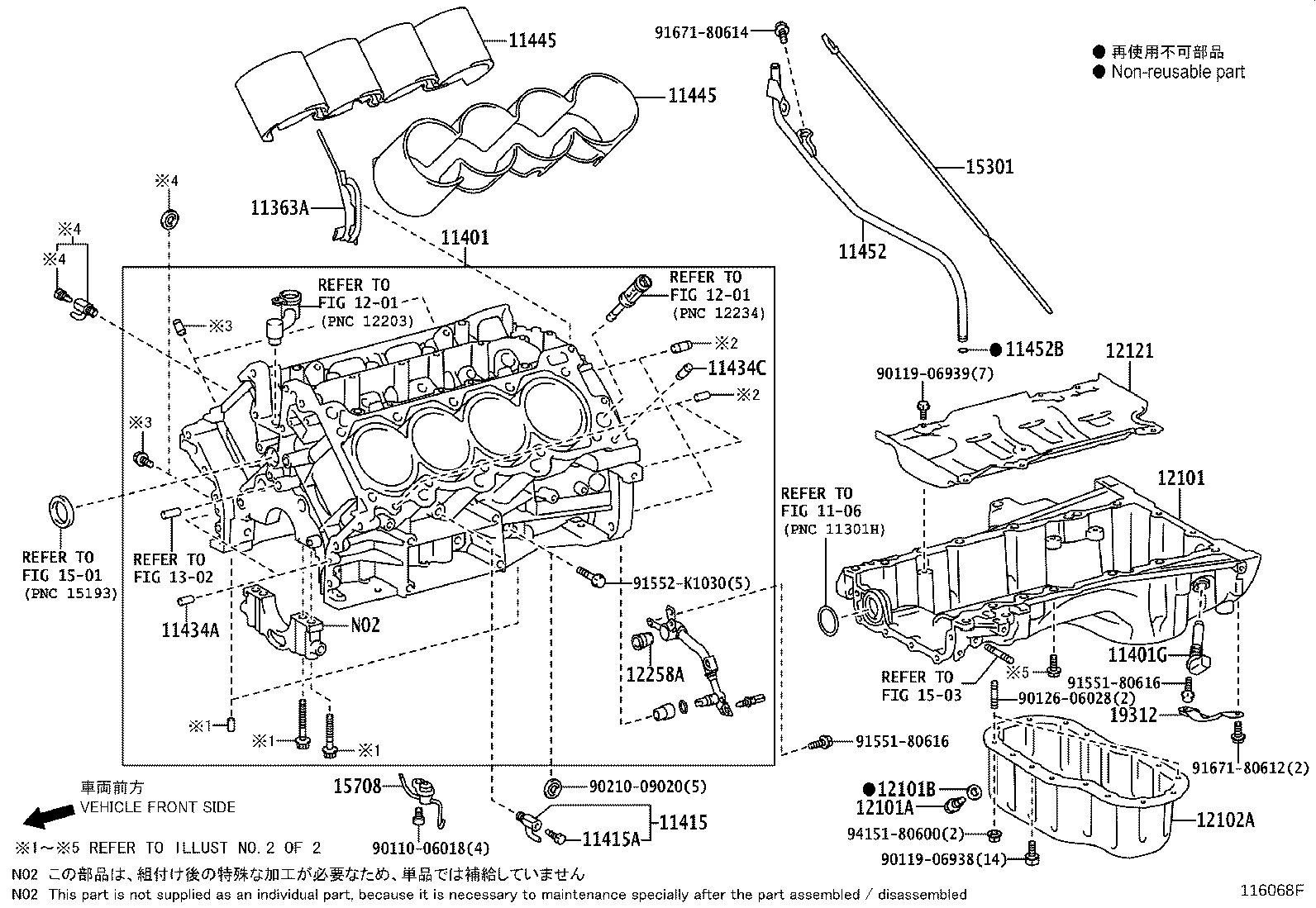

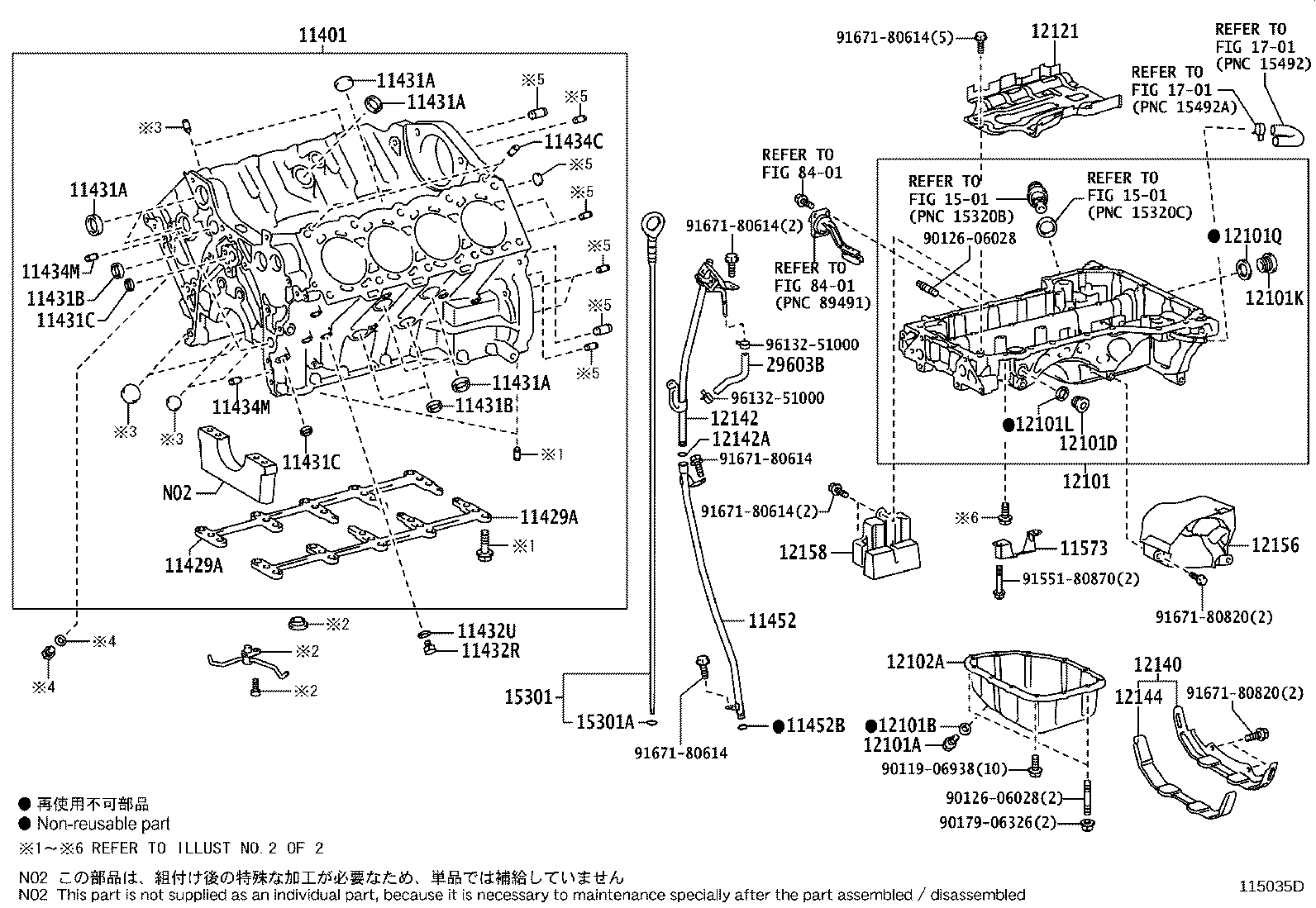

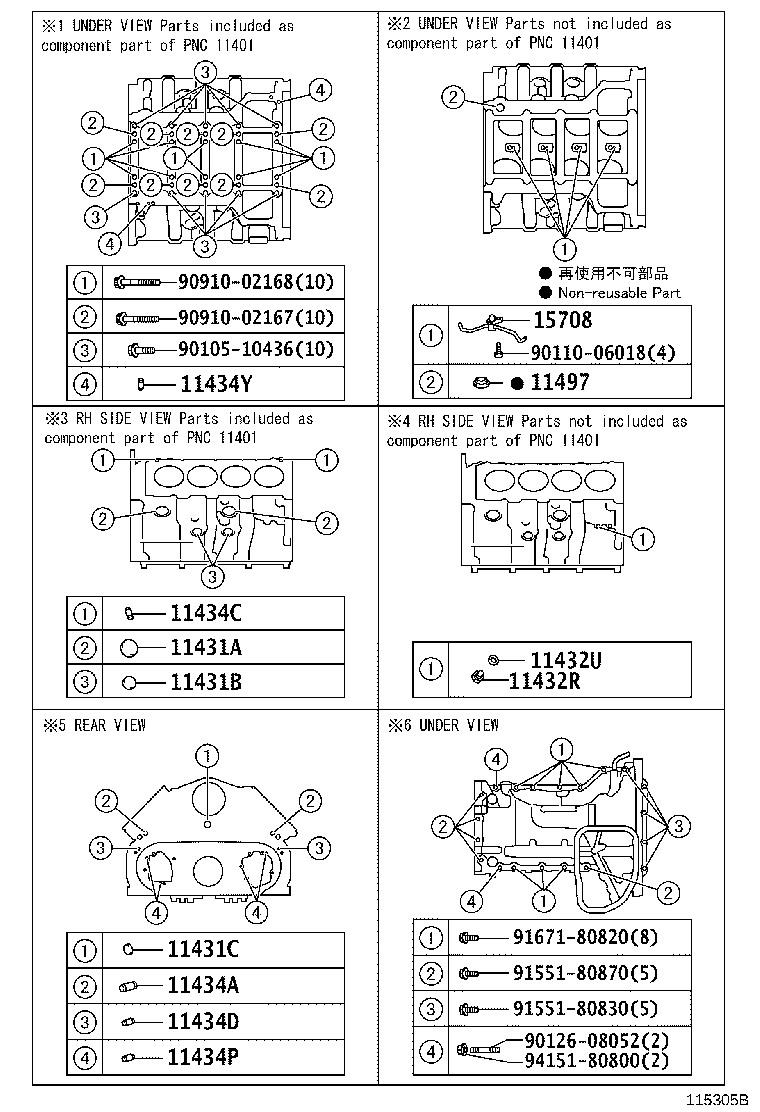

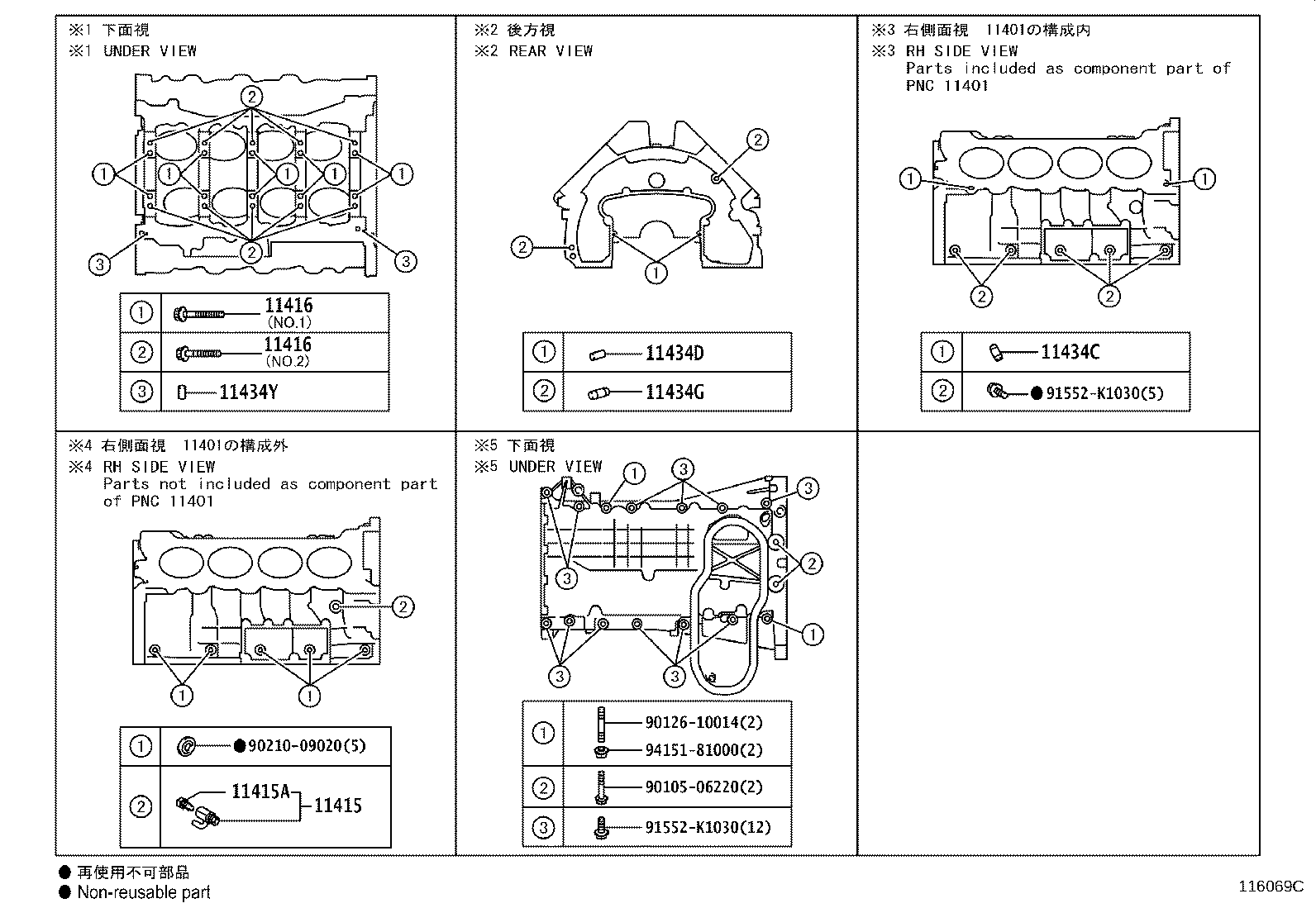

Cylinder Block
52 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11363A | Cover, Flywheel Housing Side |
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11429A | Plate, Cylinder Block Stiffening |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11432M | Union(FOR CYLINDER BLOCK) |
| 11432R | Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK) |
| 11432U | Gasket, Straight Screw Plug NO.1(FOR CYLINDER BLOCK) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434M | Pin, Straight(FOR CHAIN TENSIONER) |
| 11434P | Pin, Straight(FOR OIL PUMP SET) |
| 11434S | Pin, Ring(FOR WATER PUMP SET) |
| 11434X | Pin, Ring(FOR CHAIN CACE) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 11497 | Gasket, Cylinder Block Oil Hole |
| 11573 | Plate, Oil Reflector |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12101D | Plug NO.1(FOR OIL PAN) |
| 12101K | Plug NO.2(FOR OIL PAN) |
| 12101L | Gasket NO.1(FOR OIL PAN) |
| 12101Q | Gasket NO.2(FOR OIL PAN) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12122 | Plate, Oil Pan Baffle, NO.2 |
| 12123 | Plate, Oil Pan Baffle NO.3 |
| 12140 | Cover, Oil Pan |
| 12142 | Guide, Oil Level Gage, NO.2 |
| 12142A | Ring, O(FOR OIL LEVEL GAGE GUIDE, NO.2) |
| 12144 | Silencer, Oil Pan Cover |
| 12156 | Insulator, Oil Pan |
| 12158 | Insulator, Stiffener, RH |
| 12258A | Gasket, Oil Return Pipe |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 19312 | Protector, Crank Position Sensor |
| 29603B | Hose, Oil(FOR OIL LEVEL GAUGE GUIDE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
