Timing Gear Cover & Rear End Plate

40 part groups · 4 illustrations

PNC	Description

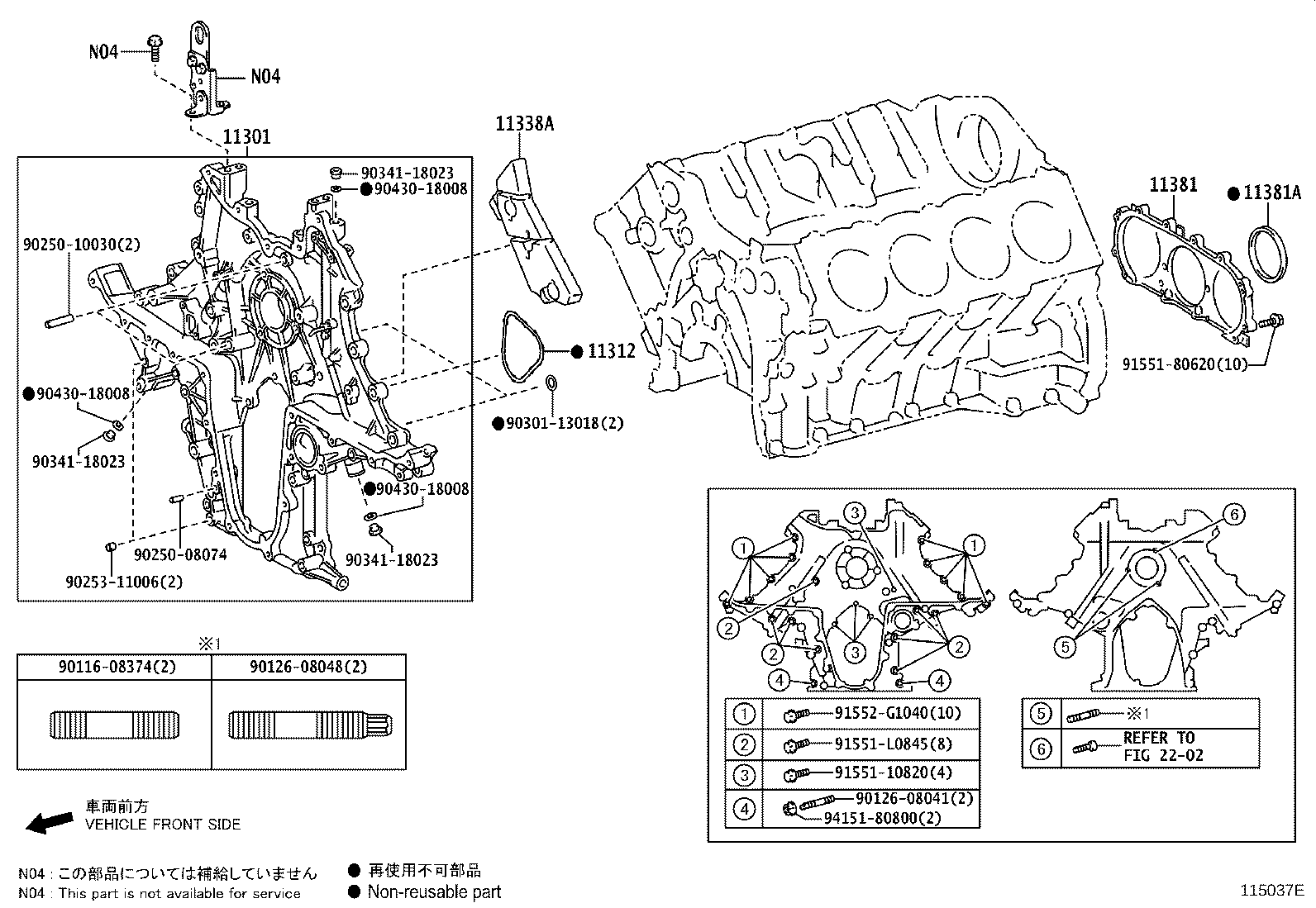

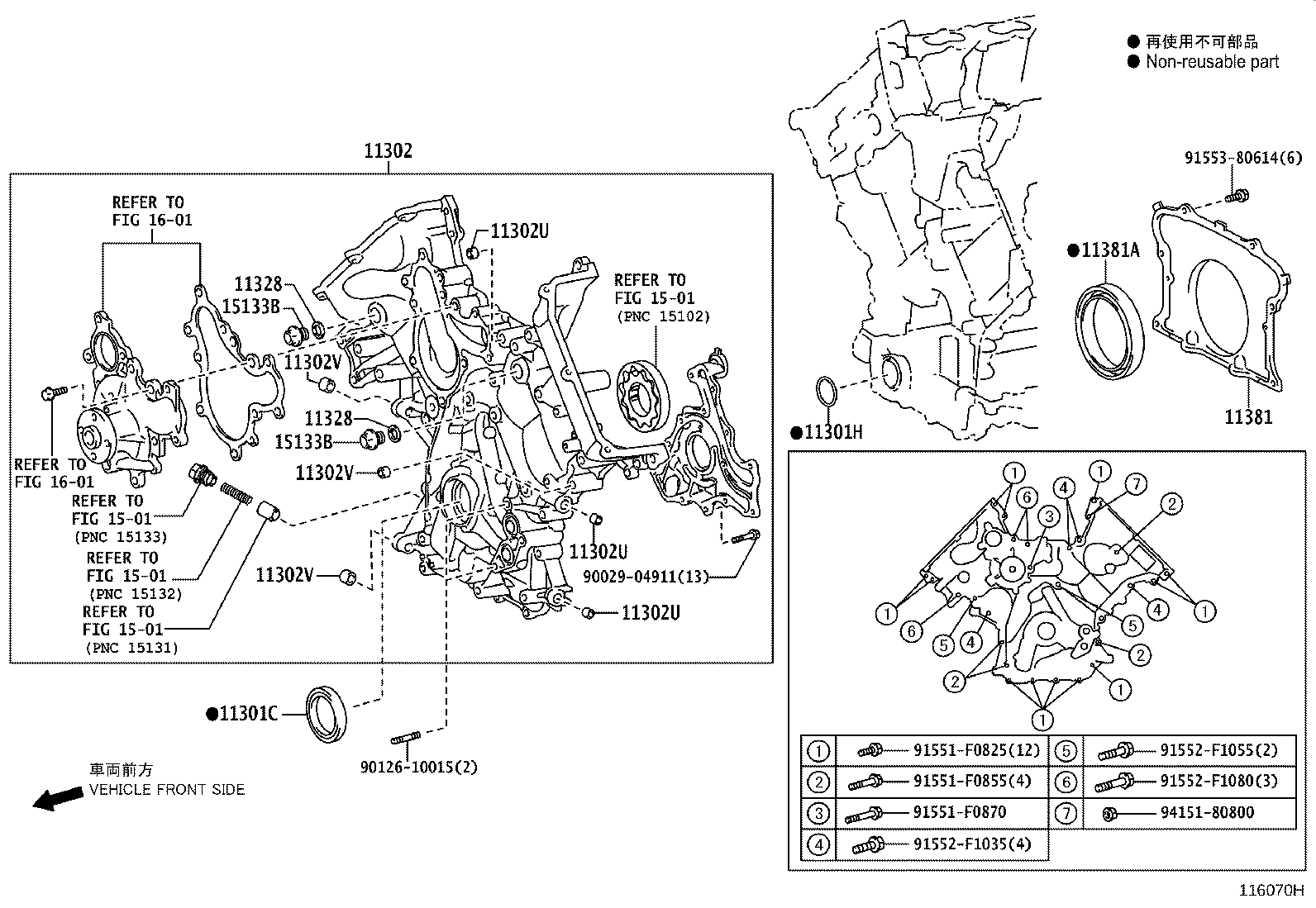

11301	Case Sub-assy, Timing Gear
11301C	Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301H	Ring, O(FOR TIMING GEAR CASE, LOWER)
11301K	Sensor, Crank Position
11301M	Sensor, Cam Position

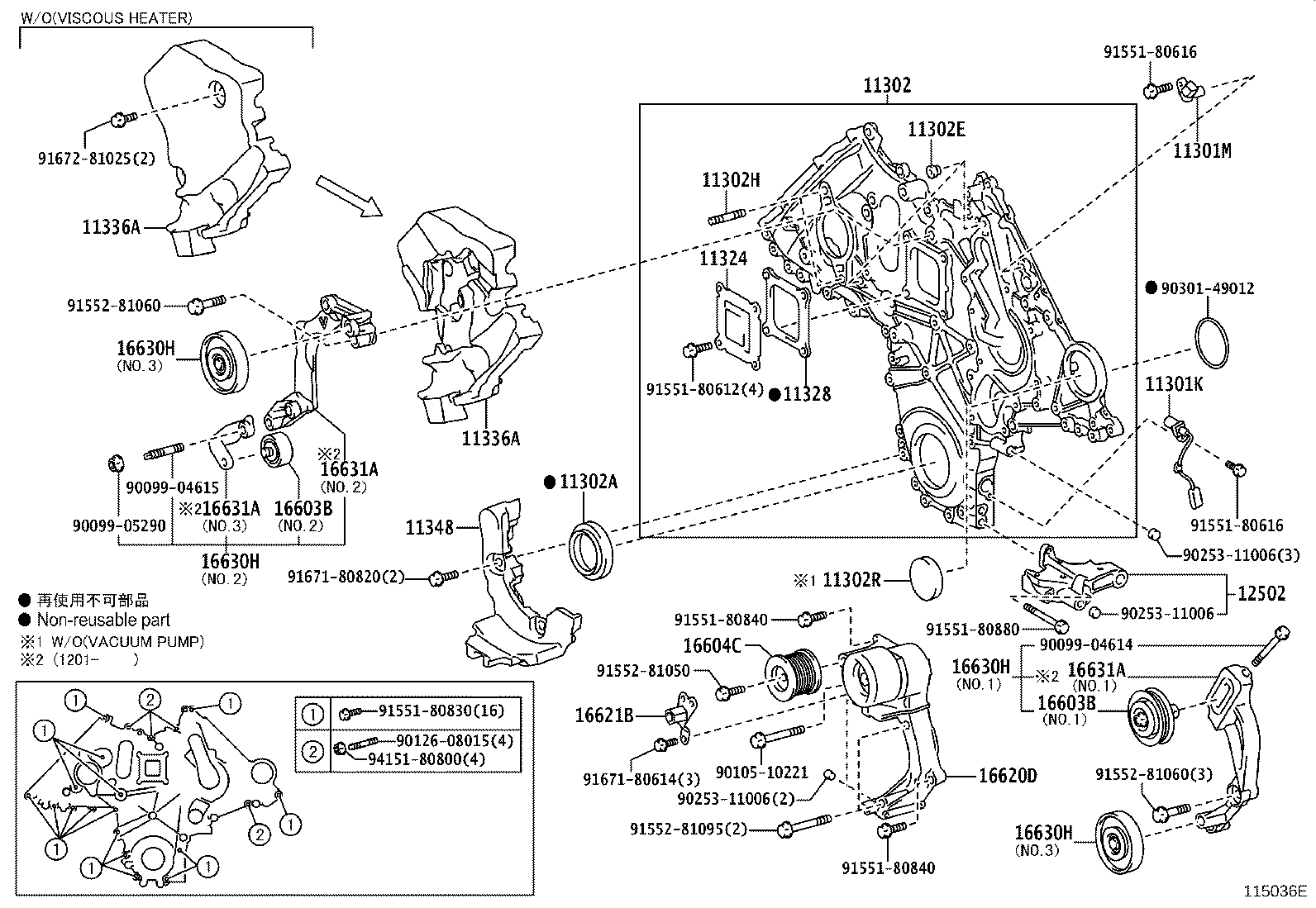

11302	Cover Sub-assy, Timing Chain OR Belt
11302A	Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302E	Plug, Straight(FOR TIMING GEAR COVER)
11302H	Bolt, Stud(FOR TIMING GEAR COVER)
11302R	Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11302U	Pin, Ring
11302V	Pin, Ring, NO.1
11303B	Cover Sub-assy, Timing Belt, NO.2
11304C	Cover Sub-assy, Timing Belt, NO.3 RH
11308C	Cover Sub-assy, Timing Belt, NO.3 LH
11312	Gasket, Front End Plate
11322A	Cover, Timing Belt, NO.1
11324	Plate, Timing Chain Cover
11328	Gasket, Timing Gear OR Chain Cover
11336A	Insulator, Timing Gear Cover
11338	Gasket, Timing Chain Cover, NO.2
11338A	Insulator, Timing Gear Case, NO.2
11341	Plate, Timing Belt, Rear RH
11342	Plate, Timing Belt, Rear LH
11343	Plate, Timing Belt, Rear RH NO.2
11344	Plate, Timing Belt, Rear LH NO.2
11348	Spacer, Timing Gear Cover
11361	Cover, Flywheel Housing Under
11381	Retainer, Engine Rear Oil Seal
11381A	Seal, Engine Rear Oil
11381C	Ring, O(FOR OIL SEAL RETAINER)
12502	Bracket Sub-assy, Chain Cover & Compressor
15133B	Plug, Oil Pump Relief Valve
16603B	Pulley Sub-assy, Idler
16604C	Pulley Sub-assy, Idler, NO.2
16620D	Tensioner Assy, V-ribbed Belt
16621B	Bracket, V-ribbed Belt Tensioner
16630H	Pulley Assy, Idler
16631A	Bracket, Idler Pulley
19300C	Sensor Assy, Cam Position

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
