Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08

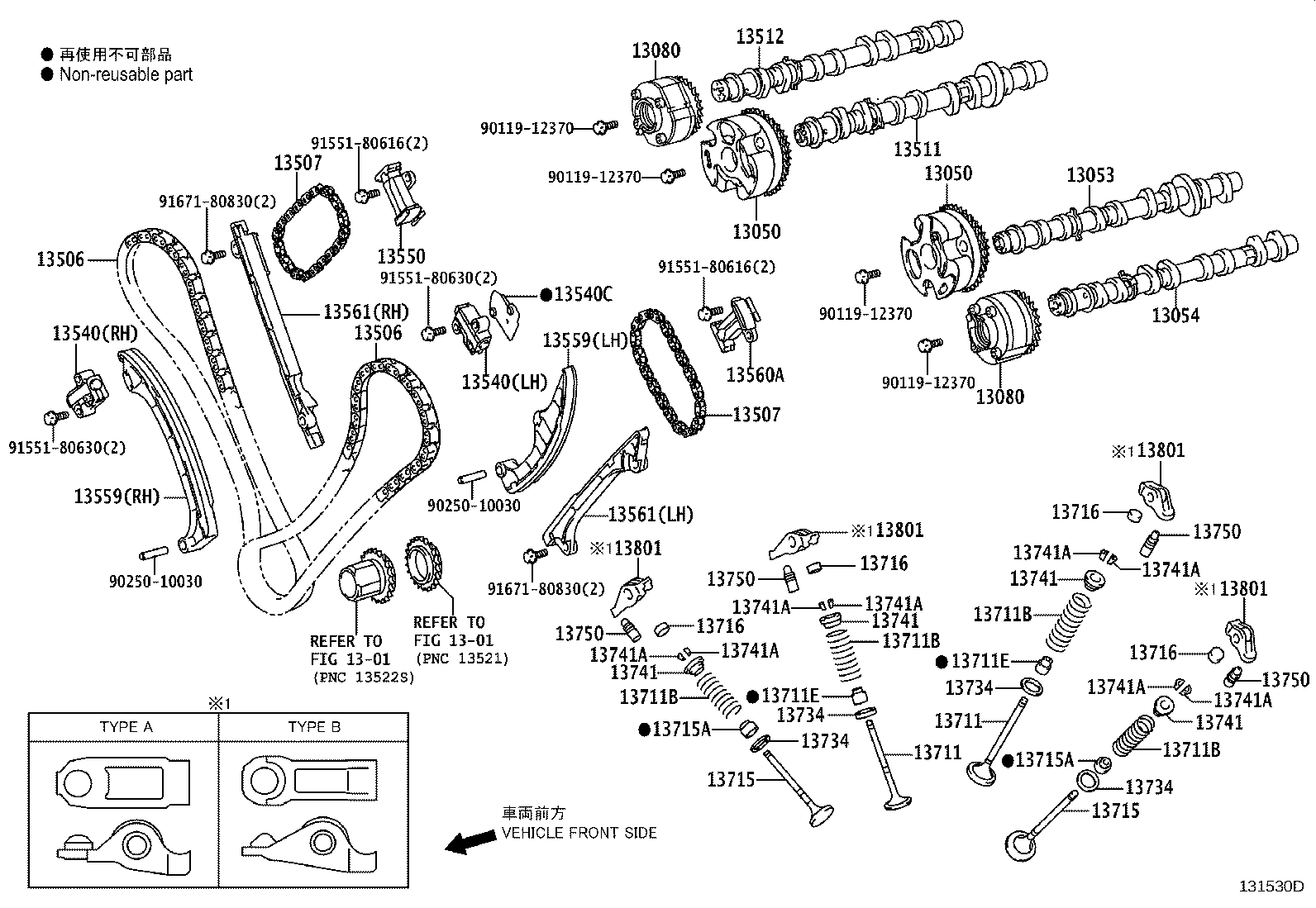

Camshaft & Valve
57 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 13050 | Gear Assy, Camshaft Timing |
| 13050A | Tube Assy, Camshaft Timing |
| 13053 | Camshaft Sub-assy, NO.3 |
| 13054 | Camshaft Sub-assy, NO.4 |
| 13056 | Pulley Sub-assy, Camshaft Timing, LH |
| 13080 | Gear Assy, Camshaft Timing Exhaust, LH |
| 13502 | Idler Sub-assy, Timing Belt, NO.2 |
| 13505 | Idler Sub-assy, Timing Belt, NO.1 |
| 13506 | Chain Sub-assy |
| 13507 | Chain Sub-assy, NO.2 |
| 13511 | Camshaft |
| 13512 | Camshaft, NO.2 |
| 13522 | Gear, Pump Drive Shaft |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523P | Pulley, Camshaft Timing |
| 13528 | Gear, Camshaft Drive |
| 13529 | Gear, Camshaft Sub |
| 13529A | Washer, Wave(FOR CAMSHAFT SUB GEAR) |
| 13529B | Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR) |
| 13529C | Gear, Camshaft Sub, NO.3 |
| 13529D | Washer, Wave(FOR CAMSHAFT SUB GEAR, NO.3) |
| 13529E | Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR, NO.3) |
| 13529F | Pin, Straight(FOR CAMSHAFT SUB GEAR) |
| 13529G | Sprocket Assy, Camshaft Timing, NO.2 |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13540E | Tensioner Assy, Timing Belt |
| 13550 | Tensioner Assy, Chain, NO.2 |
| 13553 | Cover, Chain Tensioner Dust |
| 13556 | Shaft, Timing Belt Idler |
| 13559 | Slipper, Chain Tensioner |
| 13560A | Tensioner Assy, Chain, NO.3 |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13568 | Belt, Timing |
| 13579 | Washer, Camshaft Timing Gear Bolt |
| 13579A | Washer, Camshaft Timing Gear Bolt, NO.3 |
| 13613 | Gear, Injection Pump Drive |
| 13613D | Bearing, Radial Ball |
| 13616 | Gear, Injection Pump Shaft |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711E | Seal, Intake Valve Stem Oil |
| 13715 | Valve, Exhaust |
| 13715A | Seal, Exhaust Valve Stem Oil |
| 13716 | Cap, Valve Stem |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13750 | Adjuster Assy, Valve Lash |
| 13751 | Lifter, Valve |
| 13753 | Shim, Valve Adjusting |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 15043 | Pipe Sub-assy, Camshaft Oil Delivery |
| 15044B | Pipe Sub-assy, Camshaft Oil Feed, NO.2 |
| 15045 | Pipe Sub-assy, Camshaft Oil Feed, NO.3 |
| 15046 | Pipe Sub-assy, Camshaft Oil Feed, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
