Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

15 part groups · 3 illustrations

Illustrations

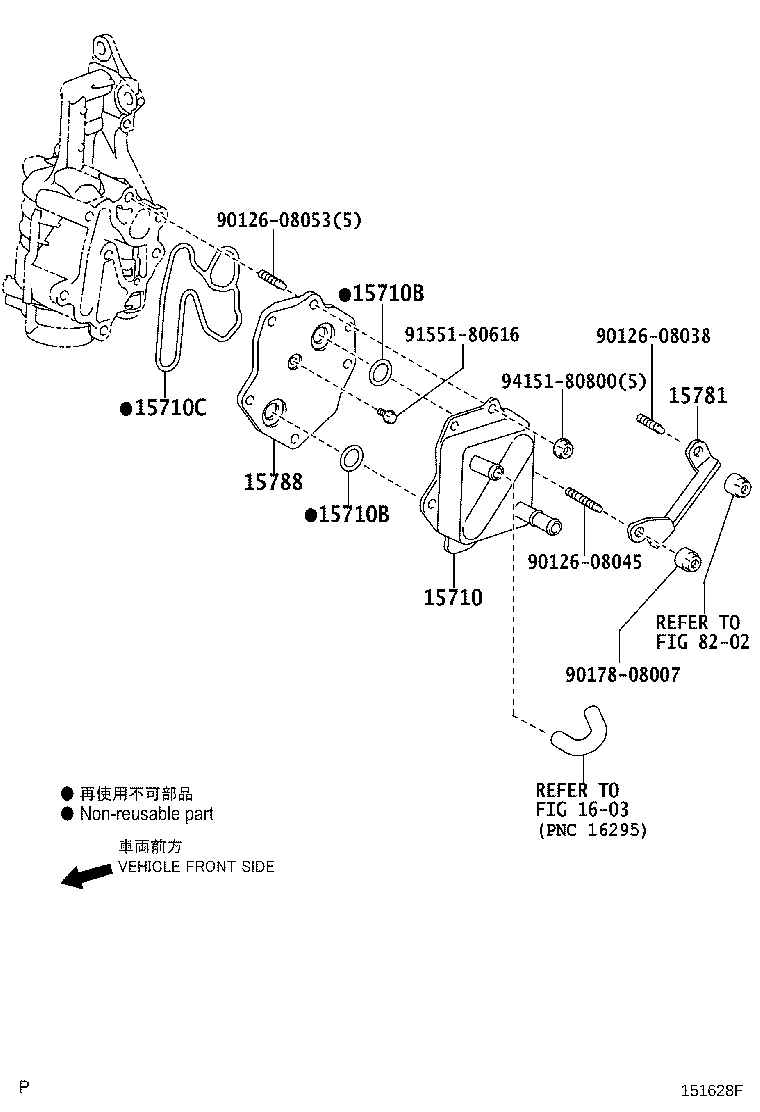

Figure 151379H 151379H 2007-09 → 2012-01 Figure 151628F 151628F 2012-01 → — Figure 151383C 151383C 2007-09 → —

Part groups

PNCDescription
15690 Valve Assy, Oil Cooler Relief
15690A Gasket(FOR OIL COOLER RELIEF VALVE)
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15767 Pipe, Oil Cooler
15767B Hose, Water By-pass, NO.4
15767C Hose, Water By-pass, NO.5
15777 Hose, Oil Cooler
15777G Clamp OR Crip, Hose
15777S Clamp OR Clip, Hose
15778 Hose, Oil Cooler, NO.2
15781 Bracket, Oil Cooler, NO.1
15785 Gasket, Oil Cooler
15788 Spacer, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
