Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

13 part groups · 3 illustrations

Illustrations

Figure 163730E

163730E 2007-09 → 2012-01

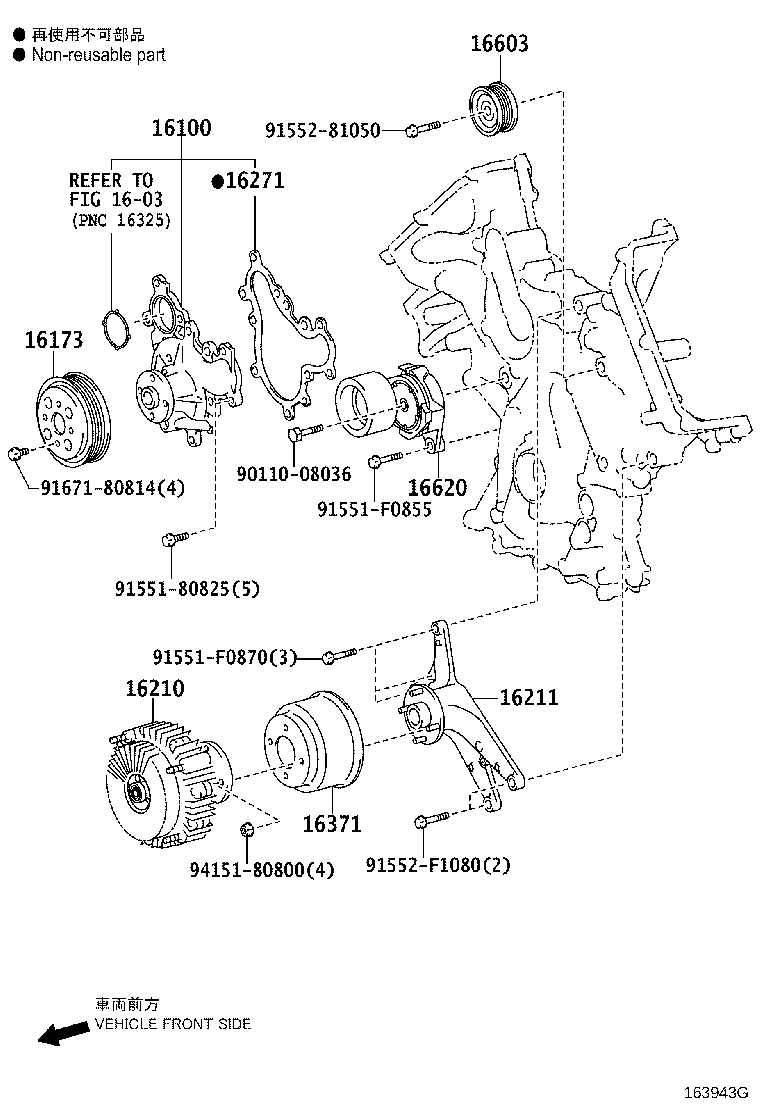

Figure 163943G

163943G 2012-01 → —

Figure 163196D

163196D 2007-09 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16100B	Pin, Ring(FOR WATER PUMP SET)
16124	Gasket, Water Pump Cover
16173	Pulley, Water Pump
16210	Coupling Assy, Fluid
16211	Bracket, Fluid Coupling
16271	Gasket, Water Pump
16307A	Bracket Sub-assy, Fan
16371	Pulley, Fan
16603	Pulley Sub-assy, Idler, NO.1
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
