Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

26 part groups · 4 illustrations

Illustrations

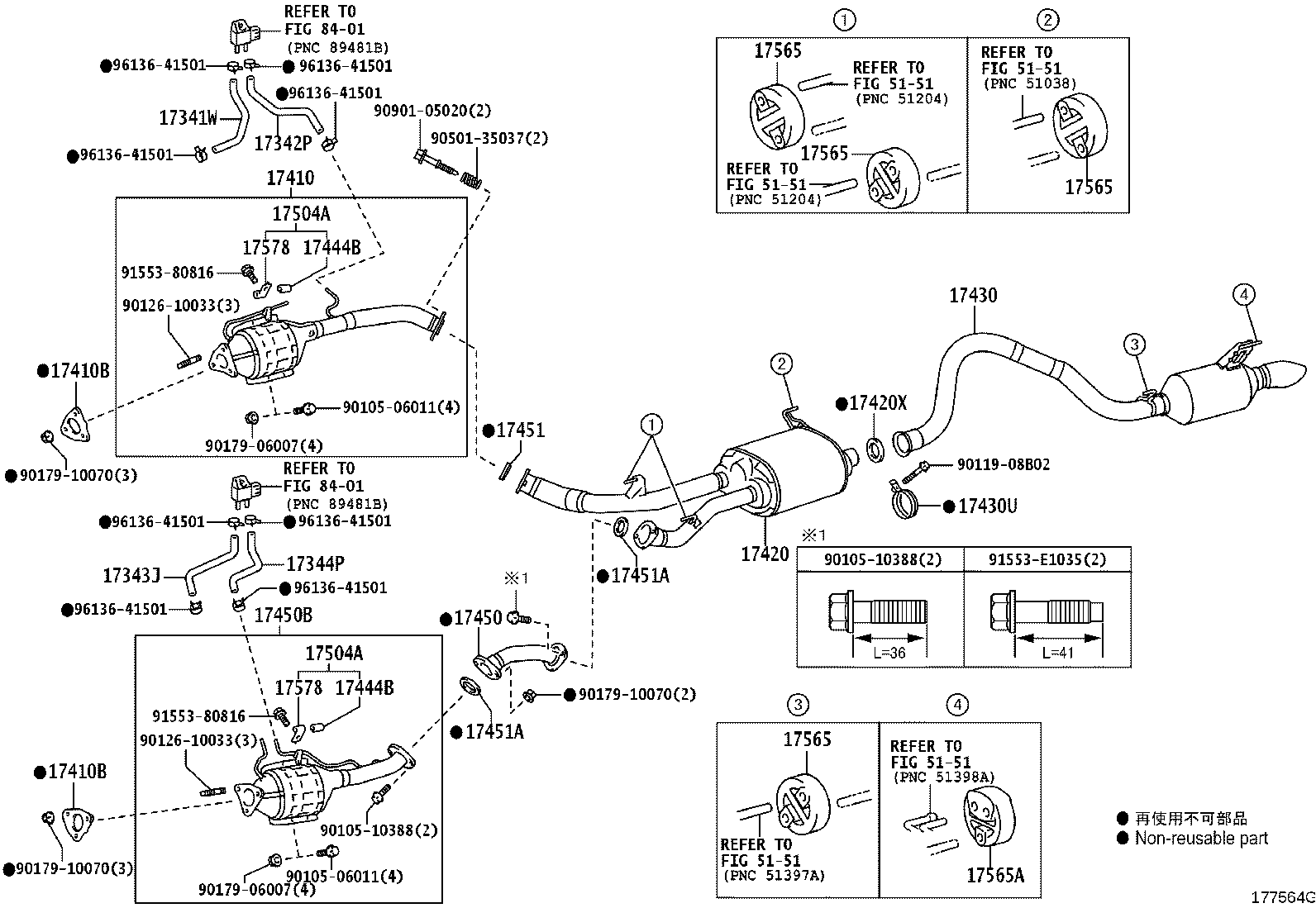

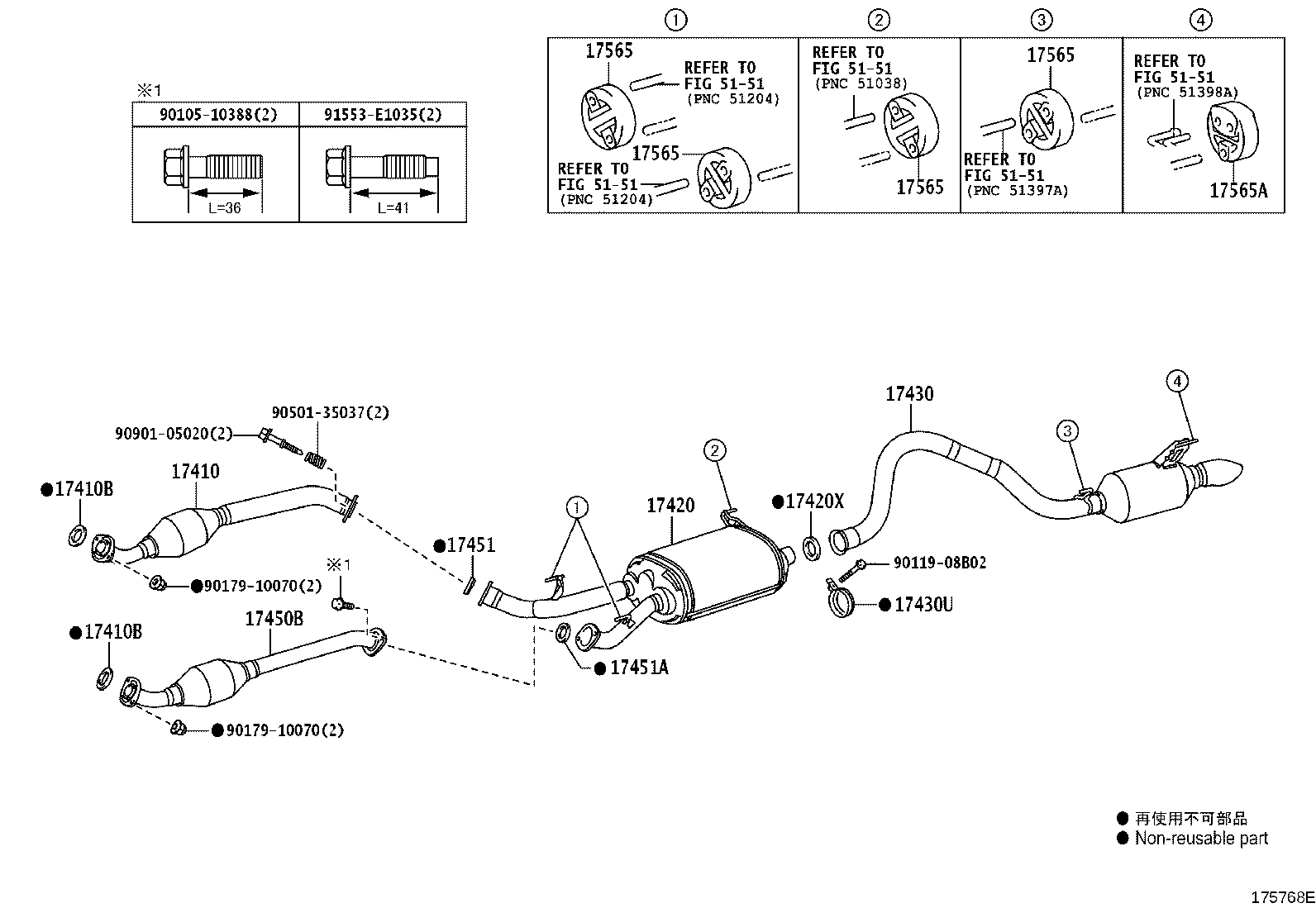

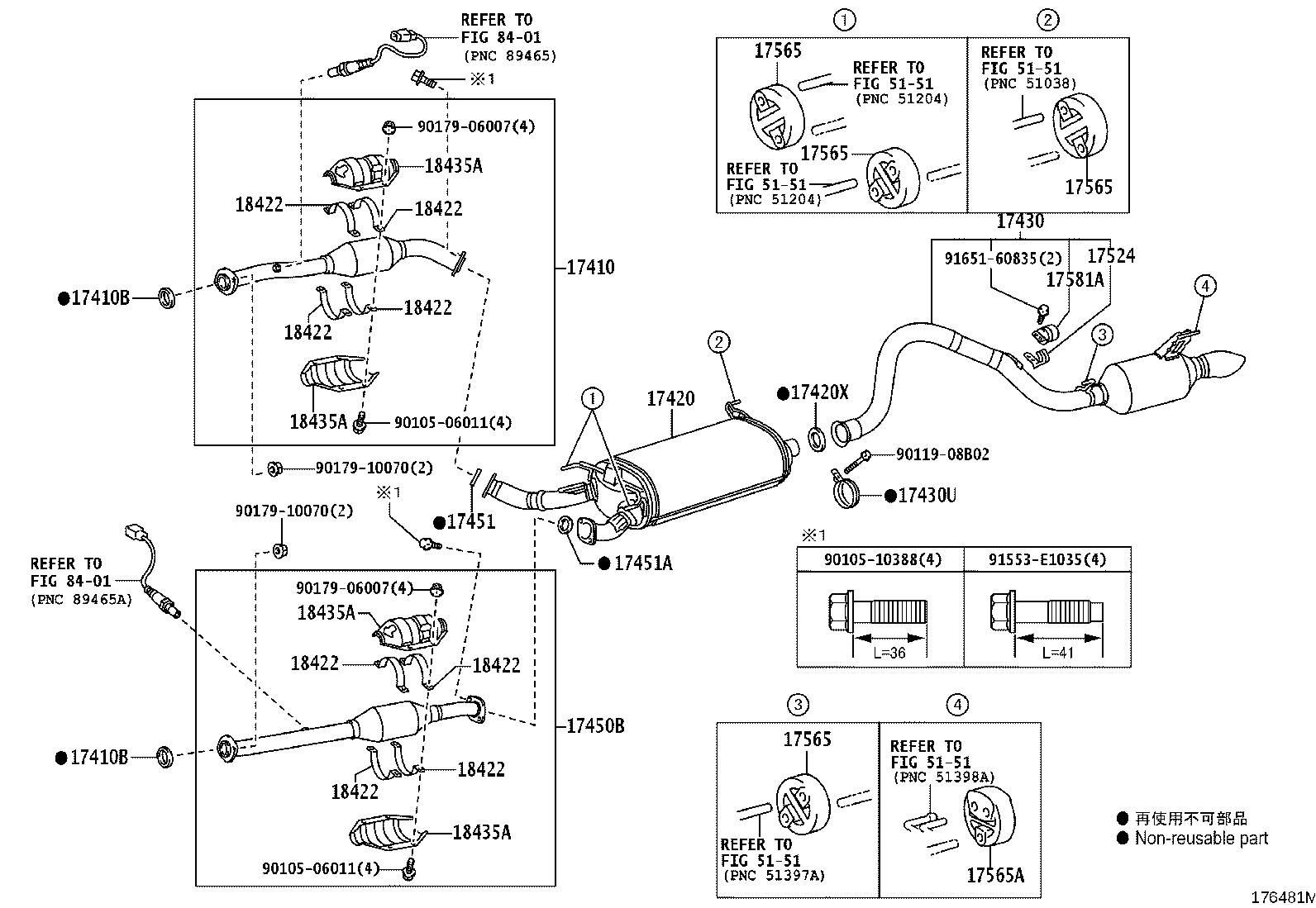

Figure 175704H 175704H 2007-09 → 2012-01 Figure 175768E 175768E 2007-09 → — Figure 176481M 176481M 2012-01 → — Figure 177564G 177564G 2012-01 → —

Part groups

PNCDescription
17341W Hose, Air, NO.1
17342P Hose, Air, NO.2
17343J Hose, Air, NO.3
17344P Hose, Air, NO.4(FOR EXHAUST PIPE)
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17444B Spacer, Exhaust Pipe
17450 Pipe Assy, Exhaust, NO.5
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17504A Clamp Sub-assy, Exhaust Pipe
17524 Protector, Exhaust Pipe, Upper NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17578 Clamp, Pipe
17581A Damper, Exhaust Pipe
18421B Stay, Converter Protector, NO.2
18422 Stay, Converter Protector, NO.2
18422A Stay, Converter Protector, NO.3
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
