Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

29 part groups · 2 illustrations

Illustrations

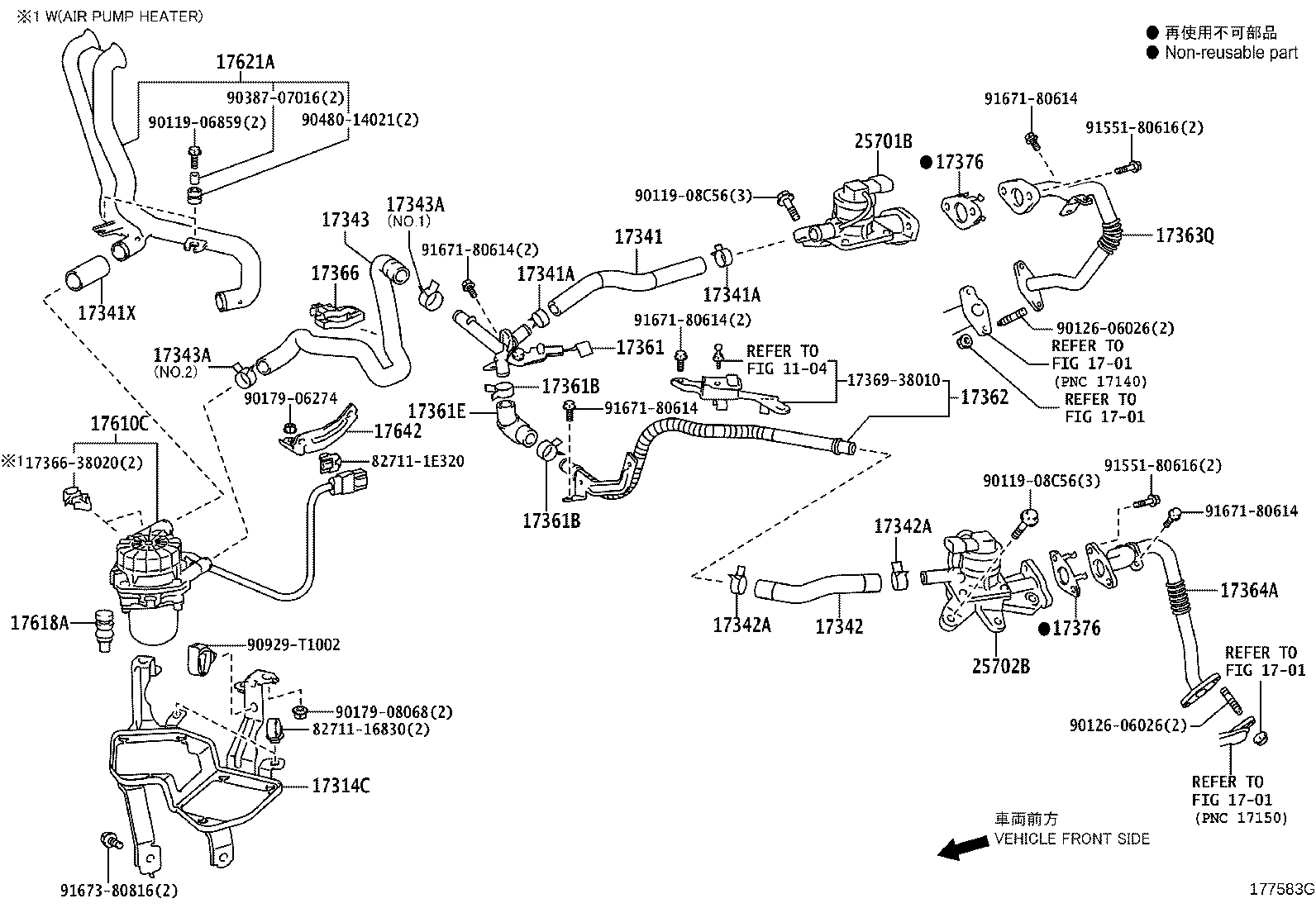

Figure 175666H 175666H 2007-09 → 2012-01 Figure 177583G 177583G 2012-01 → —

Part groups

PNCDescription
17304 Tube Sub-assy, Air, RH
17314C Bracket, Air Pump
17340A Hose Assy, Vacuum Switching Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17341X Hose, Air, NO.1
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17361 Tube, Air
17361B Clamp OR Clip(FOR AIR TUBE HOSE)
17361E Hose, NO.3(FOR AIR TUBE)
17362 Tube, Air, NO.2
17363Q Tube, Air, NO.3
17364A Tube, Air NO.4
17366 Clamp, Air Injection Hose, NO.1
17376 Gasket, Air Tube, NO.1
17377 Gasket, Air Tube, NO.2
17600C Pump Assy, Air
17610C Pump Assy, Air
17618A Insulator, Air Pump
17621A Inlet, Air Pump
17642 Bracket, Air Pump Wire
25701B Valve Set, Emission Control, NO.1
25702B Valve Set, Emission Control, NO.2
25710 Valve Assy, Air Switching
25720C Valve Assy, Air Switching, NO.1
25720D Valve Assy, Air Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
