Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

16 part groups · 3 illustrations

Illustrations

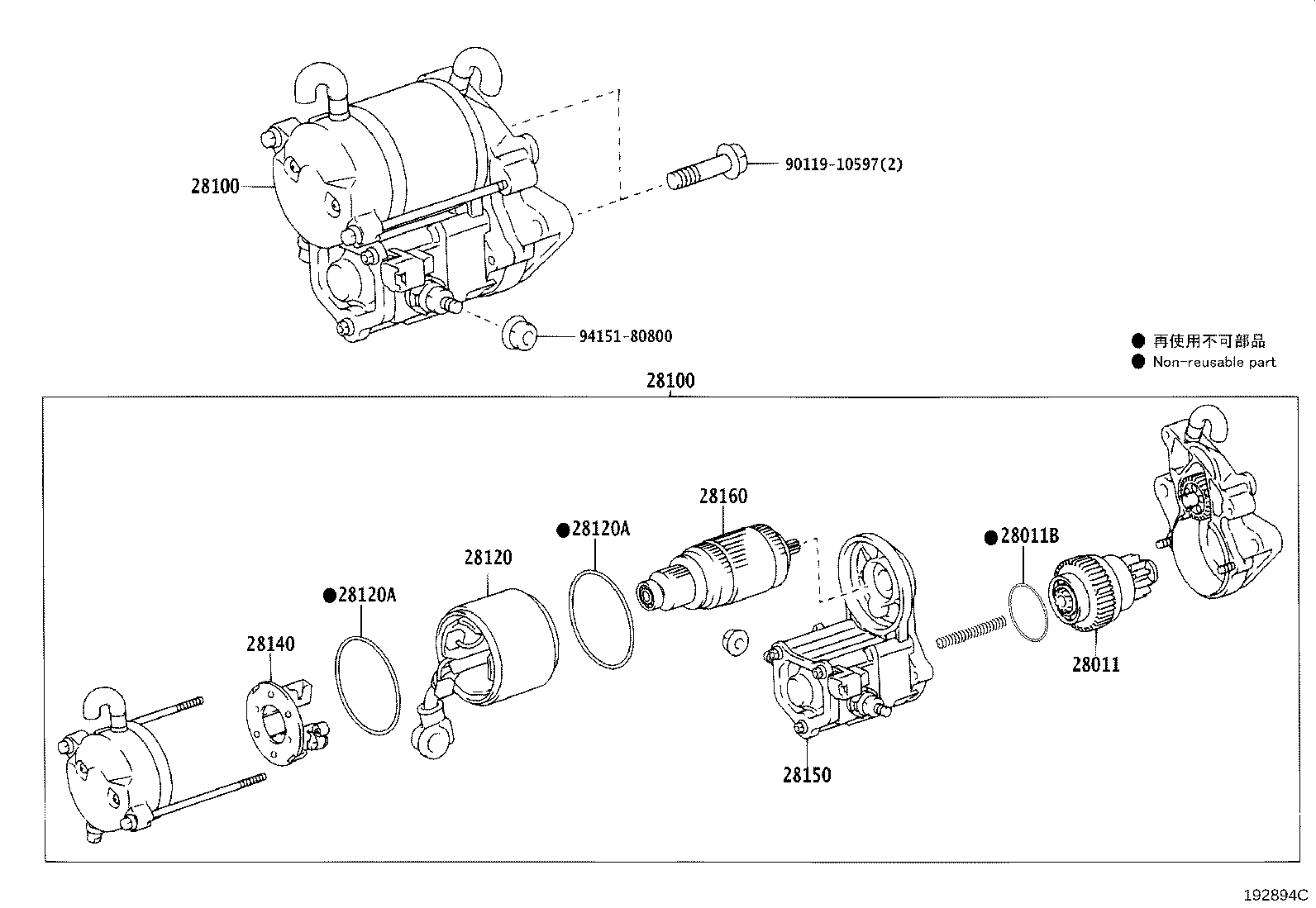

Figure 193738B 193738B 2007-09 → — Figure 192894C 192894C 2007-09 → 2012-01 Figure 193737A 193737A 2012-01 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28011B Ring, O(FOR STARTER CLUTCH)
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28192 Cover, Starter
28213 Pinion, Starter Clutch
28226B Starter Kit, Repair Service
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
