Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

15 part groups · 2 illustrations

Illustrations

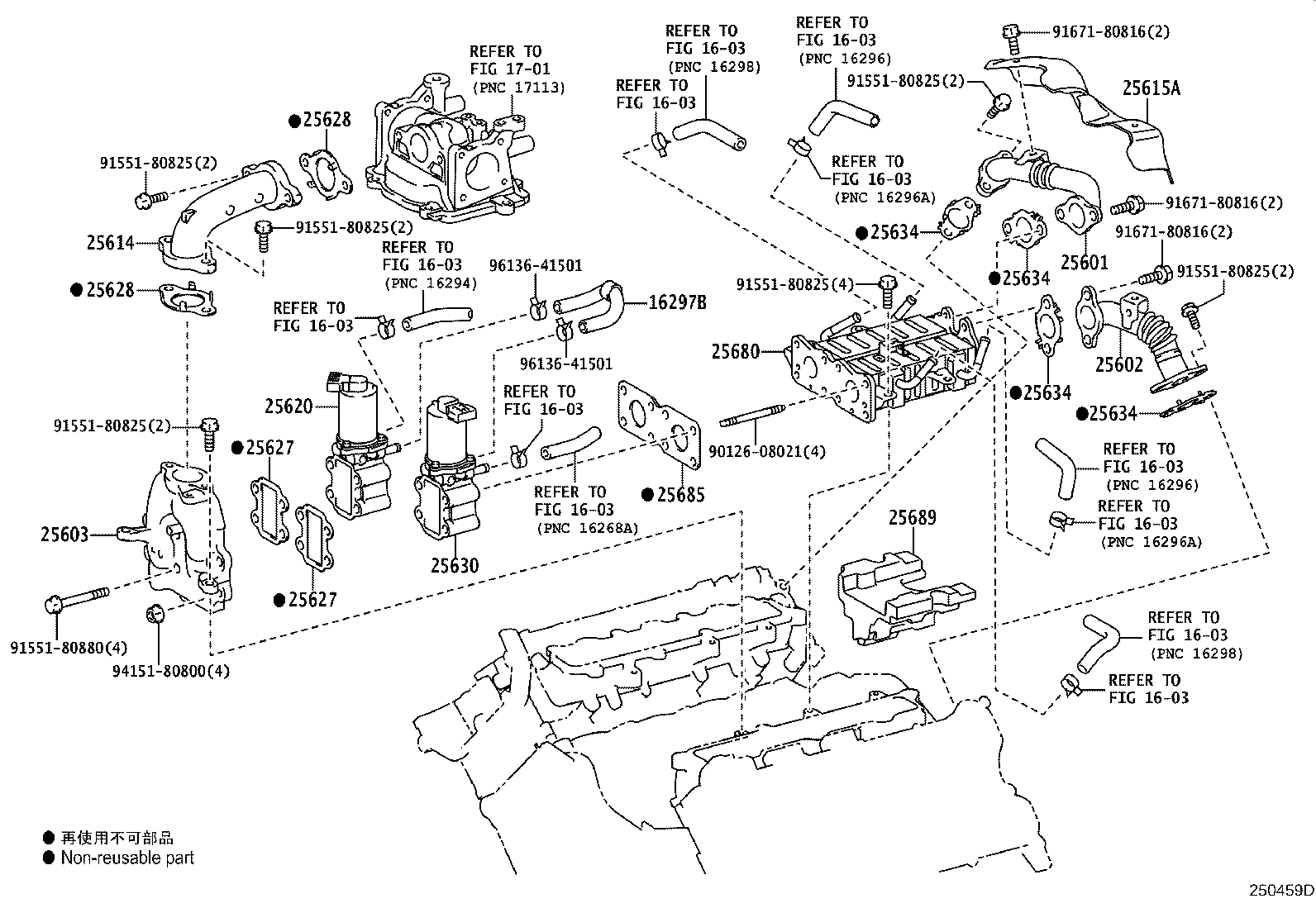

Figure 250326E 250326E 2007-09 → — Figure 250459D 250459D 2012-01 → —

Part groups

PNCDescription
16297B Hose, Water By-pass, NO.9
25601 Pipe Sub-assy, Egr, NO.1
25602 Pipe Sub-assy, Egr, NO.2
25603 Pipe Sub-assy, Egr, NO.3
25613 Pipe, Egr, NO.3
25614 Pipe, Egr, NO.4
25615A Insulator, Egr Pipe
25620 Valve Assy, Egr
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25630 Valve Assy, Egr, NO.2
25634 Gasket, Egr Pipe
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
25689 Insulator, Egr Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
