Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

19 part groups · 7 illustrations

Illustrations

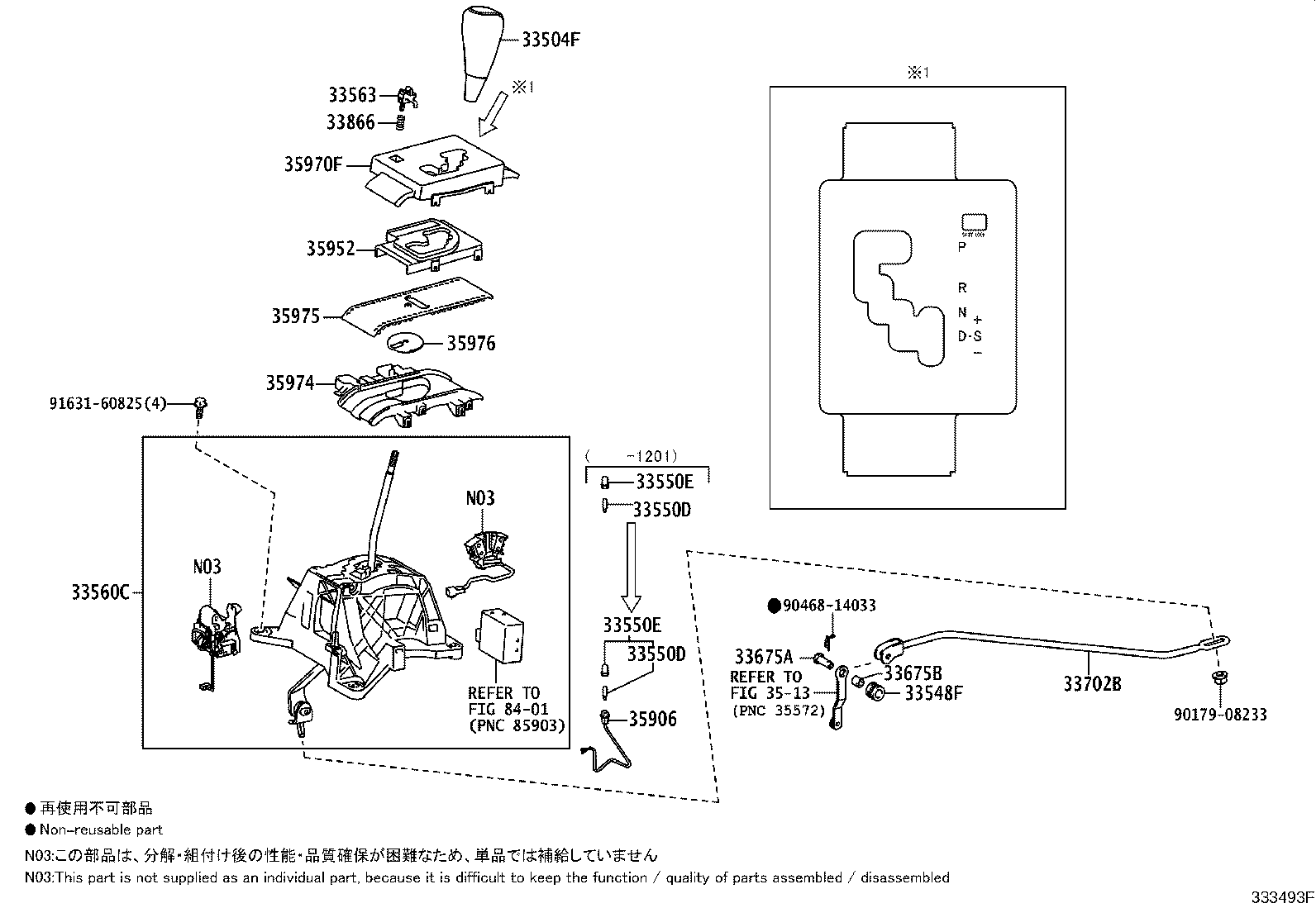

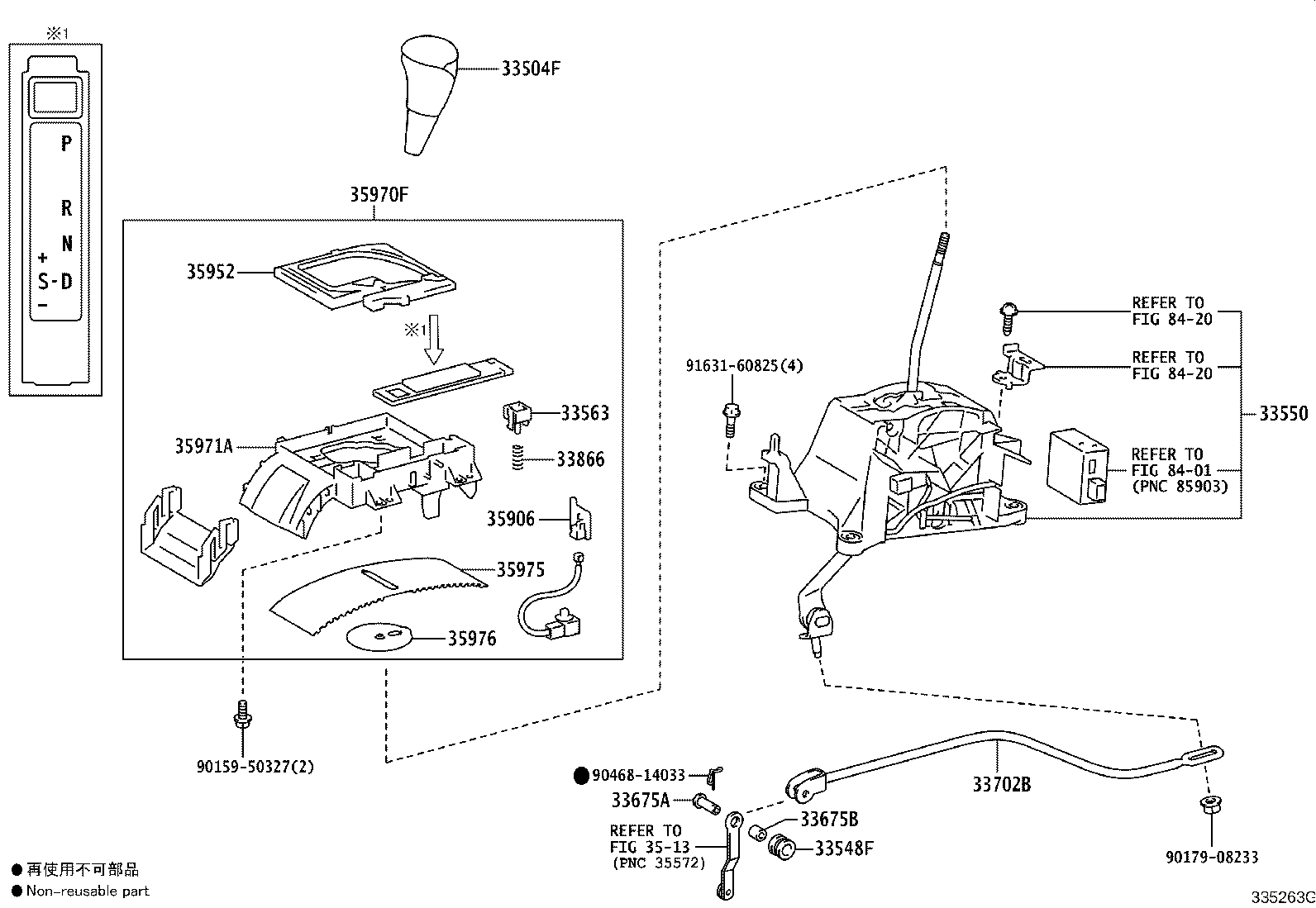

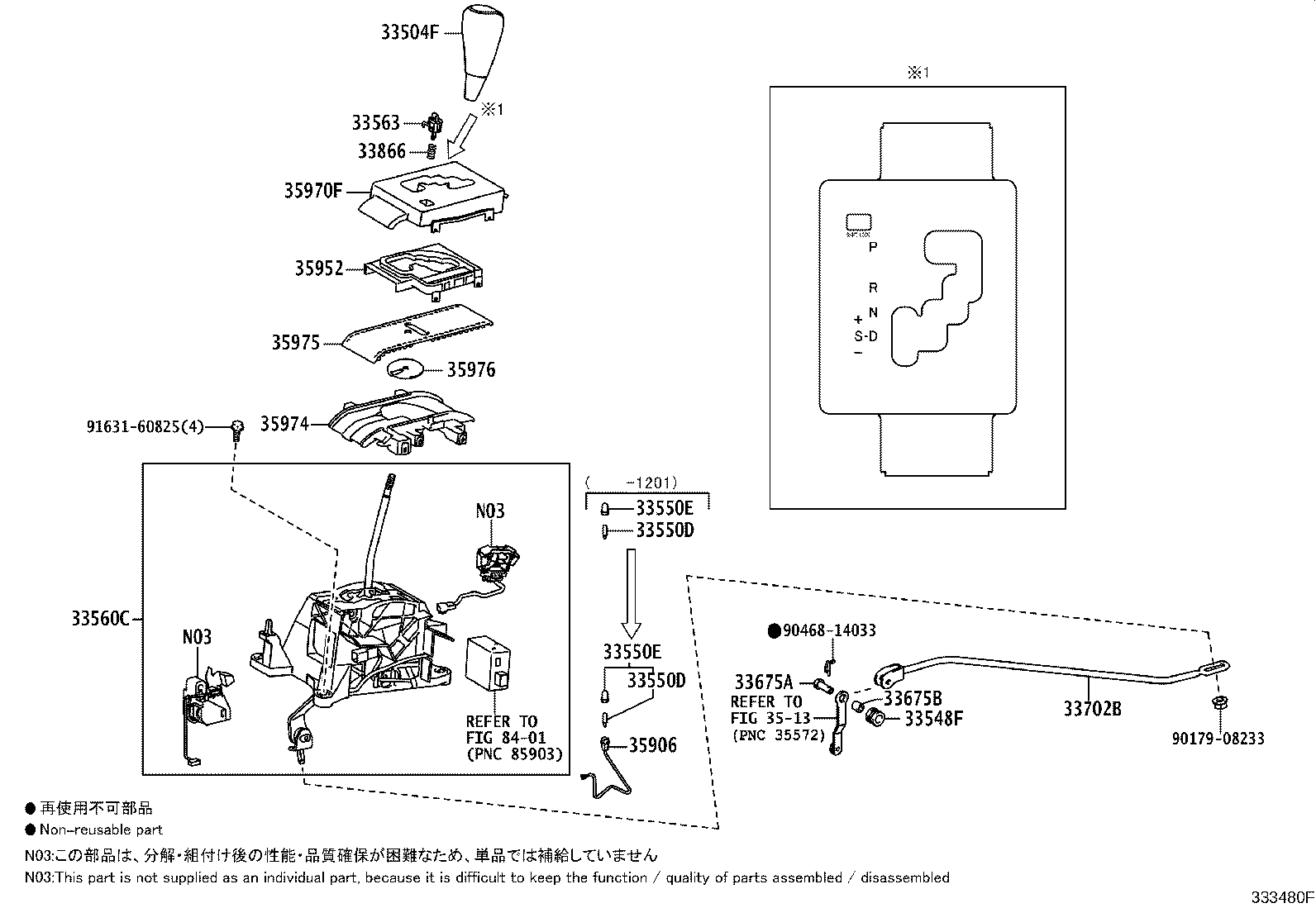

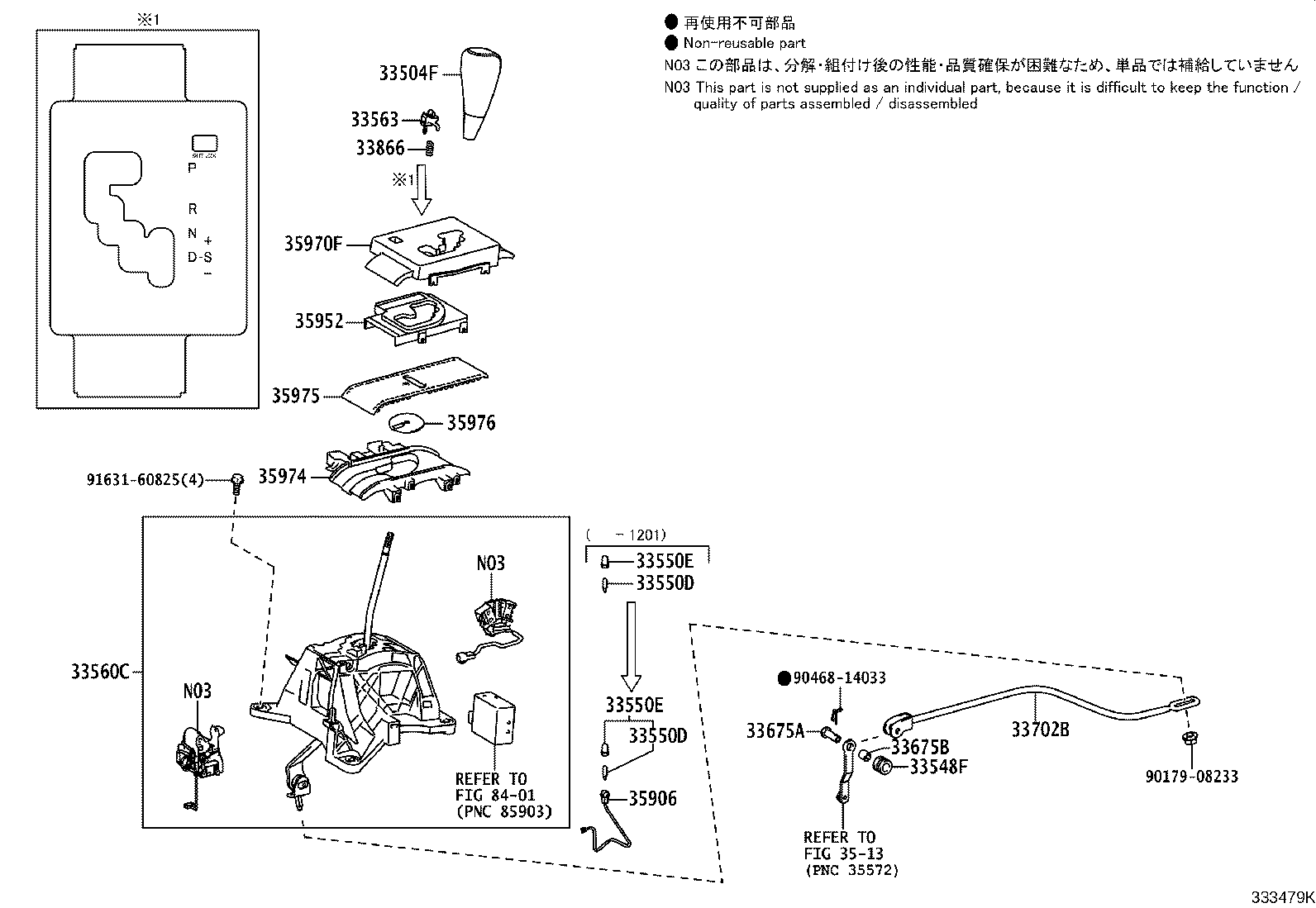

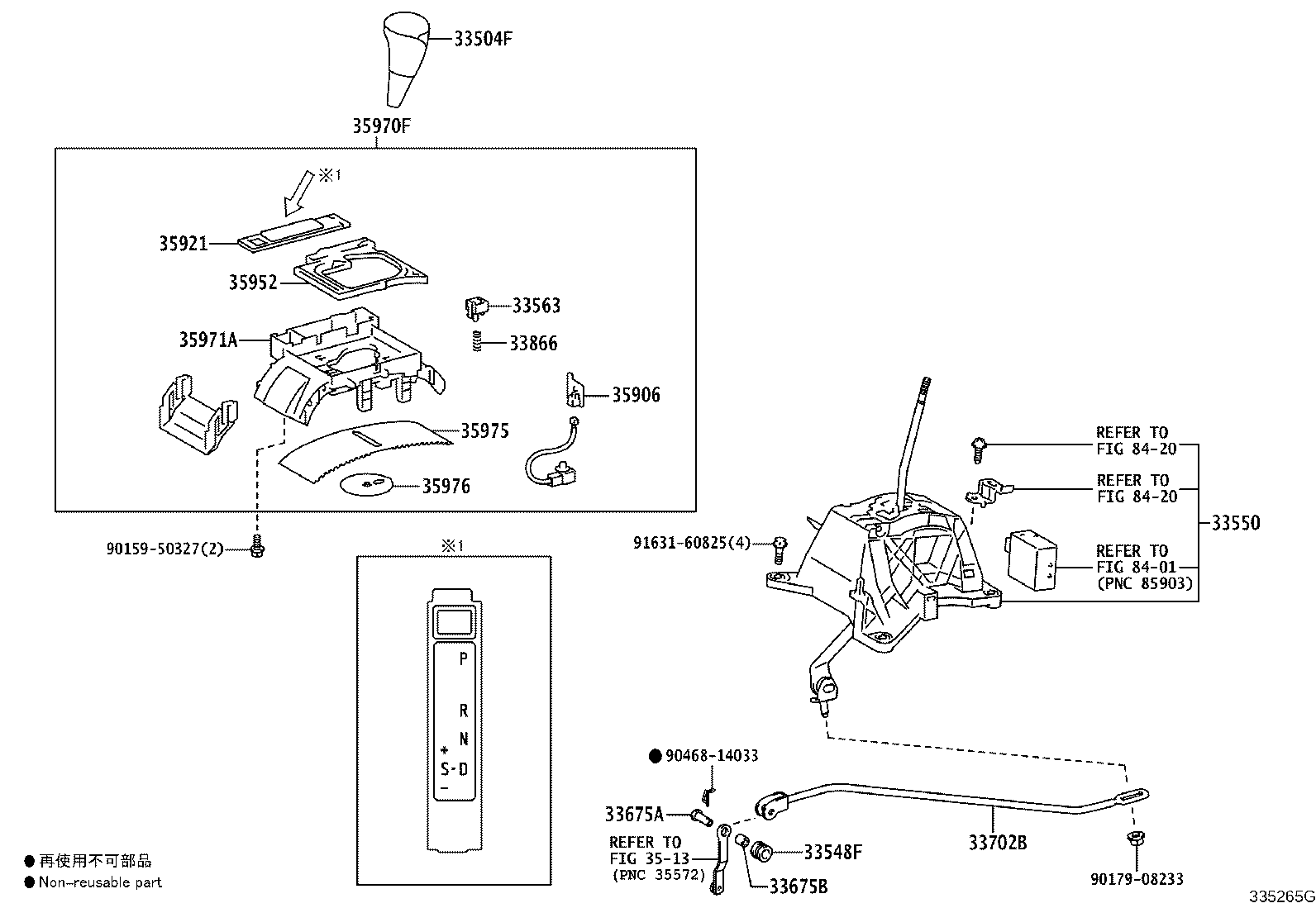

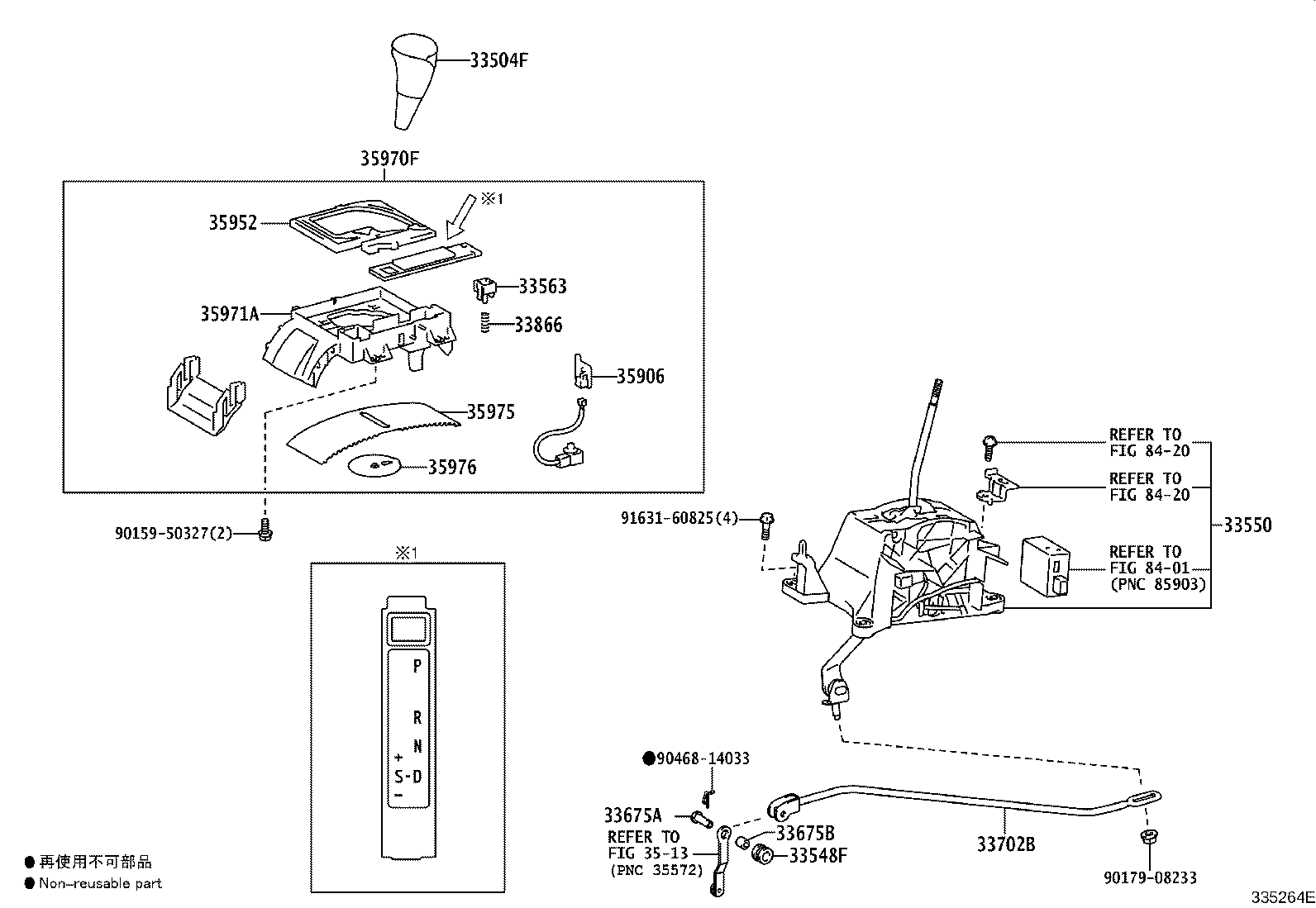

Figure 336358A 336358A 2007-09 → 2015-08 Figure 335263G 335263G 2015-08 → — Figure 333479K 333479K 2007-09 → 2015-08 Figure 333480F 333480F 2007-09 → 2015-08 Figure 335264E 335264E 2015-08 → — Figure 333493F 333493F 2007-09 → 2015-08 Figure 335265G 335265G 2015-08 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33560C Lever Assy, Shift, Lower
33563 Button, Shift Lock Release
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33675B Bush (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
33866 Spring, Shift Lock Release
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35952 Lens, Position Indicator
35970F Housing Assy, Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
