Transmission Case & Oil Pan (ATM)

24 part groups · 3 illustrations

Illustrations

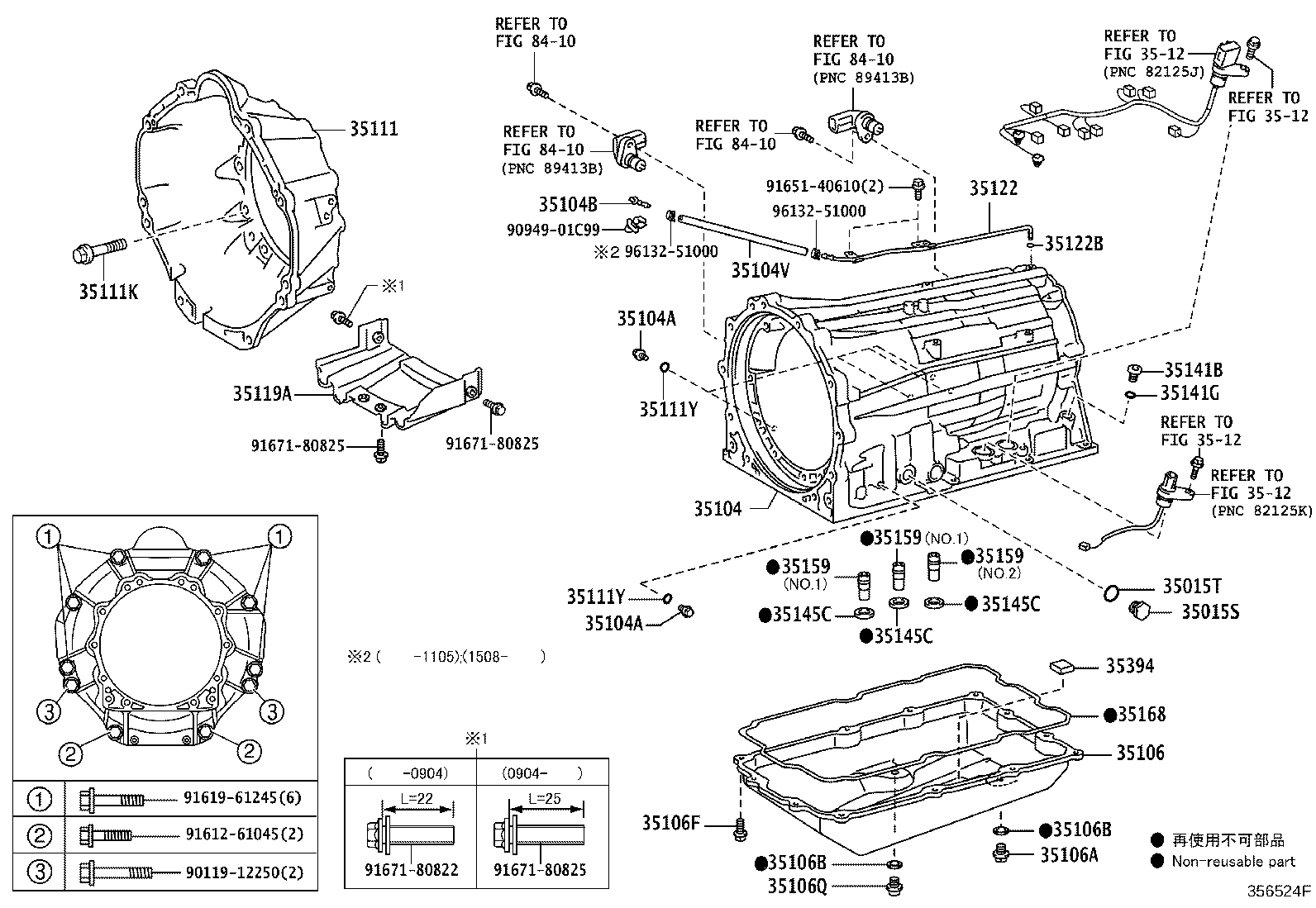

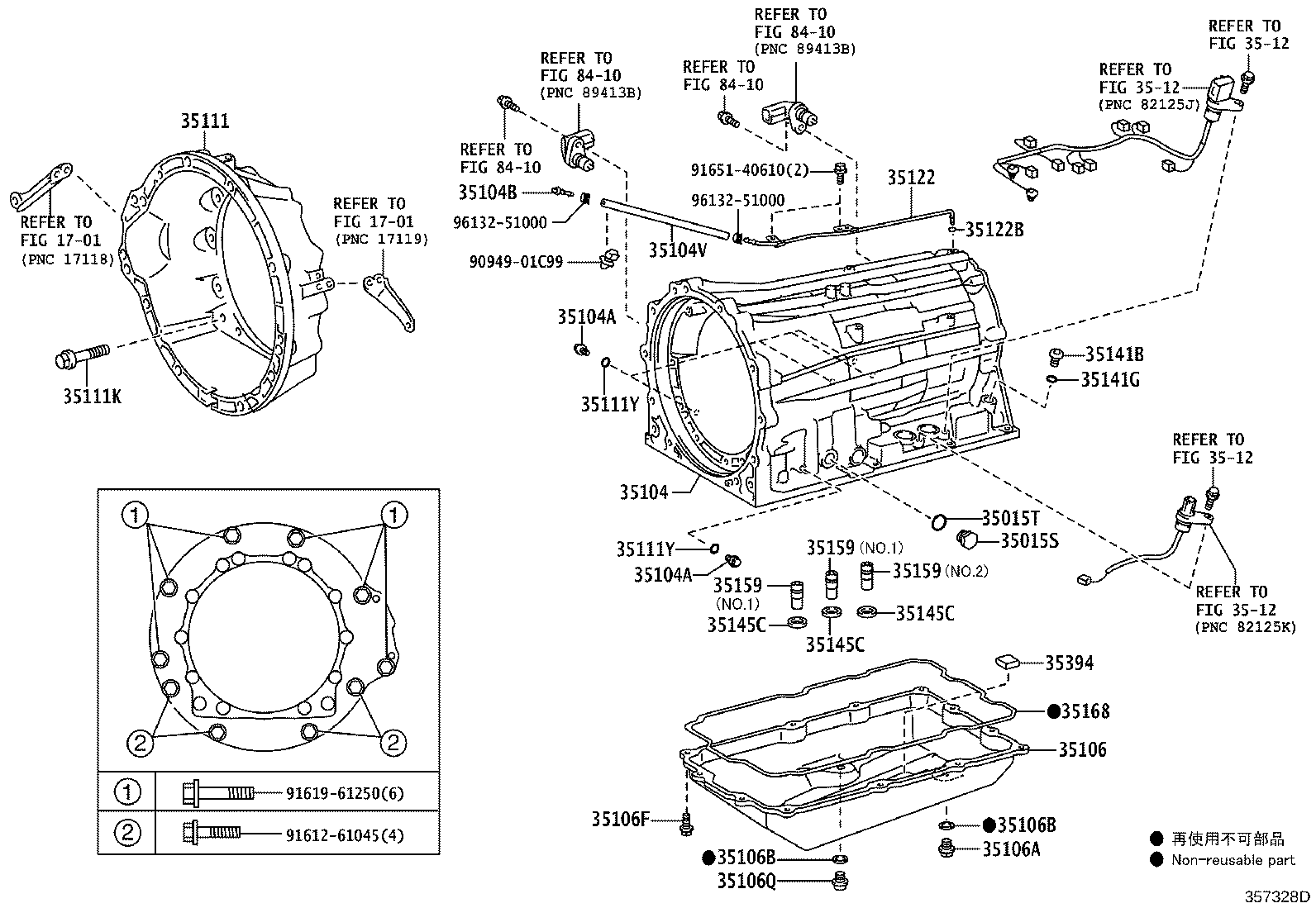

Figure 356323F 356323F 2007-09 → 2012-01 Figure 356524F 356524F 2007-09 → — Figure 357328D 357328D 2012-01 → —

Part groups

PNCDescription
35015S Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
35015T Ring, O(FOR TRANSMISSION CASE ADAPTER)
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104V Hose (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35106Q Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111K Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35119A Cover, Transmission Housing
35122 Tube, Breather (FOR AUTOMATIC TRANSAXLE)
35122B Ring, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
35123A Skirt, Transmission Breather
35141B Plug (FOR AUTOMATIC TRANSMISSION CASE)
35141G Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35145C Gasket, Transaxle Case
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
