Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08

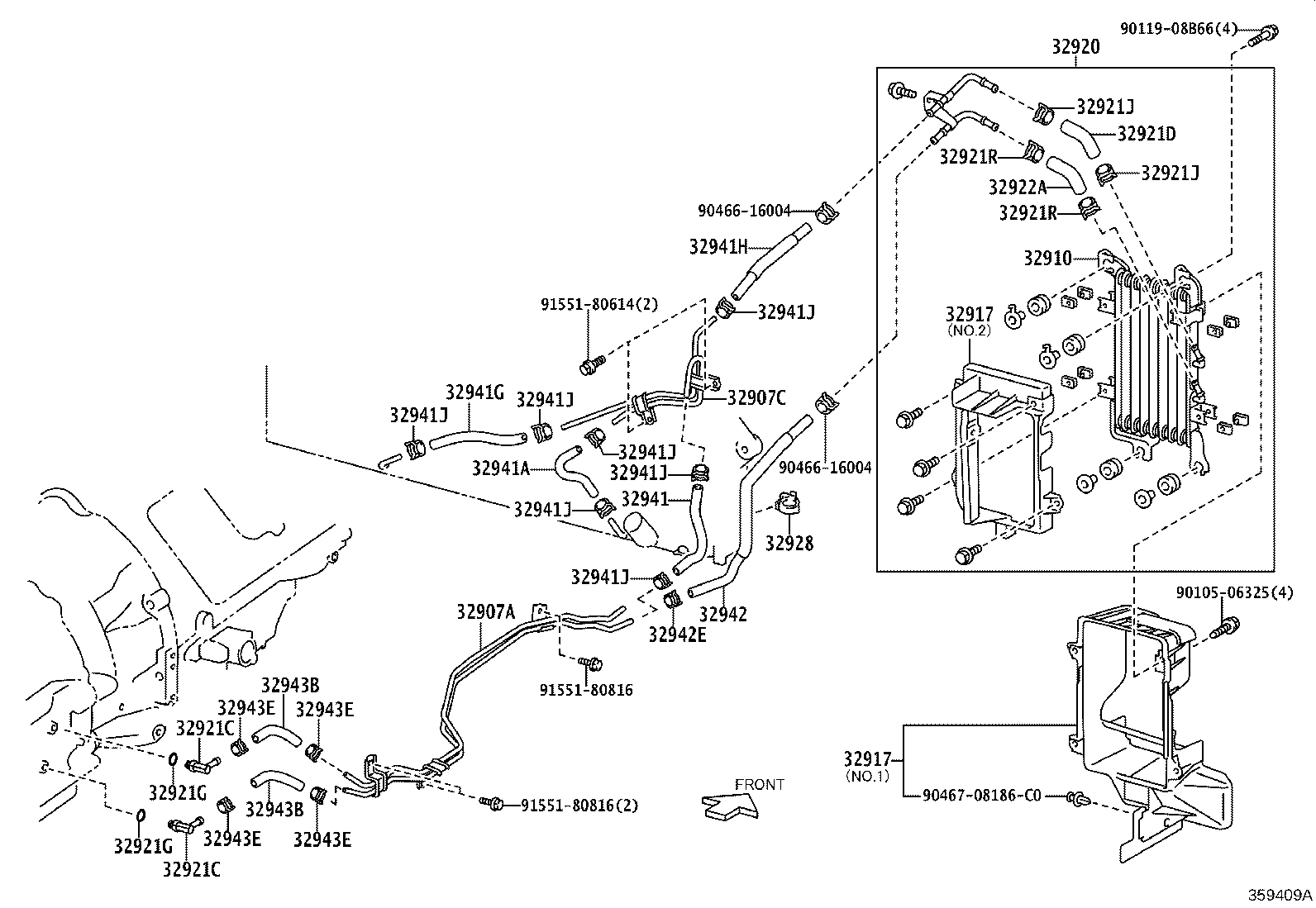

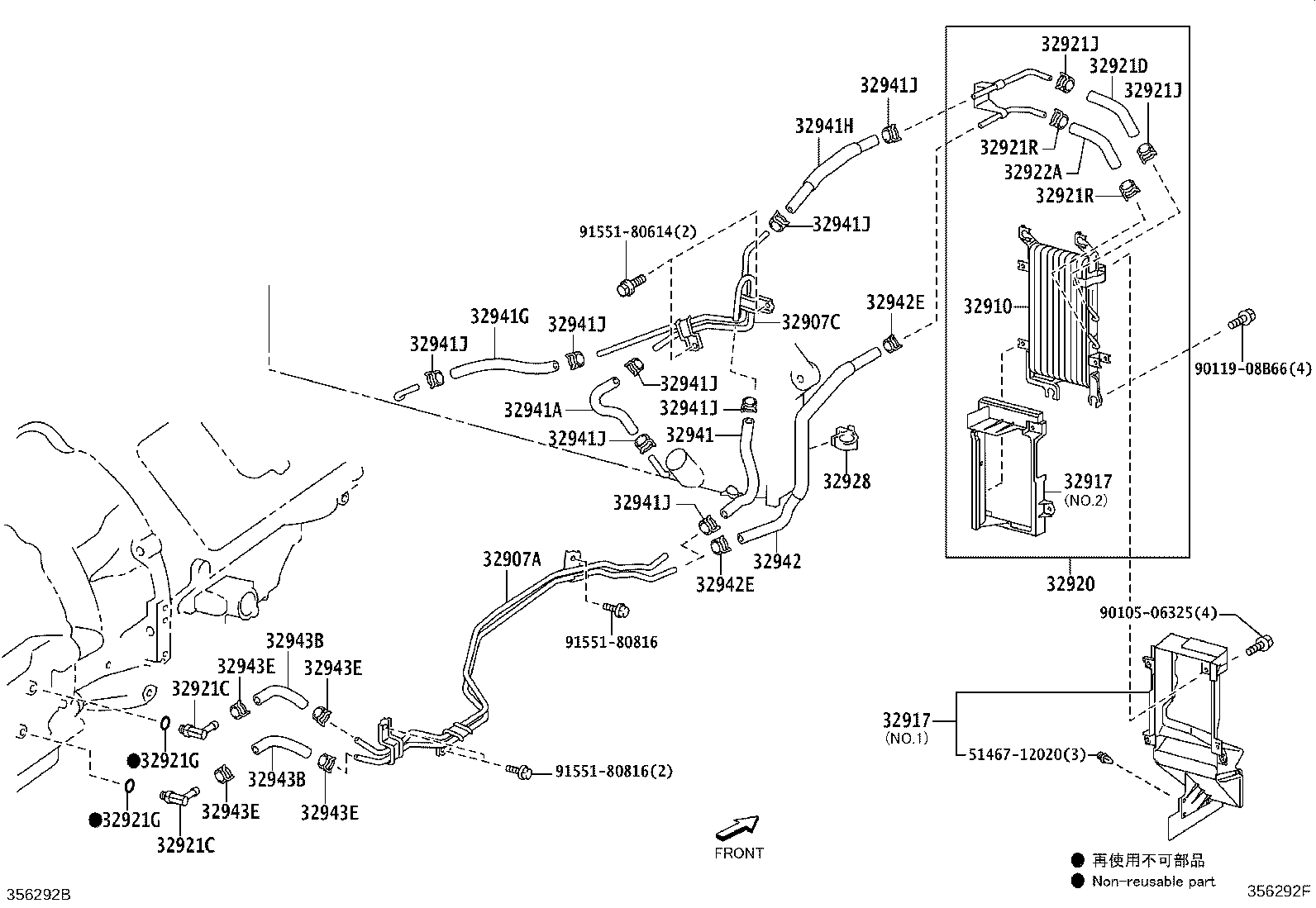

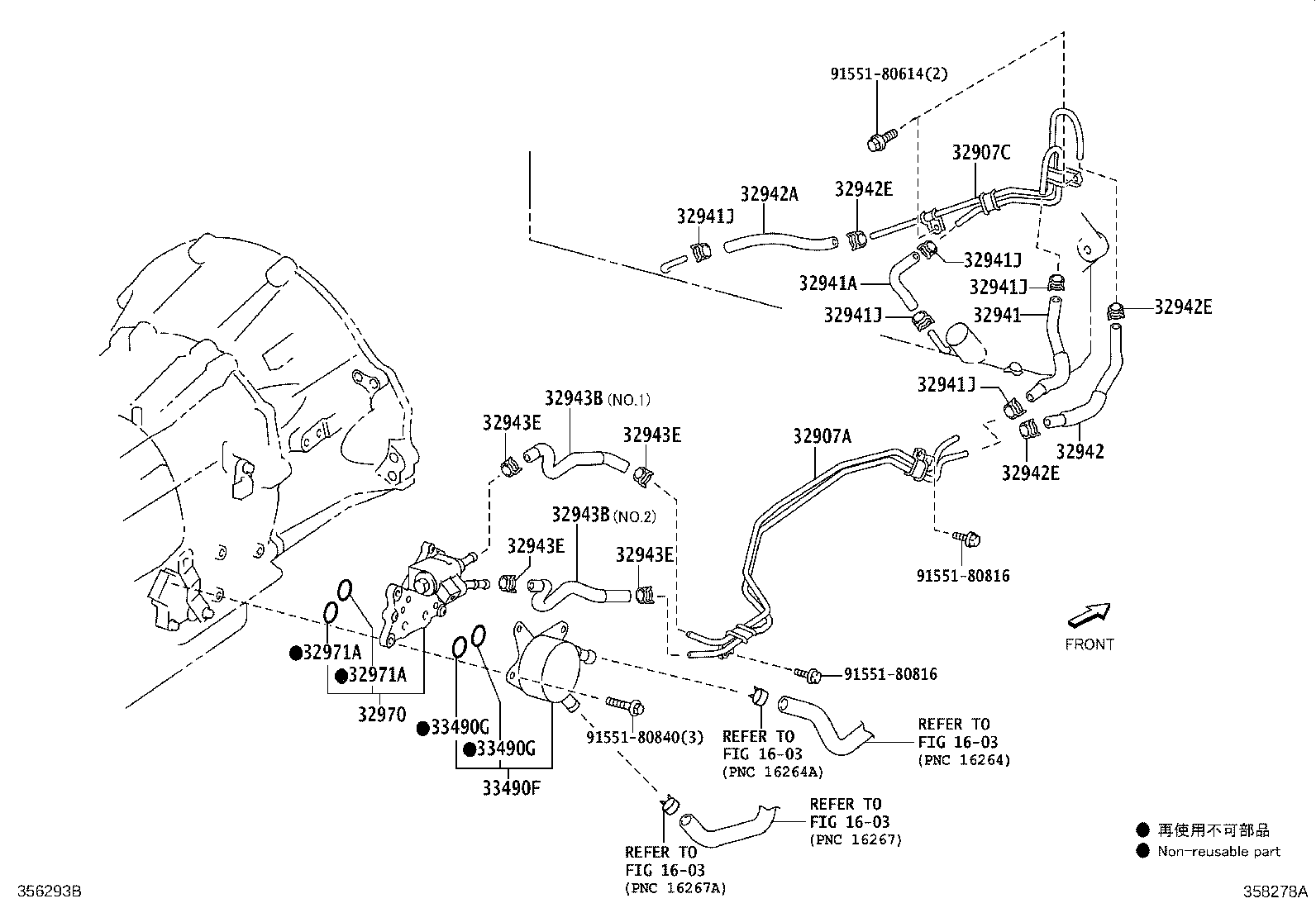

Oil Cooler & Tube (ATM)
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16279K | Protector, Hose Heat |
| 32907A | Tube, Oil Cooler |
| 32907C | Tube Sub-assy, Oil Cooler W/O Hose, NO.1 |
| 32910 | Cooler Assy, Oil |
| 32917 | Duct, Transmission Oil Cooler Air |
| 32920 | Cooler Assy, Oil W/Hose |
| 32921C | Union(FOR OIL COOLER TUBE) |
| 32921D | Hose(FOR OIL COOLER INLET) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921J | Clip(FOR OIL COOLER HOSE) |
| 32921R | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32922A | Hose(FOR OIL COOLER OUTLET) |
| 32928 | Clamp, Flexible Hose, NO.1 |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32941A | Hose, Oil Cooler Inlet, NO.2 |
| 32941G | Hose, Oil Cooler Inlet, NO.3 |
| 32941H | Hose, Oil Cooler Inlet, NO.4 |
| 32941J | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32942A | Hose, Oil Cooler Outlet, NO.2 |
| 32942E | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
| 32943B | Hose, Transmission Oil Cooler |
| 32943E | Clip, NO.3(FOR OIL COOLER HOSE) |
| 32970 | Cooler Assy, Transmission Oil W/Thermostat |
| 32971 | Thermostat, Transmission Oil |
| 32971A | Ring, O(FOR TRANSMISSION OIL THERMOSTAT) |
| 33490F | Cooler Assy, Transmission Oil |
| 33490G | Ring, O (FOR TRANSMISSION OIL COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
