Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

13 part groups · 3 illustrations

Illustrations

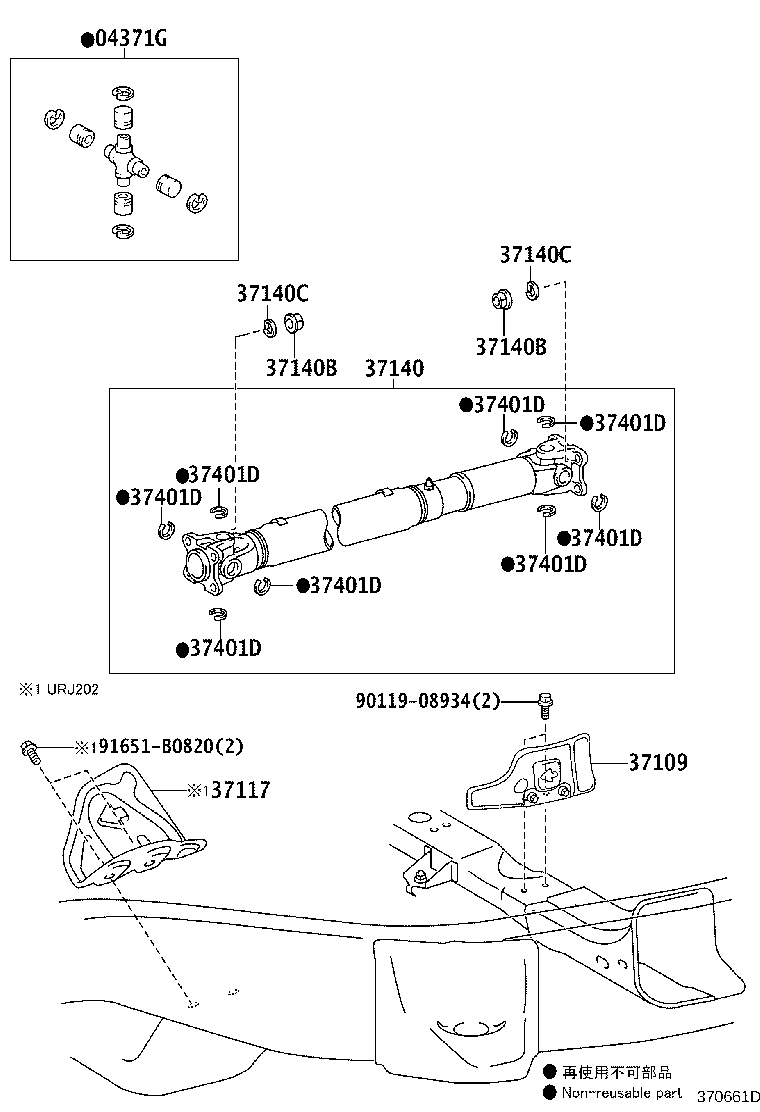

Figure 370658B 370658B 2007-09 → — Figure 370661D 370661D 2007-09 → — Figure 370659F 370659F 2007-09 → —

Part groups

PNCDescription
04371G Spider Kit, Front Propeller Shaft Universal Joint
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37109 Bracket Sub-assy, Propeller Shaft Heat Insulator, NO.1
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37117 Insulator, Propeller Shaft Heat
37140 Shaft Assy, Propeller, Front
37140B Nut (F0R FRONT PROPELLER SHAFT)
37140C Washer (F0R FRONT PROPELLER SHAFT)
37401D Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
