Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08

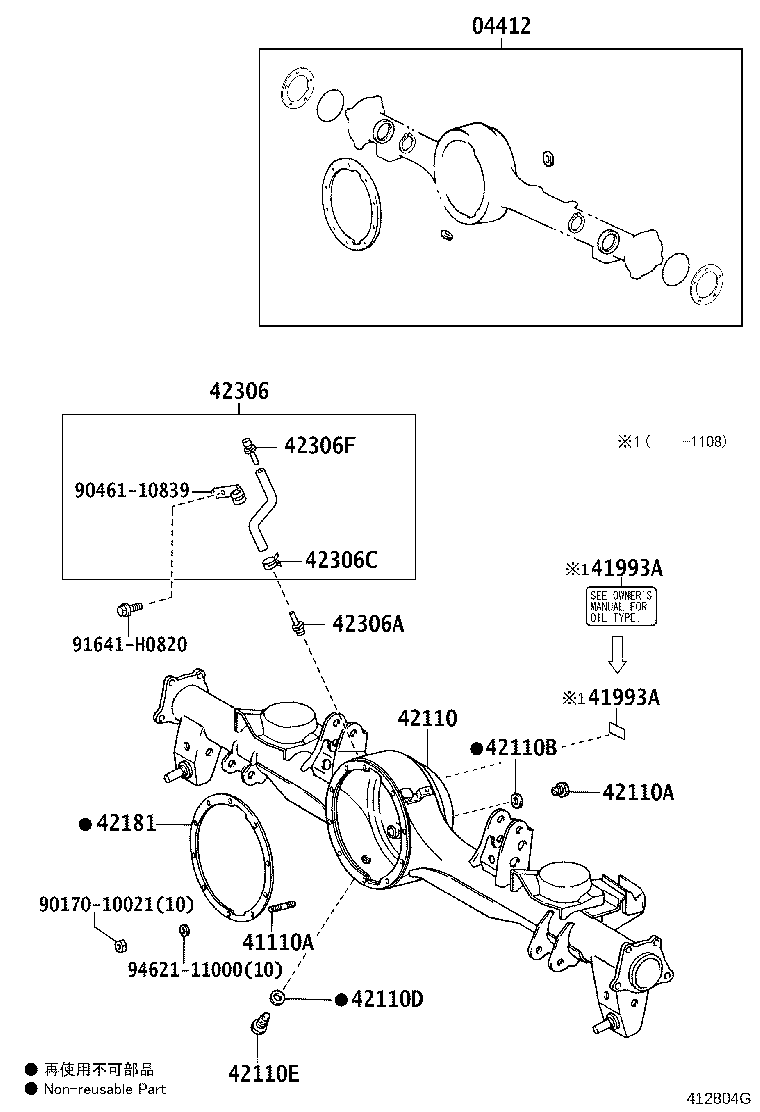

Rear Axle Housing & Differential
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04412 | Gasket Kit, Rear Differential Carrier |
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41110 | Carrier Assy, Differential, Rear |
| 41110A | Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204G | Nut (FOR DRIVE PINION COMPANION FLANGE REAR) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41315 | Nut, Rear Differential Bearing Adjusting |
| 41316 | Lock, Rear Differential Bearing Adjusting Nut |
| 41331 | Gear, Rear Differential Side |
| 41341 | Pinion, Rear Differential |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41371 | Spider, Rear Differential |
| 41993A | Label, Rear Differential Oil Information |
| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42181 | Gasket, Rear Differential Carrier |
| 42306 | Hose Sub-assy, Rear Axle Breather |
| 42306A | Union (FOR REAR AXLE BREATHER HOUSE) |
| 42306C | Clip, Hose (FOR REAR AXLE BREATHER HOSE) |
| 42306F | Plug, Breather (FOR REAR AXLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
