Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

9 part groups · 2 illustrations

Illustrations

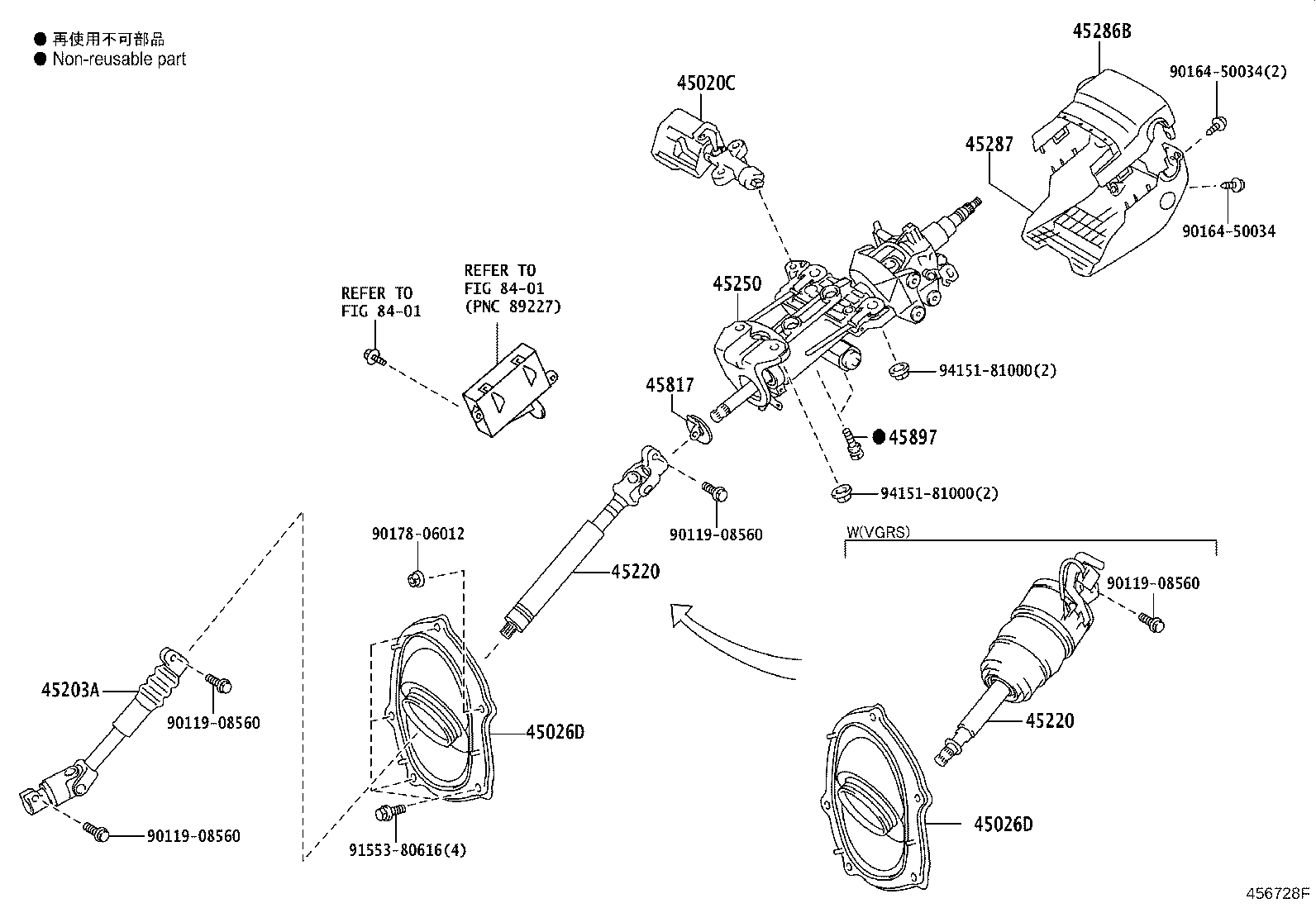

Figure 455042F 455042F 2007-09 → — Figure 456728F 456728F 2007-09 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45026D Cover Sub-assy, Steering Column Hole
45203A Shaft, Steering Intermediate, NO.2
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45817 Stopper, Steering Shaft Thrust
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
