Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

11 part groups · 4 illustrations

Illustrations

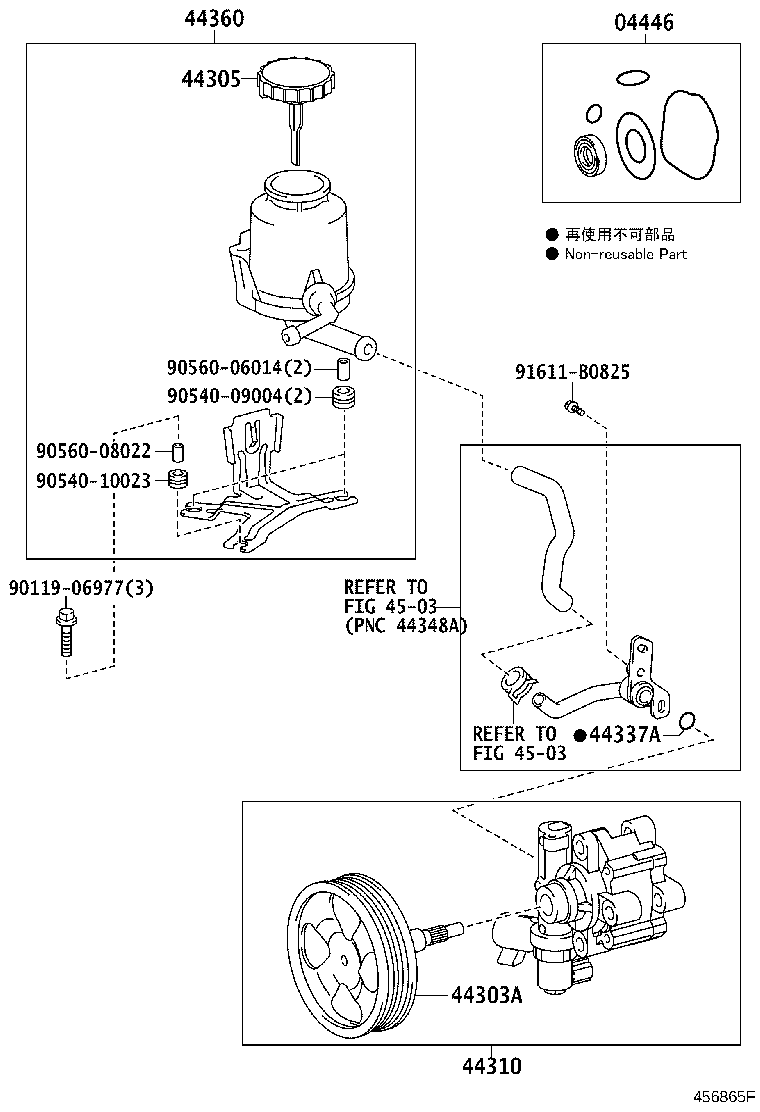

Figure 455016G 455016G 2007-09 → — Figure 455017F 455017F 2007-09 → — Figure 456866E 456866E 2012-01 → — Figure 456865F 456865F 2015-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310 Pump Assy, Vane
44310C Ring, O(FOR VANE PUMP)
44316 Gear, Vane Pump
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
