Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 7 illustrations

Illustrations

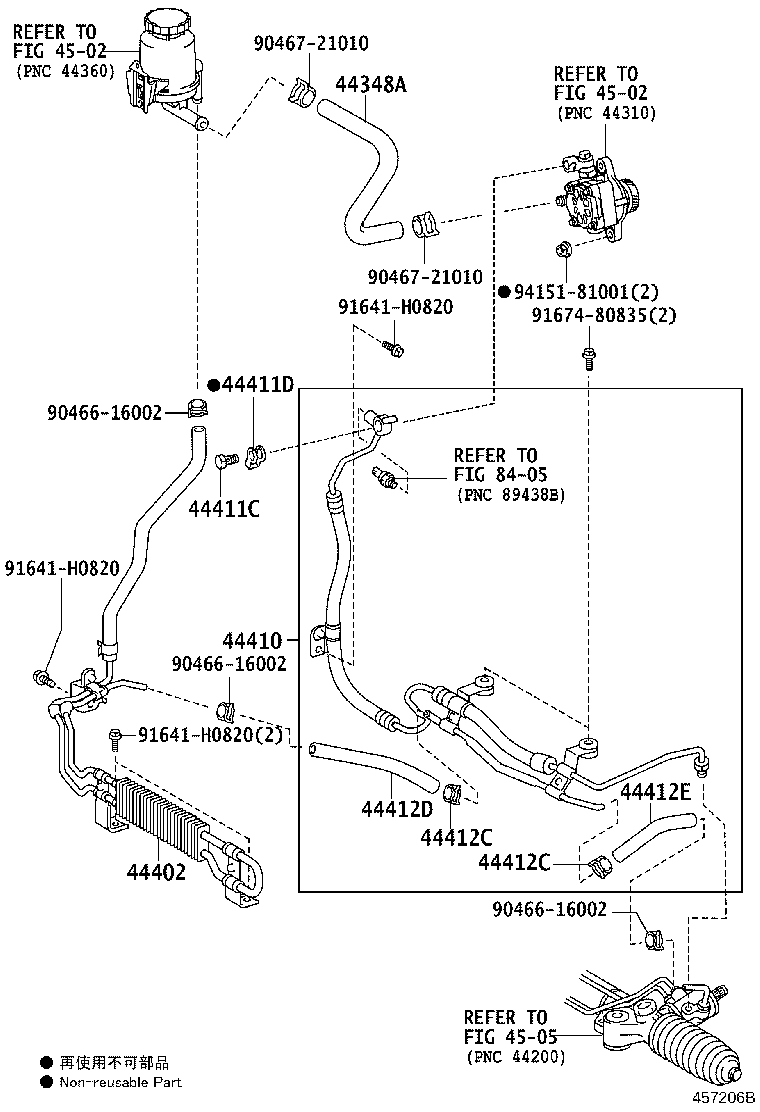

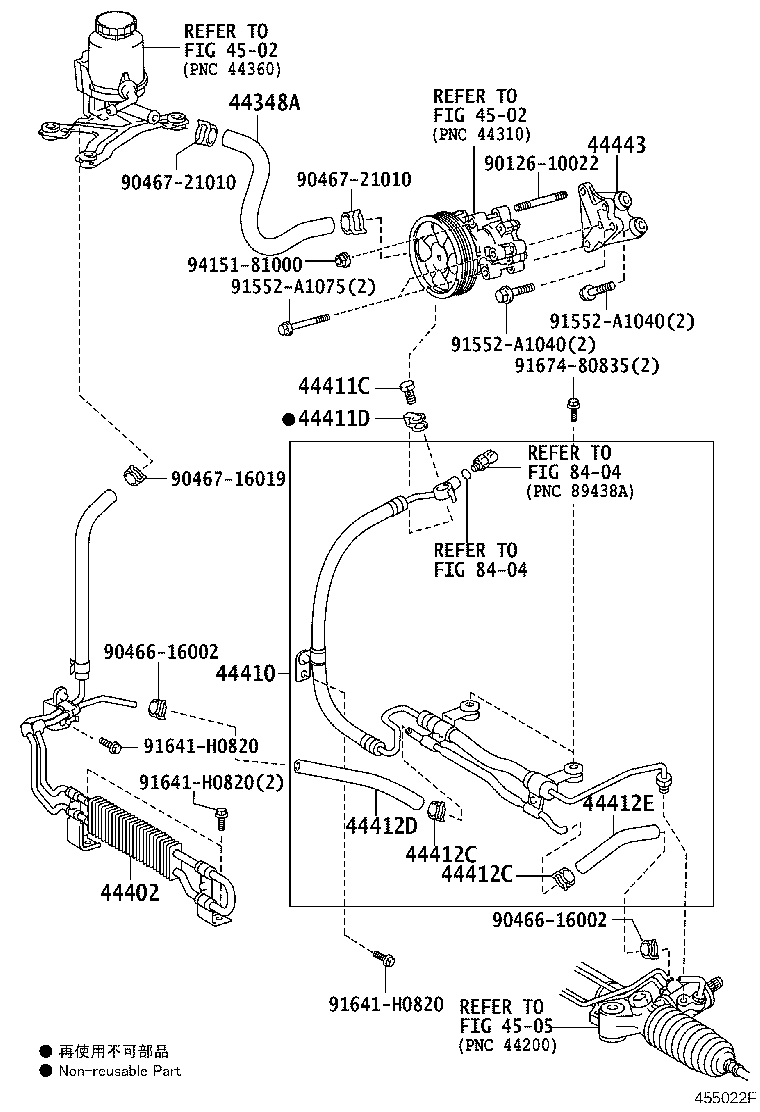

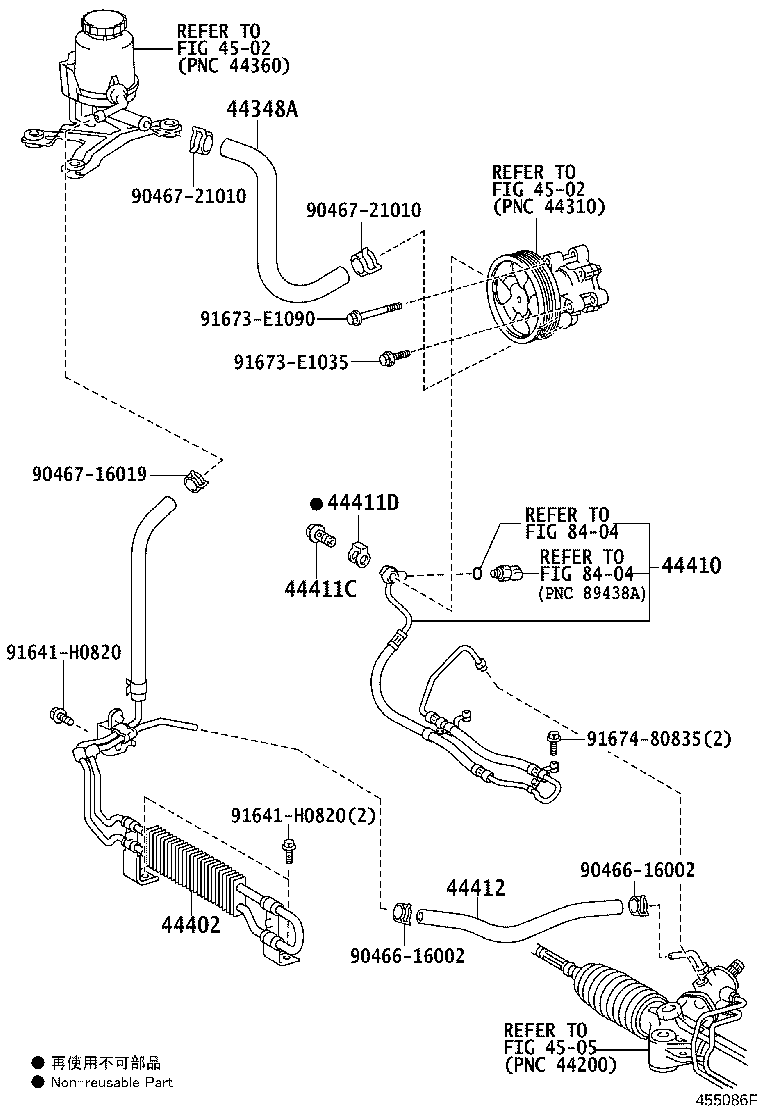

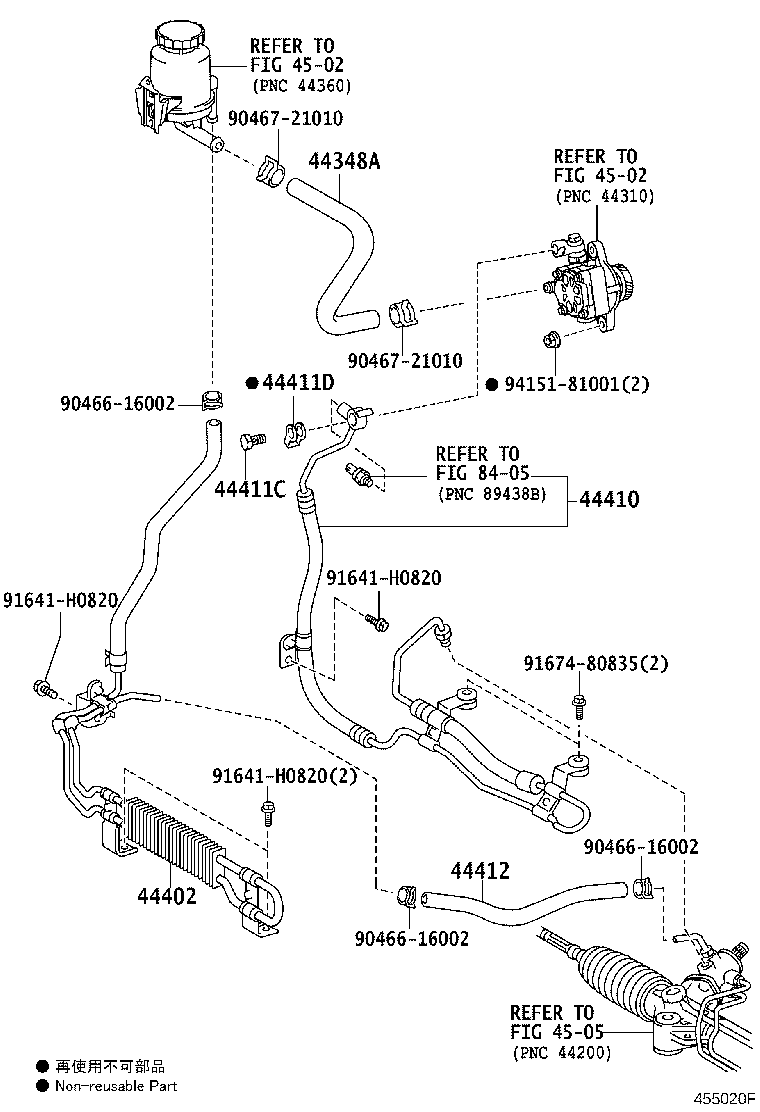

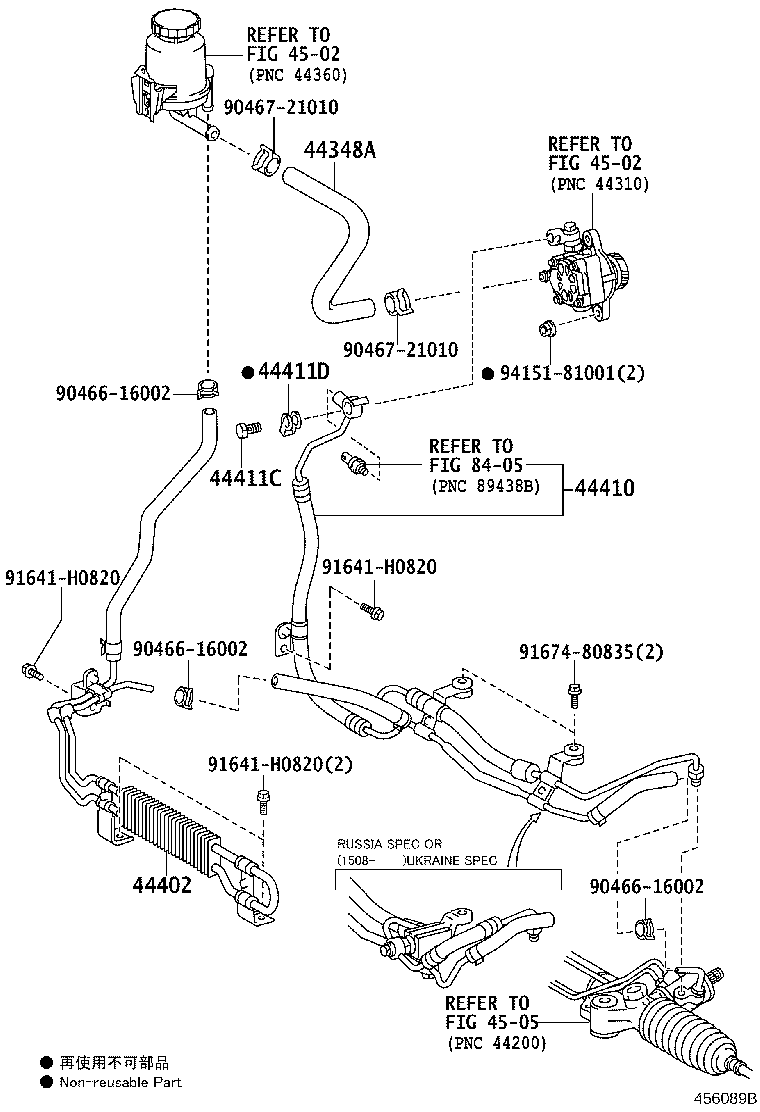

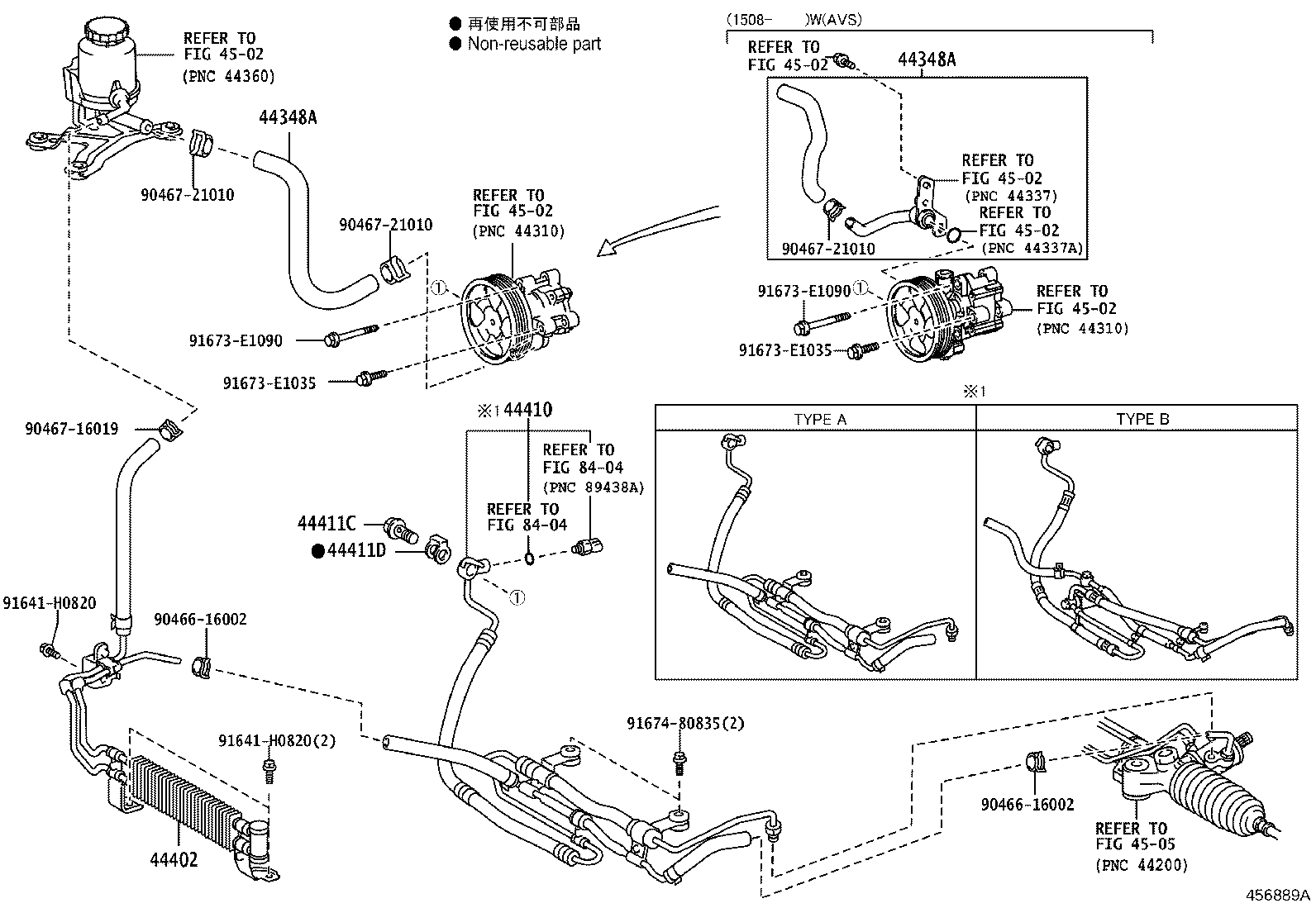

Figure 455019E 455019E 2007-09 → 2012-01 Figure 455022F 455022F 2007-09 → 2012-01 Figure 455086F 455086F 2012-01 → 2015-08 Figure 455020F 455020F 2007-09 → — Figure 457206B 457206B 2007-09 → 2012-01 Figure 456089B 456089B 2012-01 → — Figure 456889A 456889A 2012-01 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
