Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

11 part groups · 2 illustrations

Illustrations

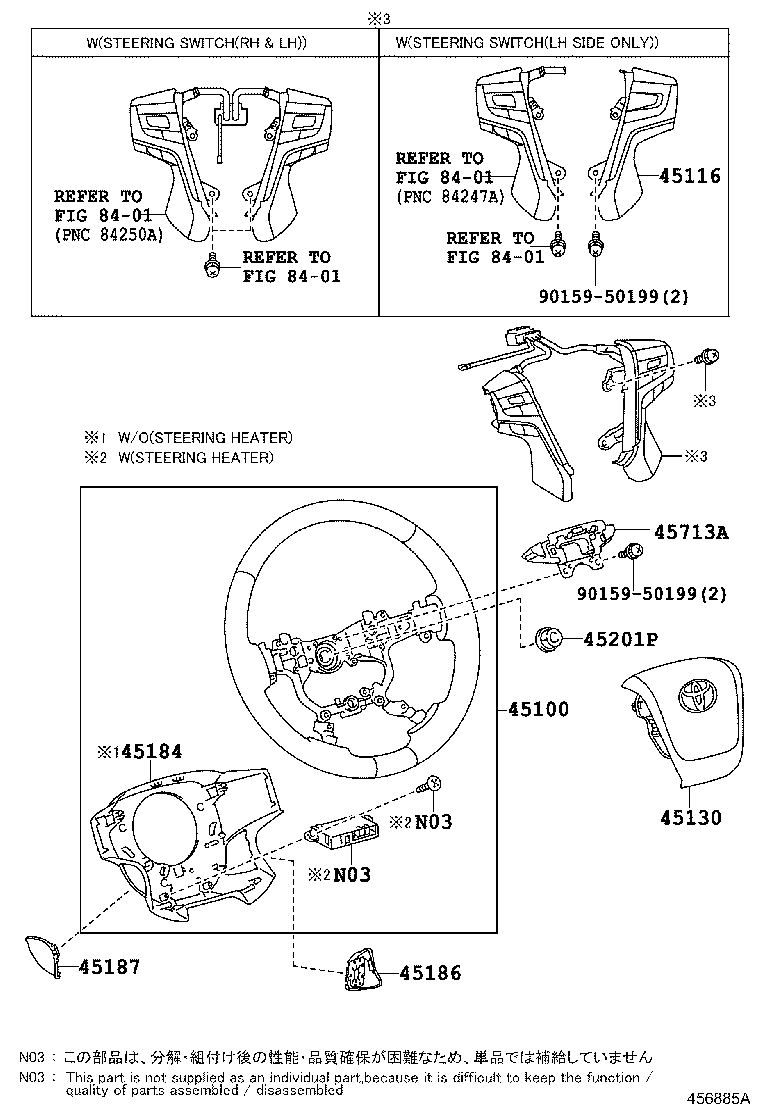

Figure 455038A 455038A 2007-09 → 2015-08 Figure 456885A 456885A 2015-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
55910E Control Assy, Steering Wheel Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
