Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08

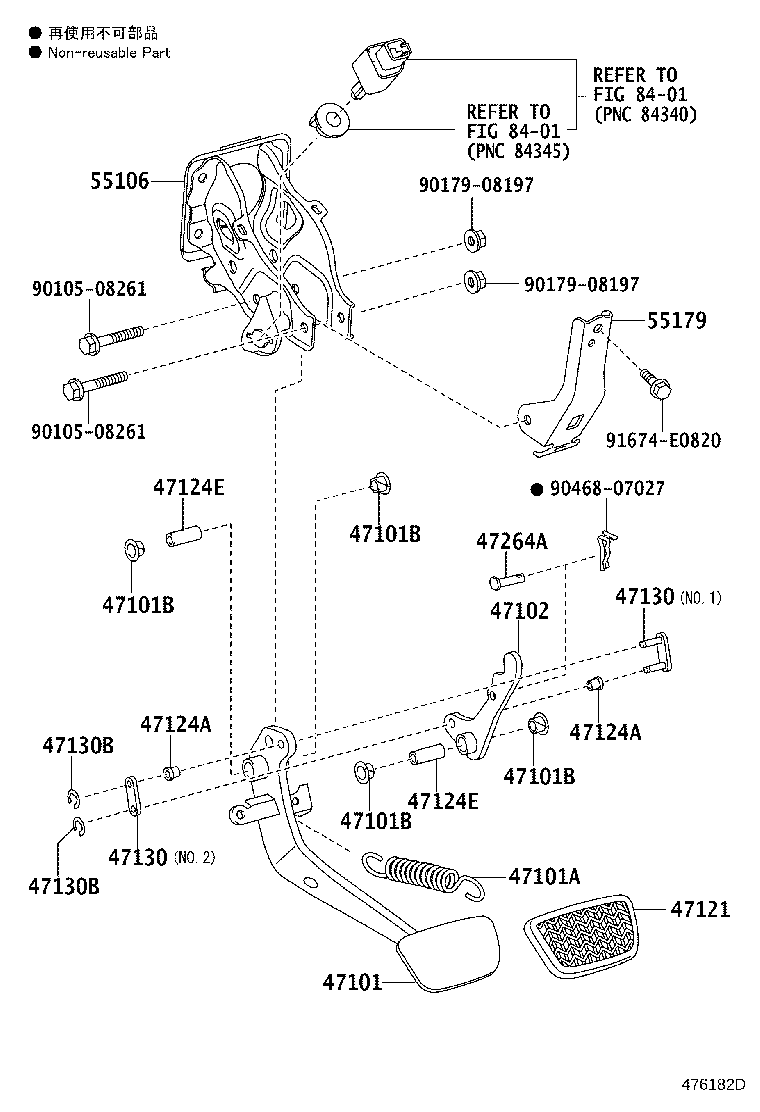

Brake Pedal & Bracket
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101 | Pedal Sub-assy, Brake |
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47102 | Lever Sub-assy, Brake Pedal |
| 47110 | Support Assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47124E | Collar, Brake Pedal Shaft, NO.2 |
| 47130 | Link Assy, Brake Pedal |
| 47130A | Pin, Brake Pedal Link |
| 47130B | Ring E, Brake Pedal Link Pin |
| 47264A | Pin(FOR PUSH ROD) |
| 55106 | Support Sub-assy, Brake Pedal |
| 55179 | Reinforcement, Brake Pedal Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
