Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

26 part groups · 3 illustrations

Illustrations

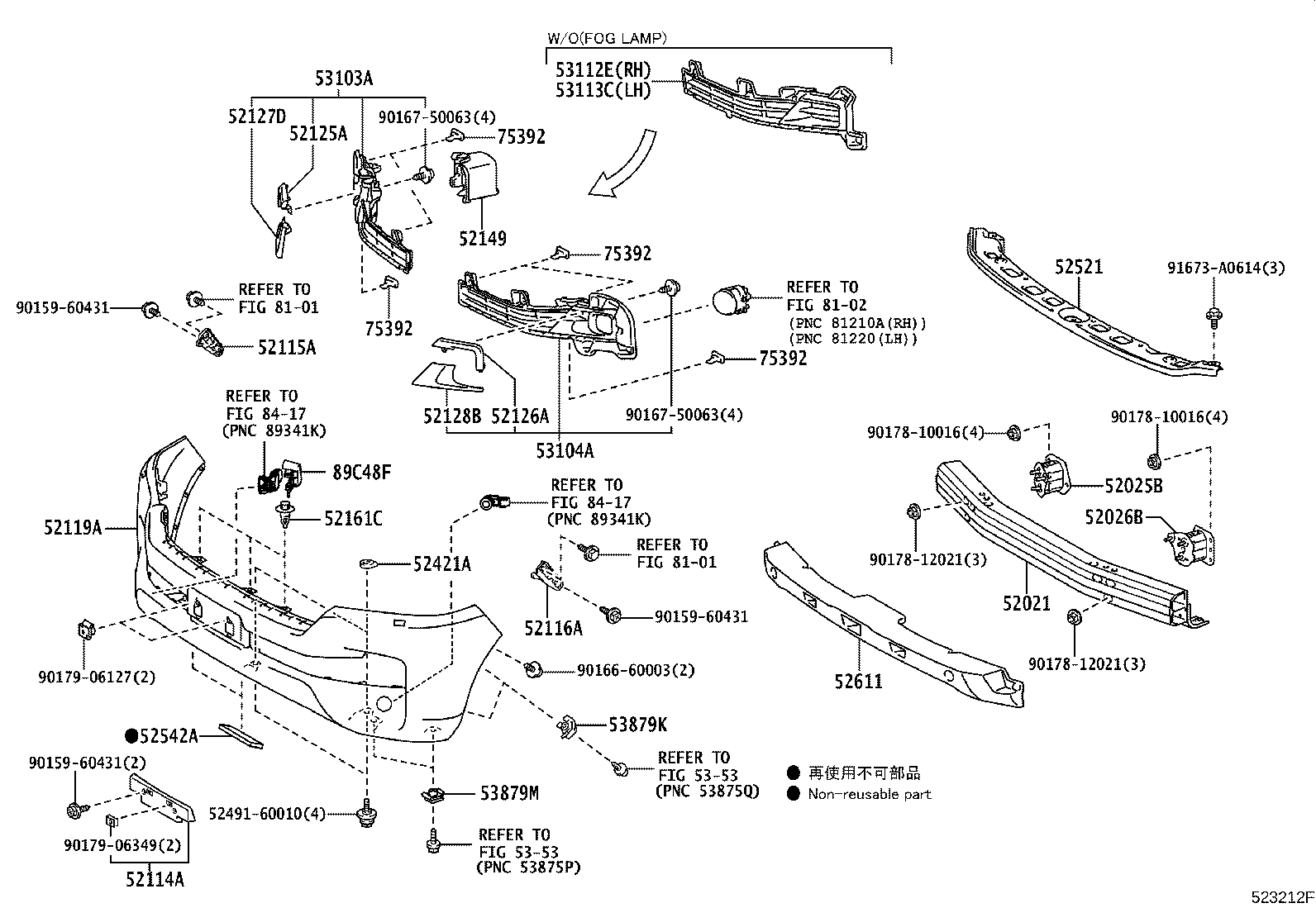

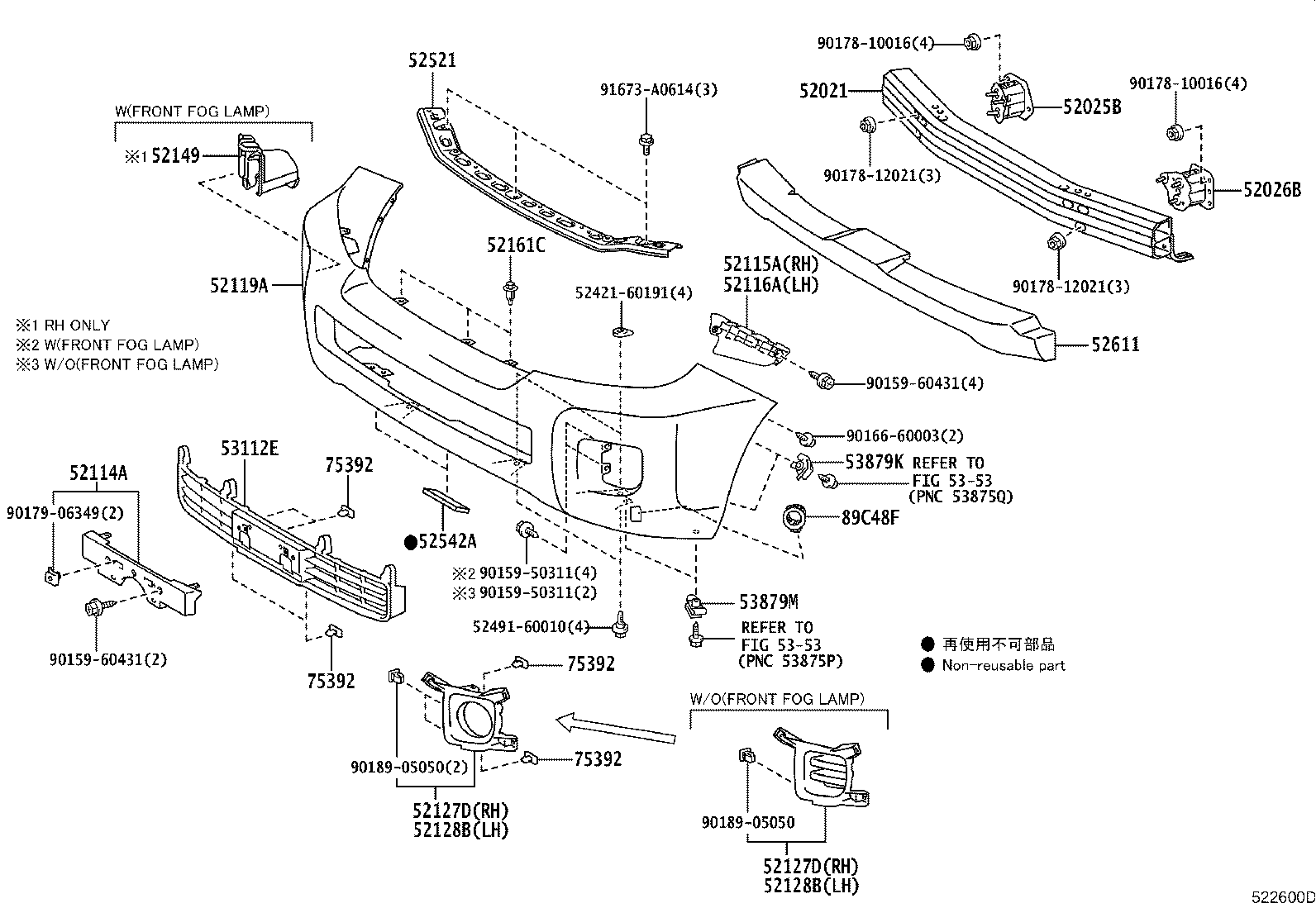

Figure 521835J 521835J 2007-09 → 2012-01 Figure 522600D 522600D 2012-01 → 2015-08 Figure 523212F 523212F 2015-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52025B Extension Sub-assy, Front Bumper, NO.2 RH
52026B Extension Sub-assy, Front Bumper, NO.2 LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52149 Bracket, Front Bumper, Inner
52161C Piece, Front Bumper
52421A Pad, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52541 Protector, Front Bumper
52542A Protector, Front Bumper, NO.2
52611 Absorber, Front Bumper Energy
53103A Grille Sub-assy, Radiator, Lower RH
53104A Grille Sub-assy, Radiator, Lower LH
53112E Grille, Radiator, Lower NO.1
53113C Grille, Radiator, Lower LH
53879K Retainer, Front Fender Liner
53879M Retainer, Front Fender Liner
75392 Retainer, Outside Moulding
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
