Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 2 illustrations

Illustrations

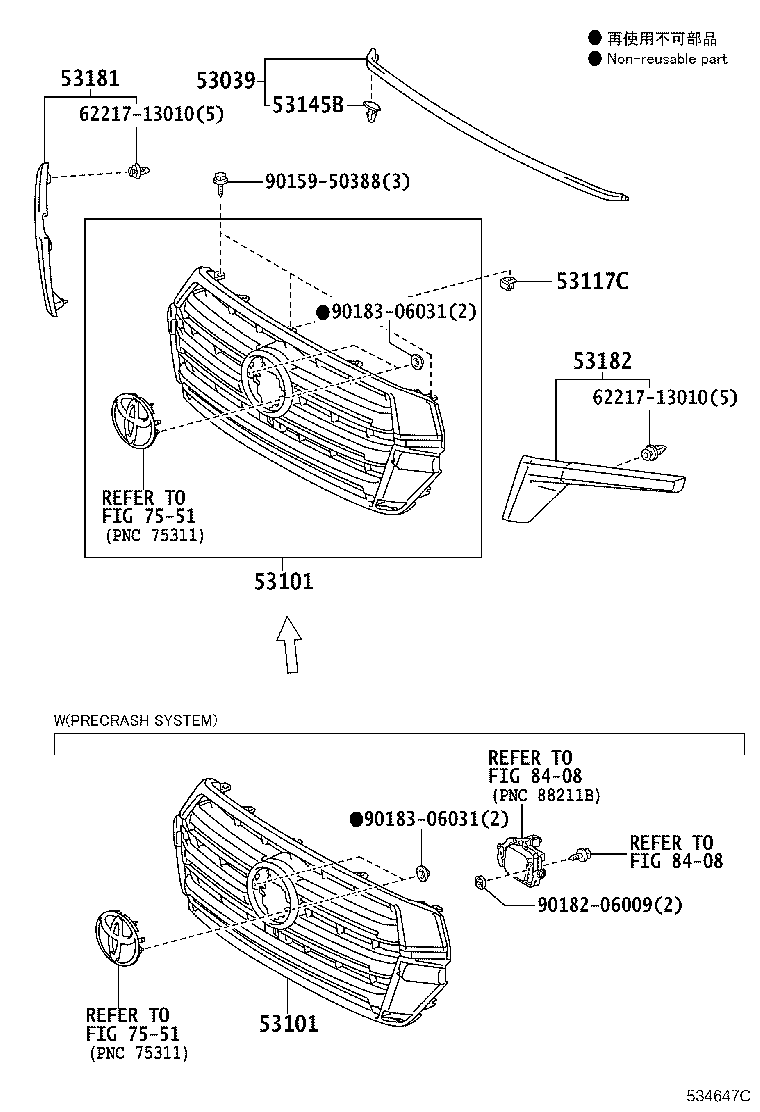

Figure 533640A 533640A 2007-09 → 2015-08 Figure 534647C 534647C 2015-08 → —

Part groups

PNCDescription
53039 Seal, Radiator, Upper
53101 Grille Sub-assy, Radiator
53117C Retainer, Radiator Grille, NO.1
53145B Clip, Radiator Grille Garnish
53181 Cover, Headlamp, RH
53182 Cover, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
