Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

11 part groups · 4 illustrations

Illustrations

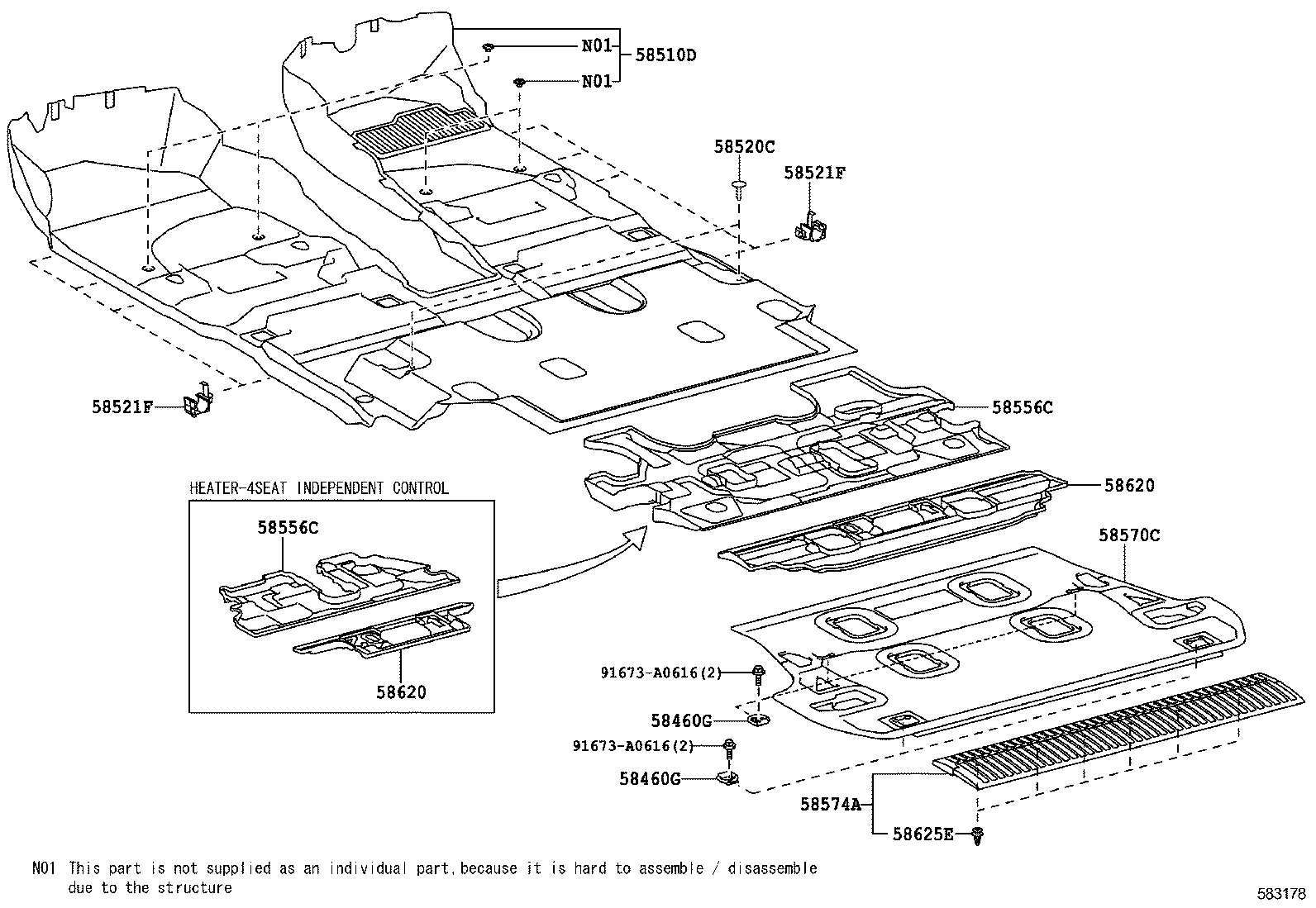

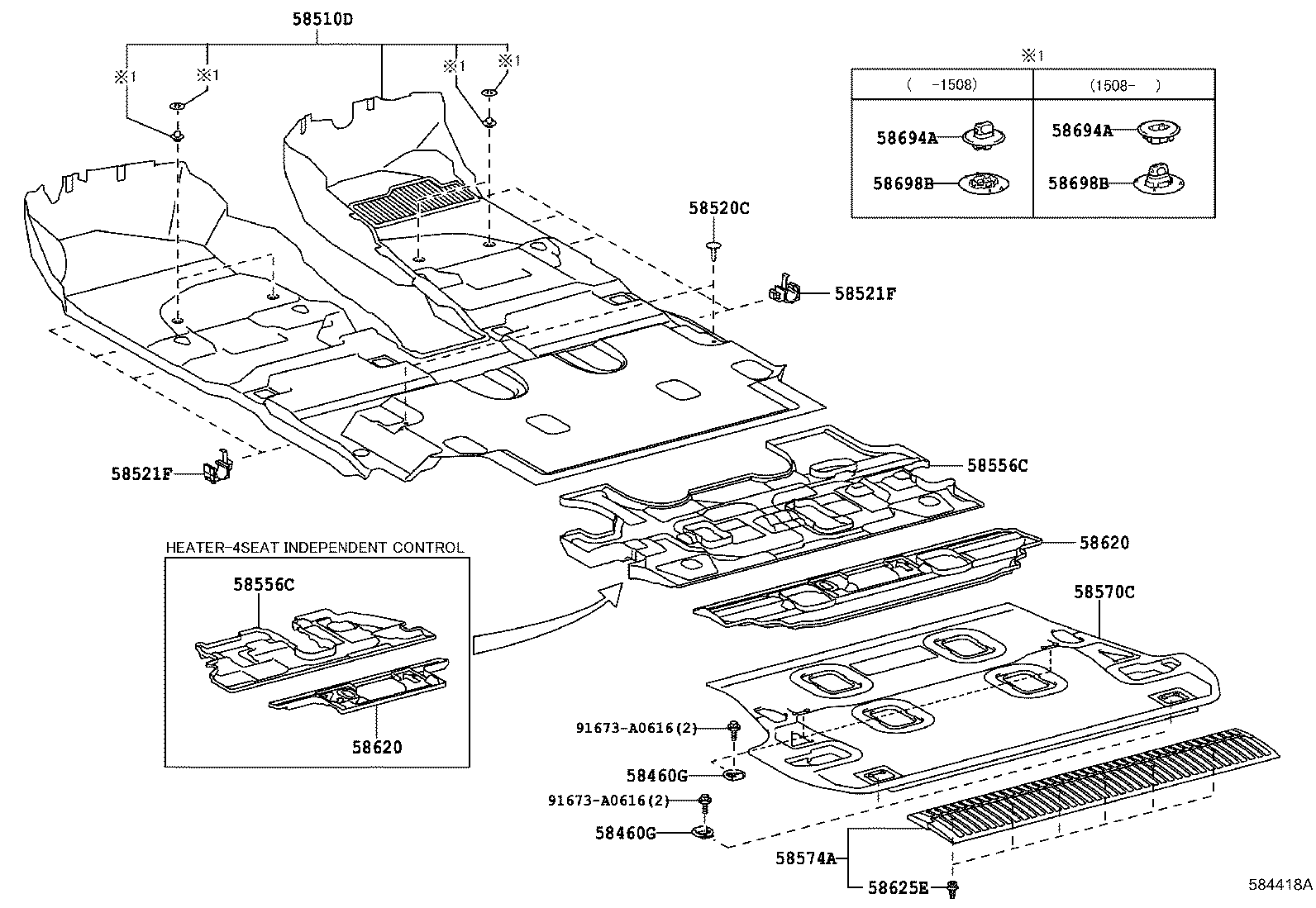

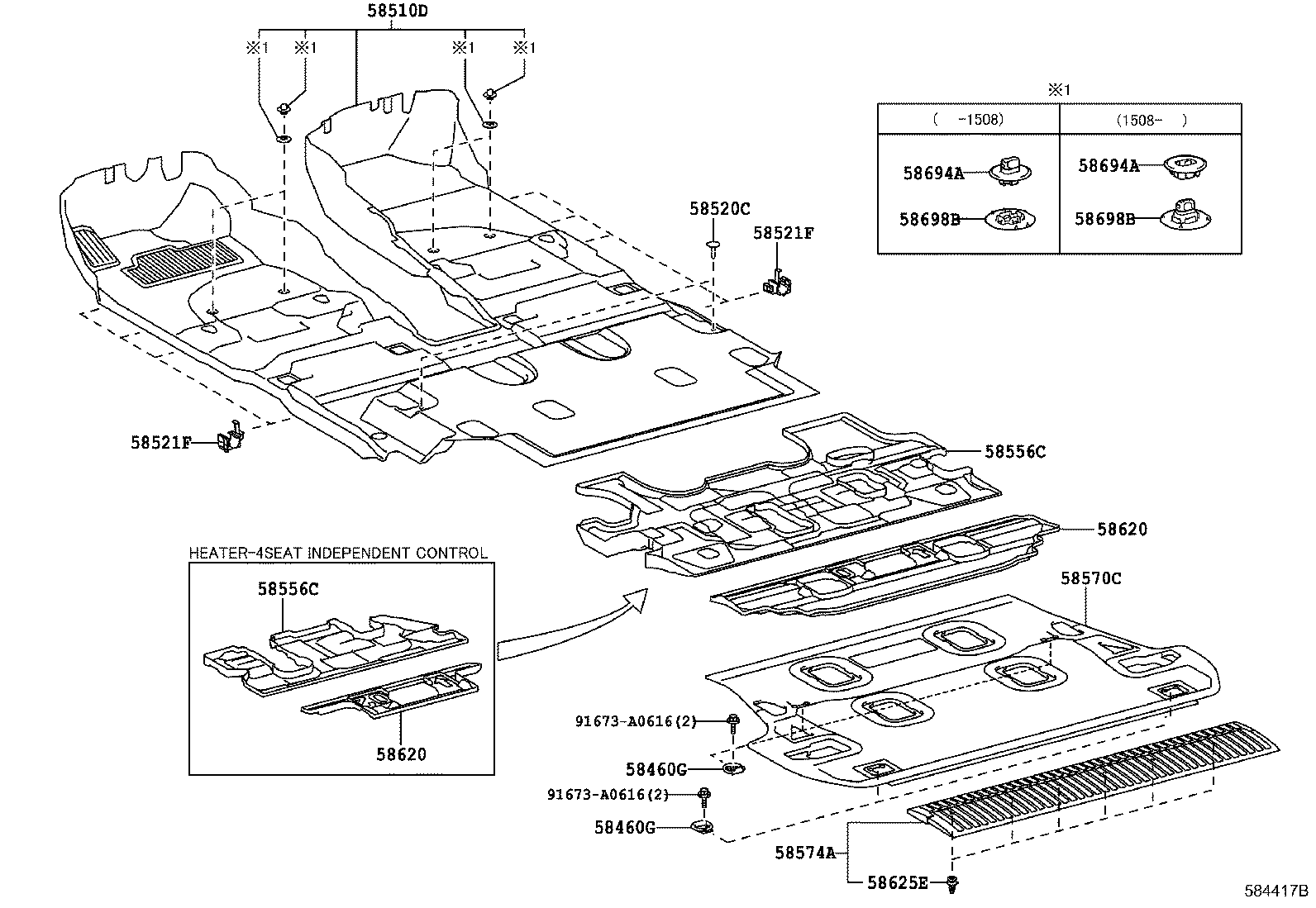

Figure 583177 583177 2007-09 → 2012-01 Figure 583178 583178 2007-09 → 2012-01 Figure 584417B 584417B 2012-01 → — Figure 584418A 584418A 2012-01 → —

Part groups

PNCDescription
58460G Striker Assy, Luggage Hold Belt
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521F Hook, Floor Carpet
58556C Silencer, Rear Floor
58570C Carpet Assy, Rear Floor
58574A Plate, Rear Floor Mat Support, Rear
58620 Silencer, Rear Floor
58625E Clip(FOR REAR FLOOR MAT PLATE)
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
