Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08

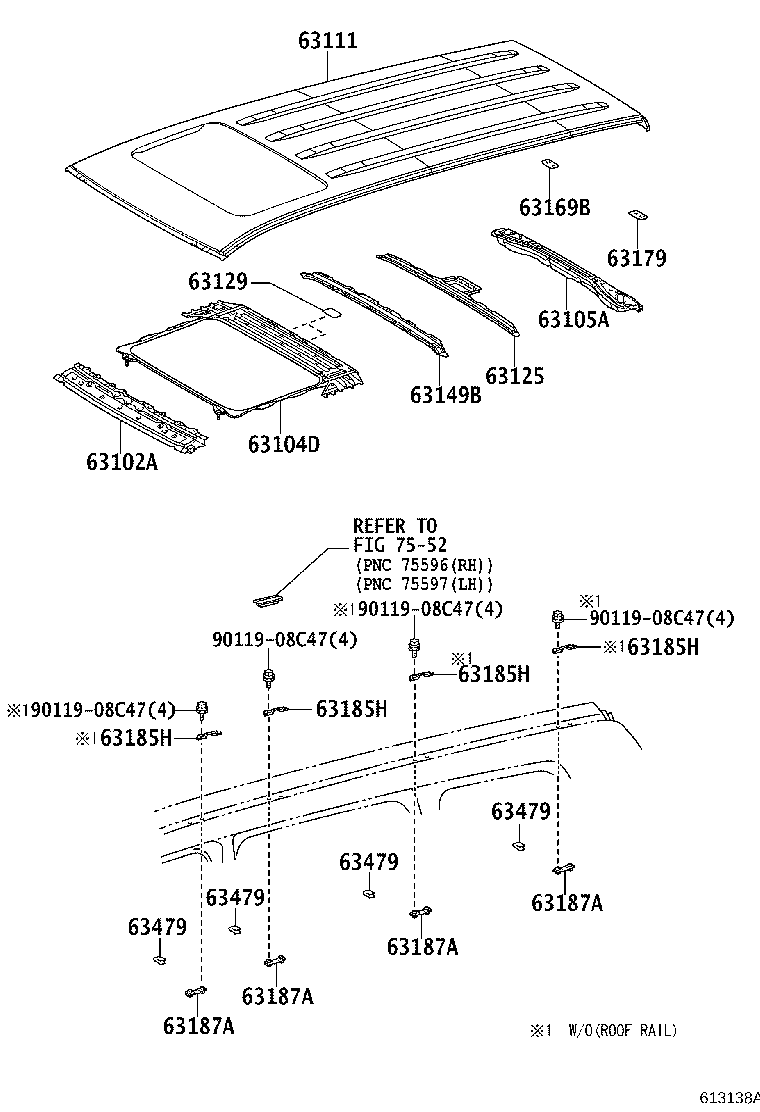

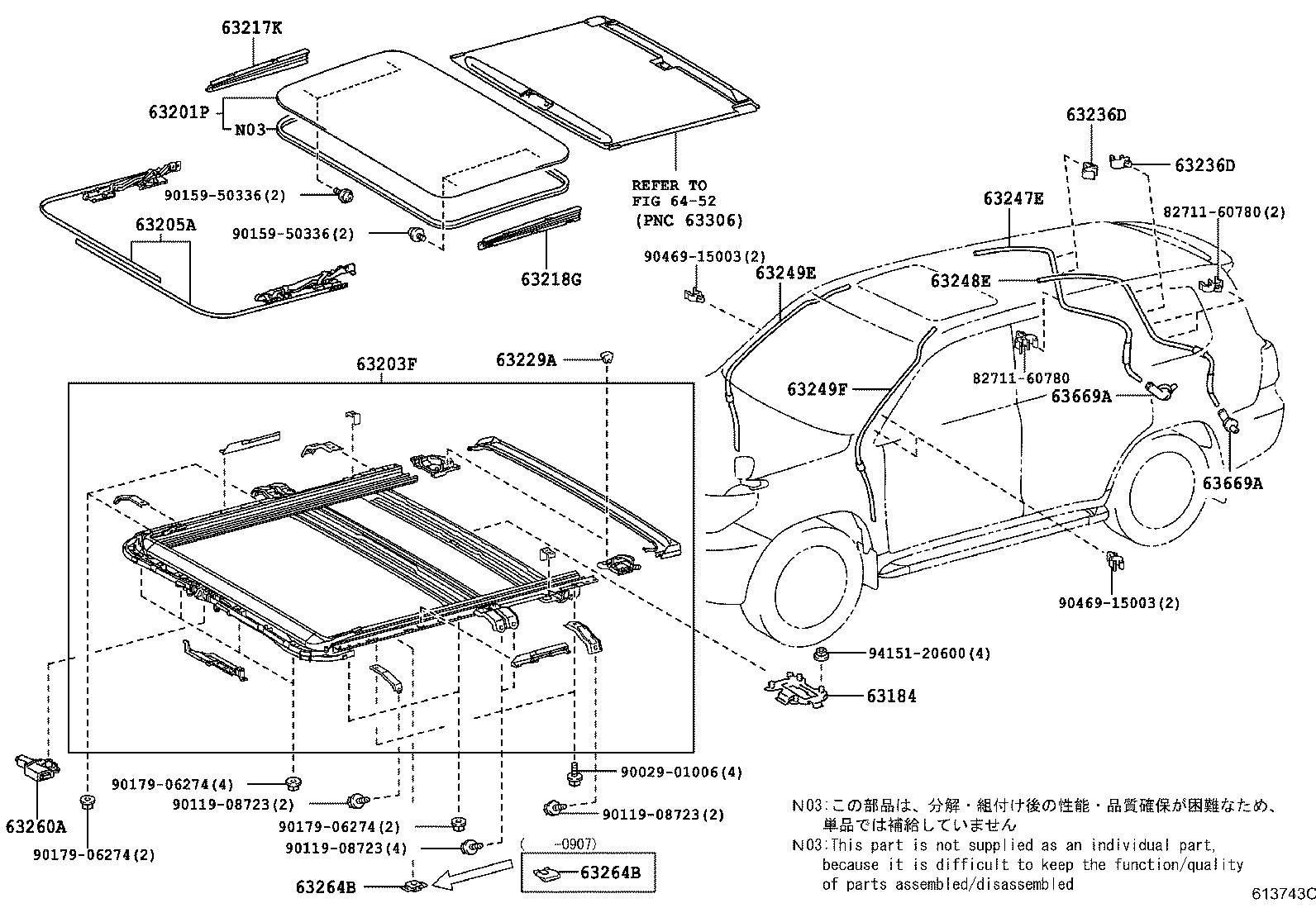

Roof Panel & Back Panel
51 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63108D | Support Sub-assy, Roof Panel |
| 63111 | Panel, Roof |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63129 | Protector, Windshield Header |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 63149B | Reinforcement, Roof Panel, NO.1 Rear |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63184 | Bracket, Roof Console, Rear |
| 63185H | Bracket, Roof Rack |
| 63187A | Bracket, Roof Rack, Rear |
| 63201P | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63230A | Bolt Assy, Removable Roof |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63264B | Plate, Sliding Roof Lock Catch, LH |
| 63401A | Frame Sub-assy, Roof Rack |
| 63407C | Carrier Sub-assy, Roof, RH |
| 63408C | Carrier Sub-assy, Roof, LH |
| 63437A | Seal, Roof Carrier, NO.2 |
| 63479 | Retainer, Roof Inner Rack |
| 63484A | Cushion, Roof Rack Leg, Center RH |
| 63485A | Cushion, Roof Rack Leg, Center LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495B | Cover, Roof Rack Leg, Center RH |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 63669A | Grommet, Sliding Roof Drain |
| 75563A | Retainer, Roof Drip Side Finish Moulding, NO.1 |
| 75564B | Retainer, Roof Drip Side Finish Moulding, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
