Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Lock & Handle

27 part groups · 2 illustrations

Illustrations

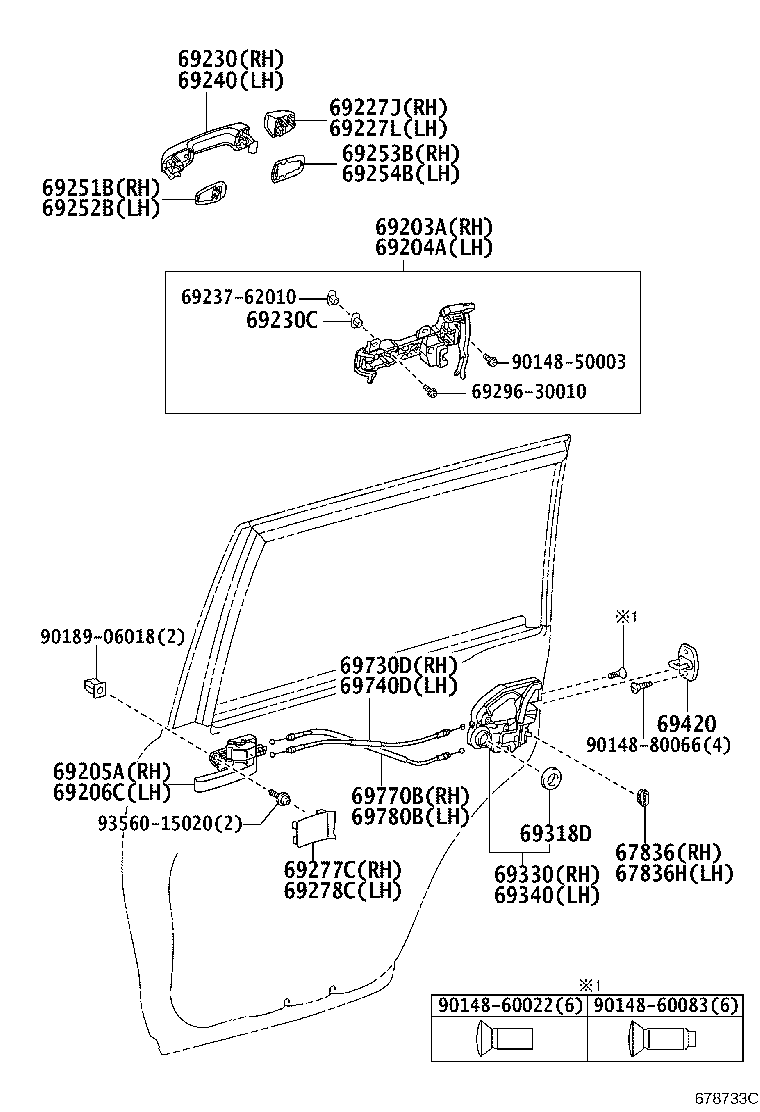

Figure 675360B 675360B 2007-09 → 2015-08 Figure 678733C 678733C 2015-08 → —

Part groups

PNCDescription
67836 Cover, Rear Door Lock Child Protection, RH
67836H Cover, Rear Door Lock Child Protection, LH
69203A Frame Sub-assy, Rear Door Outside Handle, RH
69204A Frame Sub-assy, Rear Door Outside Handle, LH
69205A Handle Sub-assy, Rear Door Inside, RH
69206C Handle Sub-assy, Rear Door Inside, LH
69227J Cover, Rear Door Outside Handle, RH
69227L Cover, Rear Door Outside Handle, LH
69230 Handle Assy, Rear Door Outside, RH
69230C Bush(FOR REAR DOOR OUTSIDE HANDLE)
69240 Handle Assy, Rear Door Outside, LH
69251B Pad, Rear Door Outside Handle, NO.1 RH
69252B Pad, Rear Door Outside Handle, NO.1 LH
69253B Pad, Rear Door Outside Handle, NO.2 RH
69254B Pad, Rear Door Outside Handle, NO.2 LH
69277C Bezel, Rear Door Inside Handle, RH
69278C Bezel, Rear Door Inside Handle, LH
69318D Seal, Door Lock Wiring Harness
69330 Lock Assy, Rear Door, RH
69340 Lock Assy, Rear Door, LH
69415C Cover, Door Lock Striker, Rear
69420 Plate Assy, Rear Door Lock Striker
69730D Cable Assy, Rear Door Lock Remote Control, RH
69740D Cable Assy, Rear Door Lock Remote Control LH
69770B Cable Assy, Rear Door Inside Locking, RH
69780B Cable Assy, Rear Door Inside Locking, LH
89743E Bracket, Electrical Key Wire Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
