Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

35 part groups · 3 illustrations

Illustrations

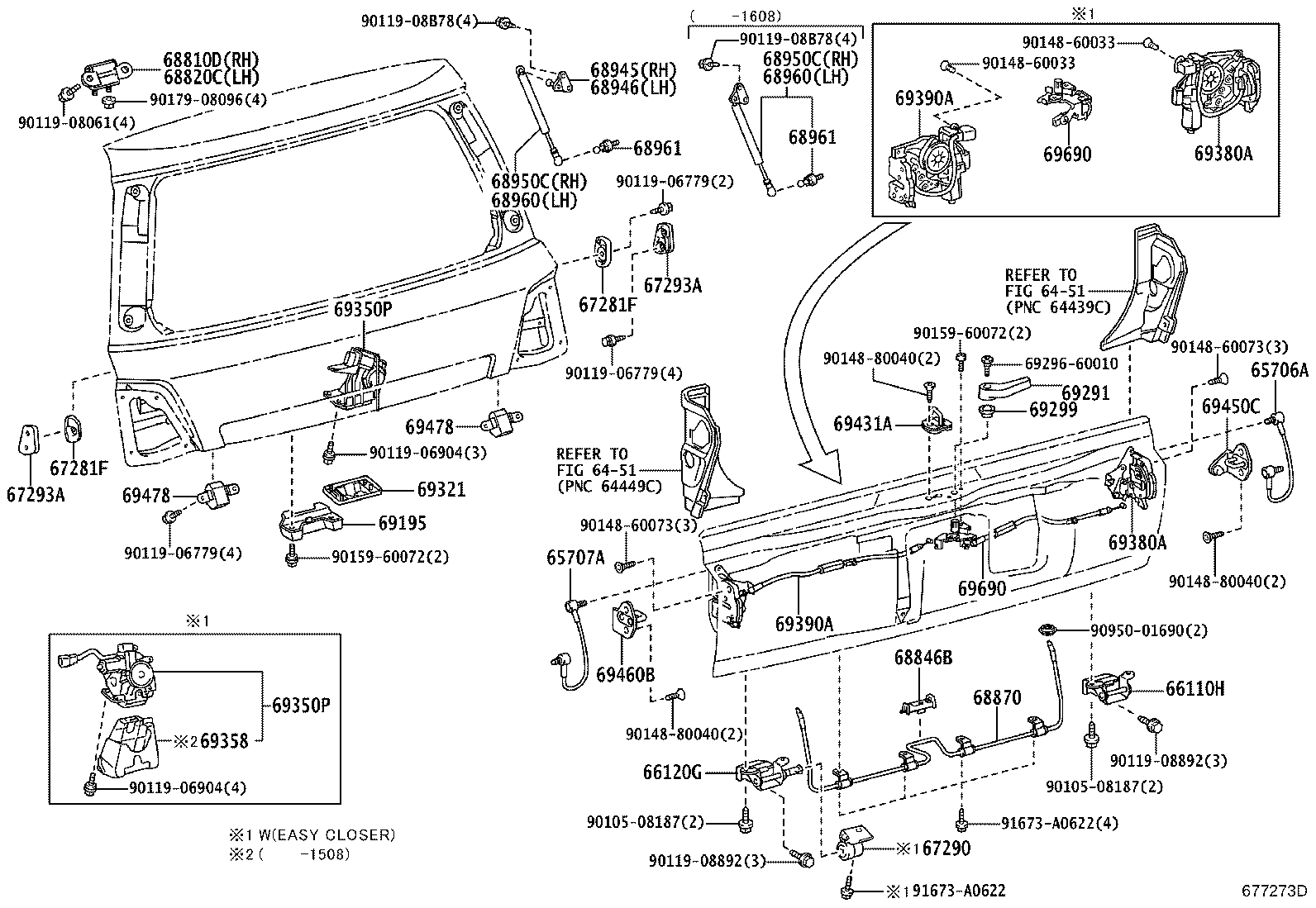

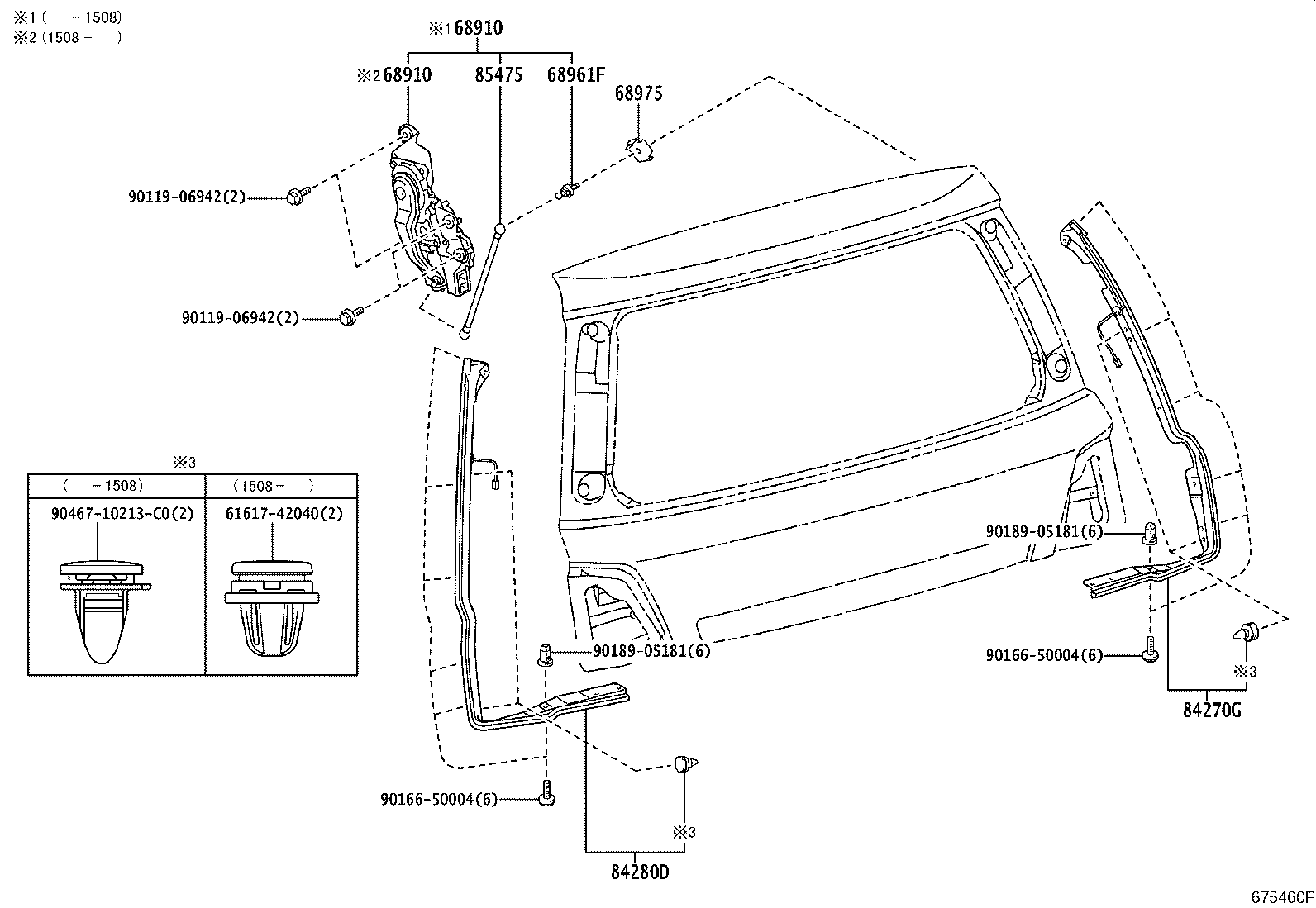

Figure 676340E 676340E 2007-09 → 2012-01 Figure 677273D 677273D 2012-01 → — Figure 675460F 675460F 2012-01 → —

Part groups

PNCDescription
65706A Stay Sub-assy, Tail Gate, RH
65707A Stay Sub-assy, Tail Gate, LH
66110H Hinge Assy, Tail Gate, RH
66120G Hinge Assy, Tail Gate, LH
67281F Stopper, Back Door, Lower
67290 Damper Assy, Back Door
67293A Cushion, Back Door Stopper
68810D Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68846B Guide, Back Door Torsion Bar
68870 Bar Assy, Back Door Lower Torsion
68910 Unit Assy, Power Back Door
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
68961F Bolt, Back Door Stay
68975 Plate, Back Door Stay
69195 Grip, Back Door
69291 Handle Assy, Back Door Inside
69299 Grommet, Back Door Handle
69321 Cover, Back Door Lock
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69358 Protector, Back Door Lock
69380A Lock Assy, Tail Gate, Lower RH
69390A Lock Assy, Tail Gate, Lower LH
69431A Striker, Rear Swing Gate Lock
69450C Striker Assy, Back Door Lock, RH
69460B Striker Assy, Back Door Lock, LH
69478 Cushion, Back Door Lower Stopper
69690 Control Assy, Back Door Remote
84270G Sensor Assy, Power Back Door, RH
84280D Sensor Assy, Power Back Door, LH
85475 Rod, Power Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
