Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

10 part groups · 4 illustrations

Illustrations

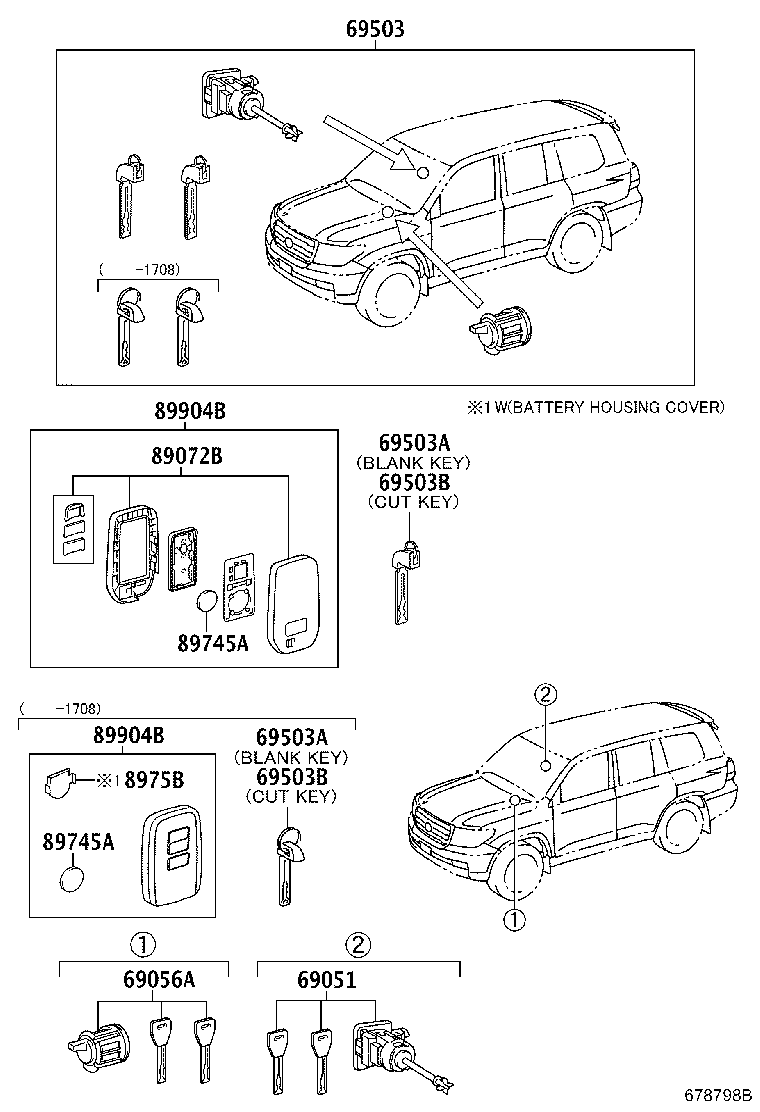

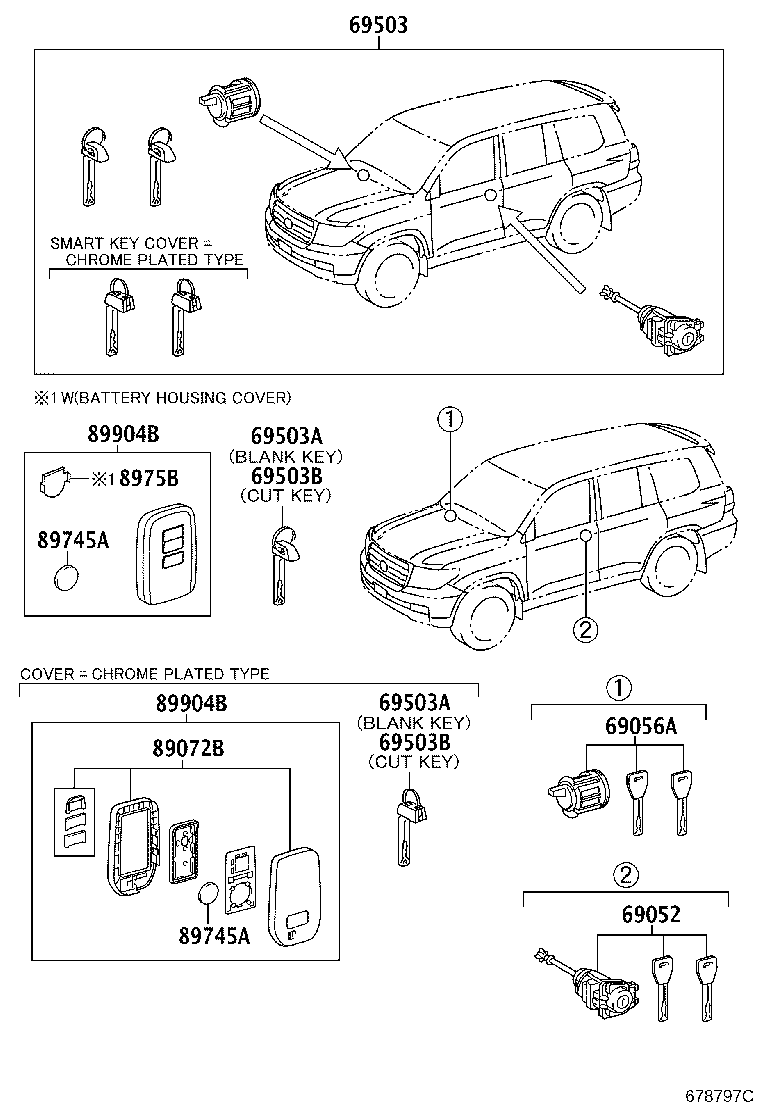

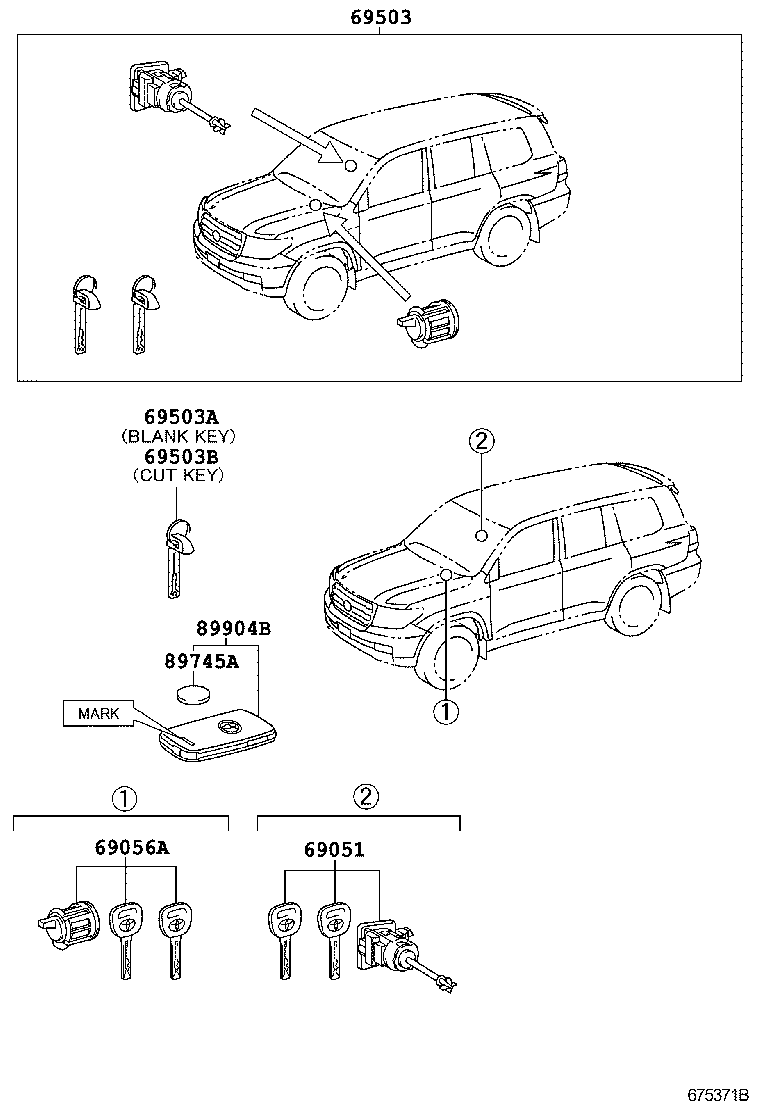

Figure 675370B 675370B 2007-09 → 2015-08 Figure 675371B 675371B 2007-09 → 2015-08 Figure 678797C 678797C 2015-08 → — Figure 678798B 678798B 2015-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745A Battery, Transmitter
8975B Cover, Transmitter Battery Housing
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
