Seat & Seat Track

298 part groups · 35 illustrations

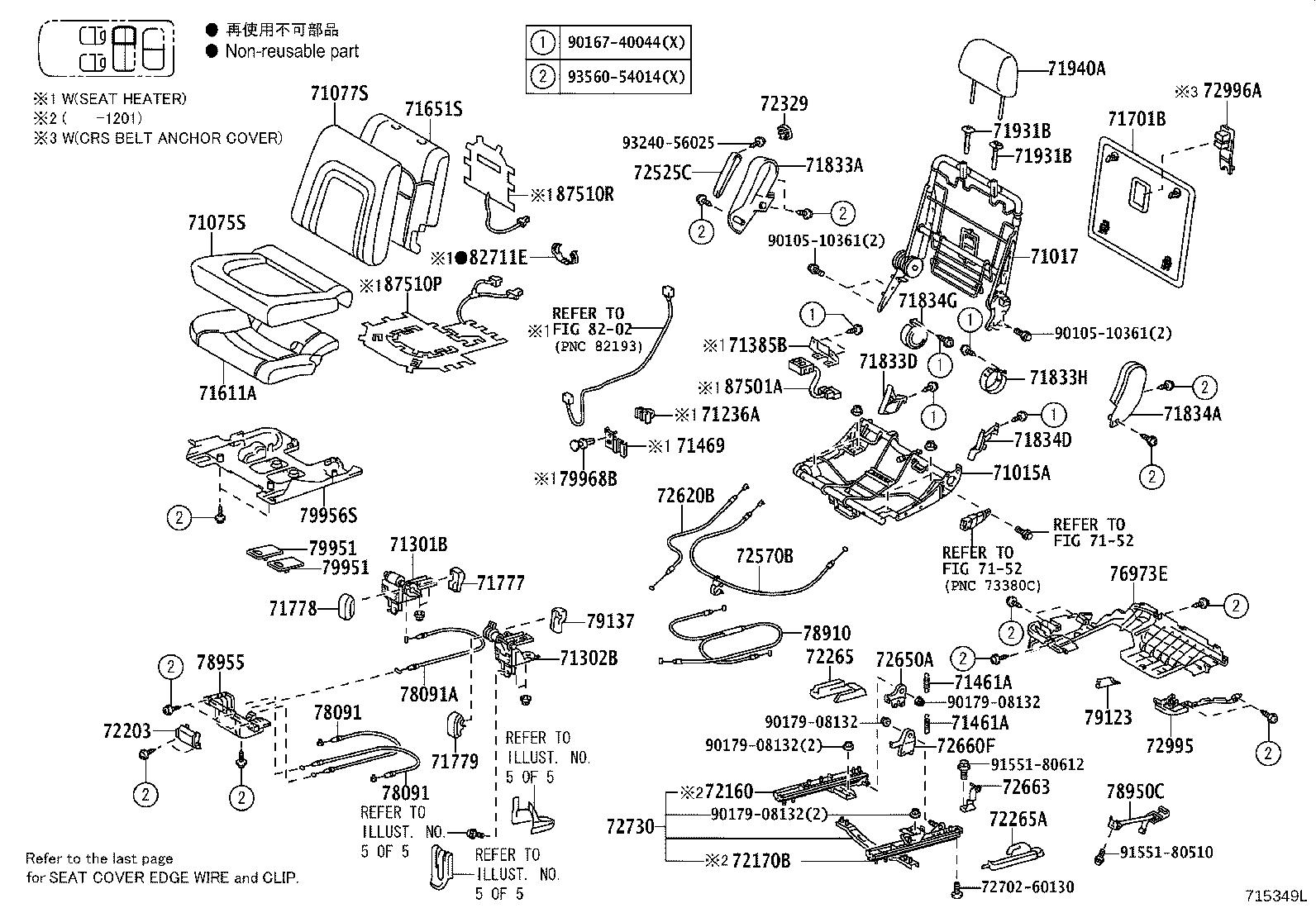

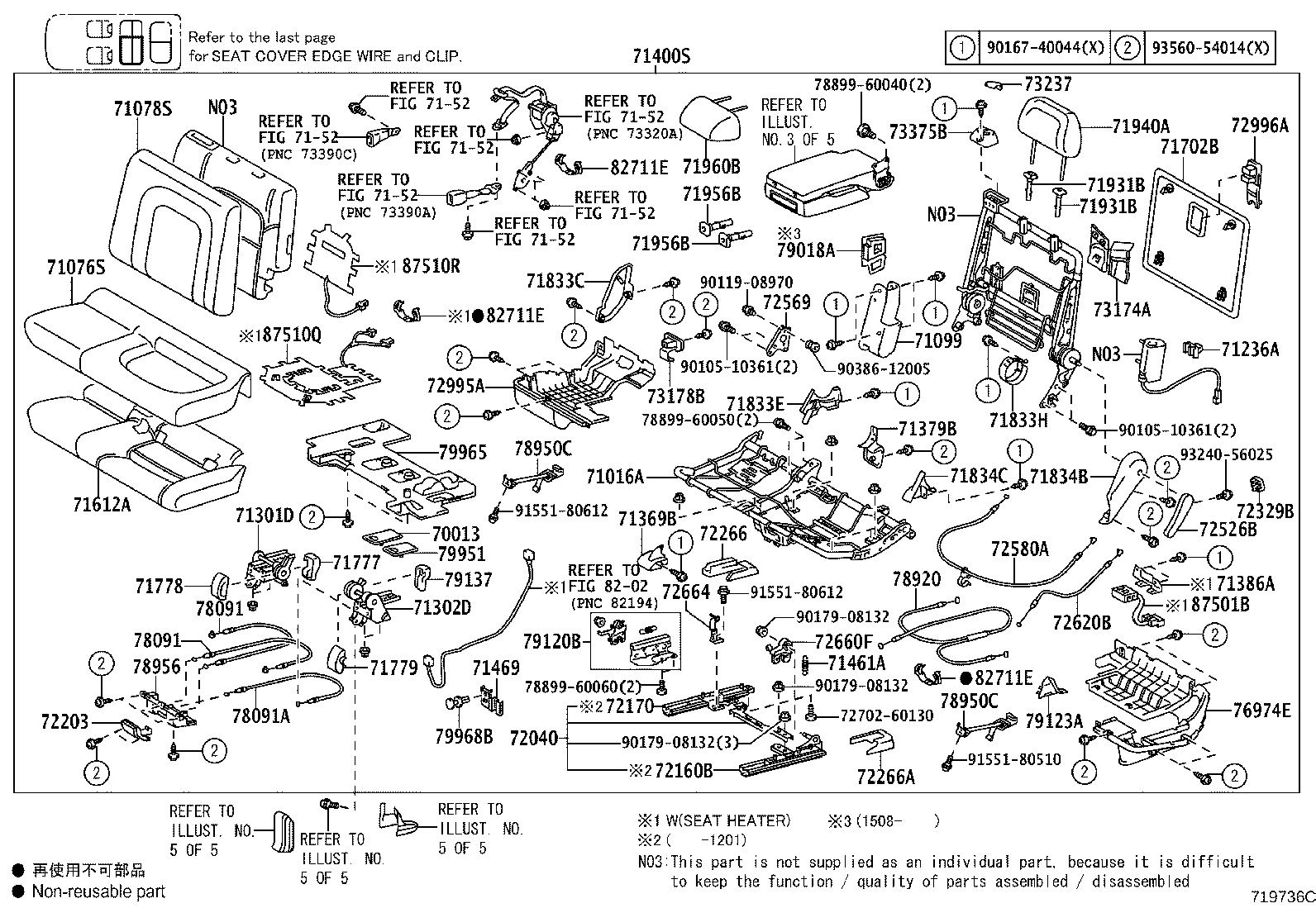

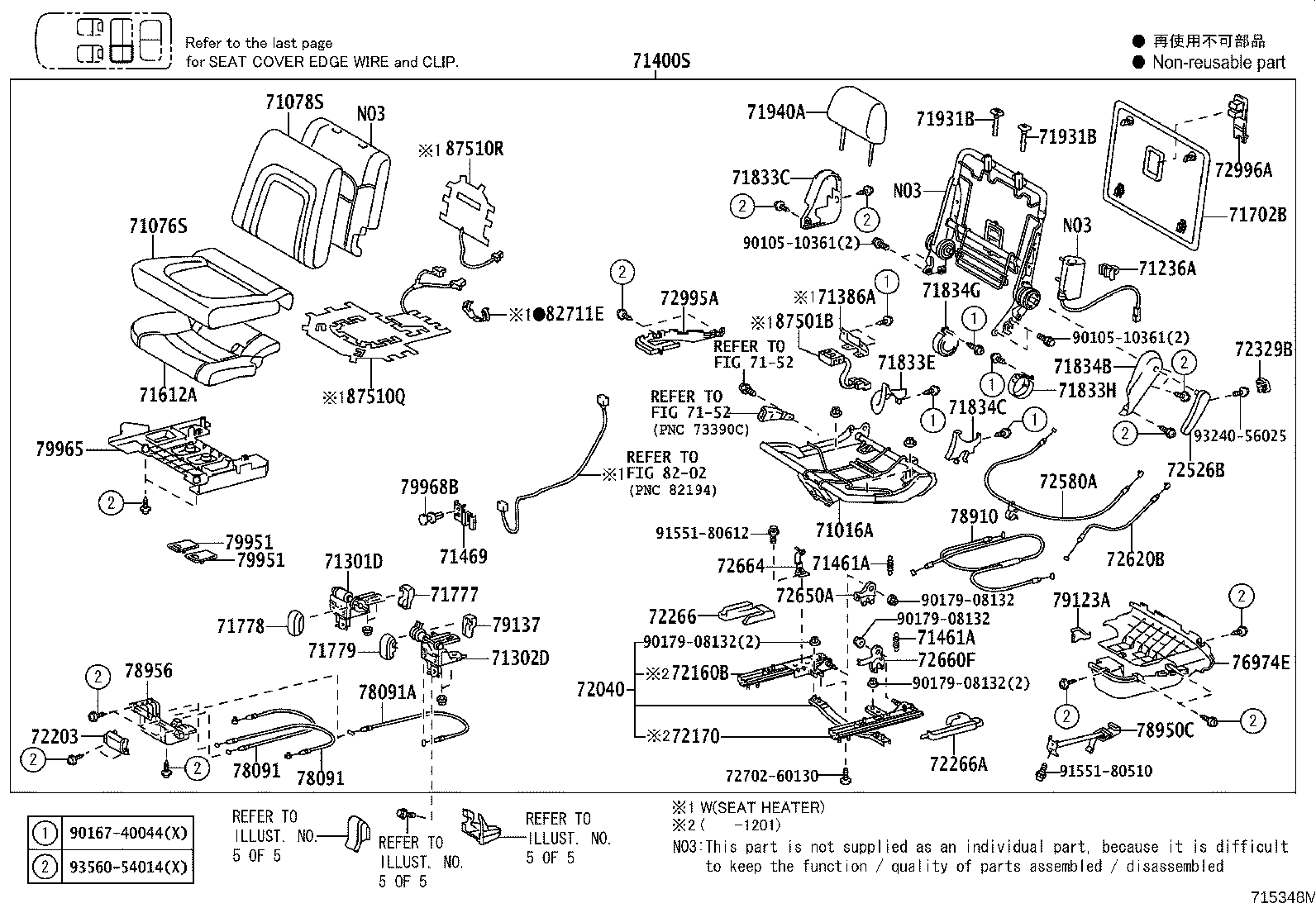

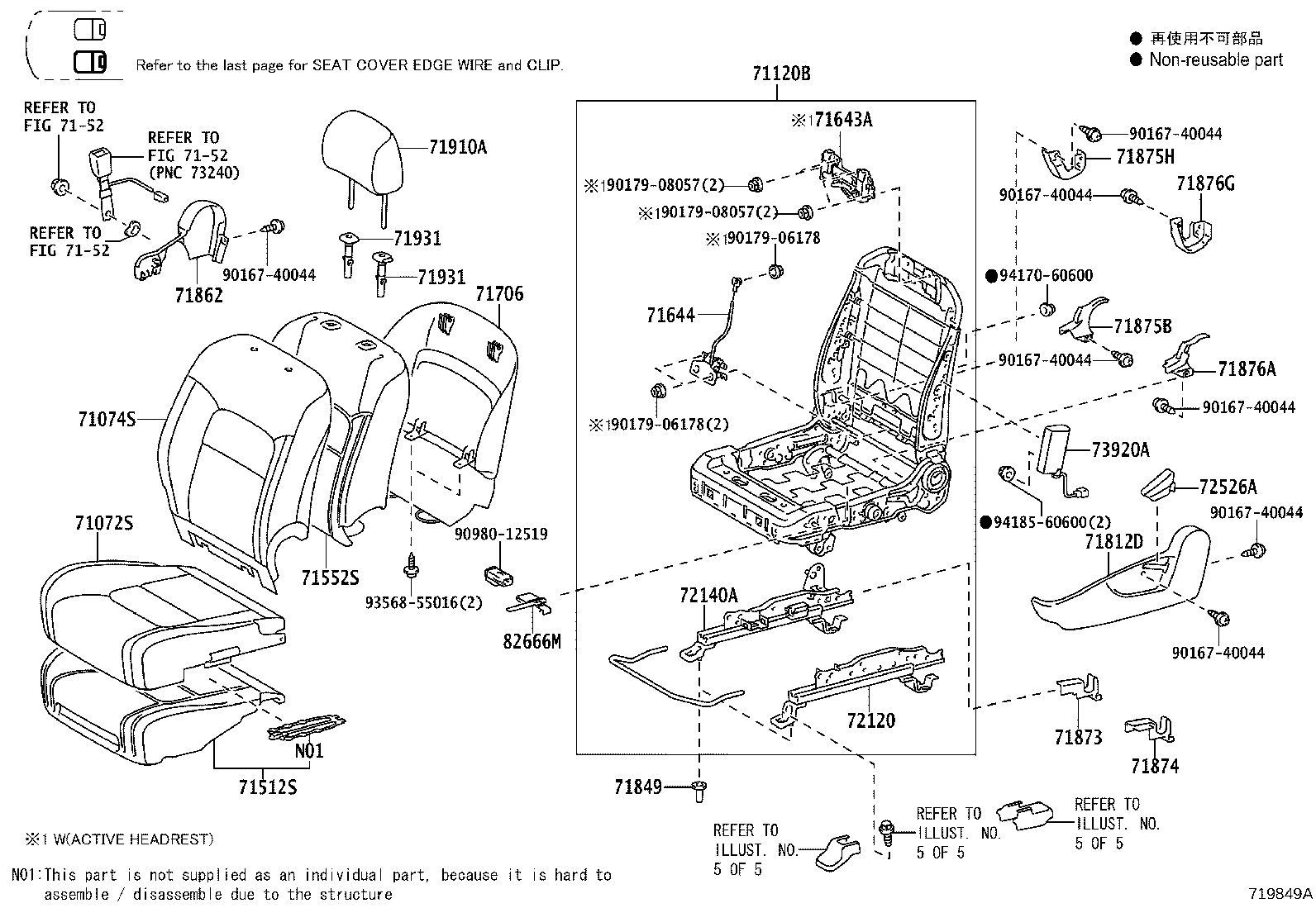

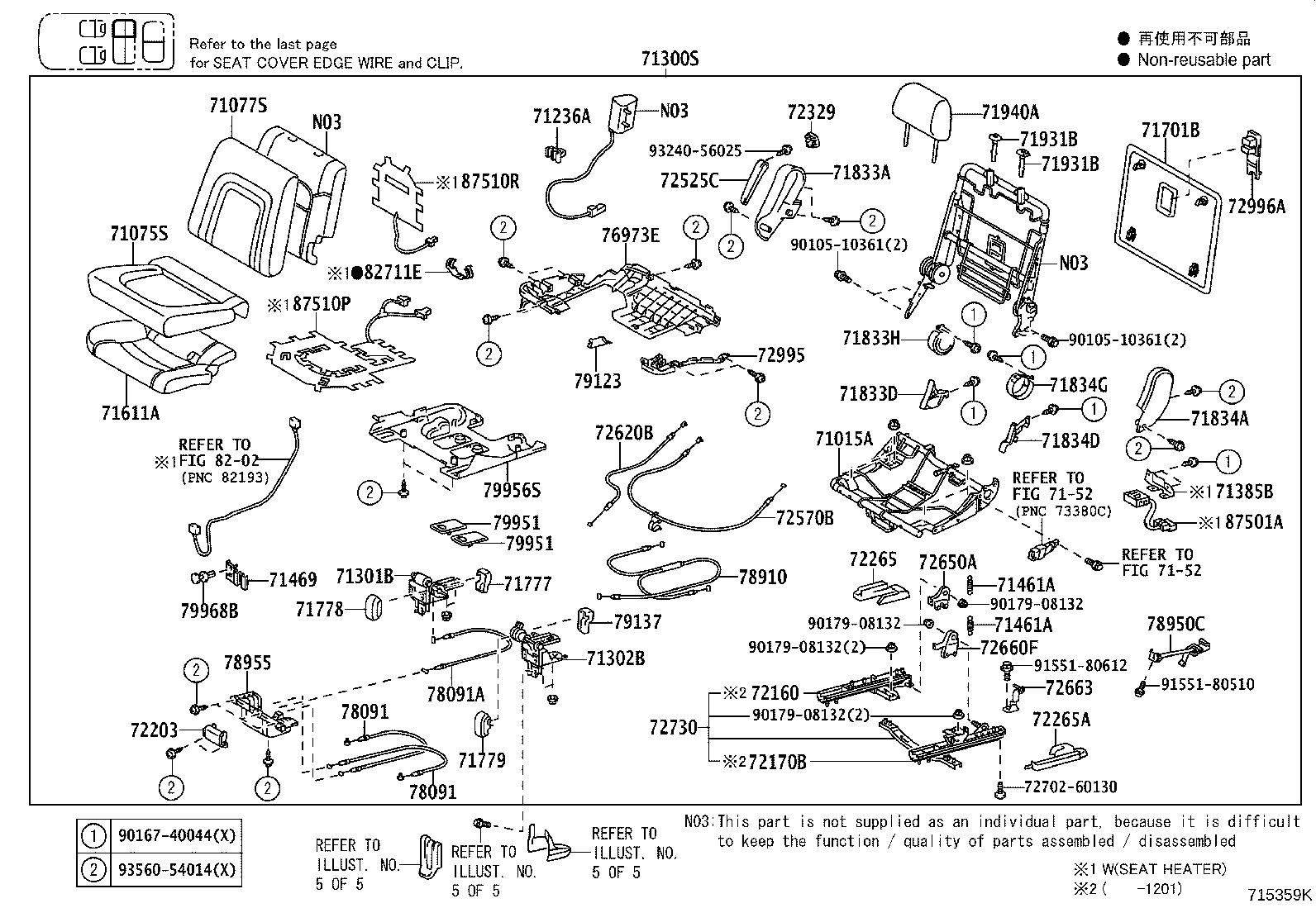

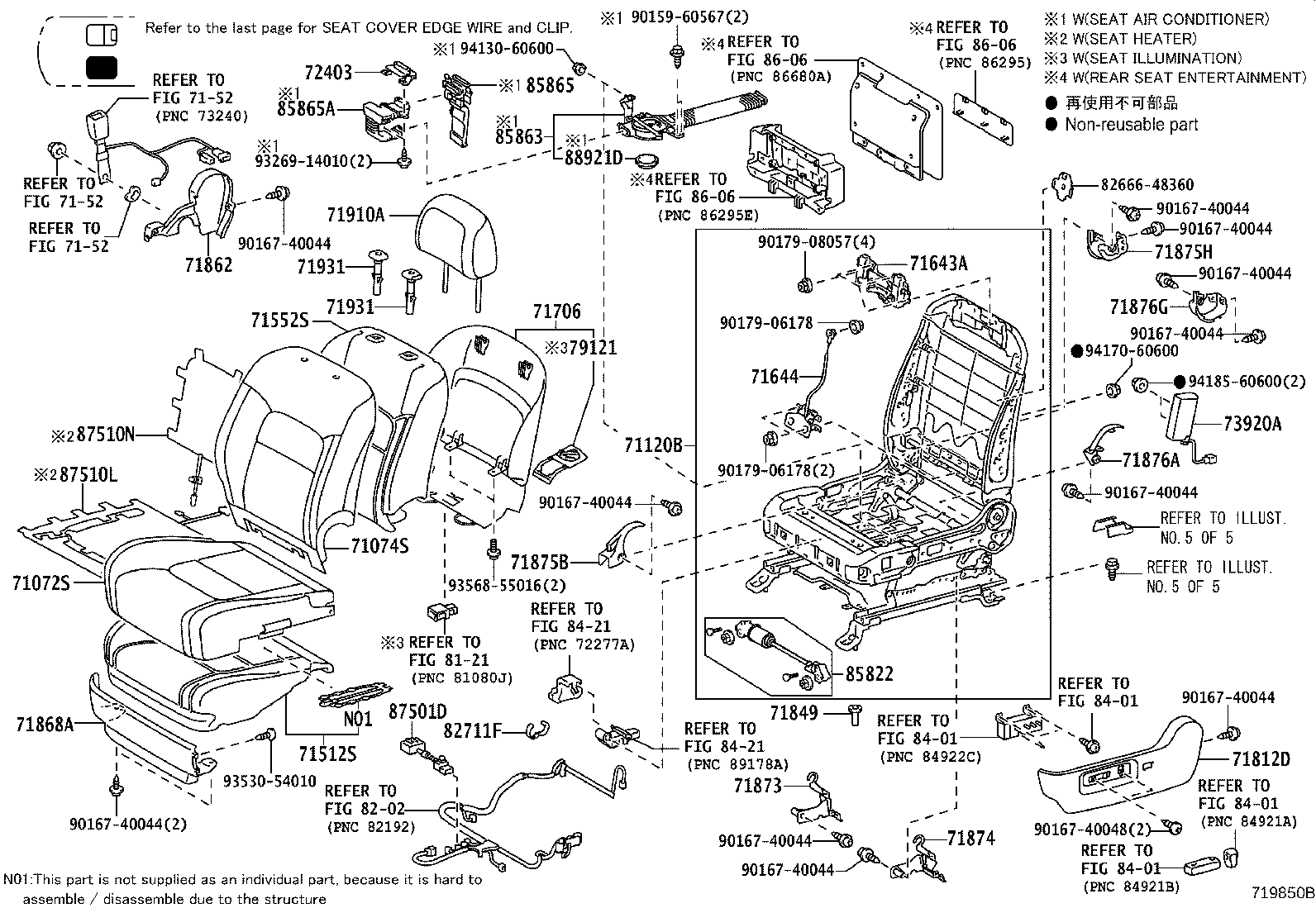

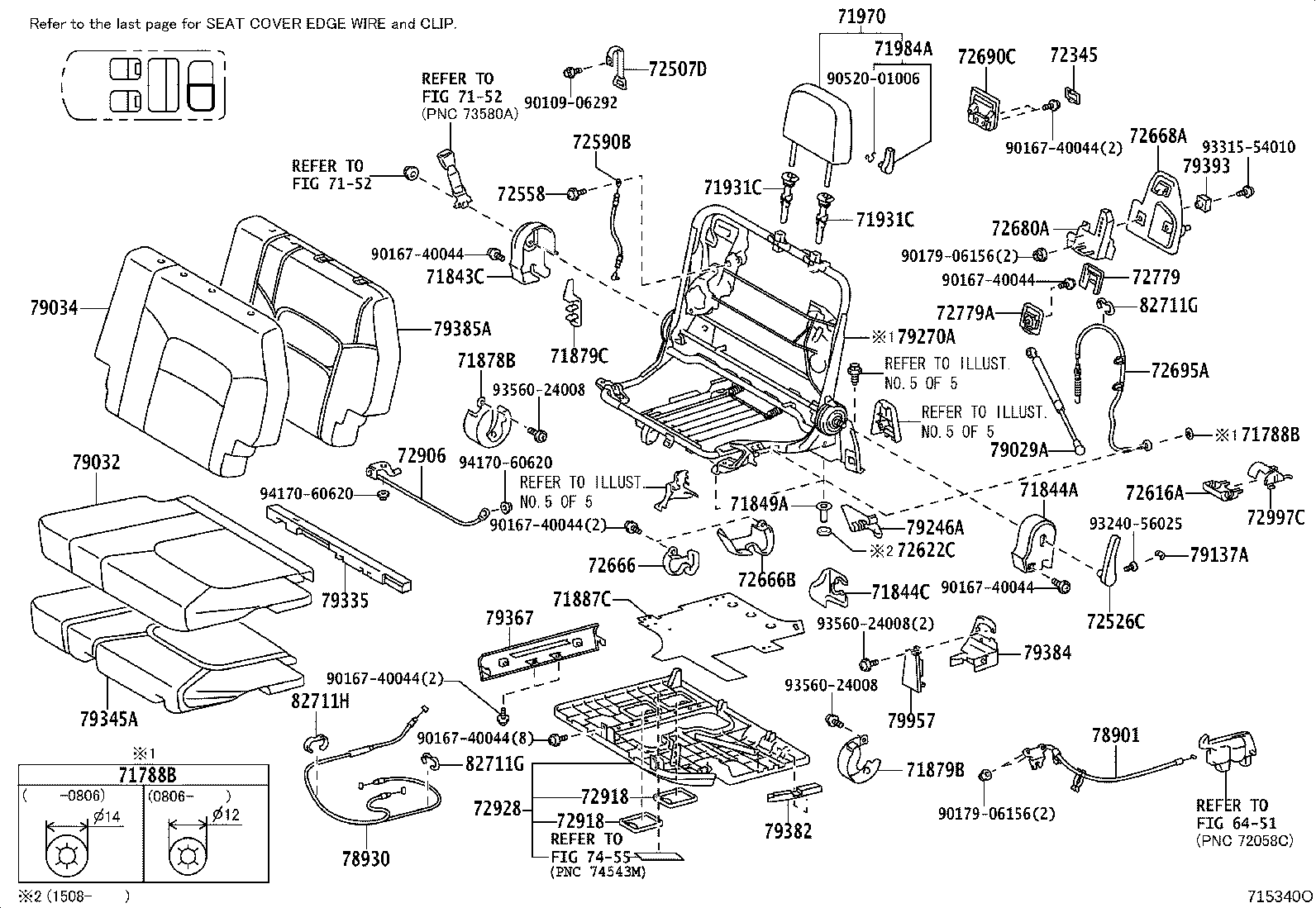

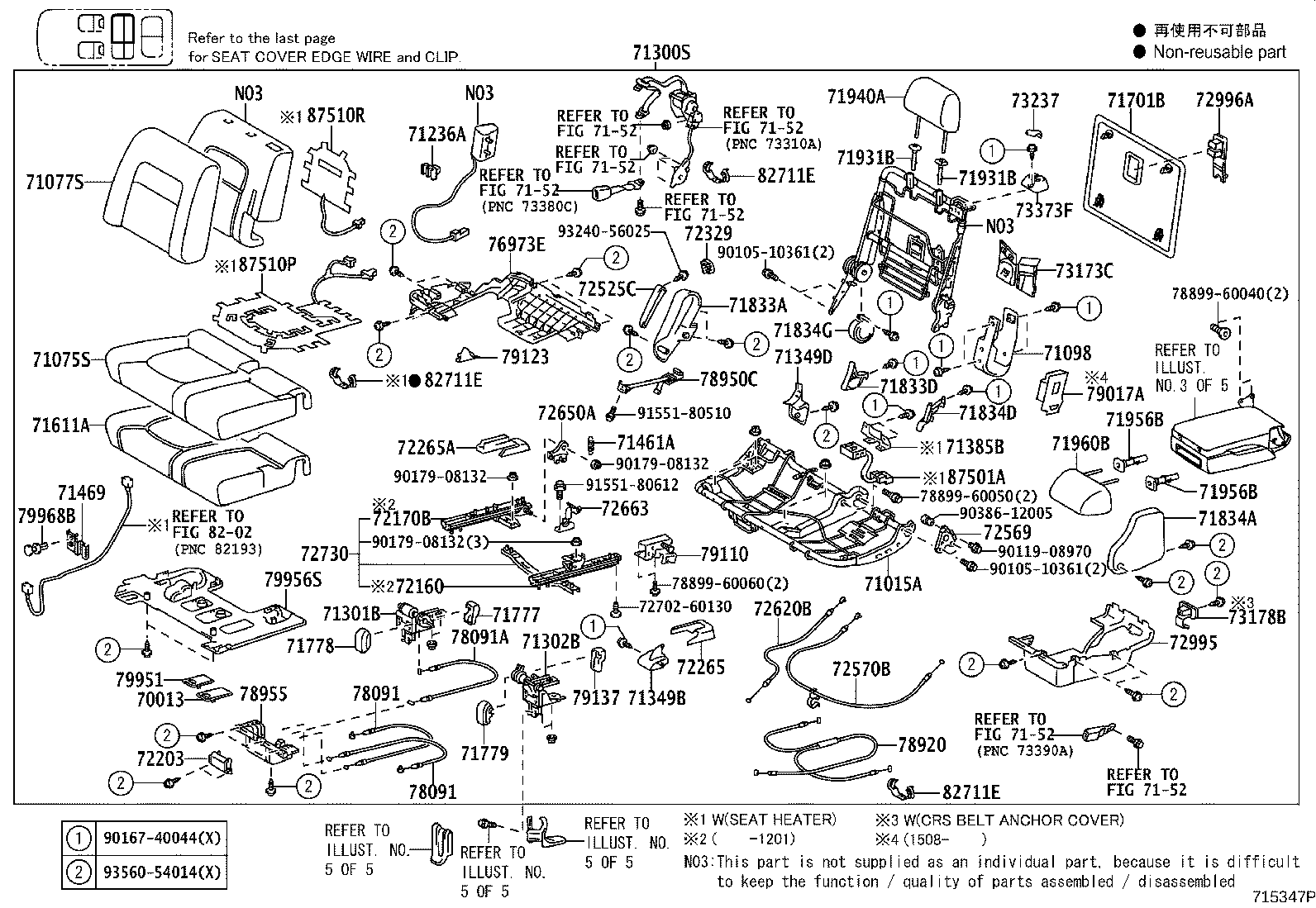

Illustrations

715295R 2007-09 → 2015-08

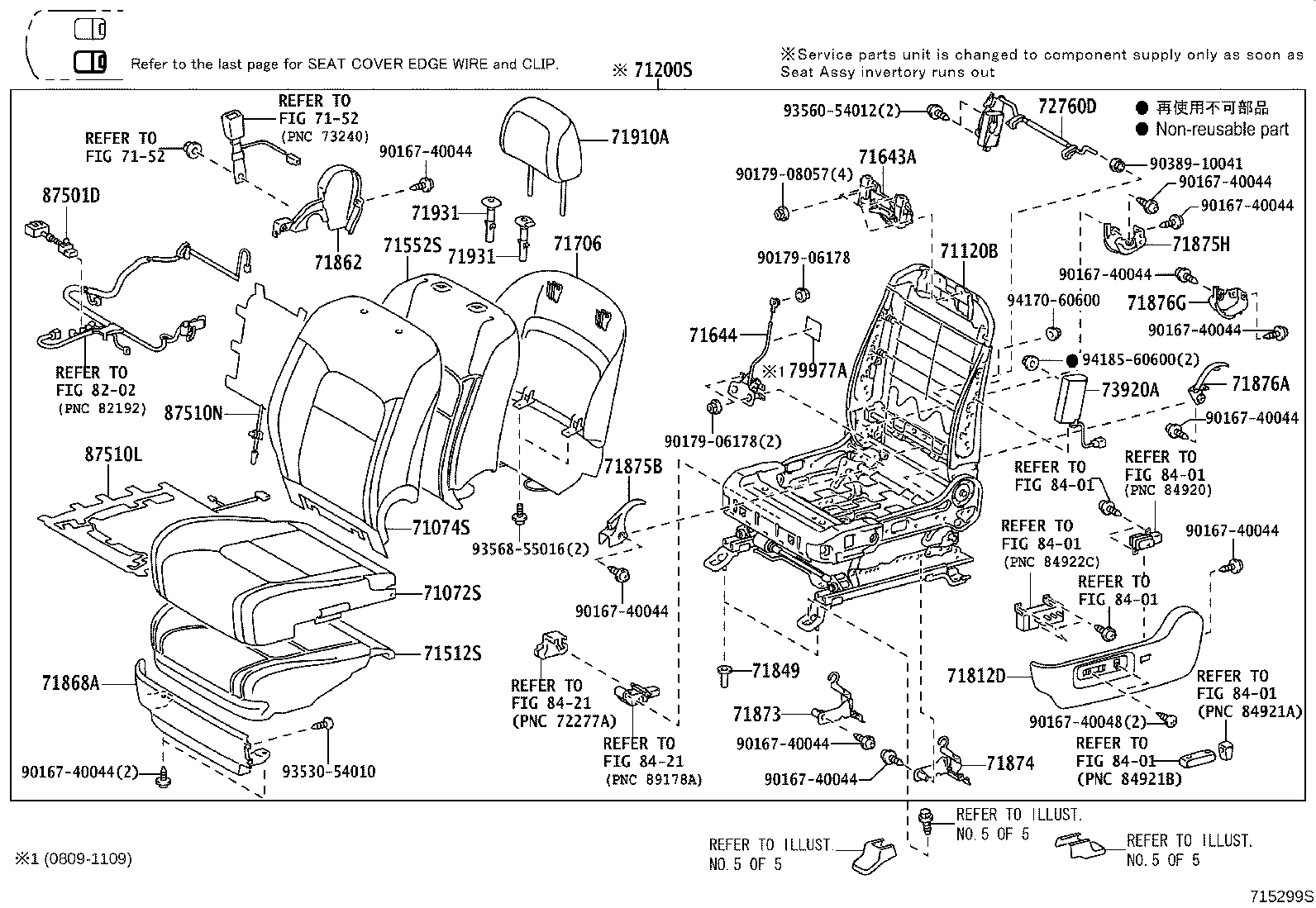

715299T 2007-09 → 2012-01

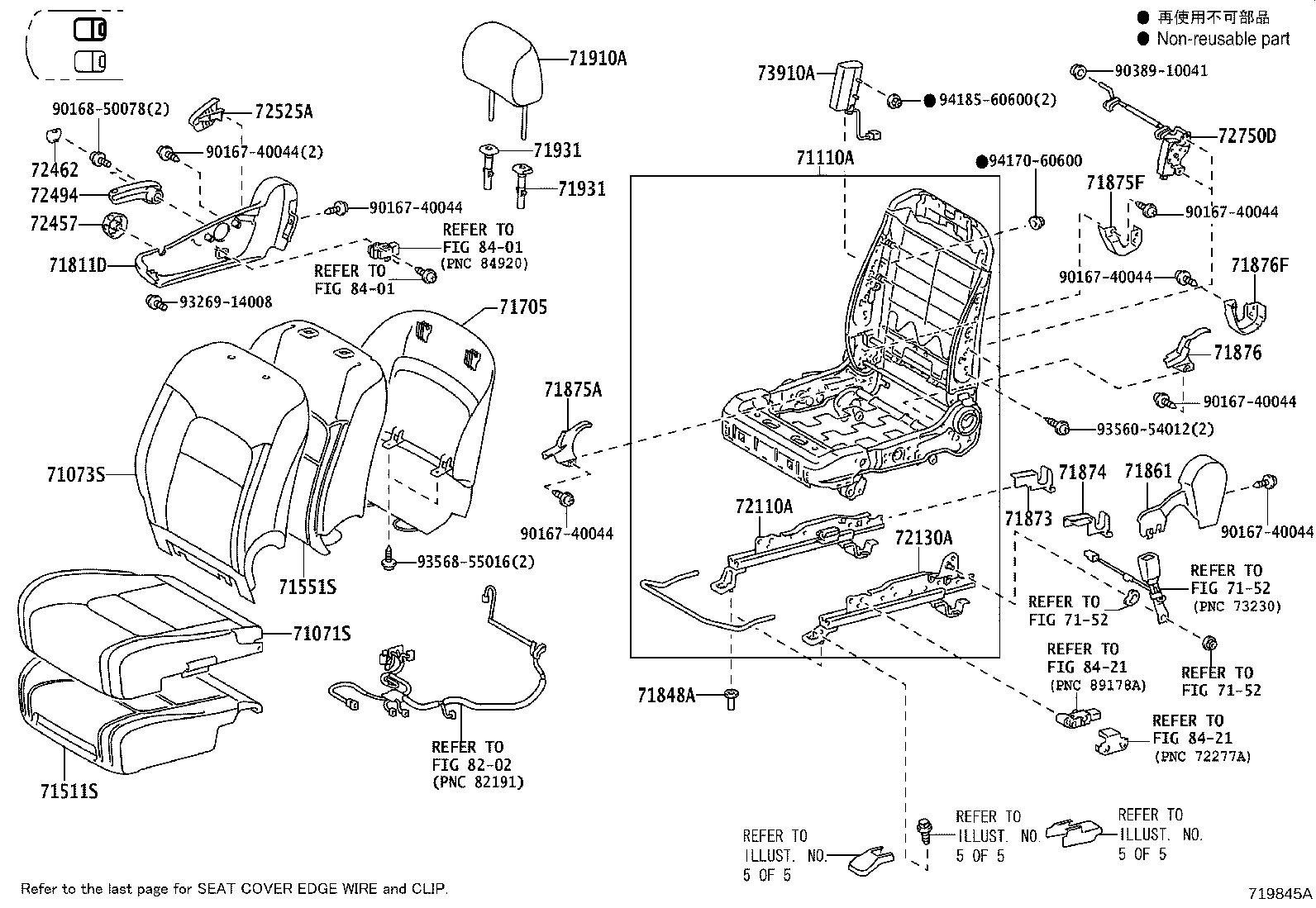

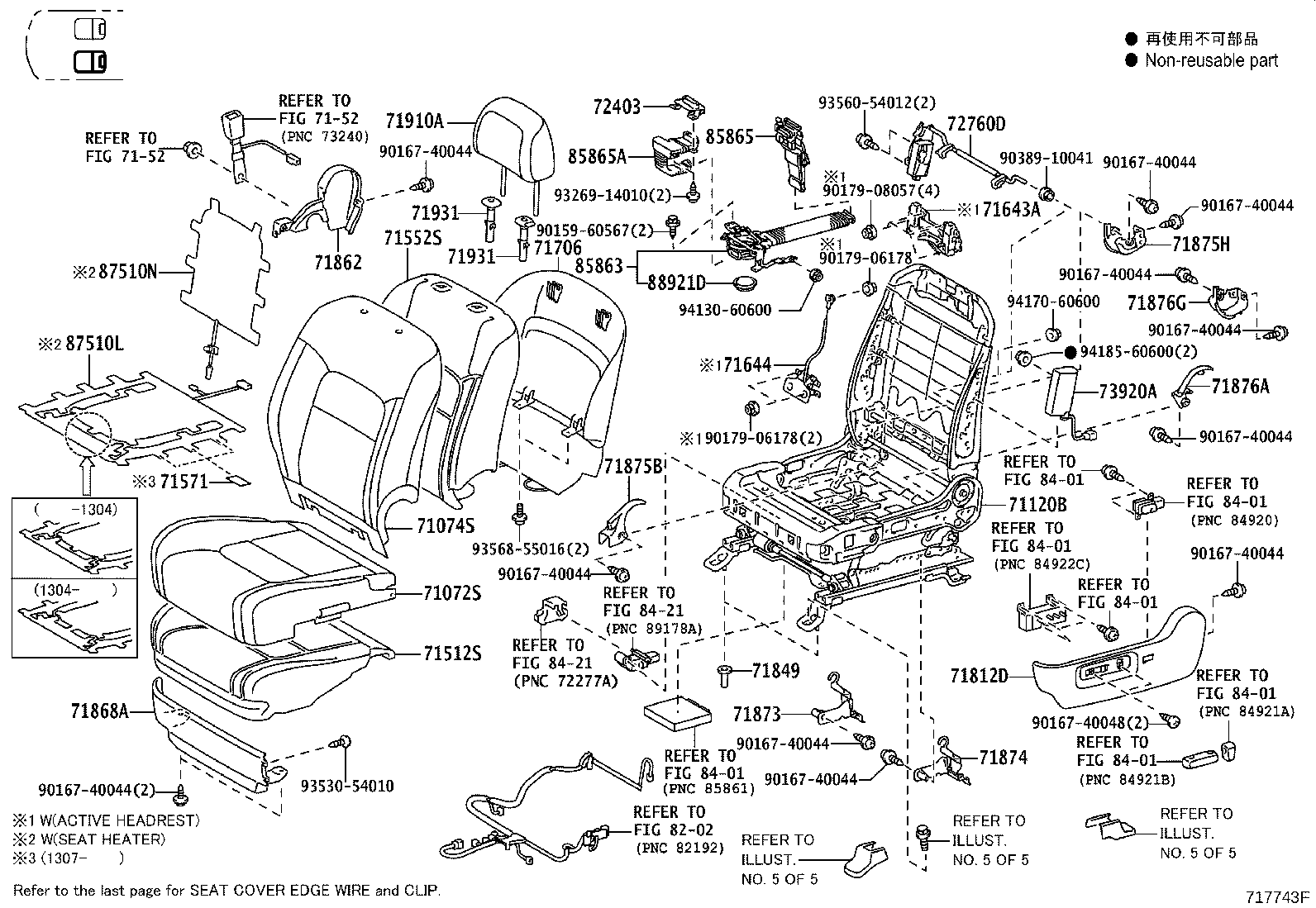

717743F 2012-01 → 2015-08

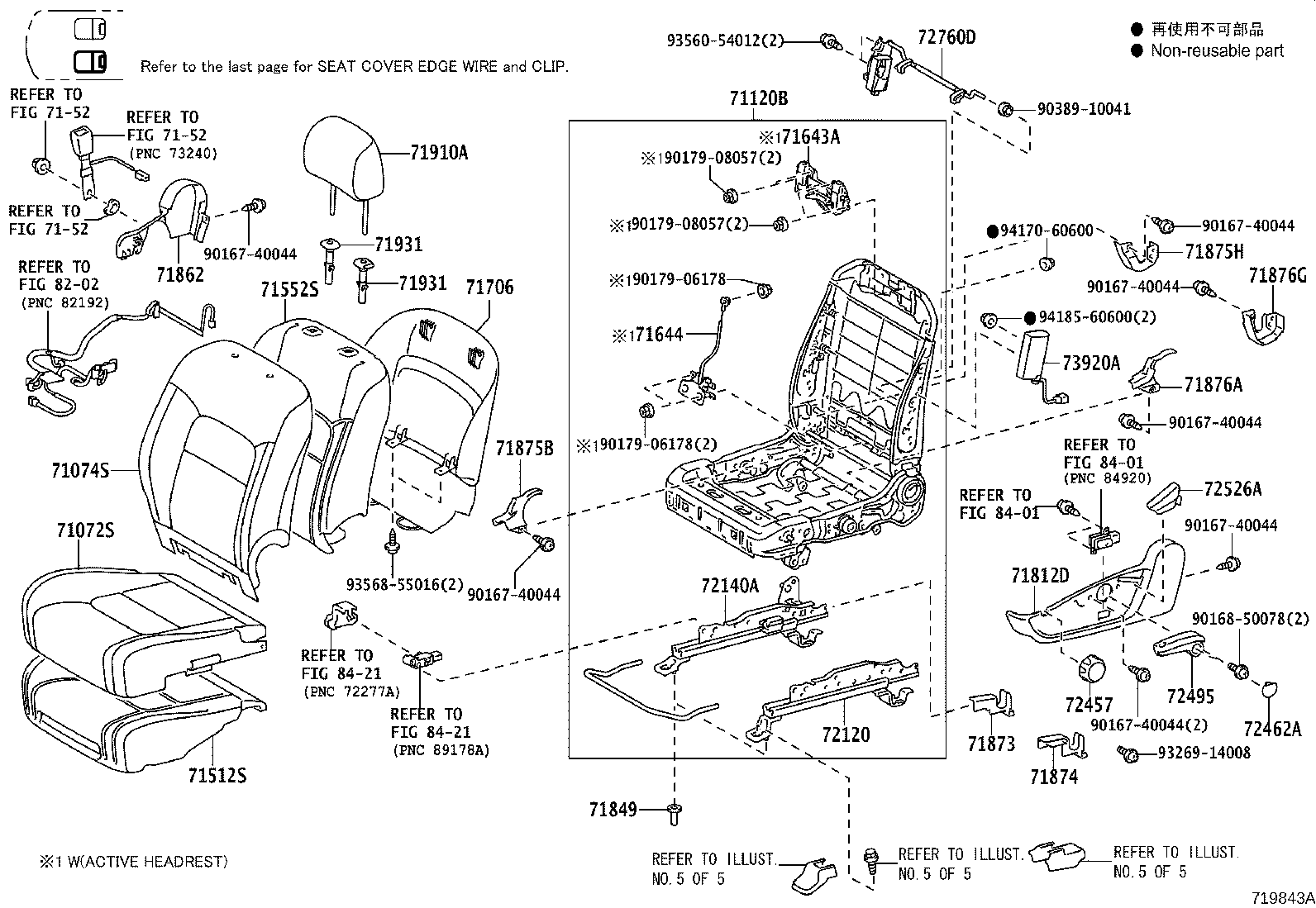

719843A 2015-08 → —

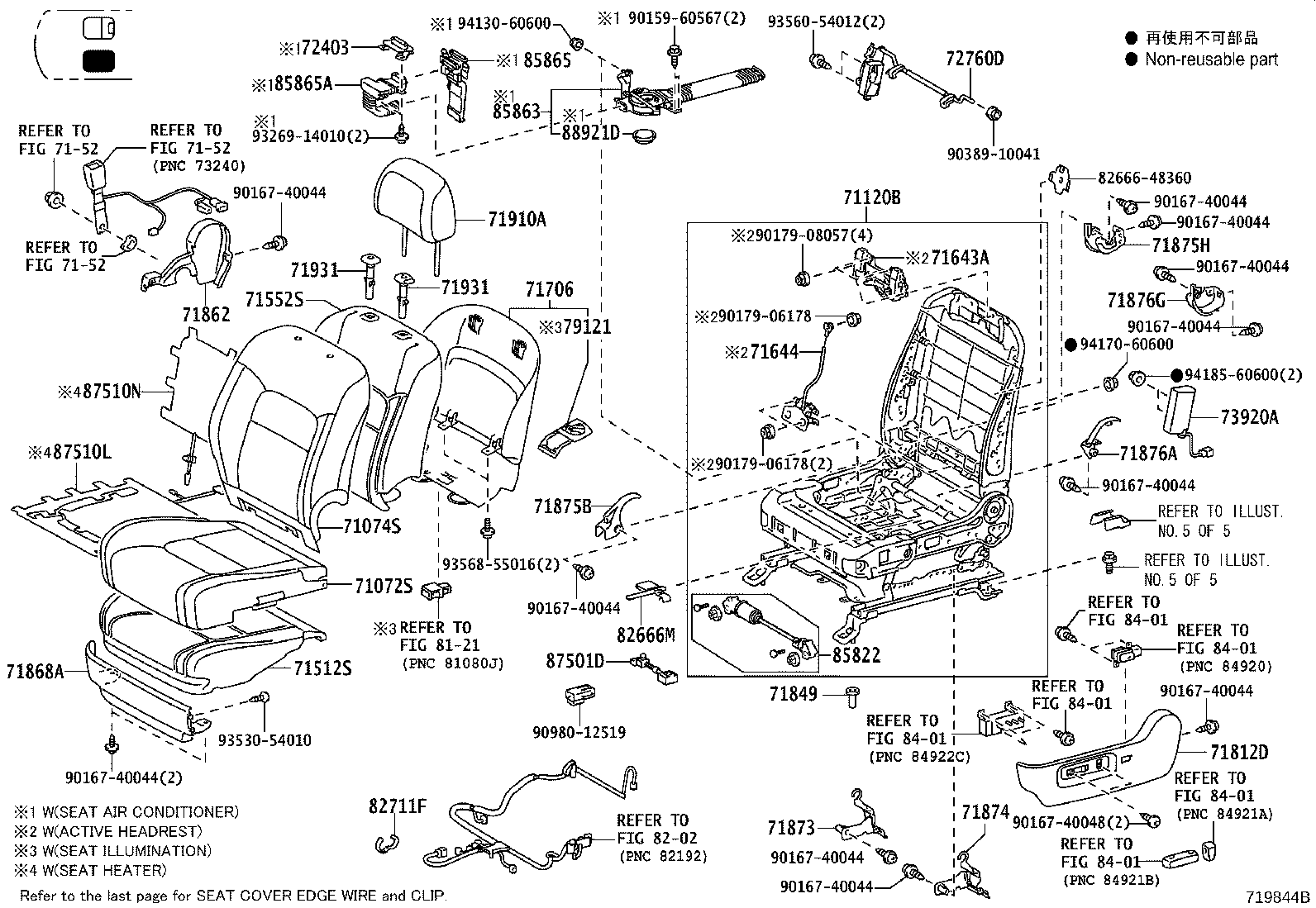

719844B 2015-08 → —

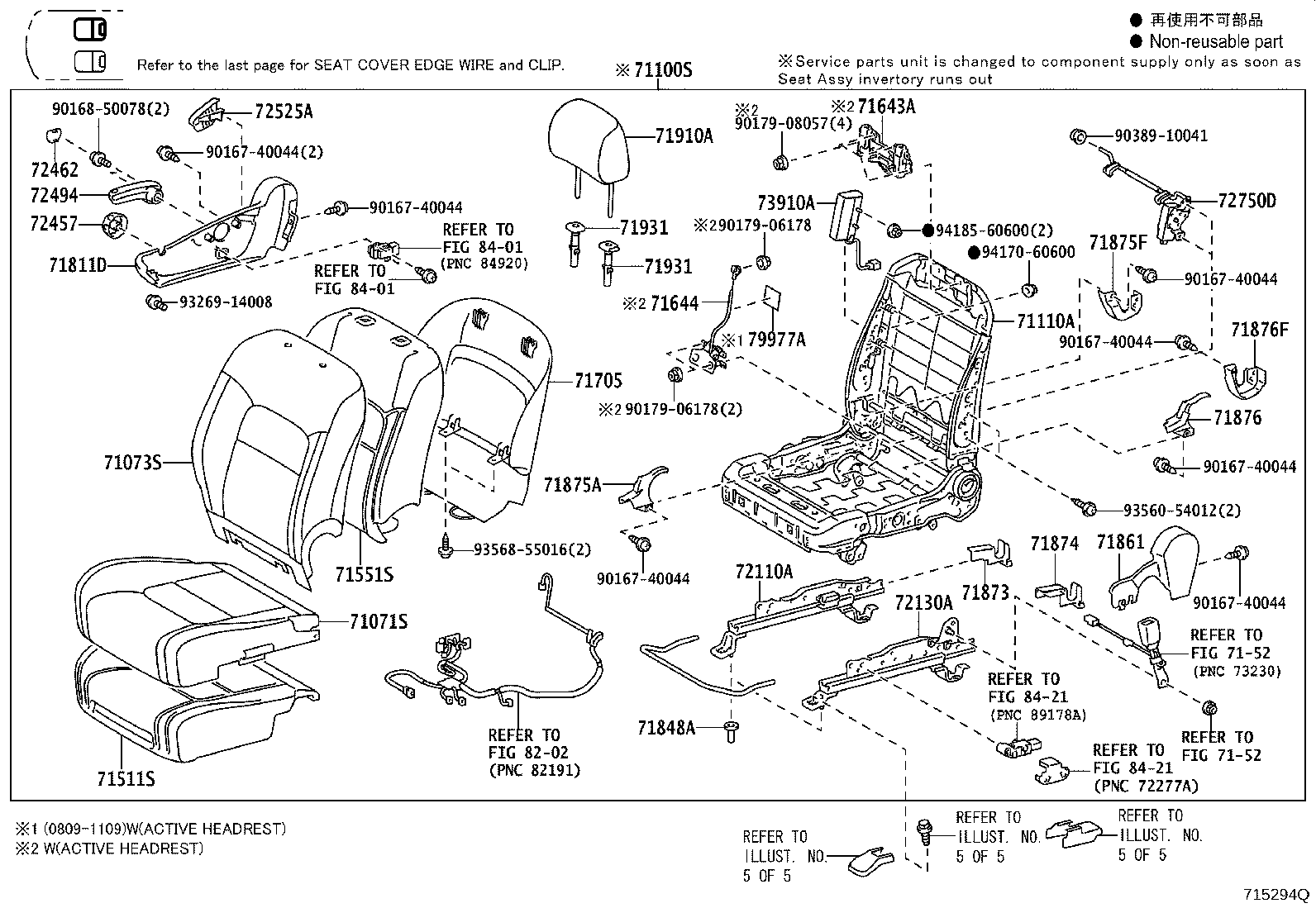

715294Q 2007-09 → 2015-08

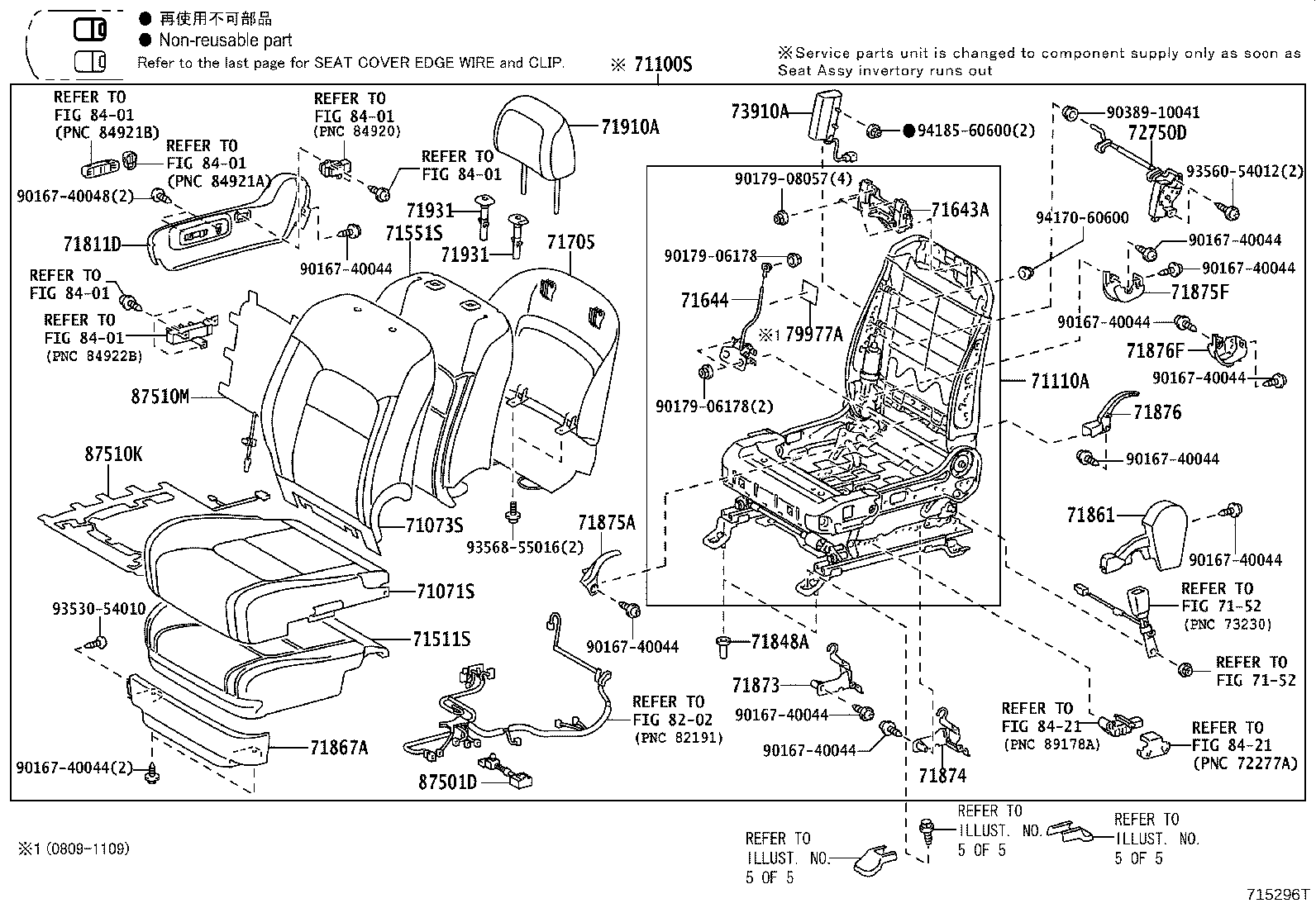

715296T 2007-09 → 2012-01

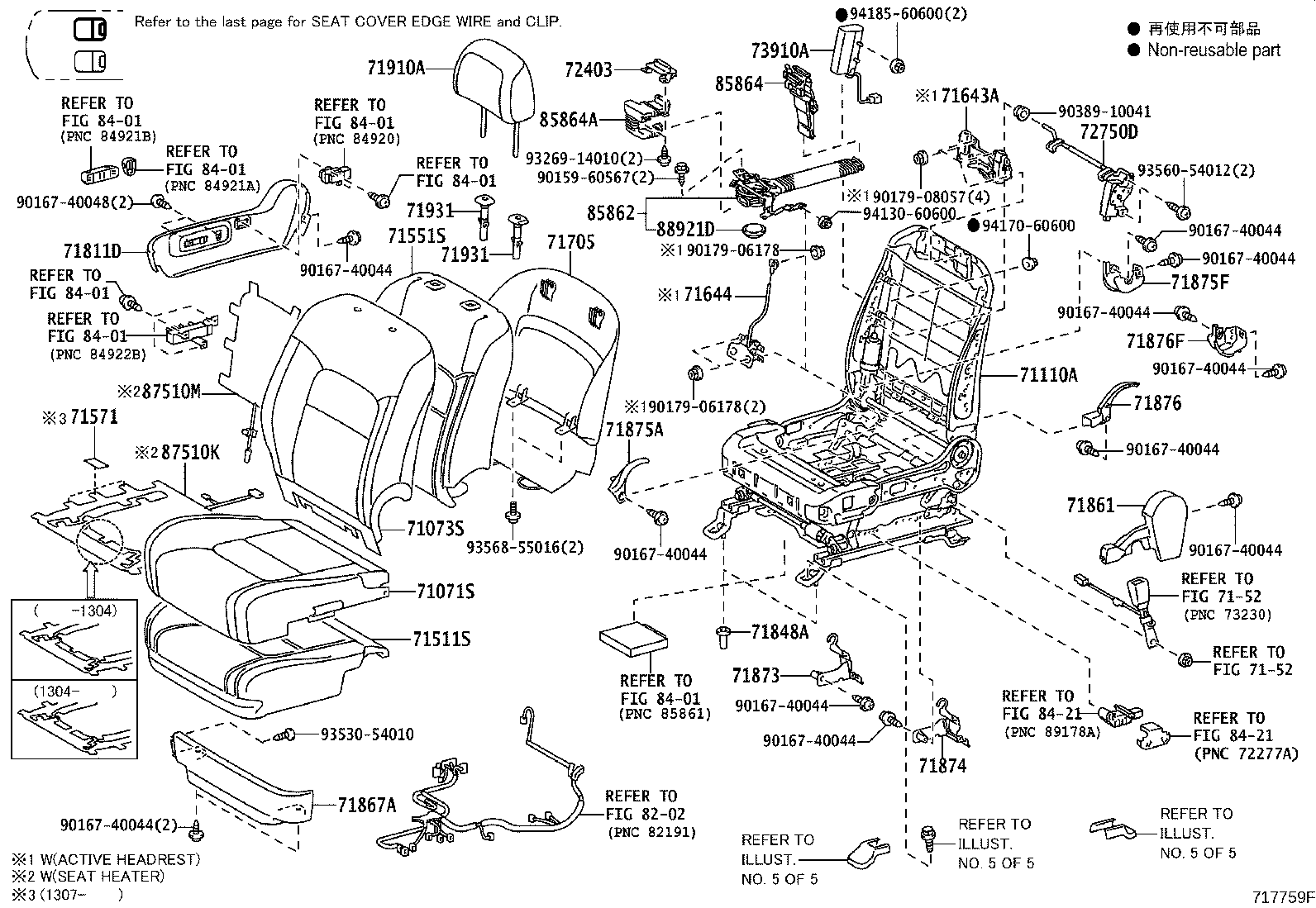

717759F 2012-01 → 2015-08

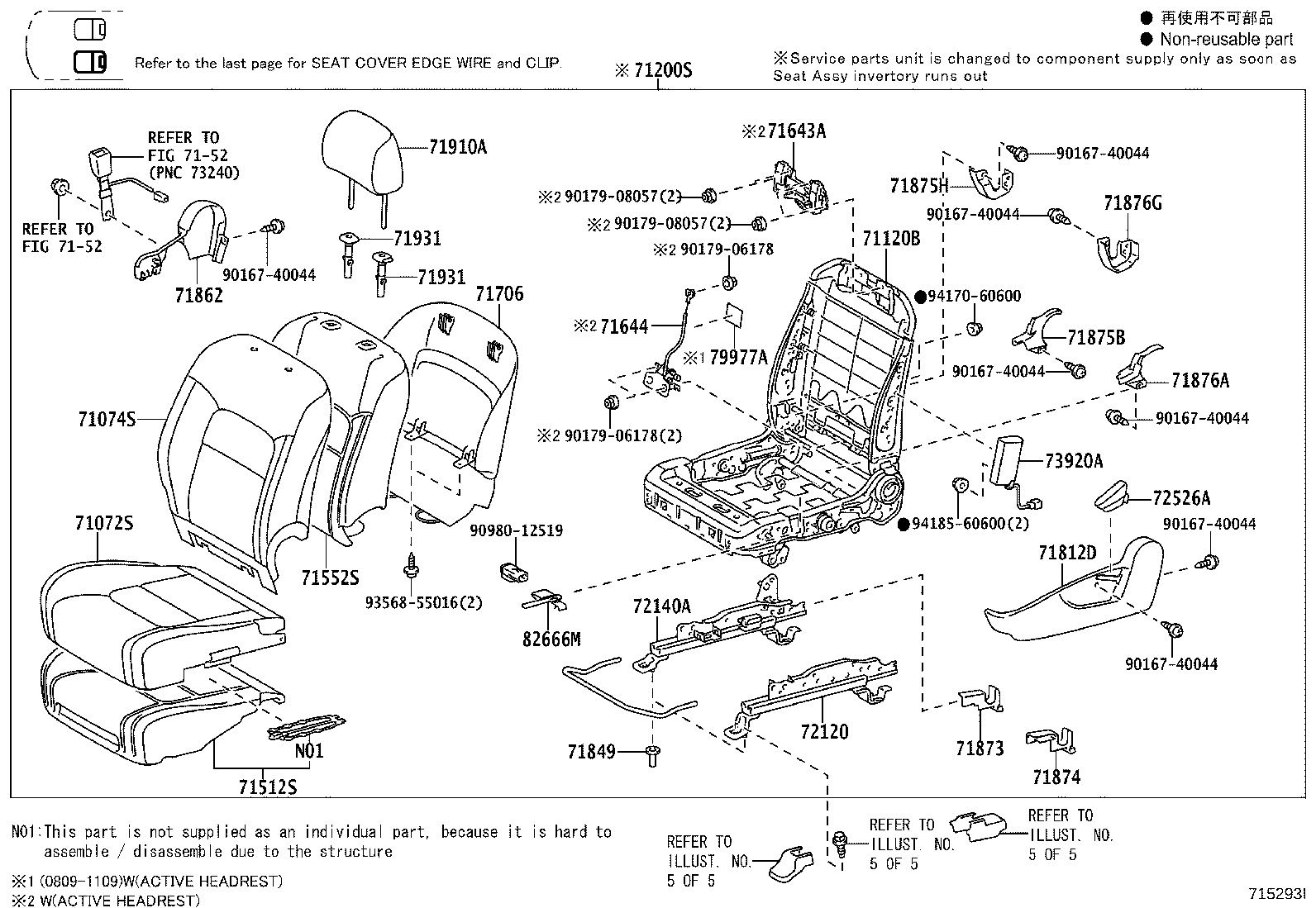

719845A 2015-08 → —

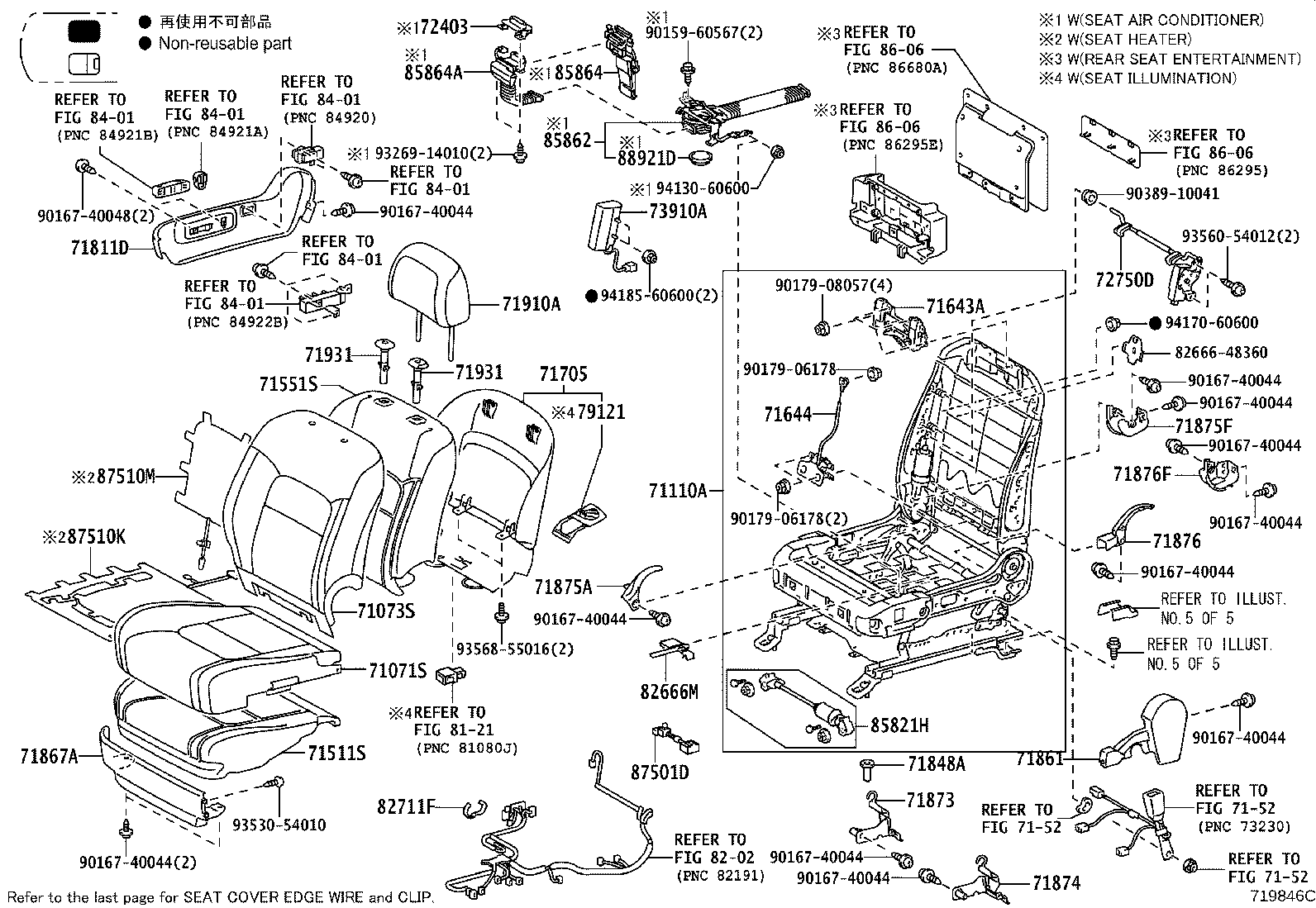

719846C 2015-08 → —

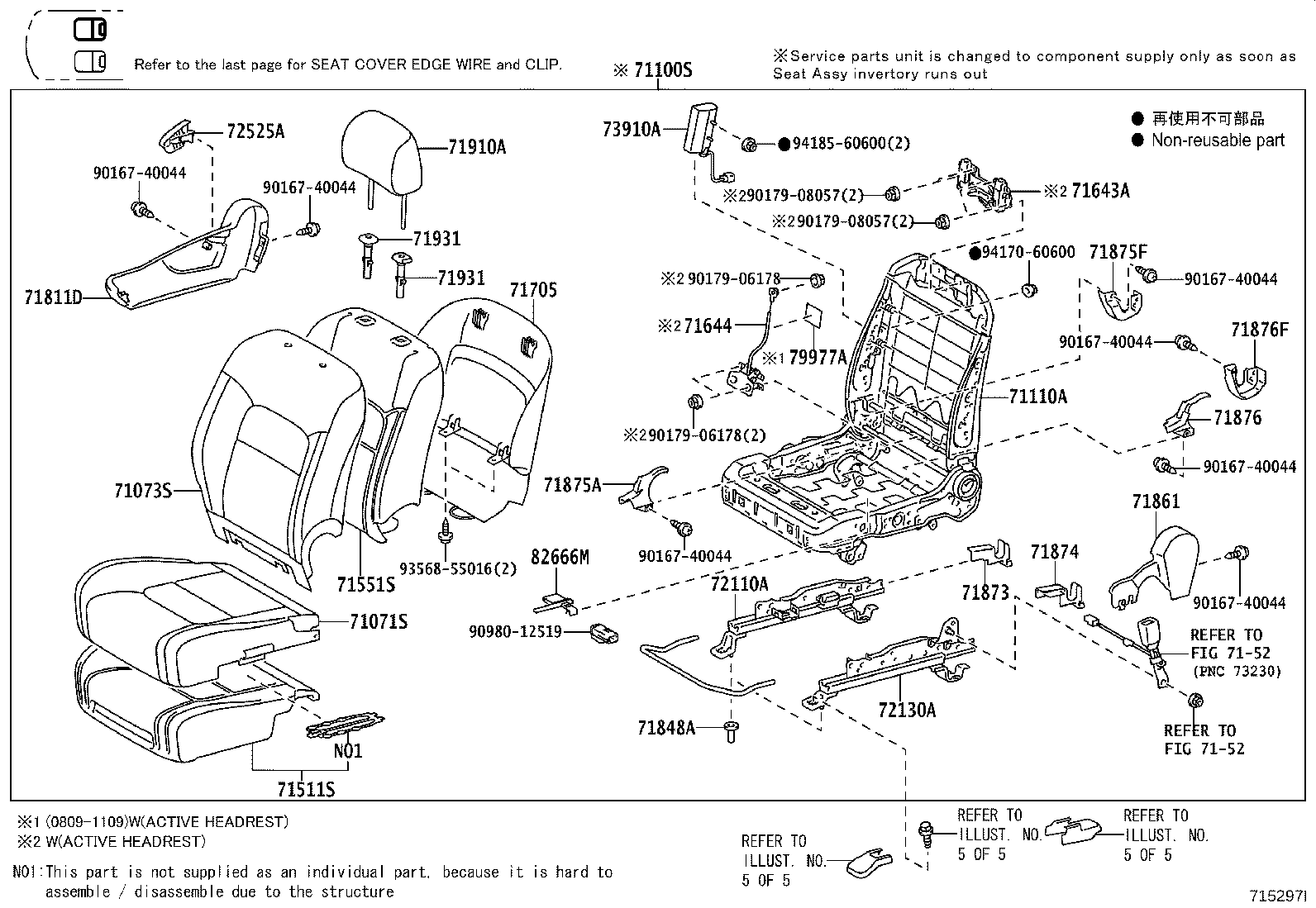

715297I 2007-09 → 2015-08

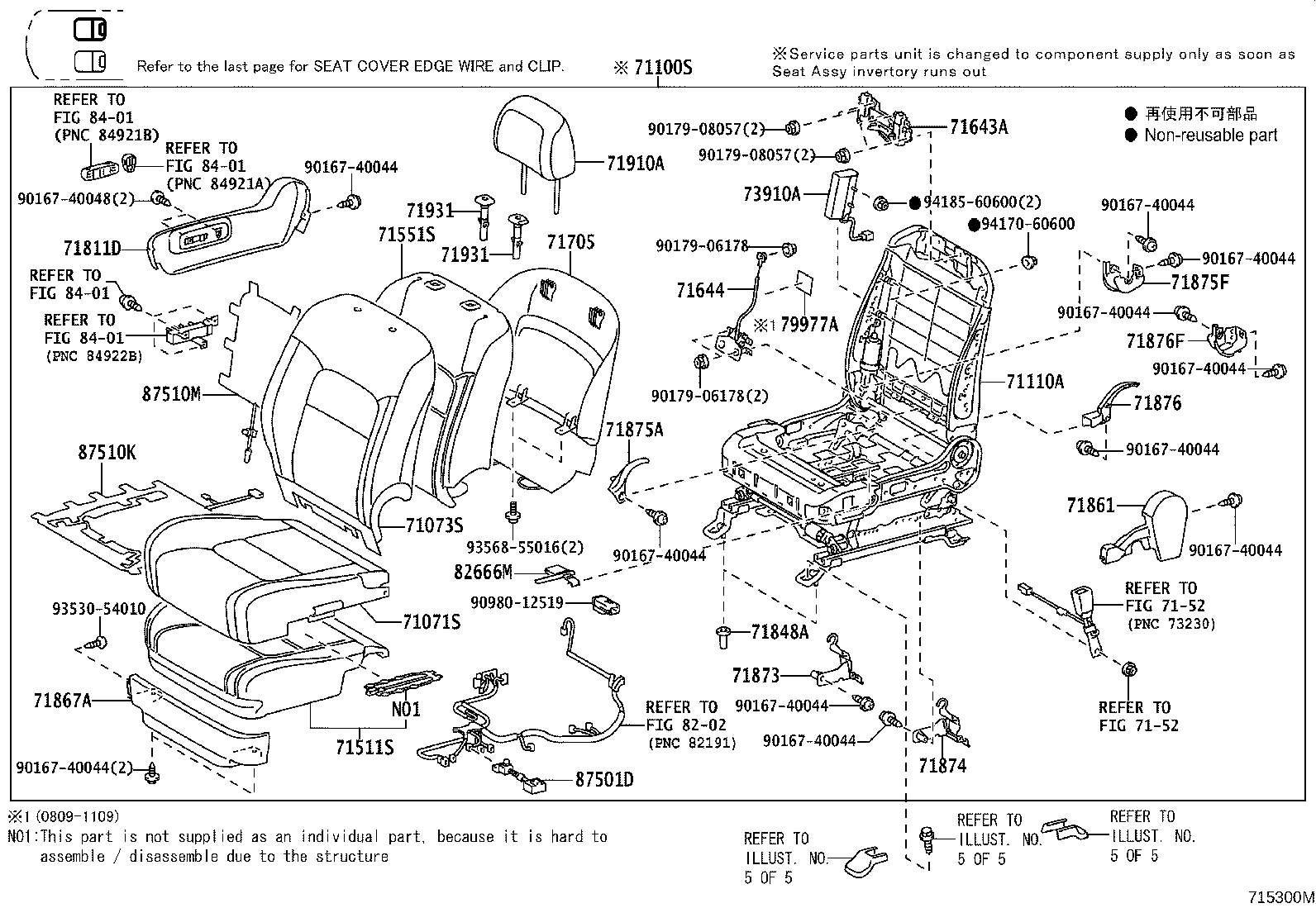

715300M 2007-09 → 2012-01

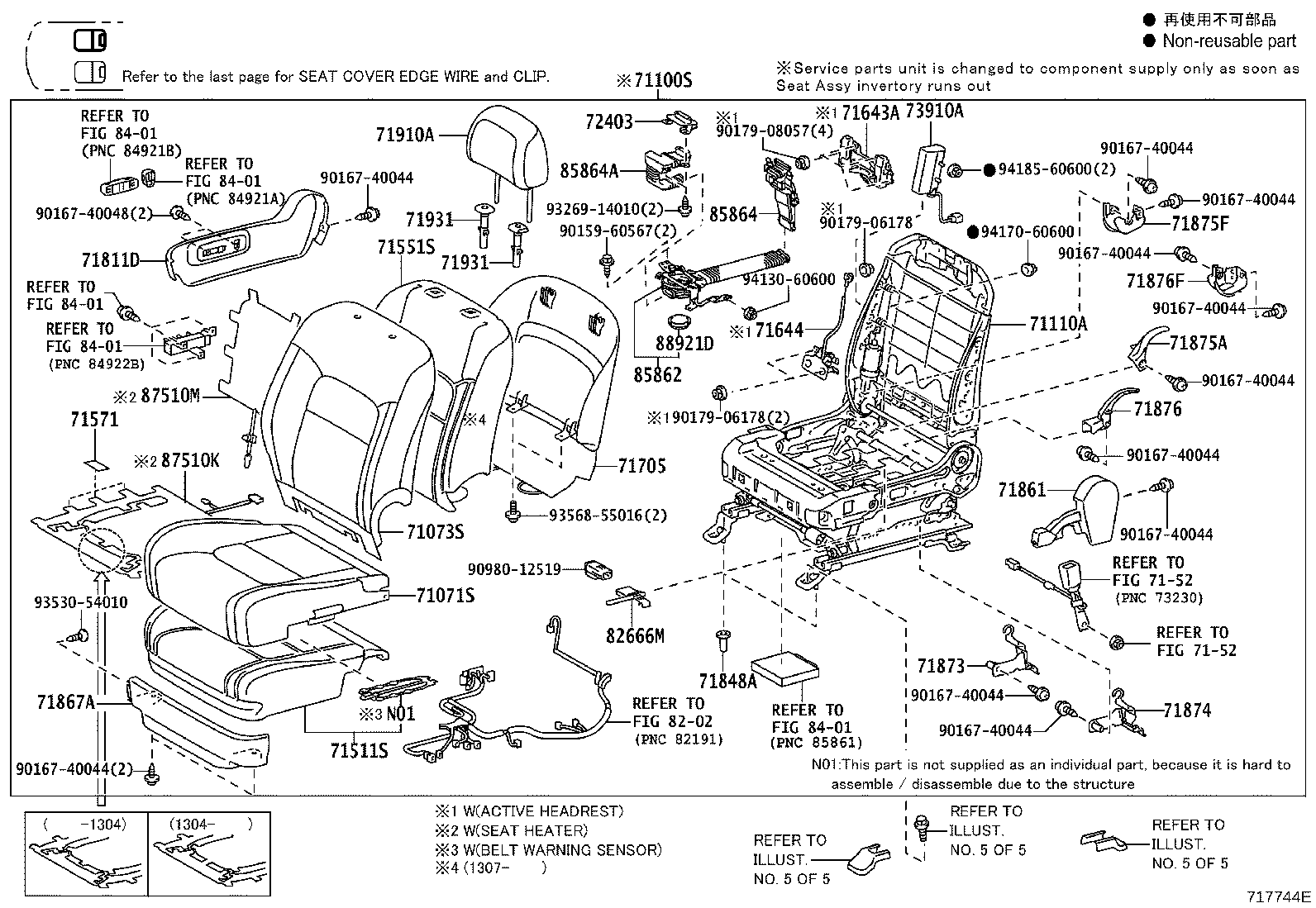

717744E 2012-01 → 2015-08

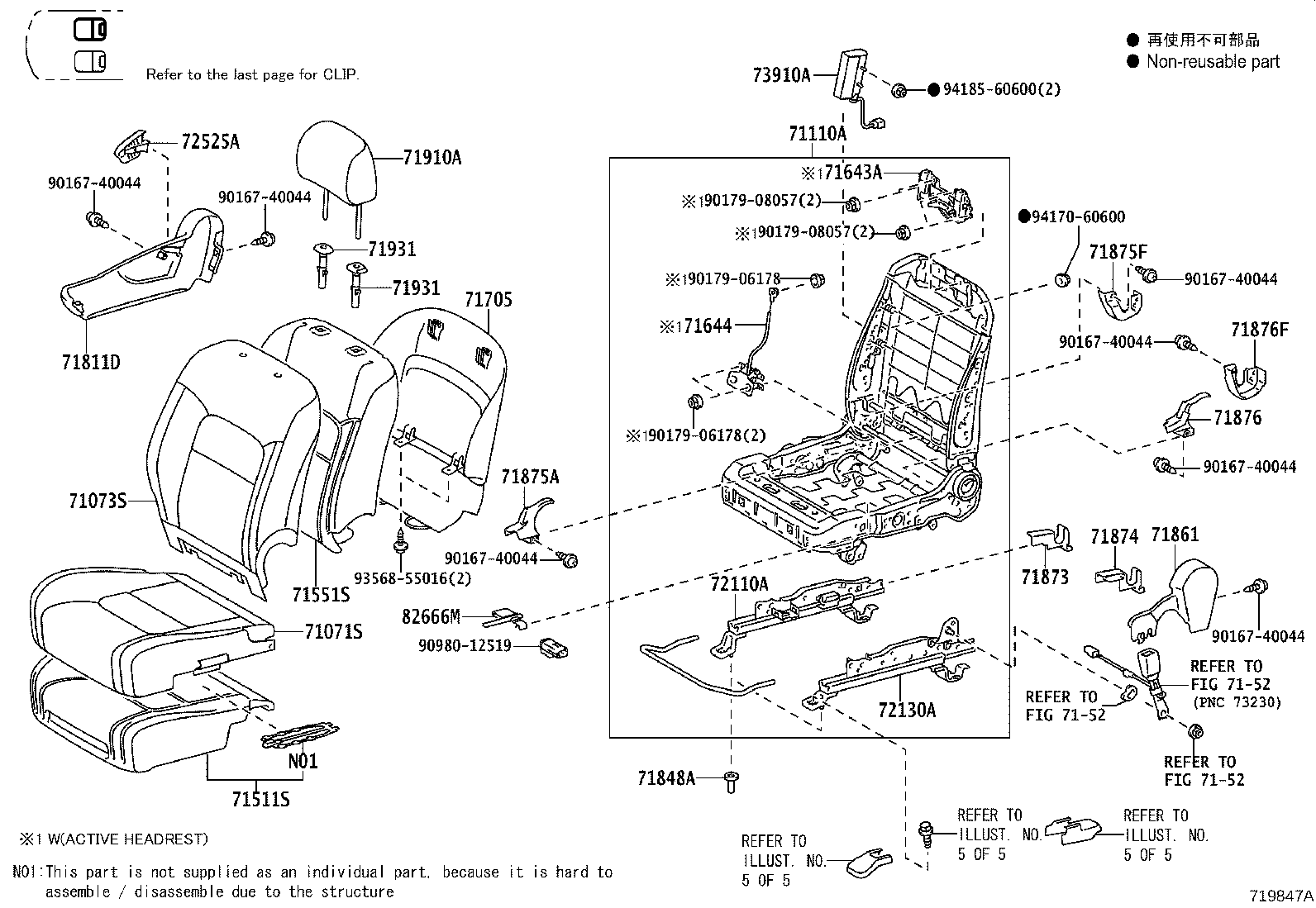

719847A 2015-08 → —

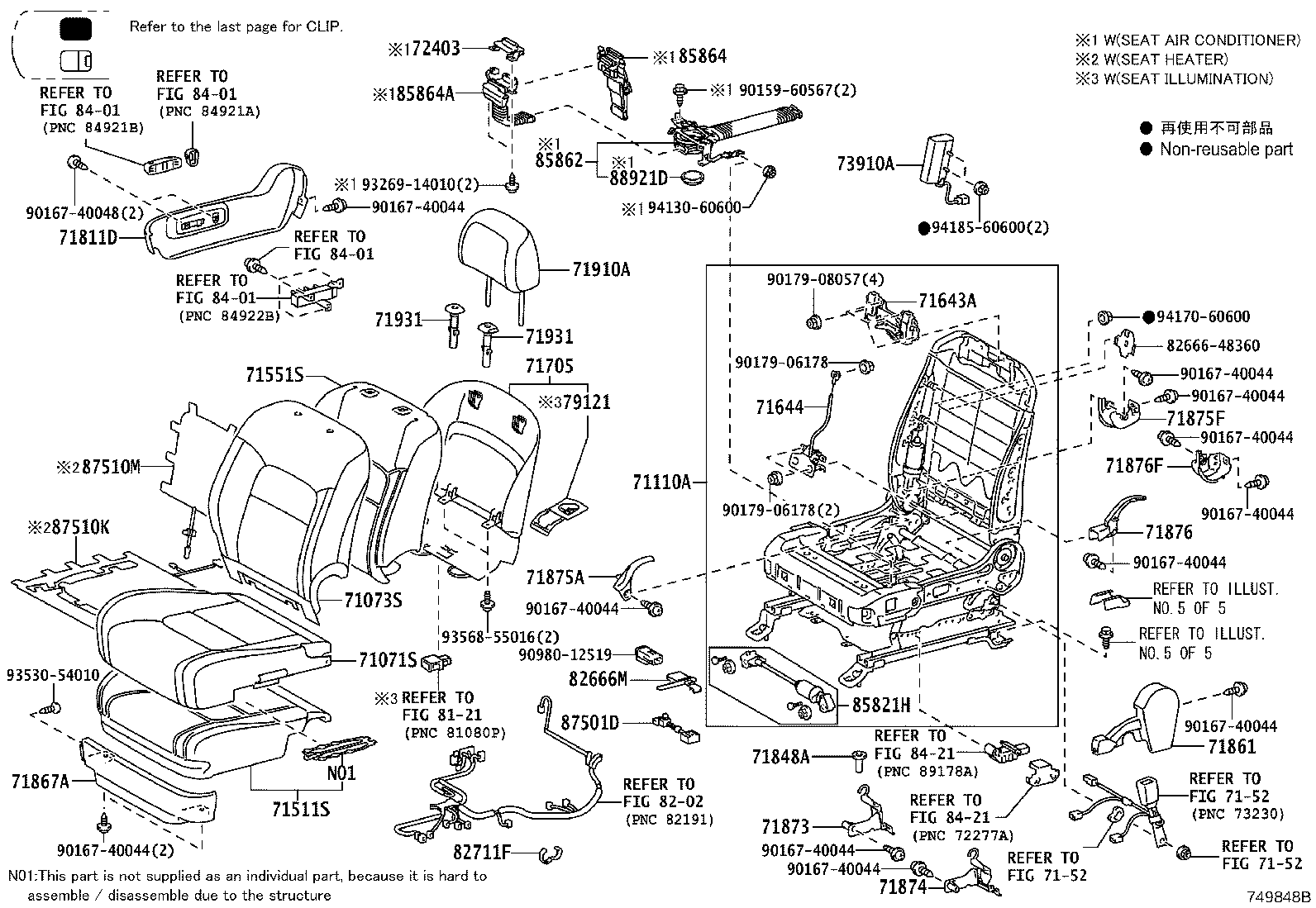

719848B 2015-08 → —

715293I 2007-09 → 2015-08

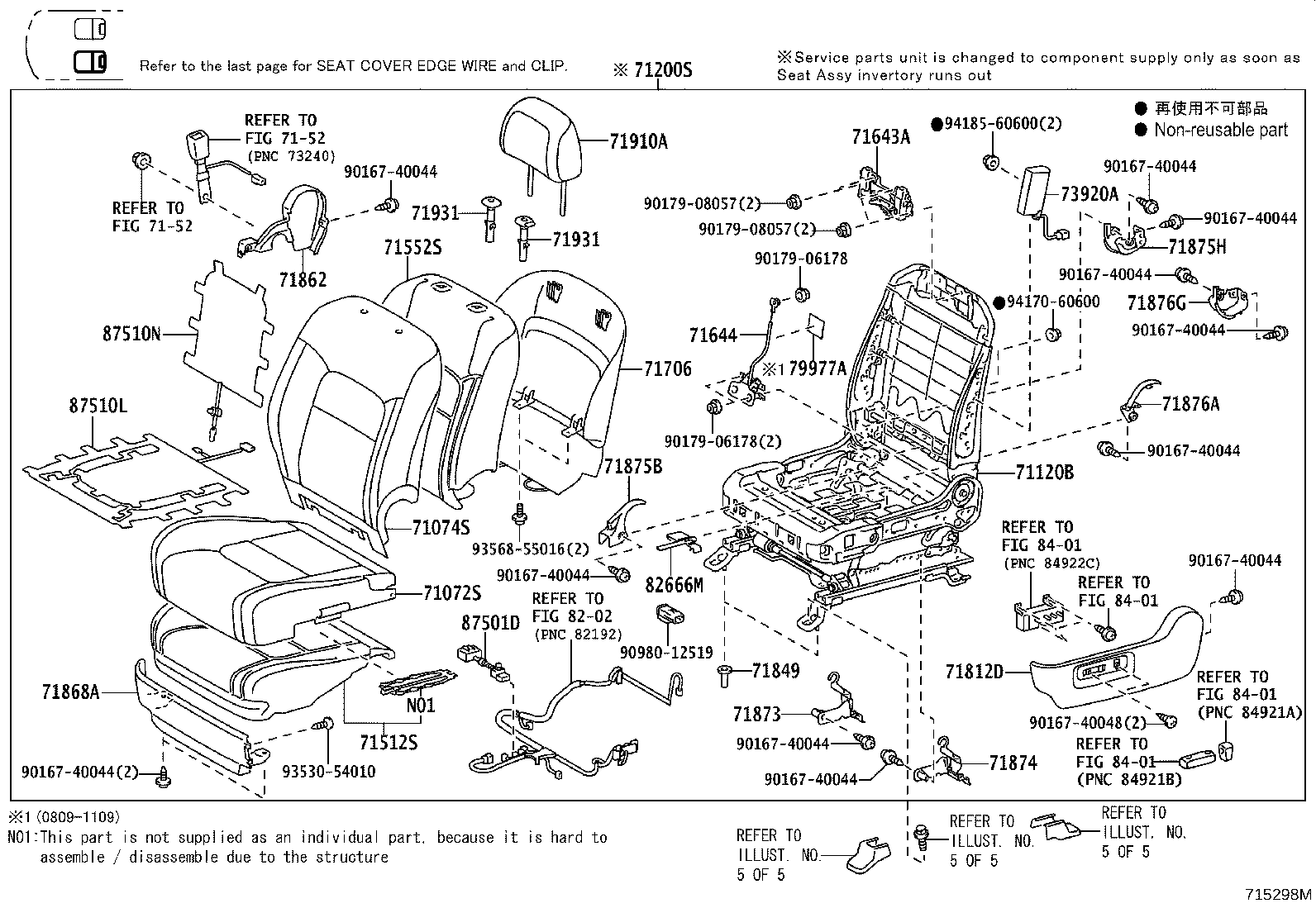

715298M 2007-09 → 2012-01

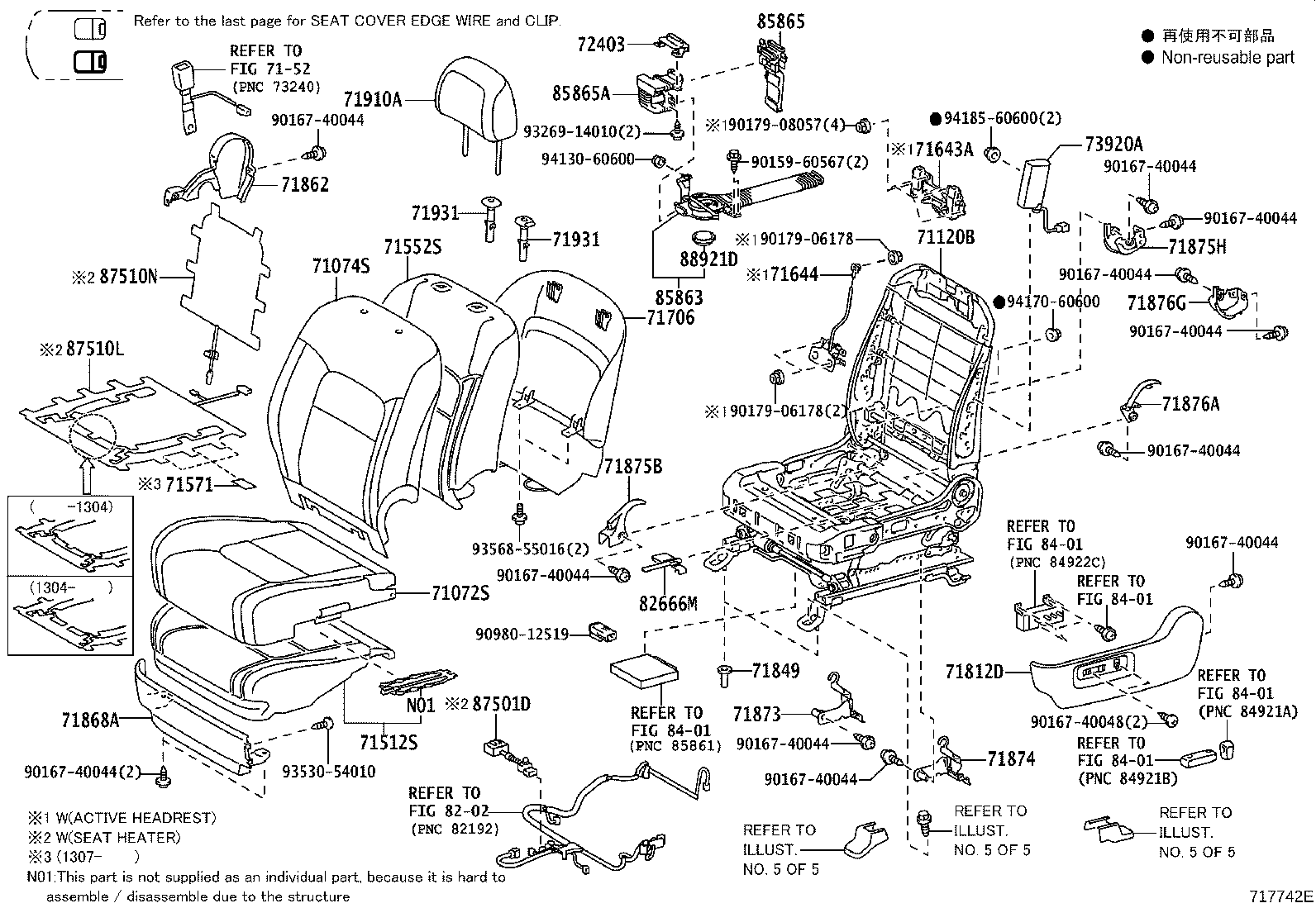

717742E 2012-01 → 2015-08

719819A 2007-09 → 2015-08

719820A 2007-09 → 2015-08

Part groups

PNC	Description
66990	Holder Assy, Cup
70013	Cover Assy, NO.1 Seat Cushion
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)

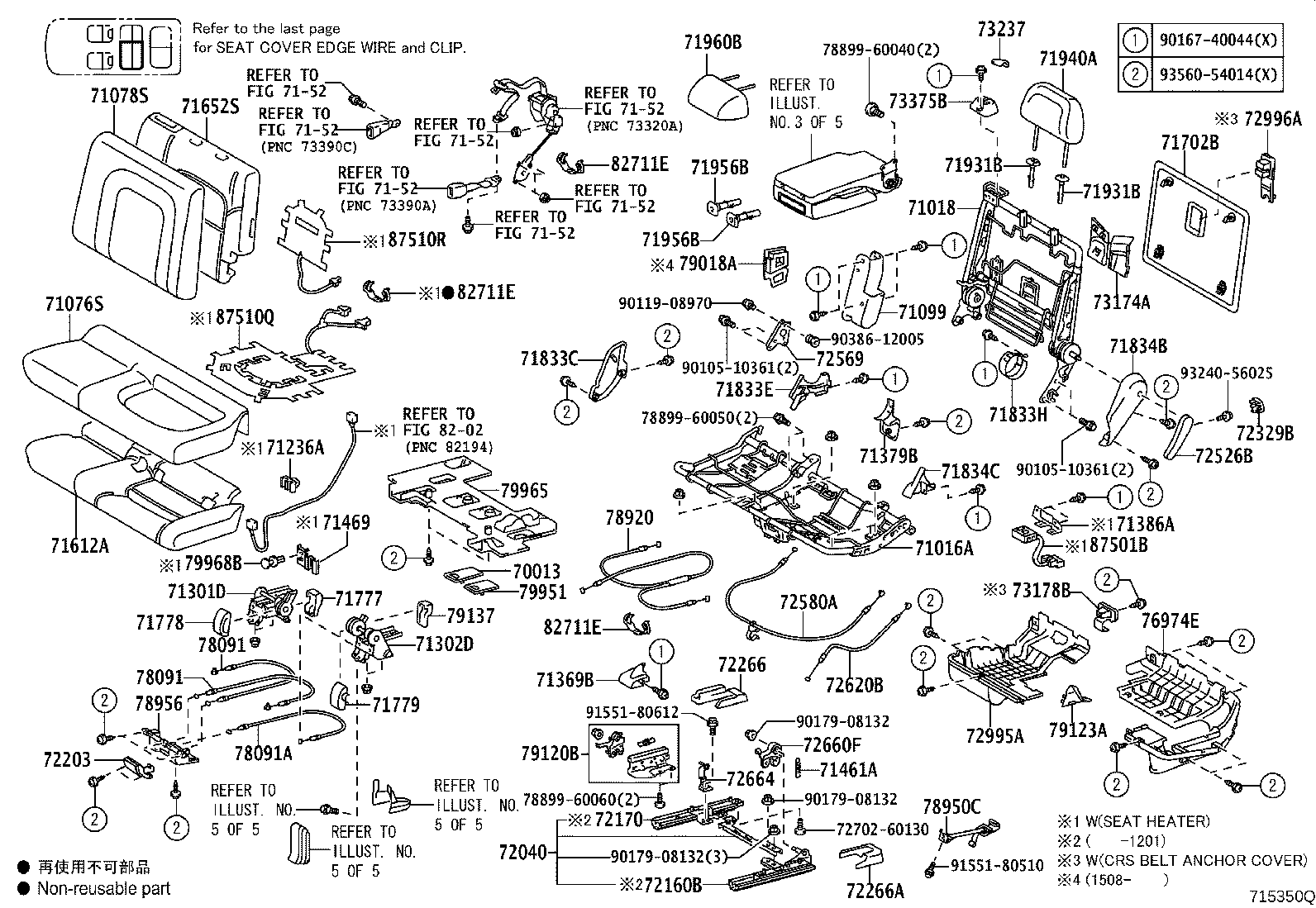

71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71098	Cover Sub-assy, Rear Seatback, Lower RH
71099	Cover Sub-assy, Rear Seatback, Lower LH
71100S	Seat Assy, Front RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71200S	Seat Assy, Front LH
71236A	Clamp, Rear Seat Cushion Spring
71300S	Seat Assy, Rear RH
71301B	Hinge Sub-assy, Rear NO.1 Seat, RH
71301D	Hinge Sub-assy, Rear Seat, RH
71302B	Hinge Sub-assy, Rear NO.1 Seat, LH
71302D	Hinge Sub-assy, Rear Seat, LH
71349B	Cover, Rear Seatback Stay, RH
71349D	Cover, Rear Seatback Hinge, RH
71350T	Back Assy, Center Seat
71369B	Cover, Rear Seatback Stay, LH
71379B	Cover, Rear Seatback Hinge, LH
71385B	Bracket, Rear Seat Cushion Holder, RH
71386A	Bracket, Rear Seat Cushion Holder, LH
71400S	Seat Assy, Rear, LH (FOR SEPARATE TYPE)
71461A	Spring, Rear Seat Cushion, NO.1
71469	Protector, Rear Seat, NO.2
71485A	Cover, Rear Seat Hinge, NO.2 RH
71486A	Cover, Rear Seat Hinge, NO.2 LH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71571	Pad, Front Seatback Silencer, A
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71629A	Cover, Rear Seat Cushion Hinge, RH
71639	Cover, Rear Seat Cushion Hinge, LH
71643A	Unit, Active Headrest, Upr
71644	Unit, Active Headrest, Lwr
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)

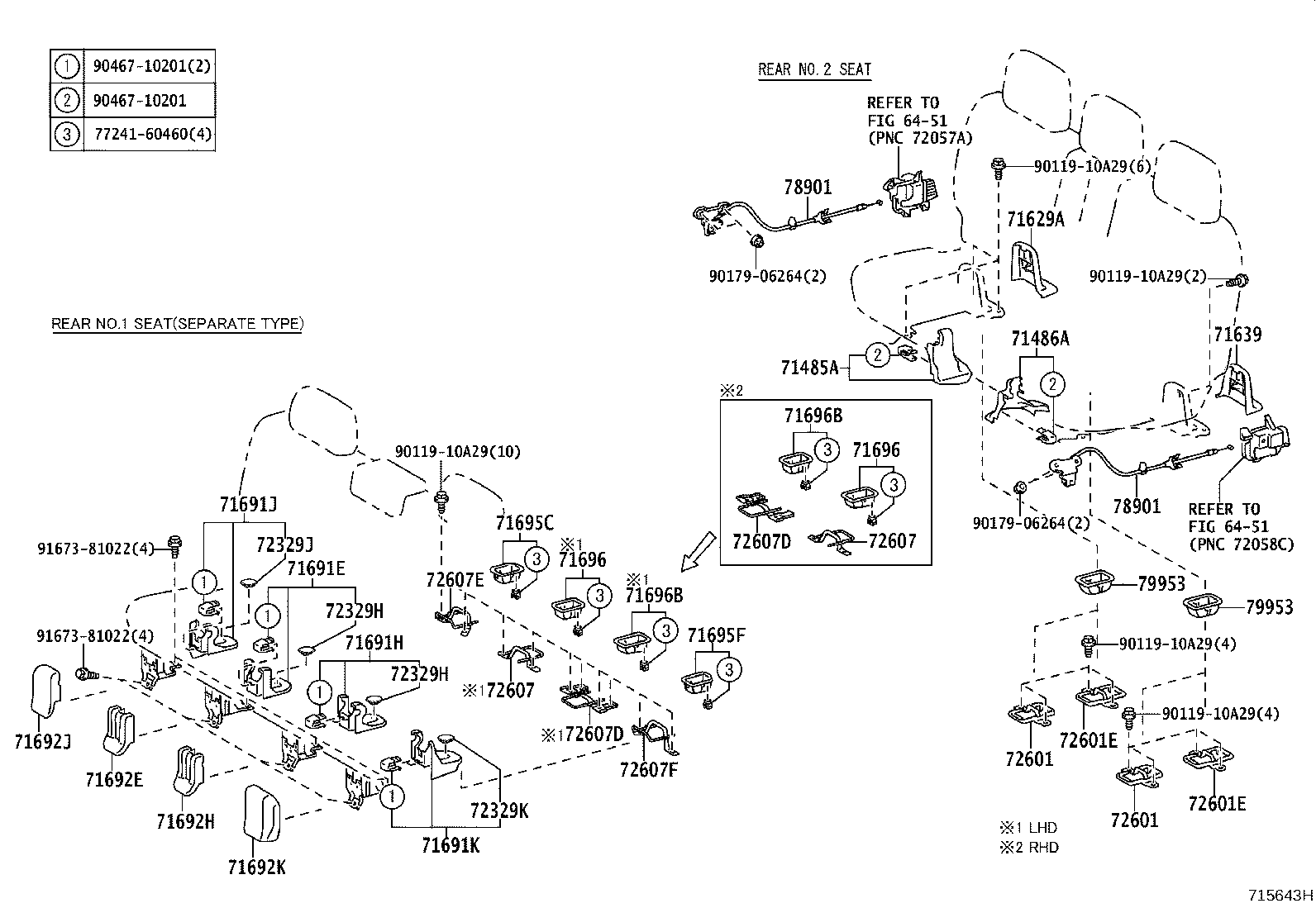

71691E	Cover, Rear Seat Cushion Hinge, NO.1
71691H	Cover, Rear Seat Cushion Hinge, NO.2
71691J	Cover, Rear Seat Cushion Hinge, NO.3
71691K	Cover, Rear Seat Cushion Hinge, NO.4
71692E	Cover, Rear Seat Cushion Hinge, NO.2
71692H	Cover, Rear Seat Cushion Hinge, NO.3
71692J	Cover, Rear Seat Cushion Hinge, NO.4
71692K	Cover, Rear Seat Cushion Hinge, NO.5
71695C	Protector, Rear Seat, NO.1
71695F	Protector, Rear Seat, NO.1
71696	Protector, Rear Seat, NO.2
71696B	Protector, Rear Seat, NO.2
71701B	Board Sub-assy, Rear Seatback, RH
71702B	Board Sub-assy, Rear Seatback, LH
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71777	Cover, Rear Seat Side Hinge Female
71778	Cover, Rear Seat Side Hinge Male, RH
71779	Cover, Rear Seat Side Hinge Male, LH
71788B	Washer, Front Seatback Board Setting
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833D	Cover Rear Seat Reclining, RH
71833E	Cover, Rear Seat Reclining, NO.3 RH
71833H	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834C	Cover, Rear Seat Reclining, NO.3 LH
71834D	Cover, Rear Seat Reclining, LH
71834G	Cover, Rear Seat Reclining, NO.1 LH
71835C	Moulding, Rear Seatback, RH
71836C	Moulding, Rear Seatback, LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71843C	Cover, Reclining Adjuster, RH
71843D	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71844B	Cover, Reclining Adjuster, LH
71844C	Cover, Rear Seat Reclining, NO.2 LH
71848A	Cap, Seat Adjuster Cover, RH
71848B	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71849A	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875F	Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875H	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71878A	Cover, Rear Seat Reclining, Inner RH
71878B	Cover, Rear Seat Reclining, Inner RH
71878C	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71879B	Cover, Rear Seat Reclining, Inner LH
71879C	Cover, Rear Seat Reclining, Inner LH
71887C	Carpet, Rear Seat Cushion
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940A	Headrest Assy, Rear Seat
71956B	Support, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
71970	Headrest Assy, Rear Seat
71984A	Handle, Rear Seat Headrest
72040	Adjuster Assy, Rear NO.2 Seat
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72130A	Track Assy, Front Seat, Inner RH
72137J	Cover, Front Seat Track, RH Rear Outer
72138J	Cover, Front Seat Track, LH Rear Outer
72140A	Track Assy, Front Seat,Inner LH
72157B	Cover, Rear Seat Track Bracket, Inner RH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72160	Track Assy, Rear Seat, Outer RH
72160B	Track Assy, Rear NO.1 Seat, RH
72170	Track Assy, Rear Seat, Outer LH
72170B	Track Assy, Rear NO.1 Seat, LH
72203	Handle Sub-assy, Rear Seat Track
72265	Cover, Seat Track Upper Rail, RH
72265A	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72266A	Cover, Seat Track Upper Rail, LH
72329	Cover, Seat Adjuster Bolt
72329B	Cover, Seat Adjuster Bolt, NO.1
72329H	Cover, Seat Adjuster Bolt, NO.1
72329J	Cover, Seat Adjuster Bolt, NO.2
72329K	Cover, Seat Adjuster Bolt, NO.3
72345	Cap, Seat Stand Frame
72403	Bracket Sub-assy, Seat Frame Set
72457	Knob, Vertical Seat Adjuster
72462	Cover, Vertical Adjuster RH
72462A	Cover, Vertical Adjuster LH
72494	Handle, Vertical Adjusting, RH
72495	Handle, Vertical Adjusting, LH
72507D	Handle Sub-assy, NO.2 Seat Reclining Release
72525A	Handle, Reclining Adjuster Release, RH
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526A	Handle, Reclining Adjuster Release, LH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72526C	Handle, Reclining Adjuster Release, NO.2 LH
72558	Stopper, Reclining
72569	Plate, Seatback Stopper
72570B	Cable Assy, Reclining Adjusting, RH
72580A	Cable Assy, Reclining Adjusting, LH
72590B	Cable Assy, Reclining Remote Control
72601	Striker Sub-assy, Rear Seat Lock
72601E	Striker Sub-assy, Rear Seat Lock, NO.2
72607	Striker Sub-assy, Rear Seat Cushion Lock
72607D	Striker Sub-assy, Rear Seat Cushion Lock, NO.2
72607E	Striker Sub-assy, Rear Seat Cushion Lock, NO.3
72607F	Striker Sub-assy, Rear Seat Cushion Lock, NO.4
72615A	Cover, Rear Seatback Lock Striker, RH
72616A	Cover, Rear Seatback Lock Striker, LH
72620B	Cable Assy, Rear NO.1 Seat Lock
72622C	Bush, Rear Seatback Protector Shaft
72650A	Lock Assy, Rear Seat, RH
72660F	Lock Assy, Rear Seat, LH
72663	Lever, Rear Seat Lock Control, NO.1
72664	Lever, Rear Seat Lock Control, LH
72665	Cover, Rear Seatback Lock, RH
72665B	Cover, Rear Seatback Lock
72666	Cover, Rear Seatback Lock, LH
72666B	Cover, Rear Seat Lock, LH
72668A	Bezel, Rear Seatback Lock, Lower
72670A	Striker Assy, Rear Seatback Lock, RH
72680A	Striker Assy, Rear Seatback Lock, LH
72690B	Lever Assy, Seat Cushion Lock Release, RH
72690C	Lever Assy, Seat Cushion Lock Release, LH
72695A	Cable, Rear Seat Lock Control
72730	Adjuster Assy, Rear Seat Reclining
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
72779	Guide, Rear Seat Hinge Pawl
72779A	Guide, Rear Seat Hinge Pawl
72803D	Panel Sub-assy, Rear Seat Center Armrest
72805B	Door Sub-assy, Rear Seat Center Armrest
72806B	Holder Sub-assy, Rear Seat Center Armrest Cup
72808A	Bracket Sub-assy, Seat Center Armrest

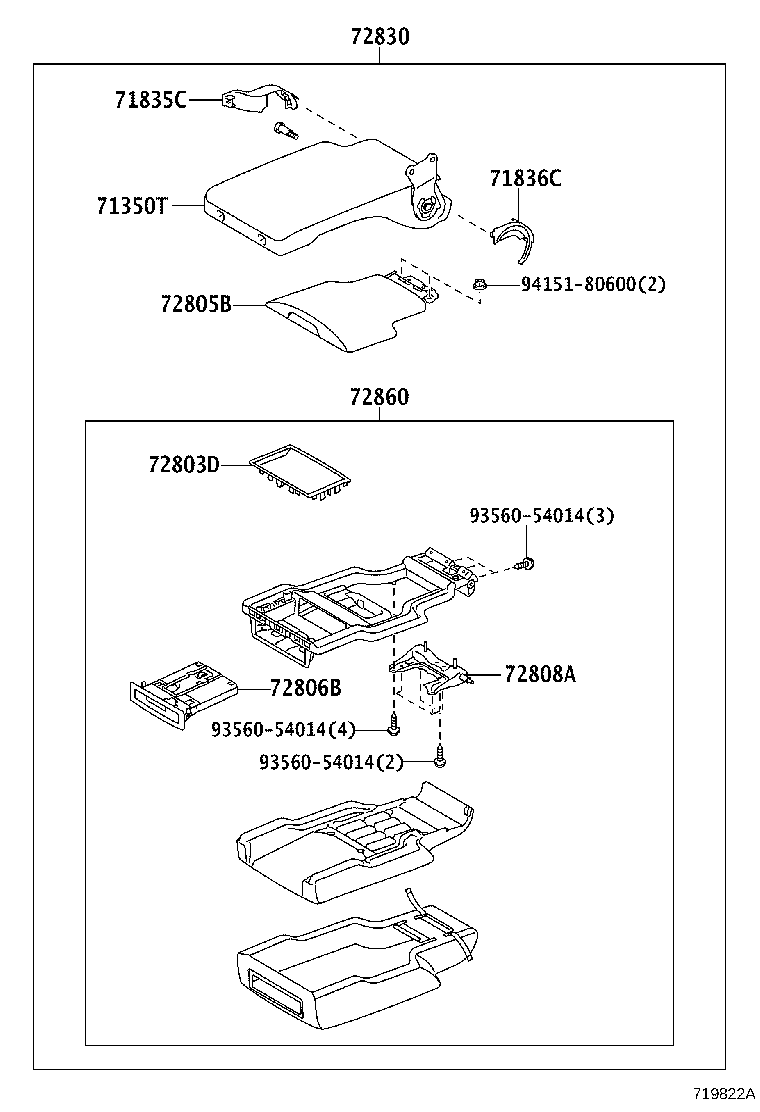

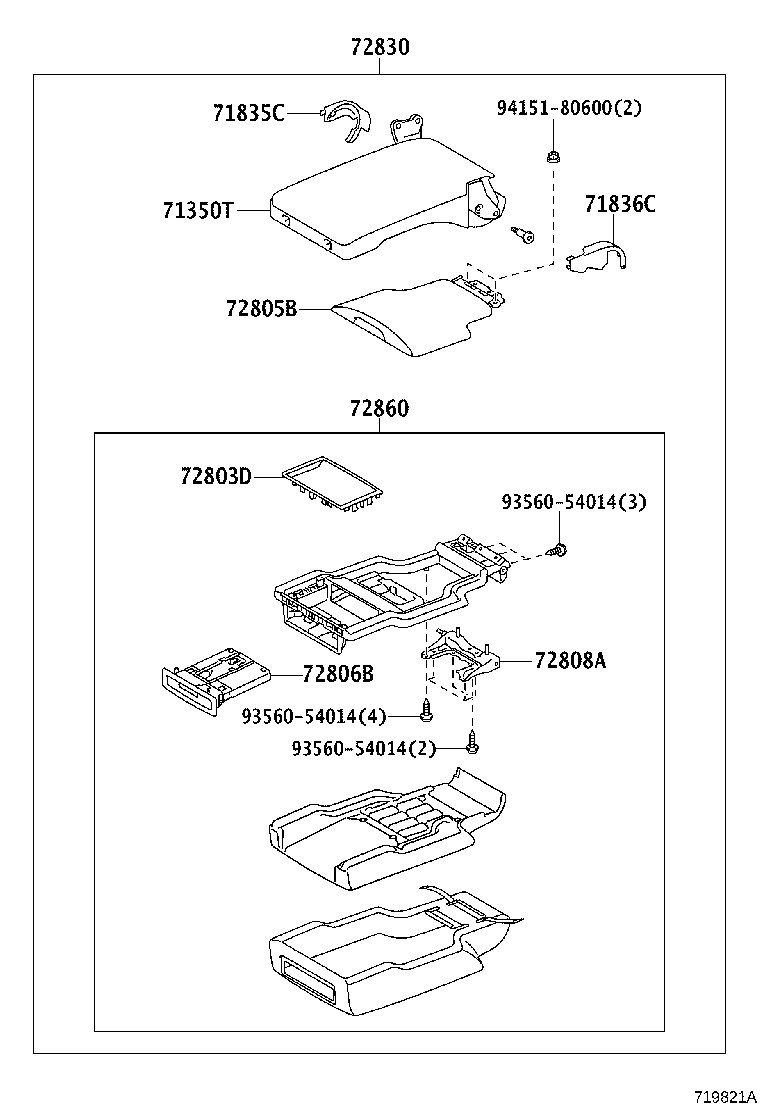

72830	Armrest Assy, Rear Seat, Center
72832	Plate, Rear Seat Armrest
72832A	Plate, NO.1 Seat Armrest
72860	Box Assy, Rear Seat Center Armrest
72905	Link Sub-assy, 3RD Seat, RH
72906	Link Sub-assy, 3RD Seat, LH
72918	Cover, 3RD Seat Cushion Lock
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
72995	Cover, Rear Seat Cushion, RH
72995A	Cover, Rear Seat
72996A	Cover, Rear Seatback
72996C	Cover, Rear NO.2 Seatback, RH
72997C	Cover, Rear NO.2 Seatback, LH
73173C	Cover, Rear Seat Belt Hole, RH
73174A	Cover, Rear Seat Belt Hole, LH
73178B	Cap, Seat Belt Anchor Cover
73237	Cover, Shoulder Belt Anchor
73373F	Cover, Rear Seat Shoulder Belt Hole
73375B	Cover, Rear Seat Shoulder Belt Hole, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
76973E	Cover, Rear Under Side, RH
76974E	Cover, Rear Under Side, LH
78091	Cable Sub-assy, Fold Seat Lock Control
78091A	Cable Sub-assy, Fold Seat Lock Control
78901	Lock Sub-assy, Fold Seat Leg
78910	Cable Assy, Fold Seat Lock Control, NO.1
78920	Cable Assy, Fold Seat Lock Control, NO.2
78930	Cable Assy, Fold Seat Lock Control, NO.3
78950C	Band Assy, Fold Seat Stopper
78955	Cover, Rear Seat Under Tray RH
78956	Cover, Rear Seat Under Tray LH
79017A	Pad Sub-assy, NO.1 Seatback, RH
79018A	Pad Sub-assy, NO.1 Seatback, LH
79029A	Stay Sub-assy, NO.2 Seat

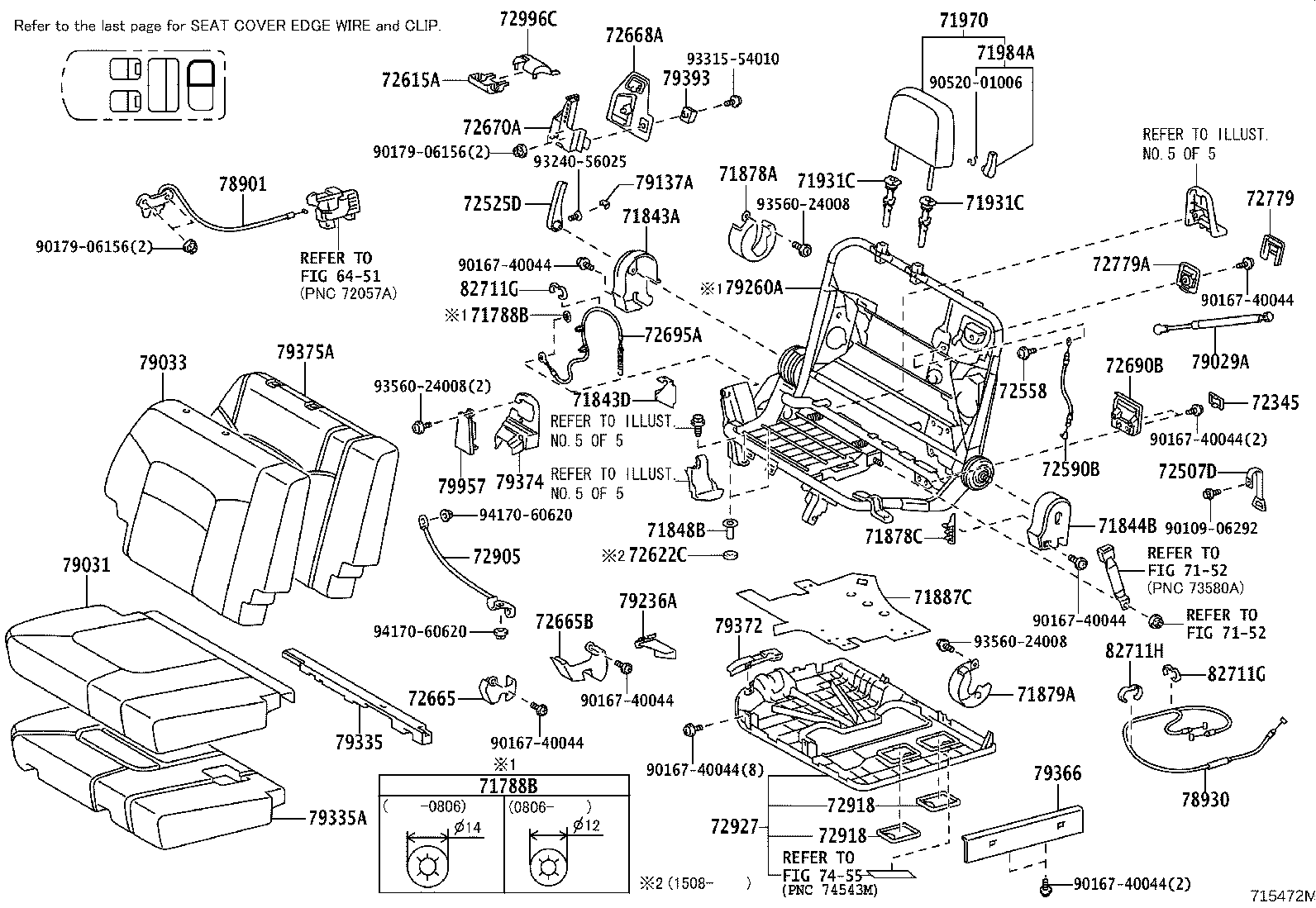

79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79110	Leg Assy, NO.1 Seat
79120B	Leg Assy, NO.1 Seat, LH
79121	Bracket, NO.1 Seat Cushion
79123	Plate, NO.1 Seat Cushion
79123A	Plate, NO.1 Seat Cushion
79137	Cover, NO.1 Seat Hinge
79137A	Cover, NO.2 Seat Hinge
79236A	Cover, NO.2 Seat Leg
79246A	Cover, NO.2 Seat Leg, NO.2
79260A	Spring Assy, NO.2 Seat Cushion, RH
79270A	Spring Assy, NO.2 Seat Cushion, LH
79335	Pad, NO.3 Seat Cushion
79335A	Pad, NO.3 Seat Cushion, RH
79345A	Pad, NO.3 Seat Cushion, LH
79366	Cover, NO.3 Seat Leg, NO.1
79367	Cover, NO.3 Seat Leg, NO.2
79372	Cover, NO.3 Seat Front Bracket, RH
79374	Cover, NO.3 Seat Leg, Rear RH
79375A	Pad, NO.3 Seatback, RH
79382	Cover, NO.3 Seat Front Bracket, LH
79384	Cover, NO.3 Seat Leg, Rear LH
79385A	Pad, NO.3 Seatback, LH
79393	Cushion, Rear NO.2 Seatback
79951	Cover, NO.1 Seat Cushion
79953	Cover, NO.3 Seat Cushion
79956S	Cover, Rear Seat Leg Side
79957	Cover, Rear Seat Rear Bracket, Rear
79965	Cover, Rear Seat Leg Side, NO.2
79968B	Clip
79977A	Felt, Seatback
82666M	Holder, Connector
82711E	Clamp, Wiring Harness
82711F	Clamp, Wiring Harness
82711G	Clamp, Wiring Harness
82711H	Clamp, Wiring Harness
85821H	Motor Assy, Power Seat Slide, RH
85822	Motor Assy, Power Seat Slide, LH
85862	Blower, Seat Climate Control, RH
85863	Blower, Seat Climate Control, LH
85864	Controller, Seat Climate Control,RH
85864A	Controller, Seat Climate Control, RH
85865	Controller, Seat Climate Control,LH
85865A	Controller, Seat Climate Control, LH
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87501D	Control Sub-assy, Seat Heater
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH
87510P	Heater Assy, Seat
87510Q	Heater Assy, Seat
87510R	Heater Assy, Seat
88921D	Filter, Air, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
