Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

31 part groups · 5 illustrations

Illustrations

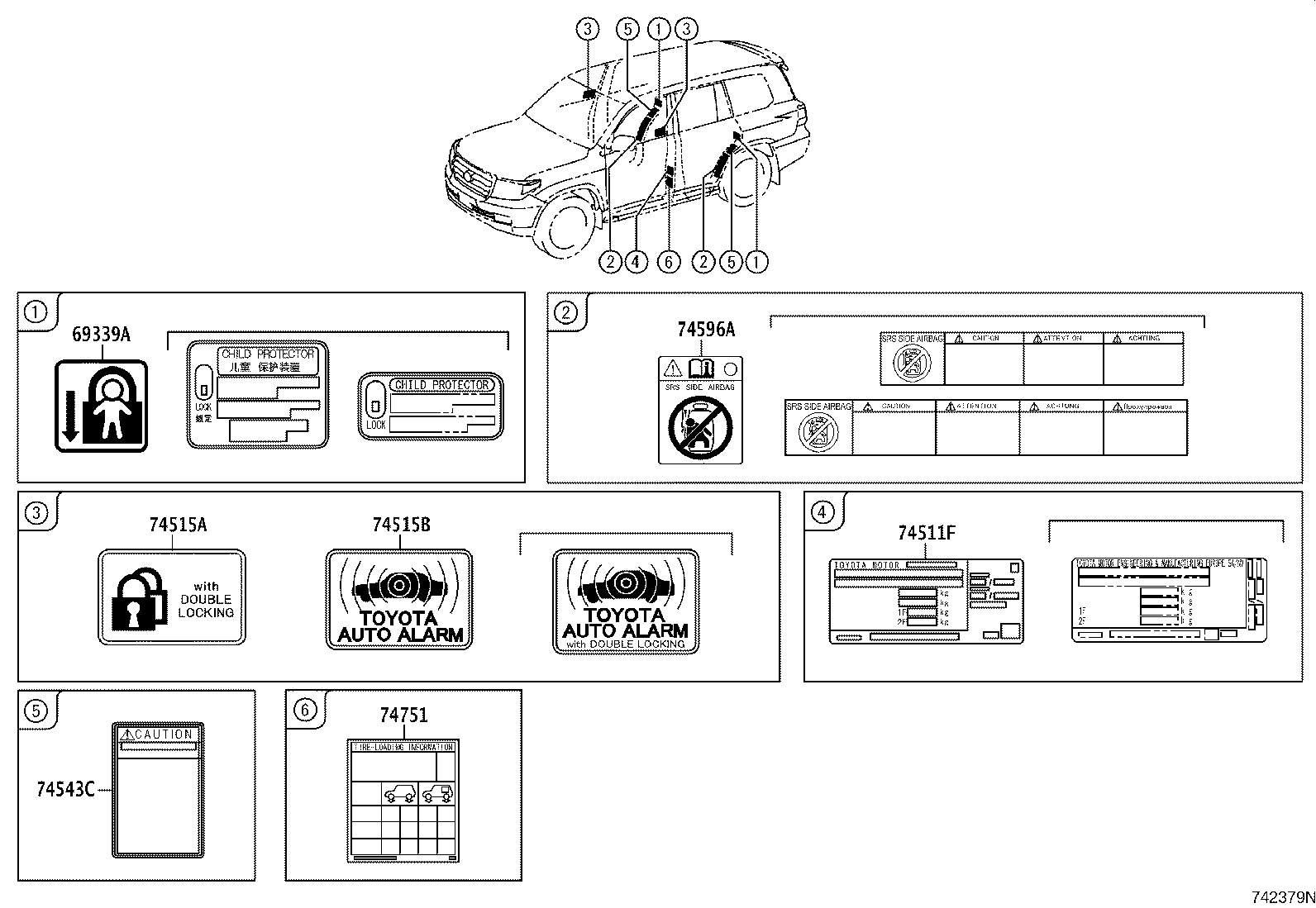

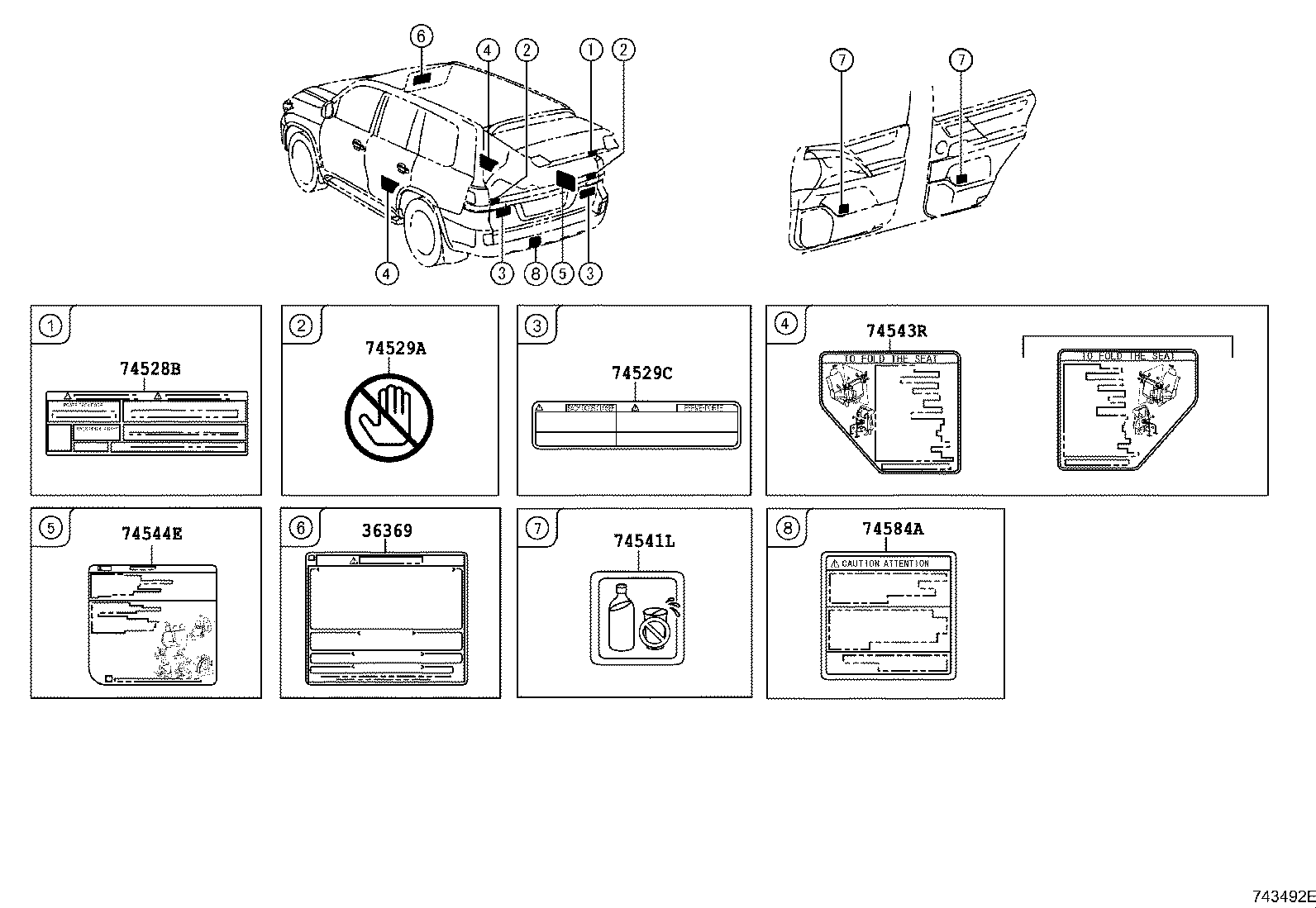

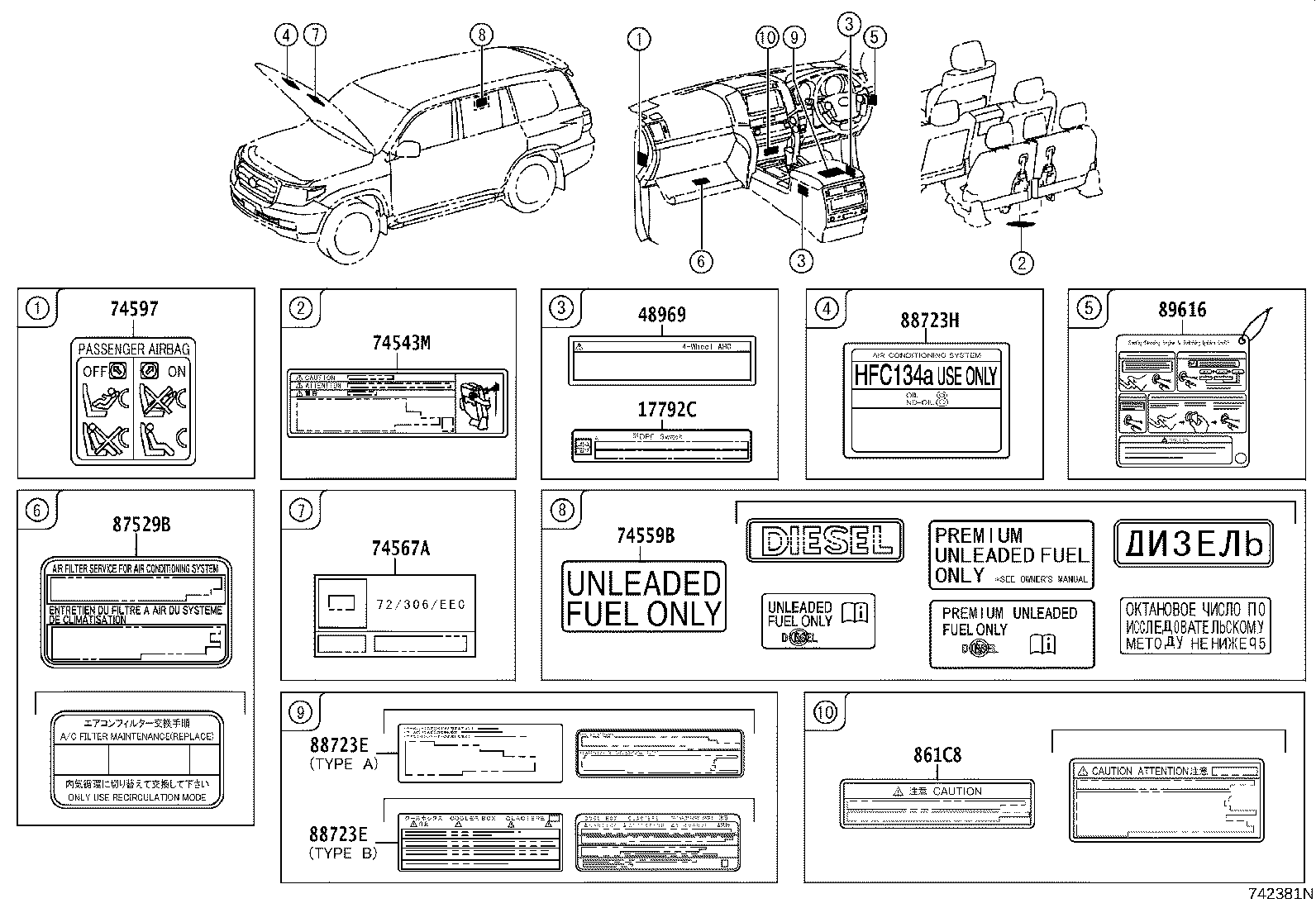

Figure 745374 745374 2007-09 → — Figure 742379N 742379N 2007-09 → — Figure 742381N 742381N 2007-09 → — Figure 743492E 743492E 2007-09 → — Figure 743477 743477 2012-09 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
17792C Label, Engine Vacuum Hose Information
28897A Plate, Battery Caution
36369 Label, Transfer Information
45248A Label, Steering Actuator Caution
48969 Label, Jack UP Caution
69339A Plate, Child Protector Lock Caution
74501B Label Set, Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74515B Plate, Theft Warning
74528B Label, Back Door Caution
74529A Plate, Back Door Caution
74529C Plate, Back Door Caution
74541L Label, Bottle Holder Information
74543C Label, Rear Seat Information
74543M Label, Rear Seat Caution, NO.2
74543R Label, Rear Seat Caution
74544E Label, Rear NO.2 Seat Information
74559B Label, Fuel Information
74567A Plate, E.C.E Approved Number
74584A Label, Towing Caution
74596A Label, Side Airbag Caution
74597 Label, Driver & Passenger Airbag Caution
74751 Label, Tire Pressure Information
861C8 Label, Mobile Wireless Charger Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
