Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

41 part groups · 4 illustrations

Illustrations

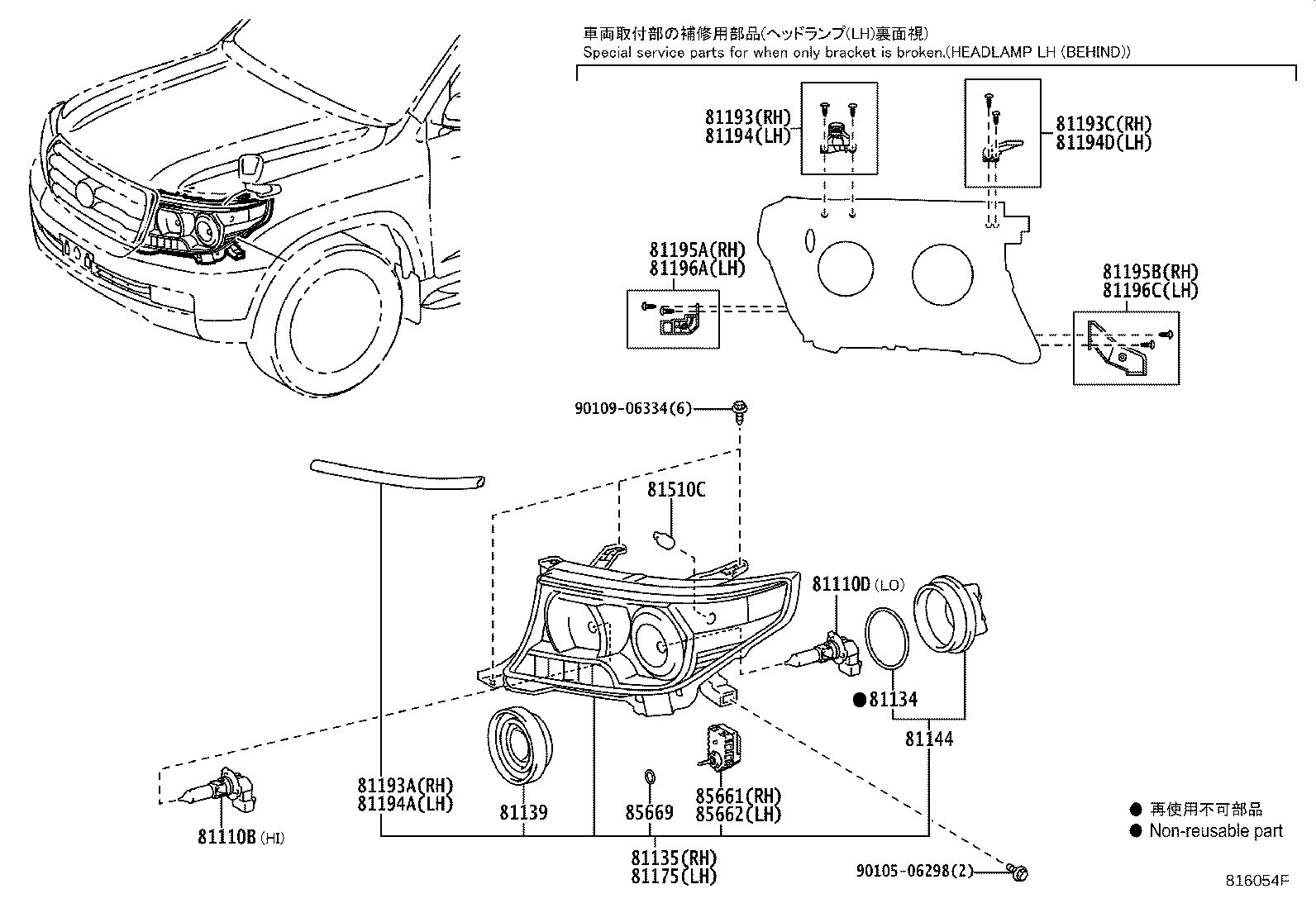

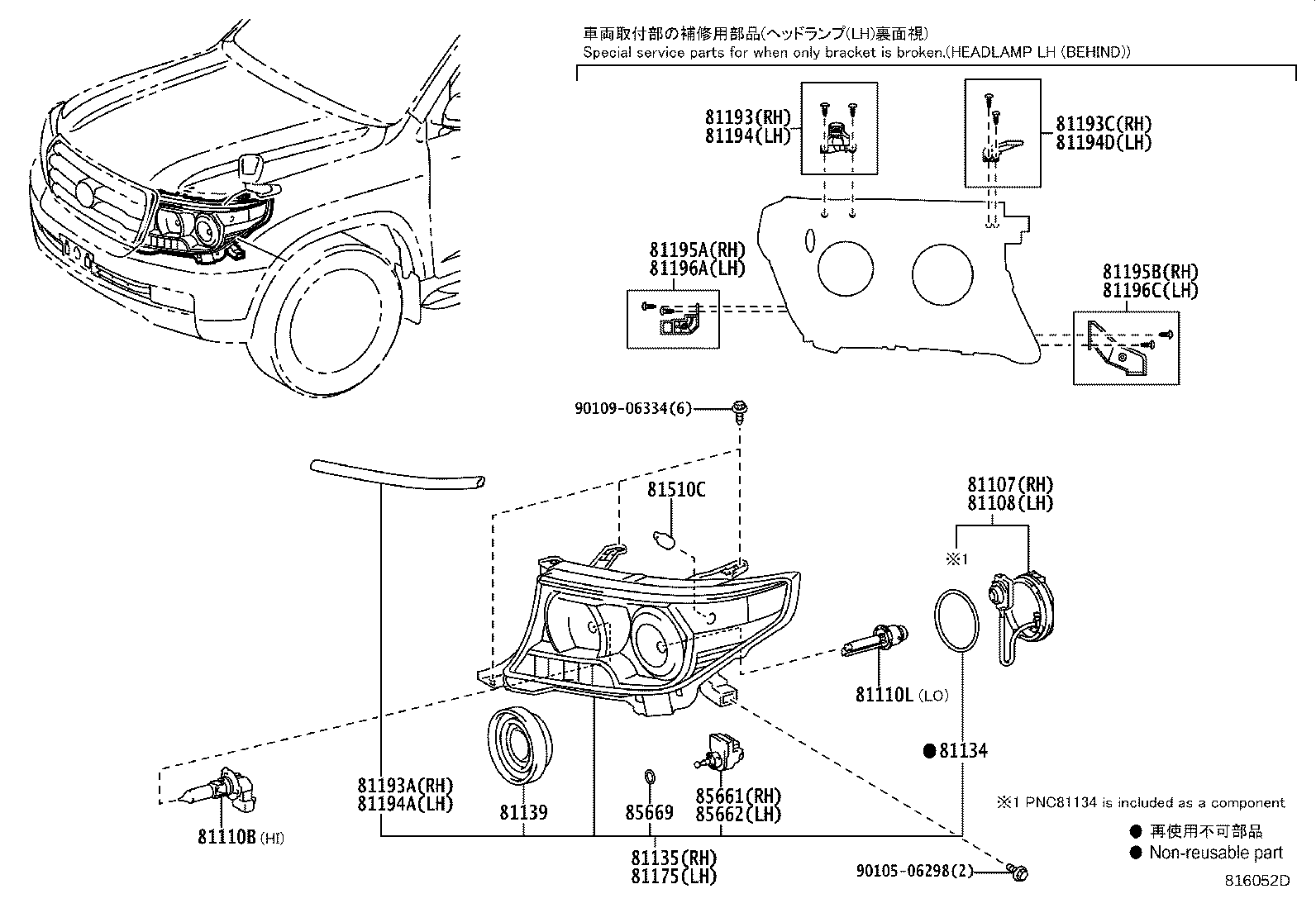

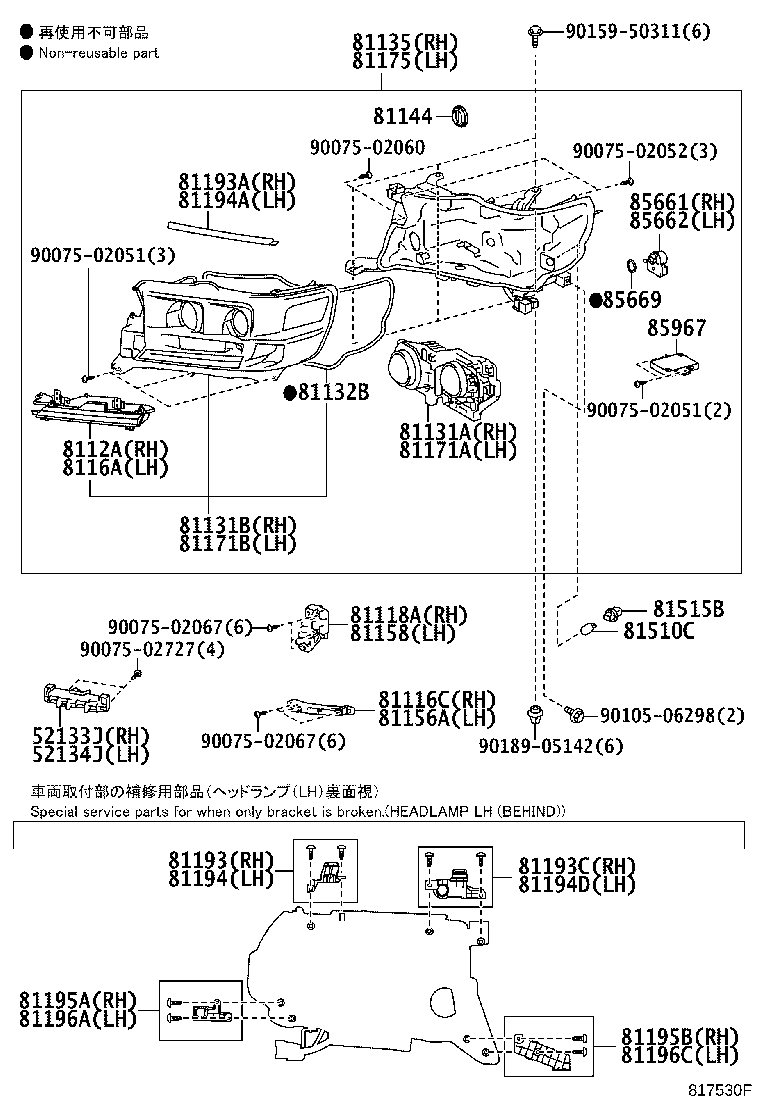

Figure 814420D 814420D 2007-09 → 2012-01 Figure 816054F 816054F 2012-01 → 2015-08 Figure 816052D 816052D 2012-01 → 2015-08 Figure 817530F 817530F 2015-08 → —

Part groups

PNCDescription
52133J Reinforcement, Front Bumper Bar, RH
52134J Reinforcement, Front Bumper Bar, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81116C Bracket, Headlamp, RH
81118A Bracket, Headlamp, RH
81125 Cord, Headlamp
8112A Unit, Headlamp Clearance Led, NO.1 RH
81131A Unit, Headlamp, RH
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81144 Cover, Headlamp, NO.1
81156A Bracket, Headlamp, LH
81158 Bracket, Headlamp, LH
8116A Unit, Headlamp Clearance Led, NO.1 LH
81171A Unit, Headlamp, LH
81171B Head Lamp Lens, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193A Protector, Headlamp, RH
81193C Retainer, RH Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194D Retainer, LH Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81195B Retainer, RH Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81196C Retainer, LH Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
85967 Computer, Light Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
