Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

28 part groups · 3 illustrations

Illustrations

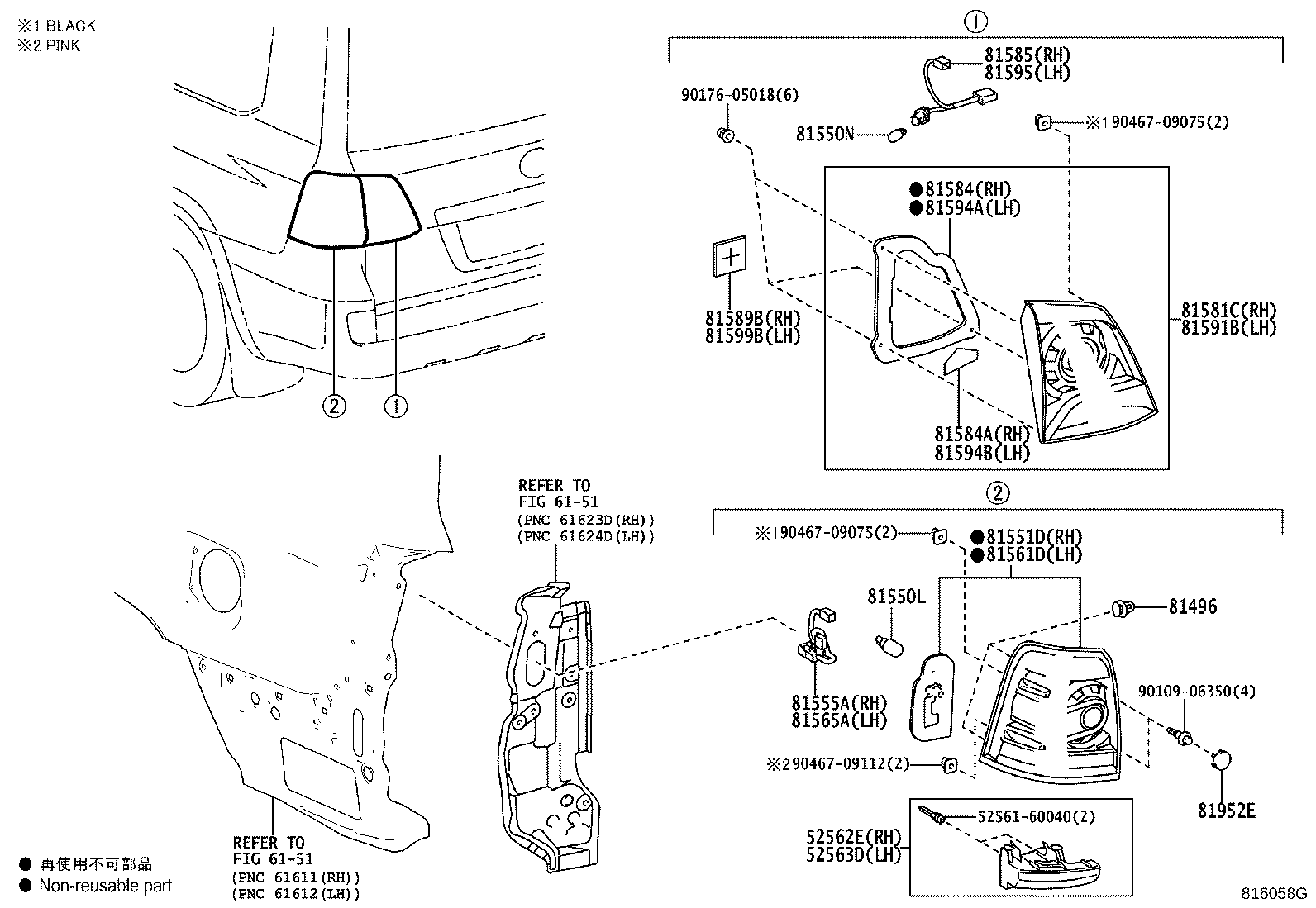

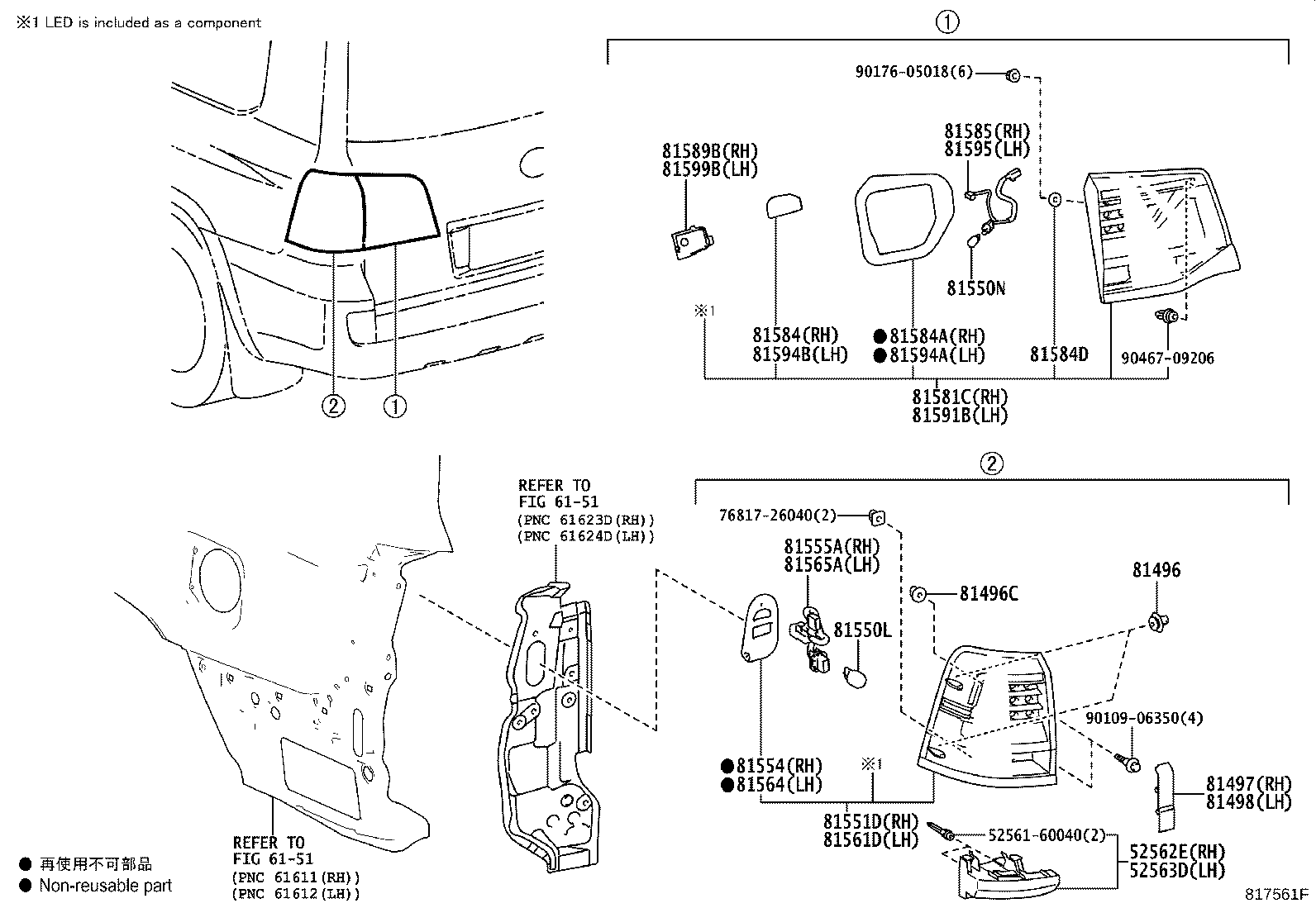

Figure 814392G 814392G 2007-09 → 2012-01 Figure 816058G 816058G 2012-01 → 2015-08 Figure 817561F 817561F 2015-08 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81584A Gasket, Rear Lamp RH
81584D Gasket, Rear Lamp
81585 Socket & Wire, Rear Lamp
81589B Cover, Rear Combination Back, RH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81594B Packing, Rear Lamp LH
81595 Socket & Wire, Rear Lamp, LH
81599B Cover, Rear Combination Back, LH
81952A Cover, Rear Lamp, RH
81952E Cover, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
