Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08
Interior Lamp
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

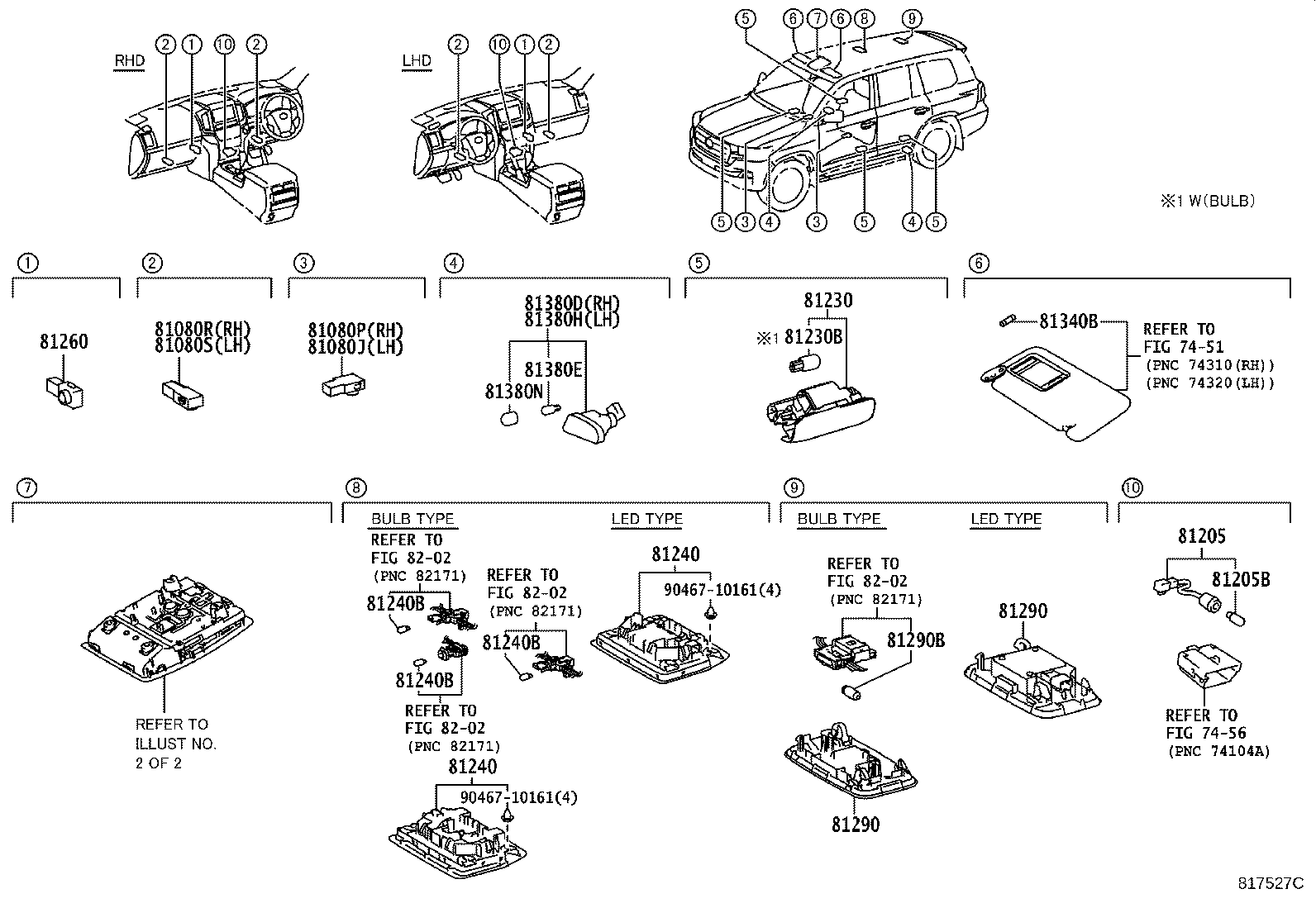

| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080R | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81205 | Lamp Sub-assy, Ash Receptacle |
| 81205B | Bulb, Ash Receptacle Lamp |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260 | Lamp Assy, Glove Box |

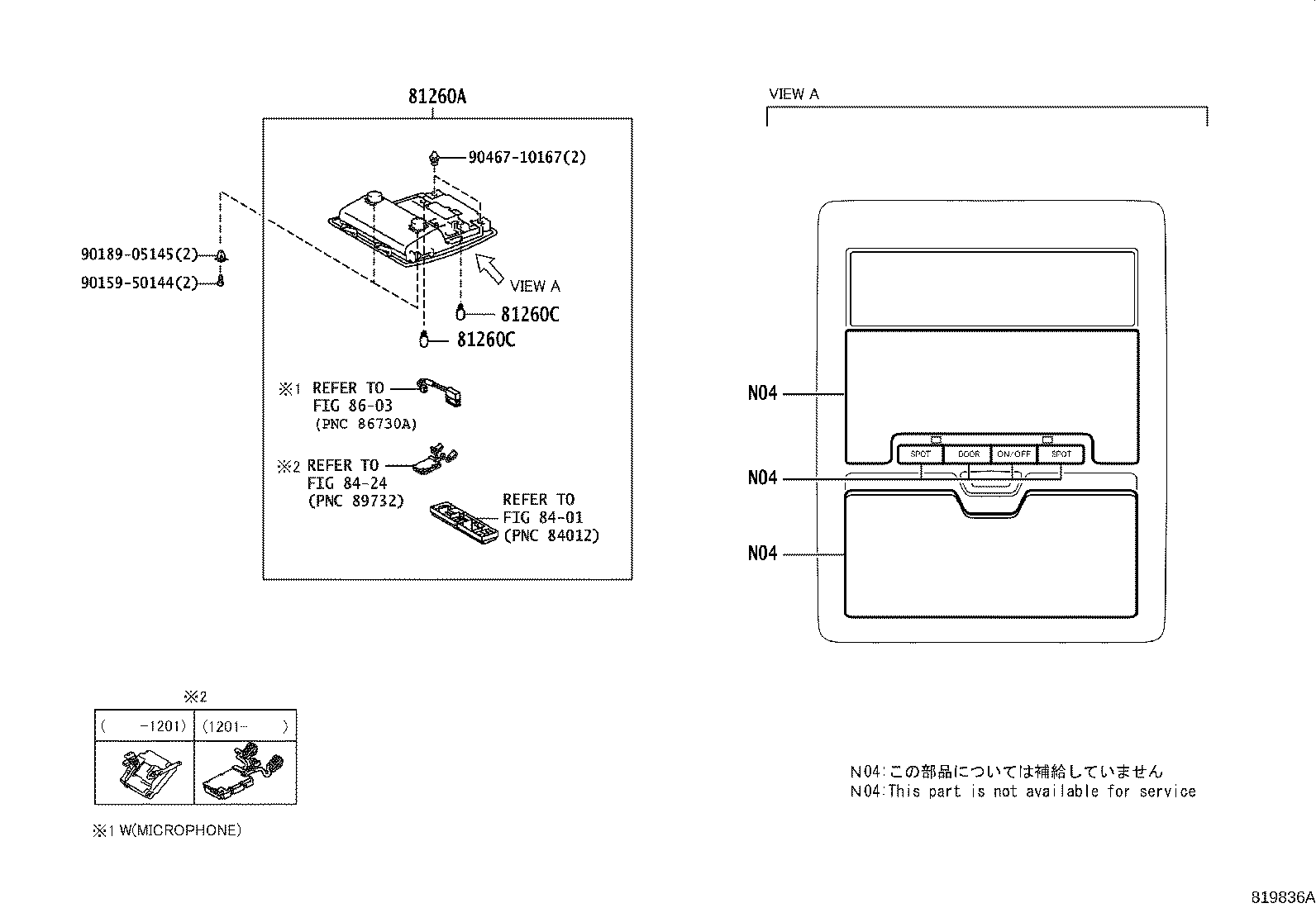

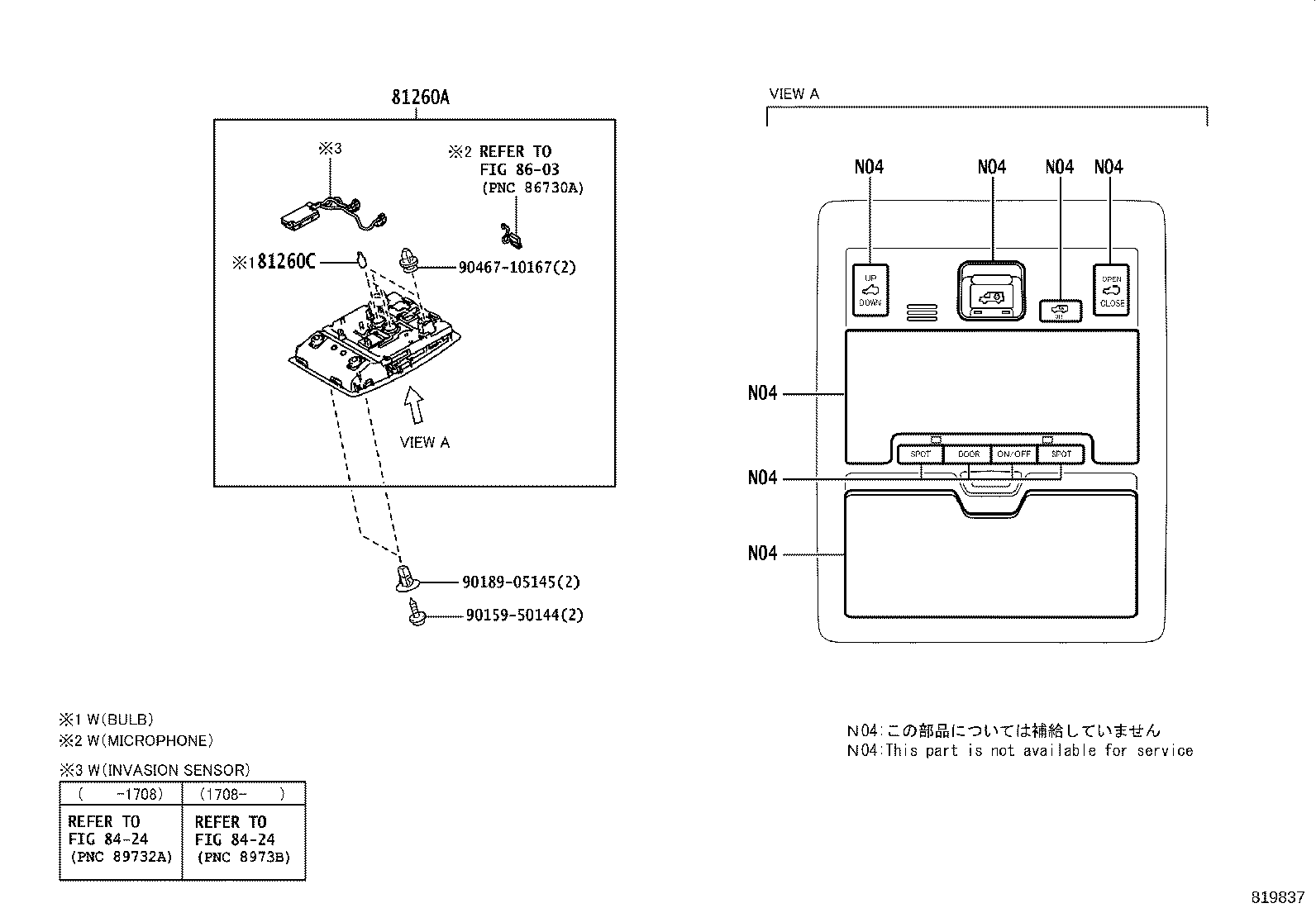

| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81290 | Lamp Assy, Room, NO.3 |
| 81290B | Bulb, Room Lamp, NO.3 |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81380D | Lamp Assy, Step |
| 81380E | Bulb (FOR STEP LAMP) |
| 81380H | Lamp Assy, Step |
| 81380N | Cap, Step Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
