Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe
Supported model
Data version 2018-08
Meter
7 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

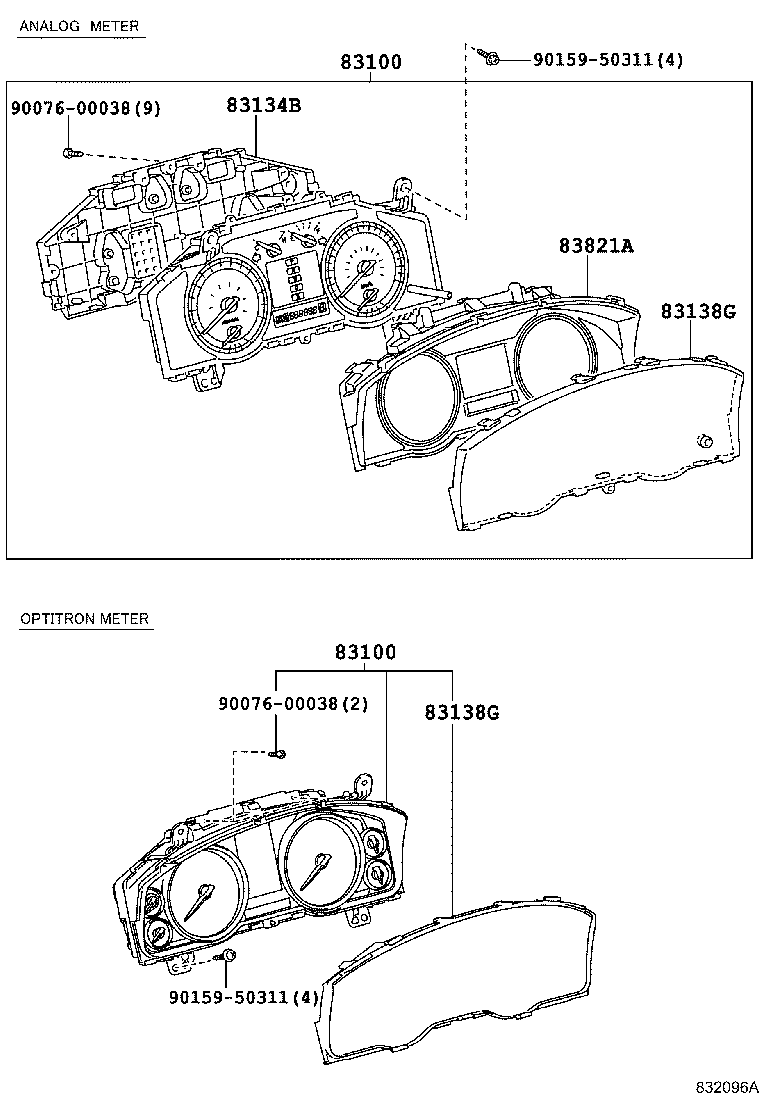

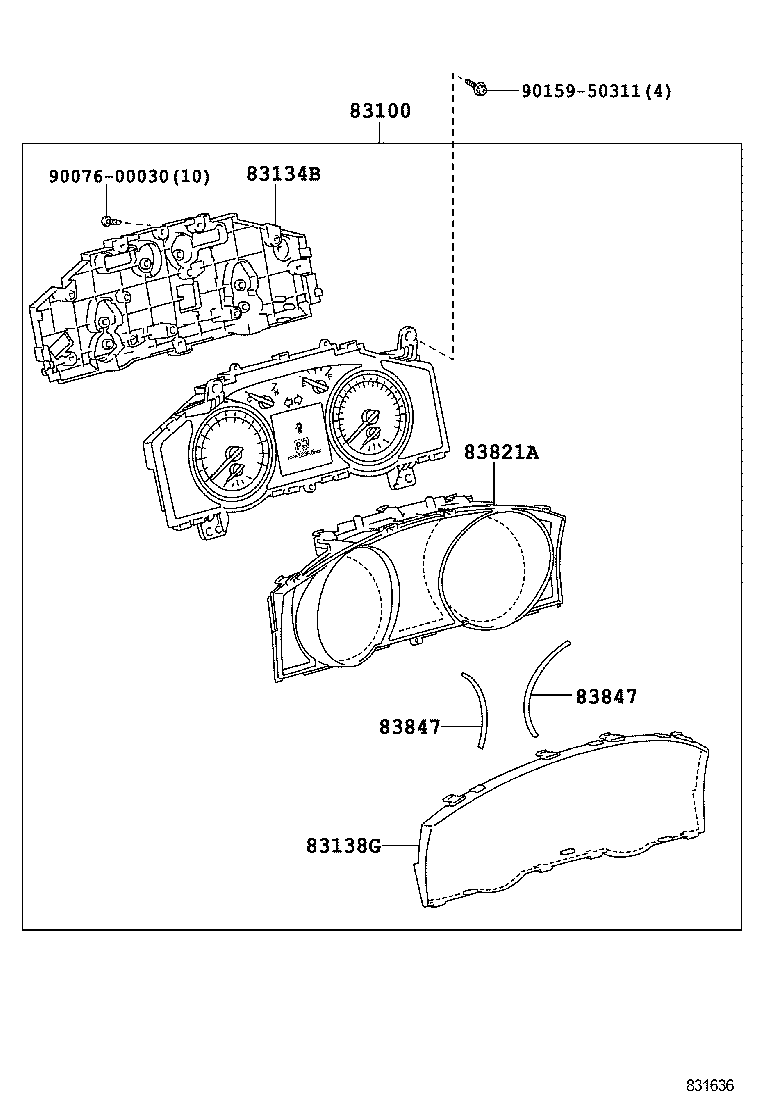

| 83100 | Meter Assy, Combination |
| 83134B | Cover, Combination Meter, NO.2 |
| 83138G | Glass, Combination Meter |
| 83138H | Glass, Combination Meter NO.2 |
| 83821A | Cover, Combination Meter, NO.1 |
| 83847 | Cushion, Combination Speedometer, NO.1 |

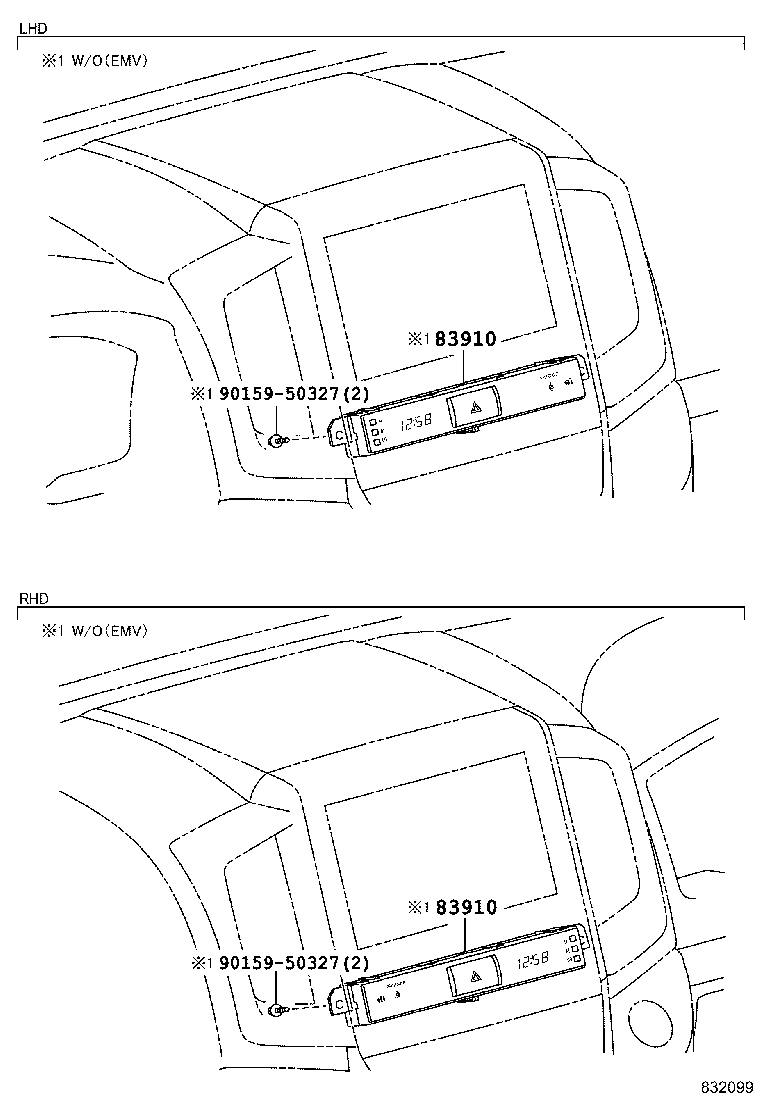

| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
