Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

172 part groups · 31 illustrations

Illustrations

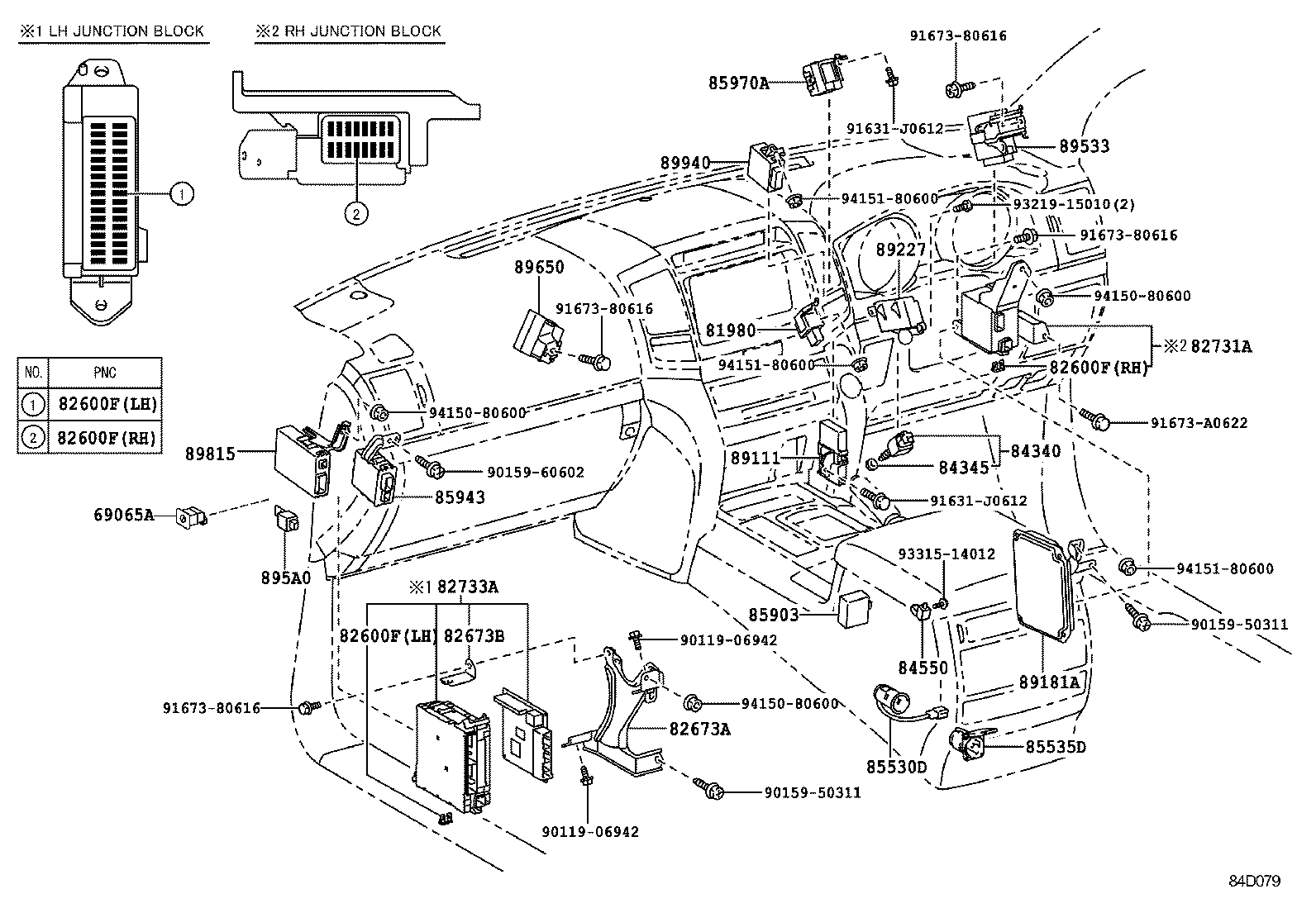

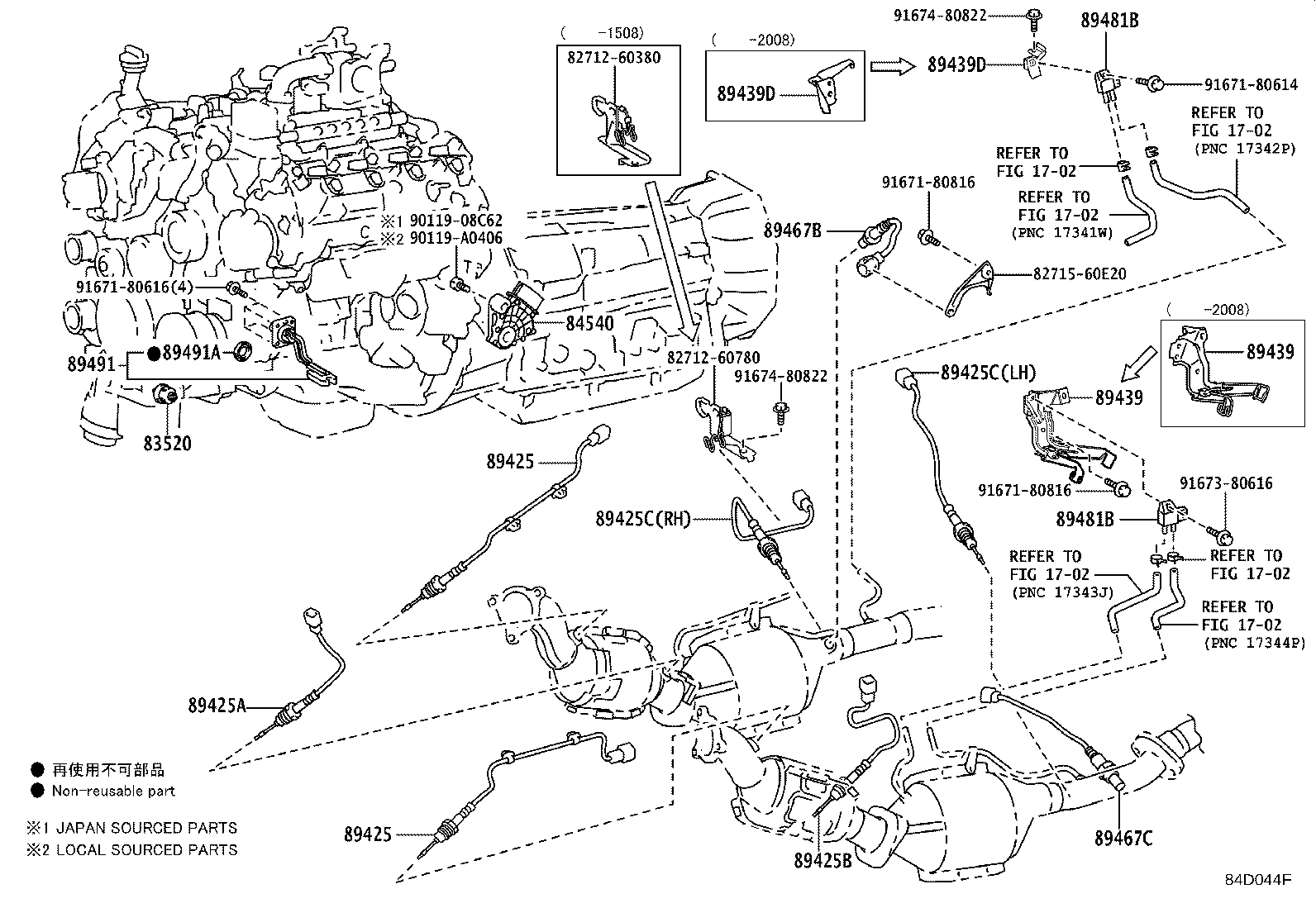

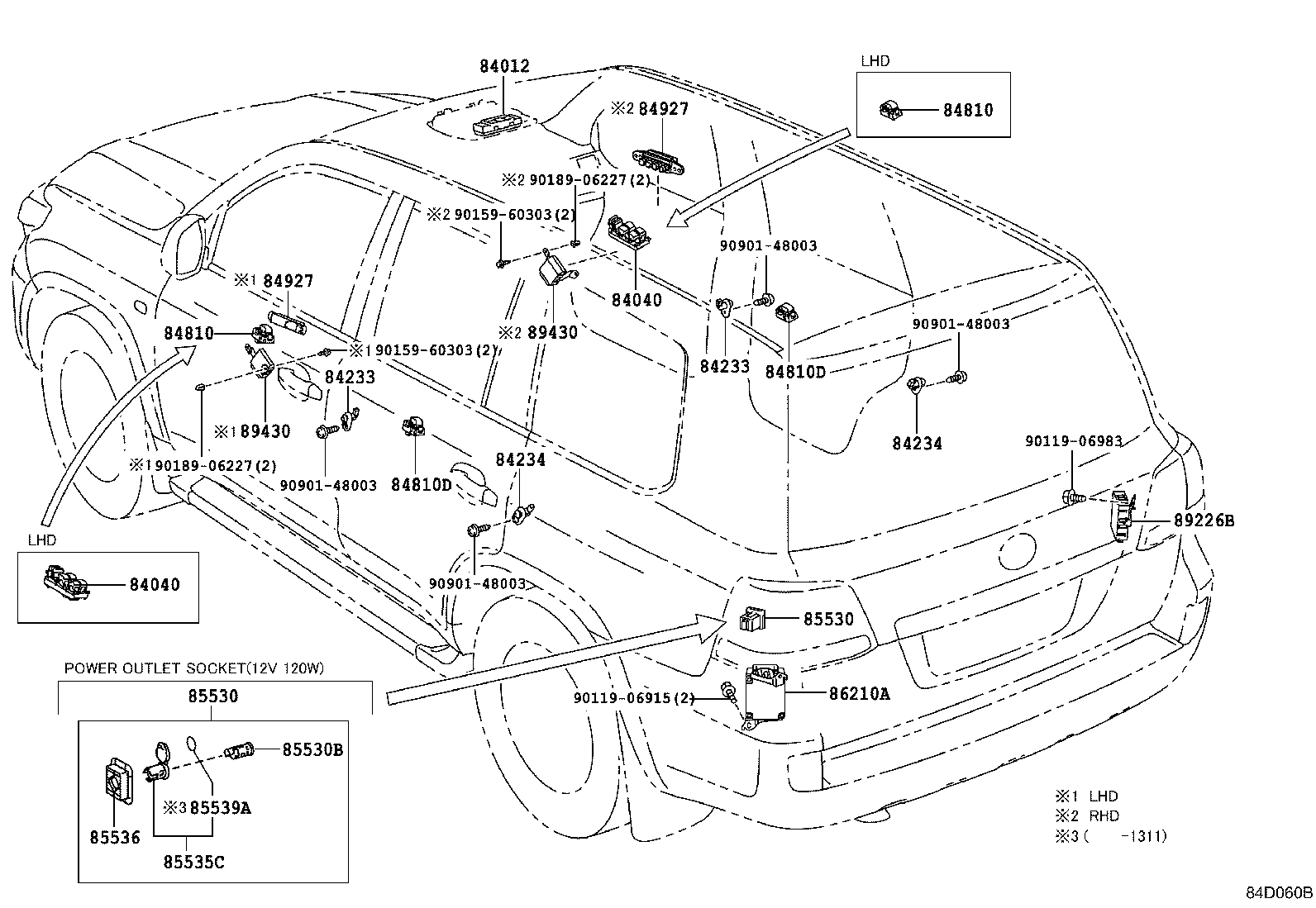

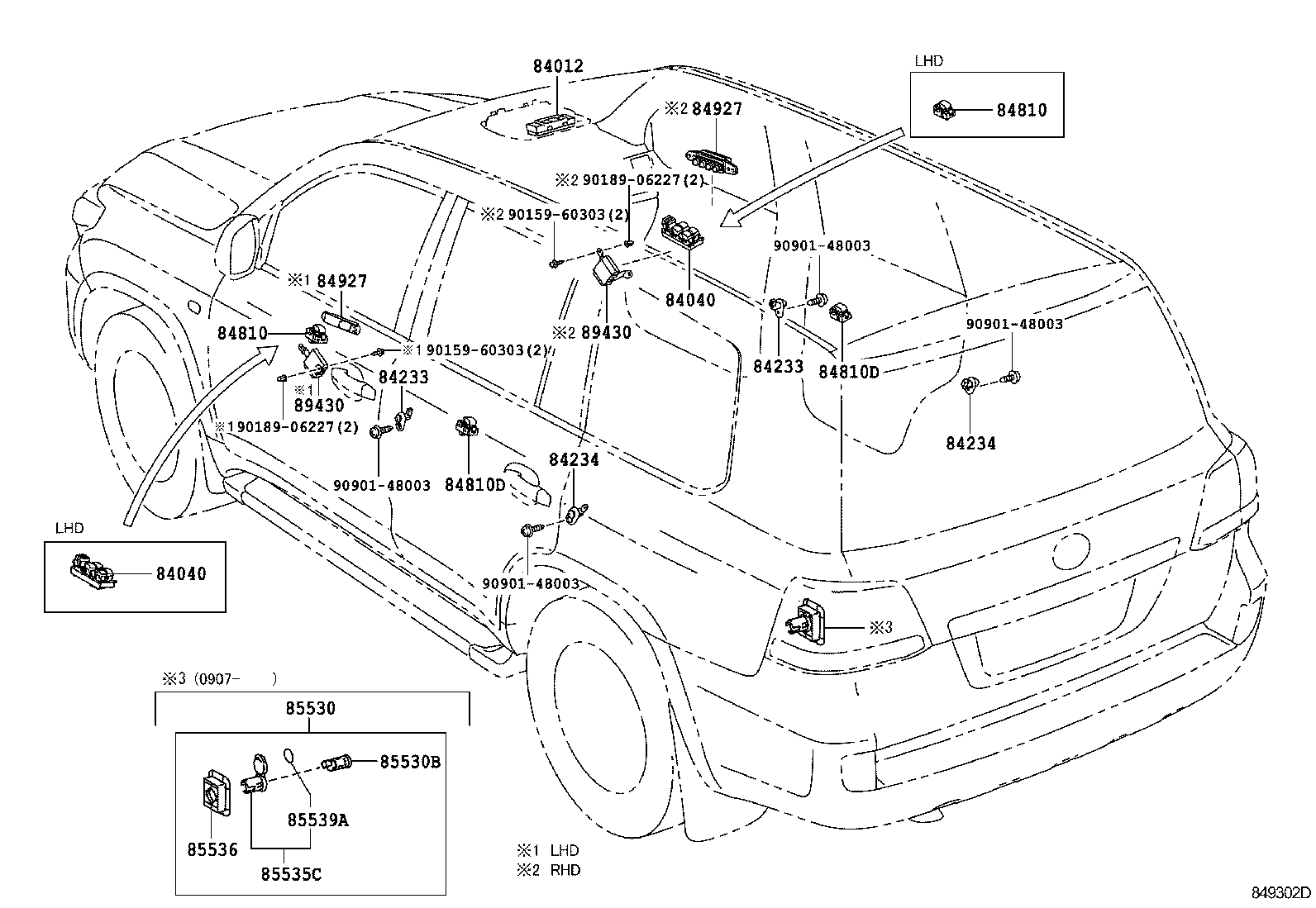

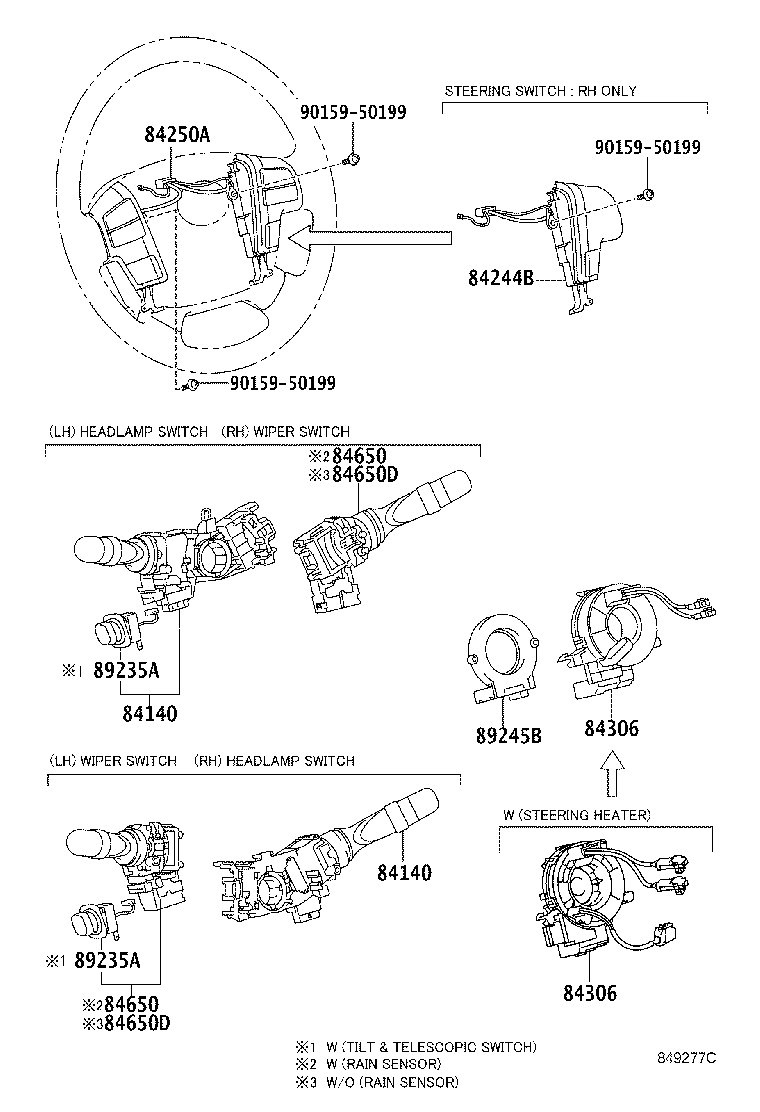

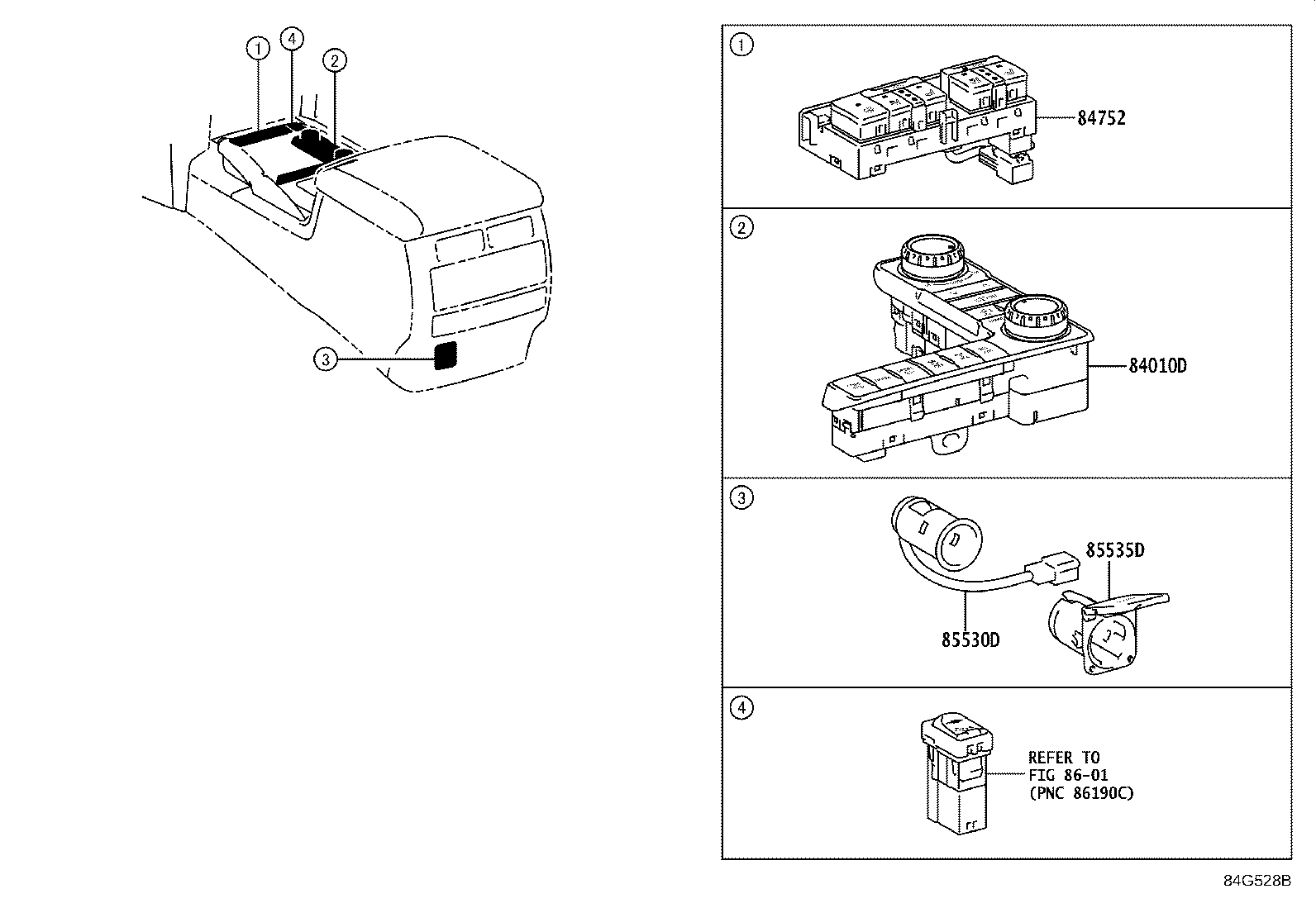

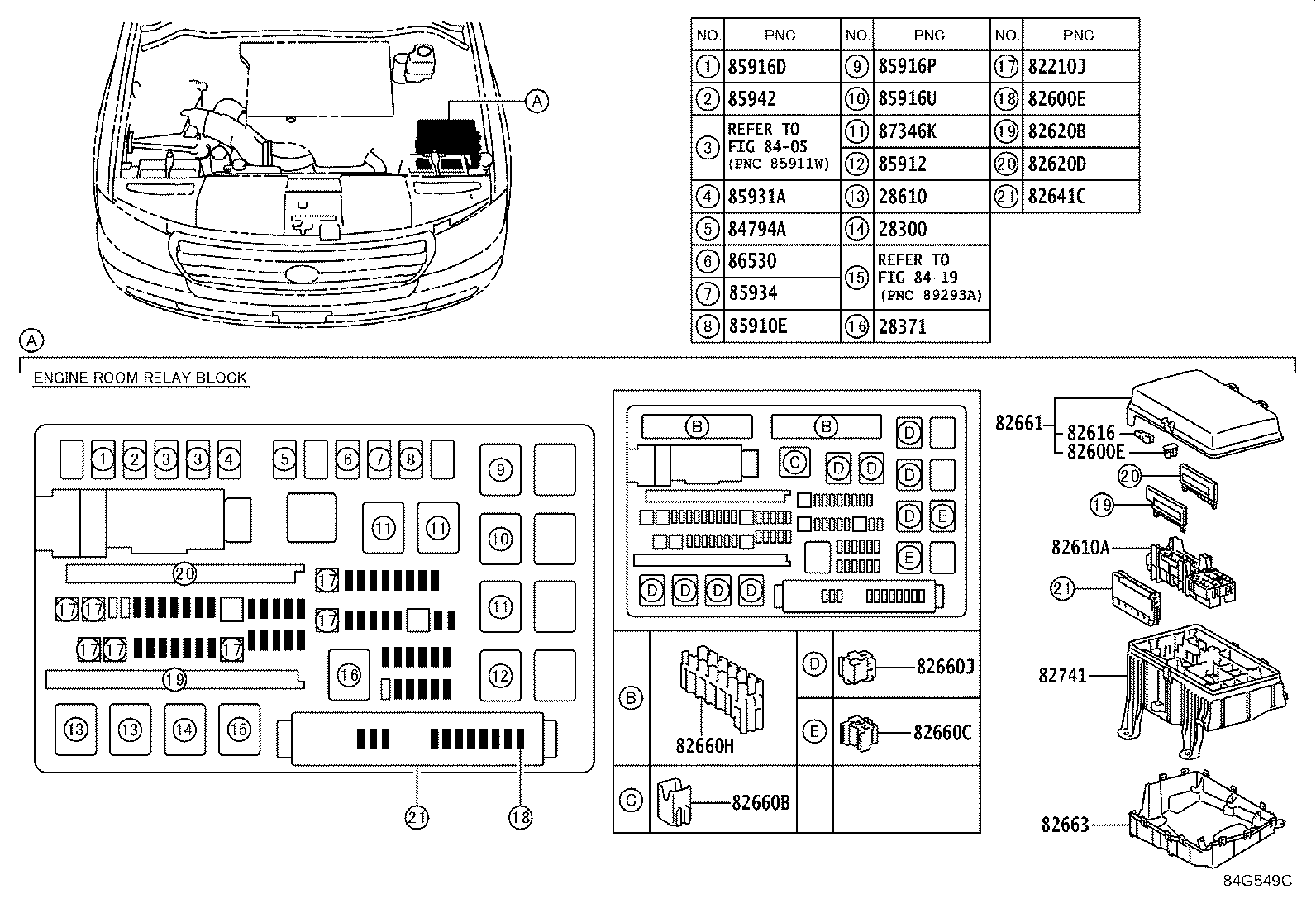

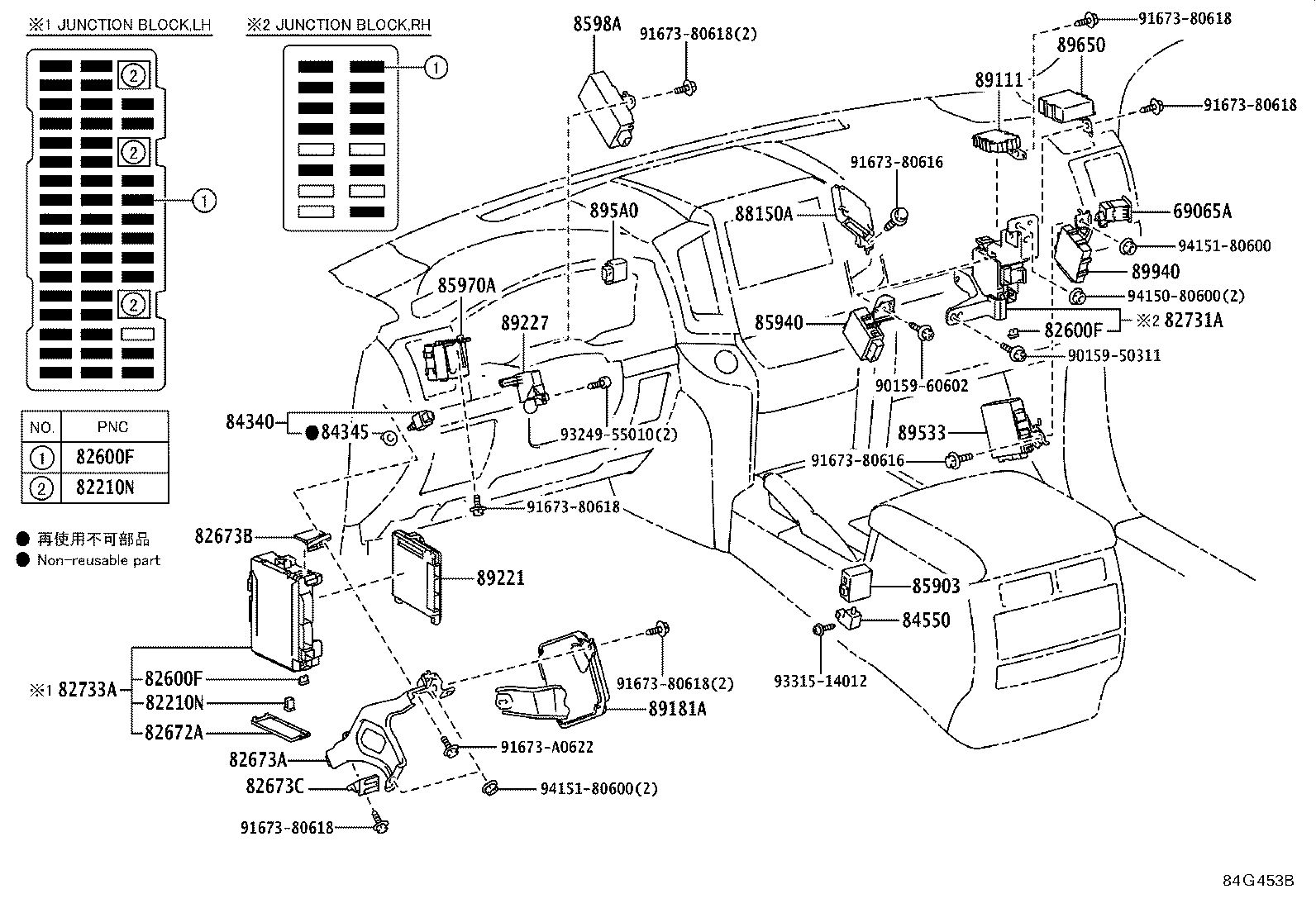

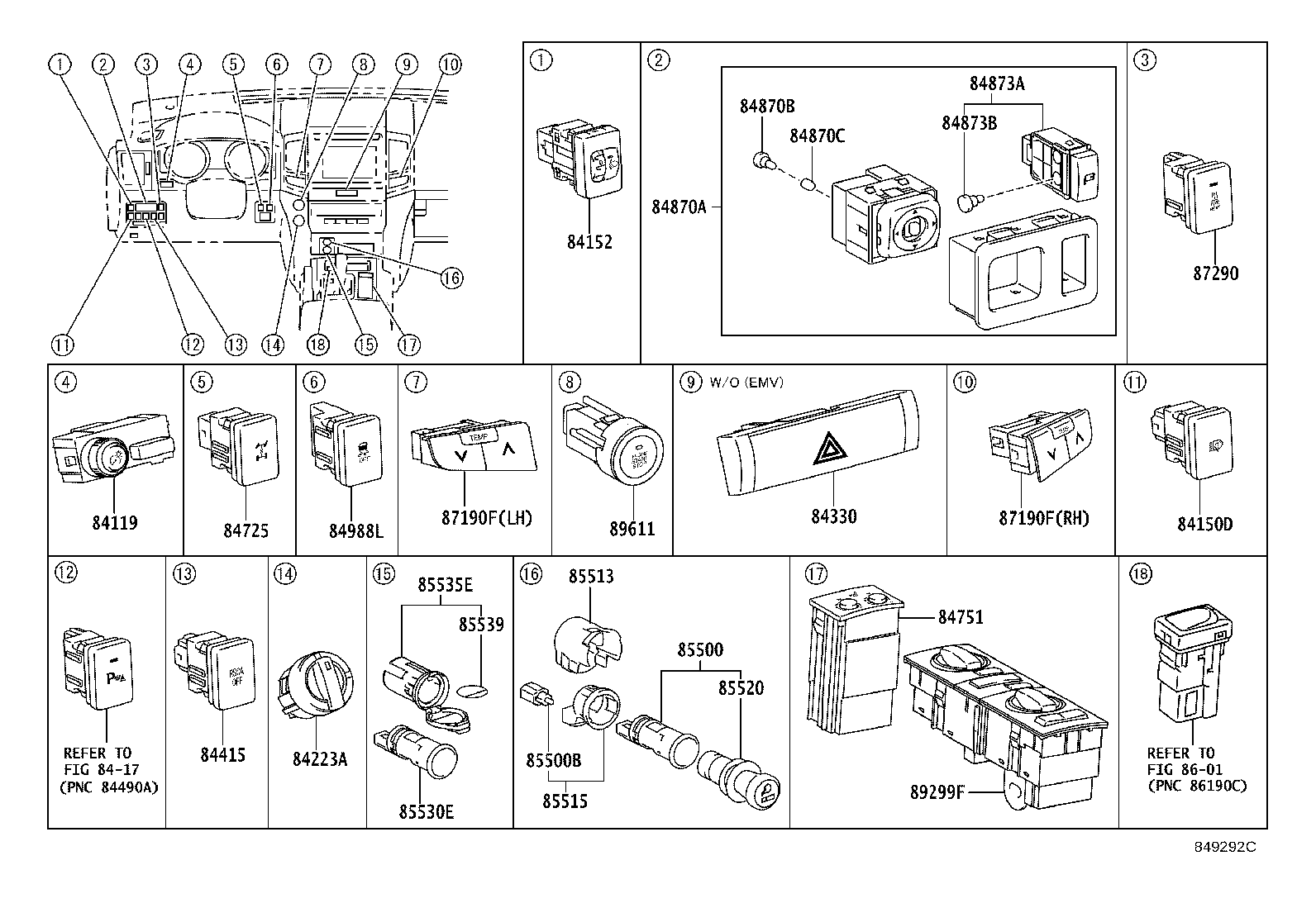

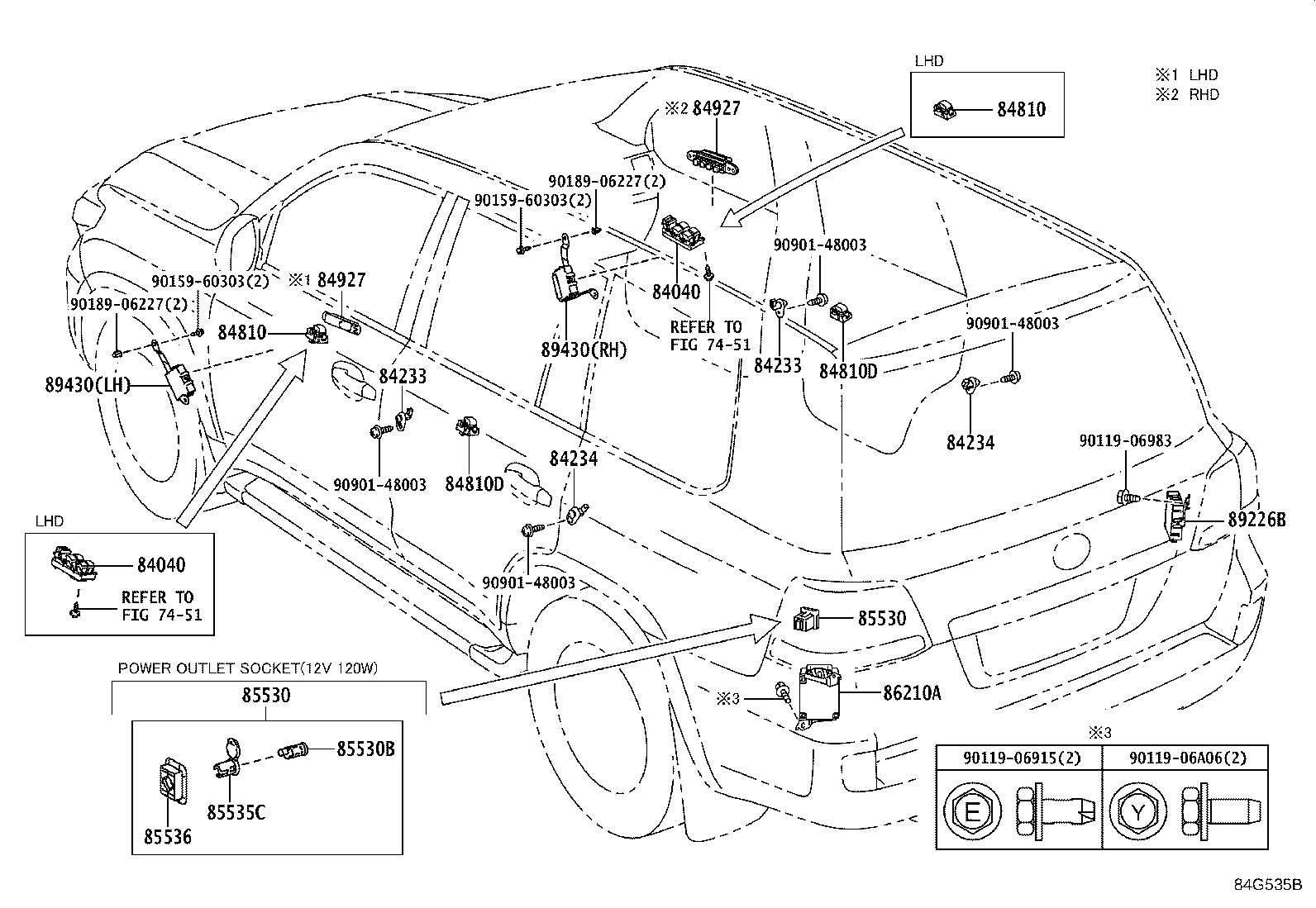

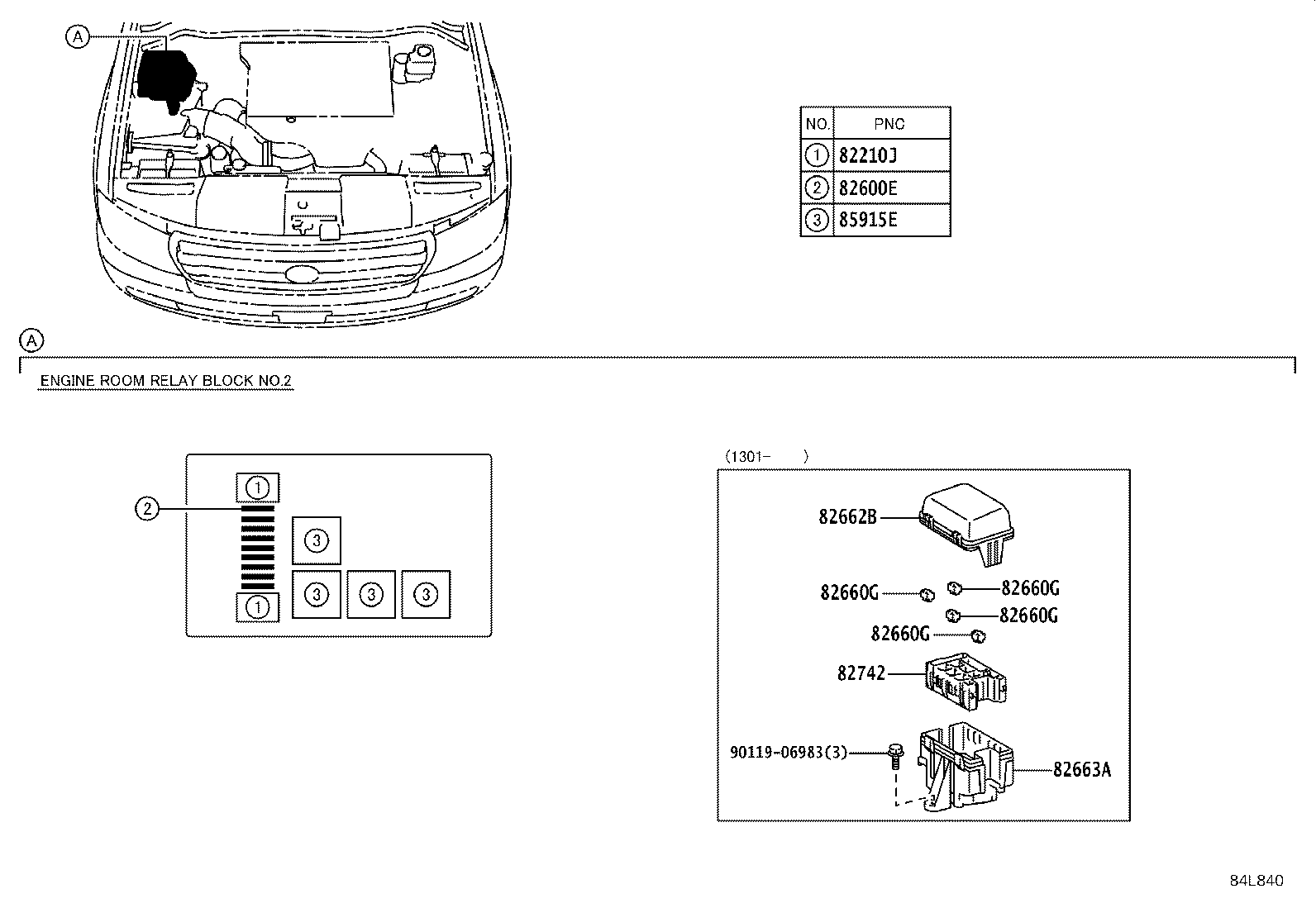

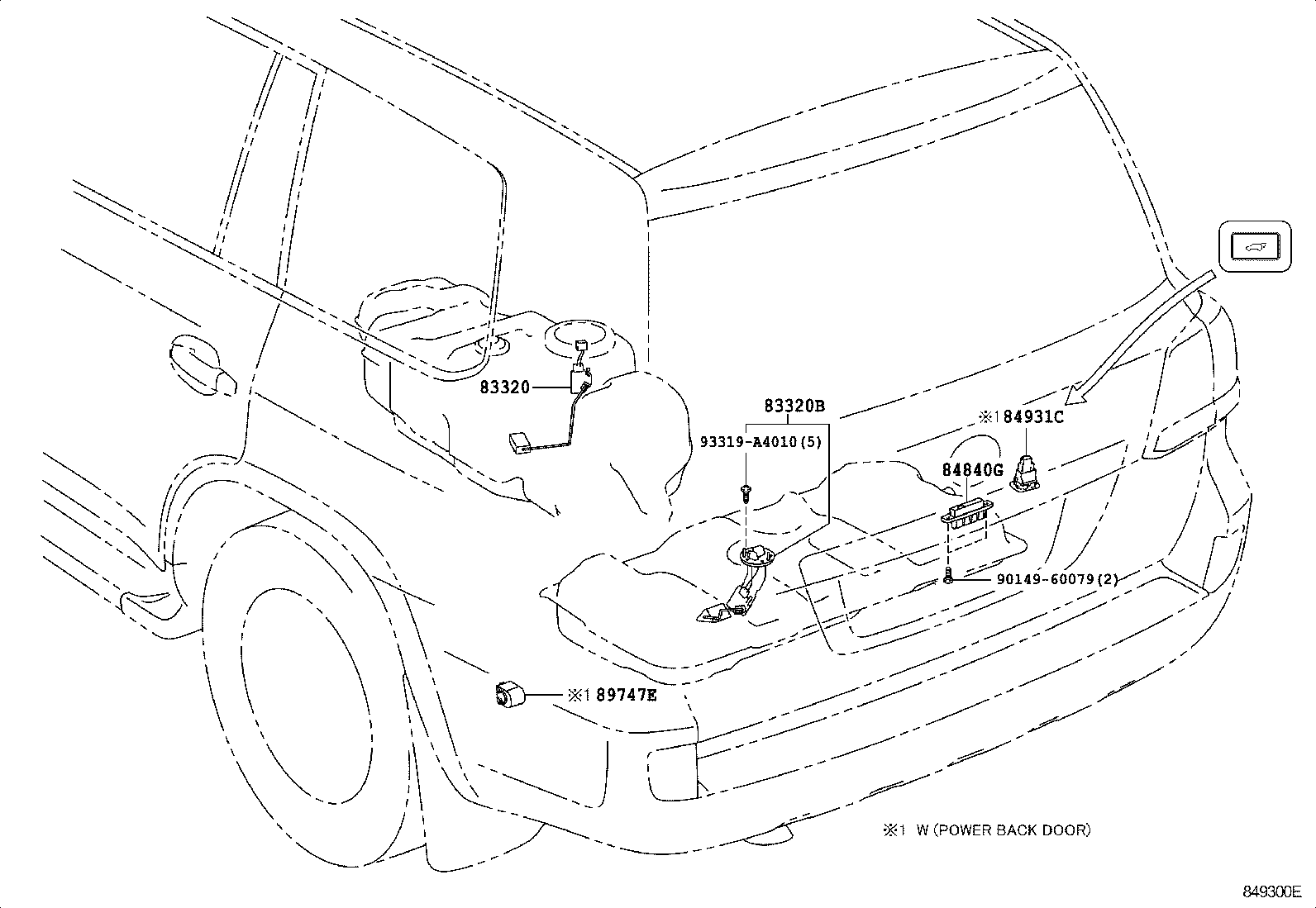

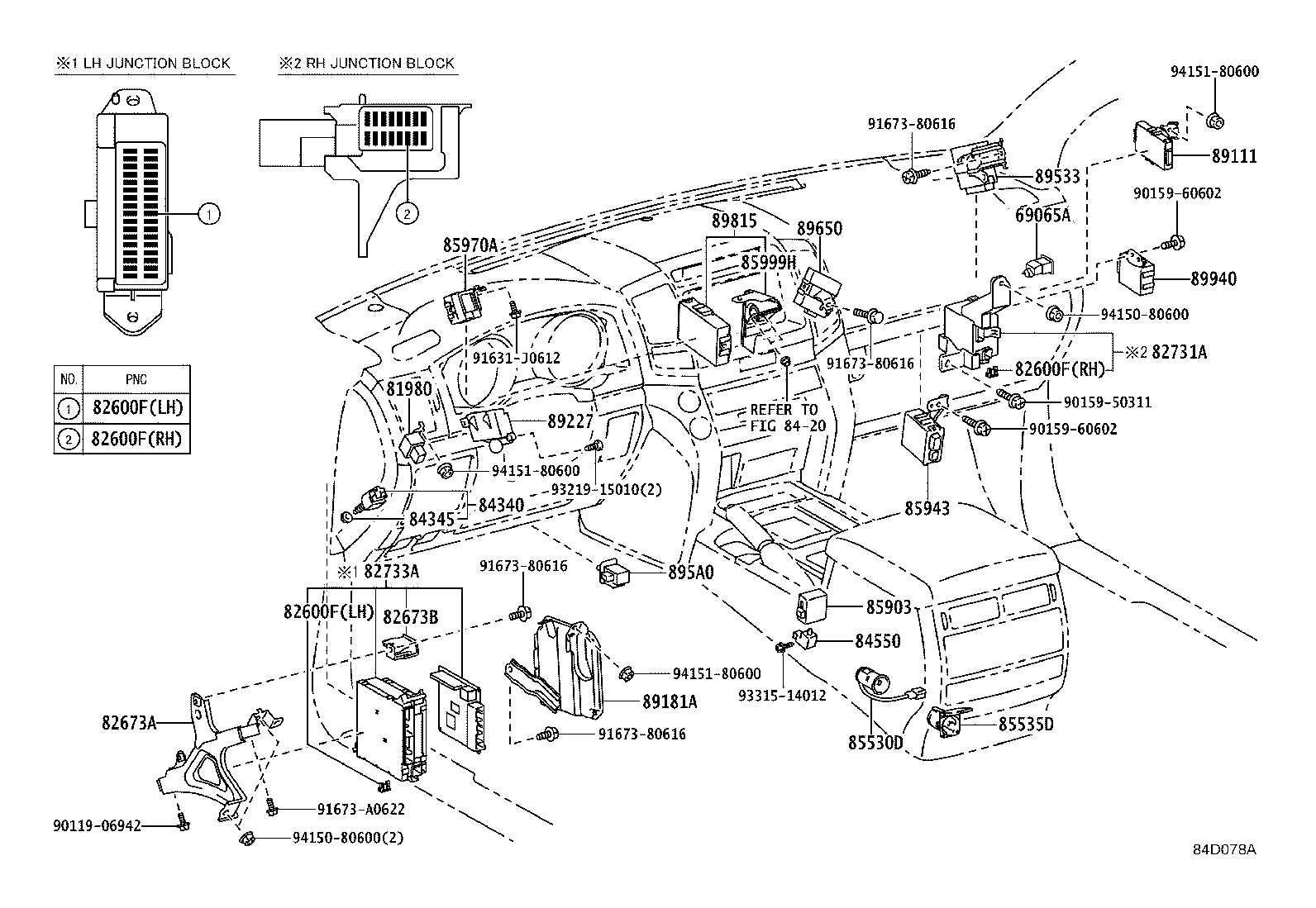

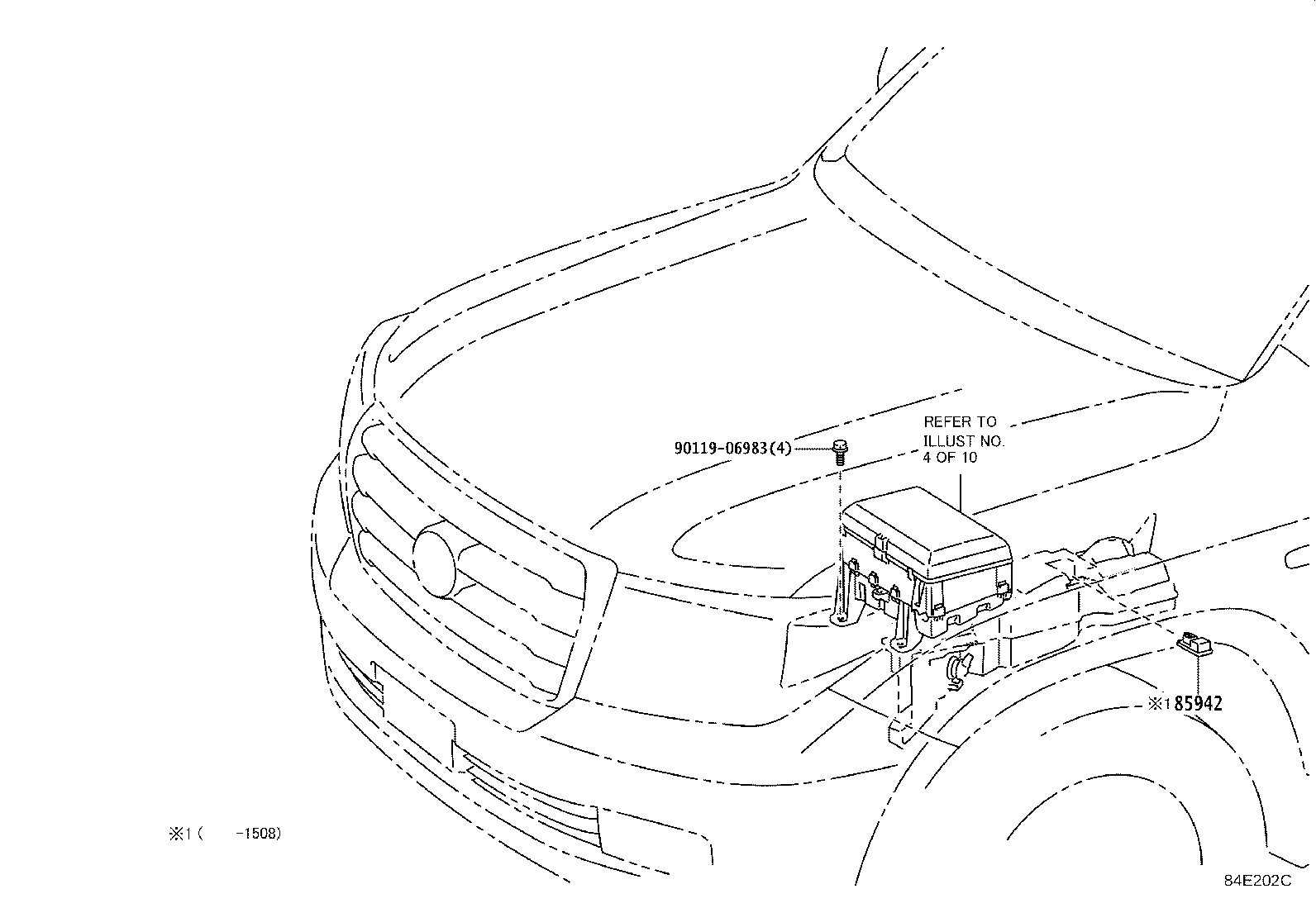

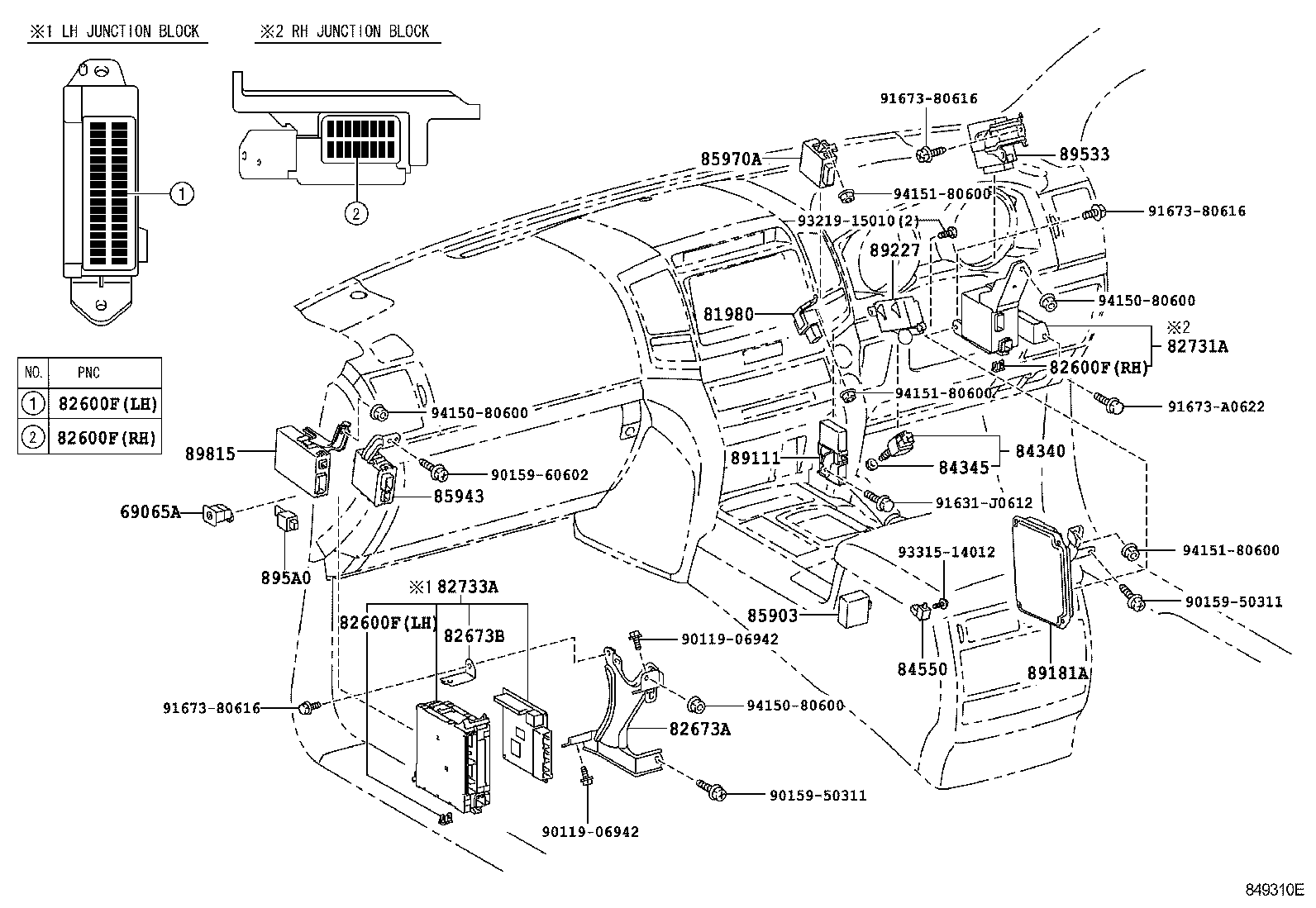

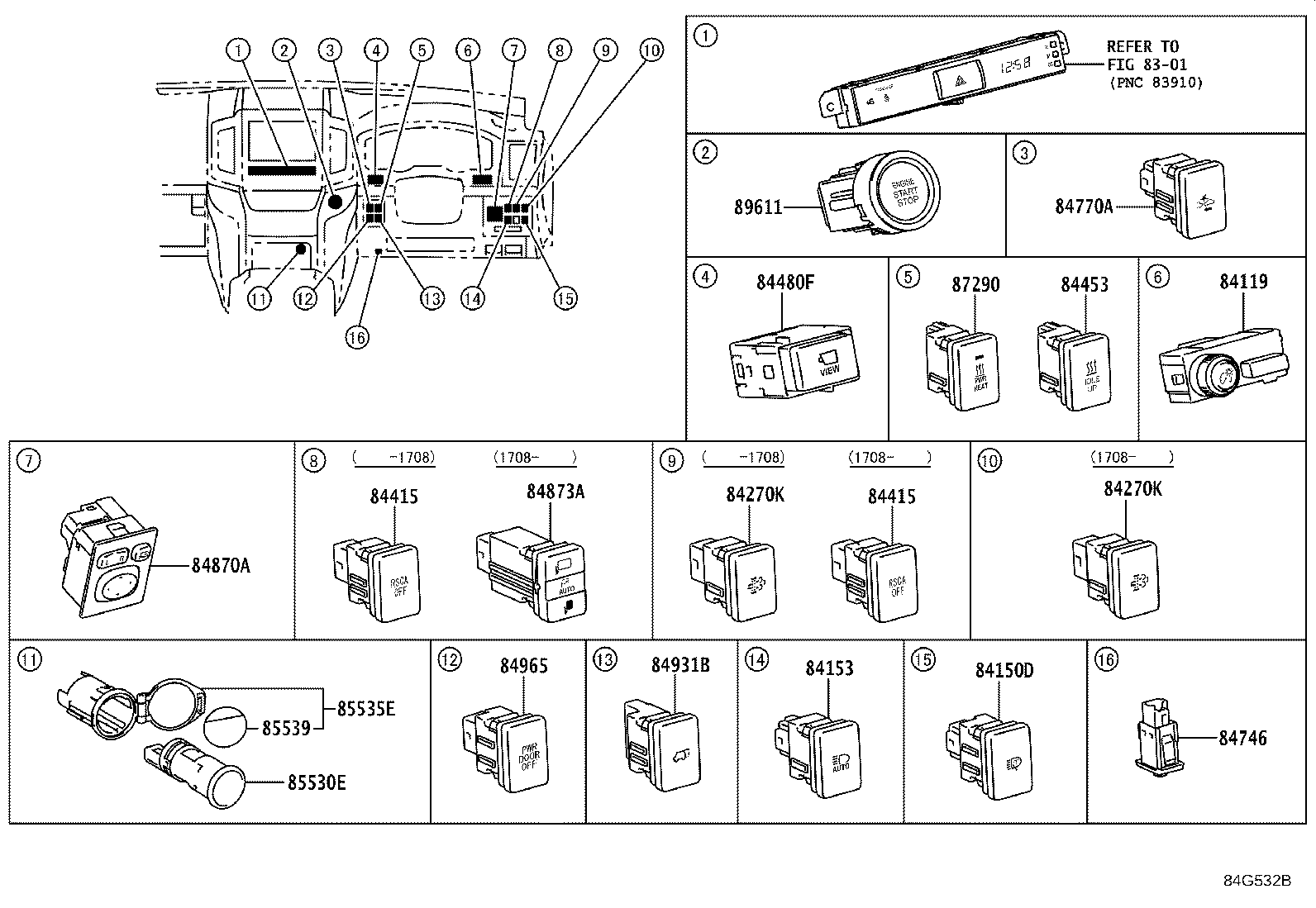

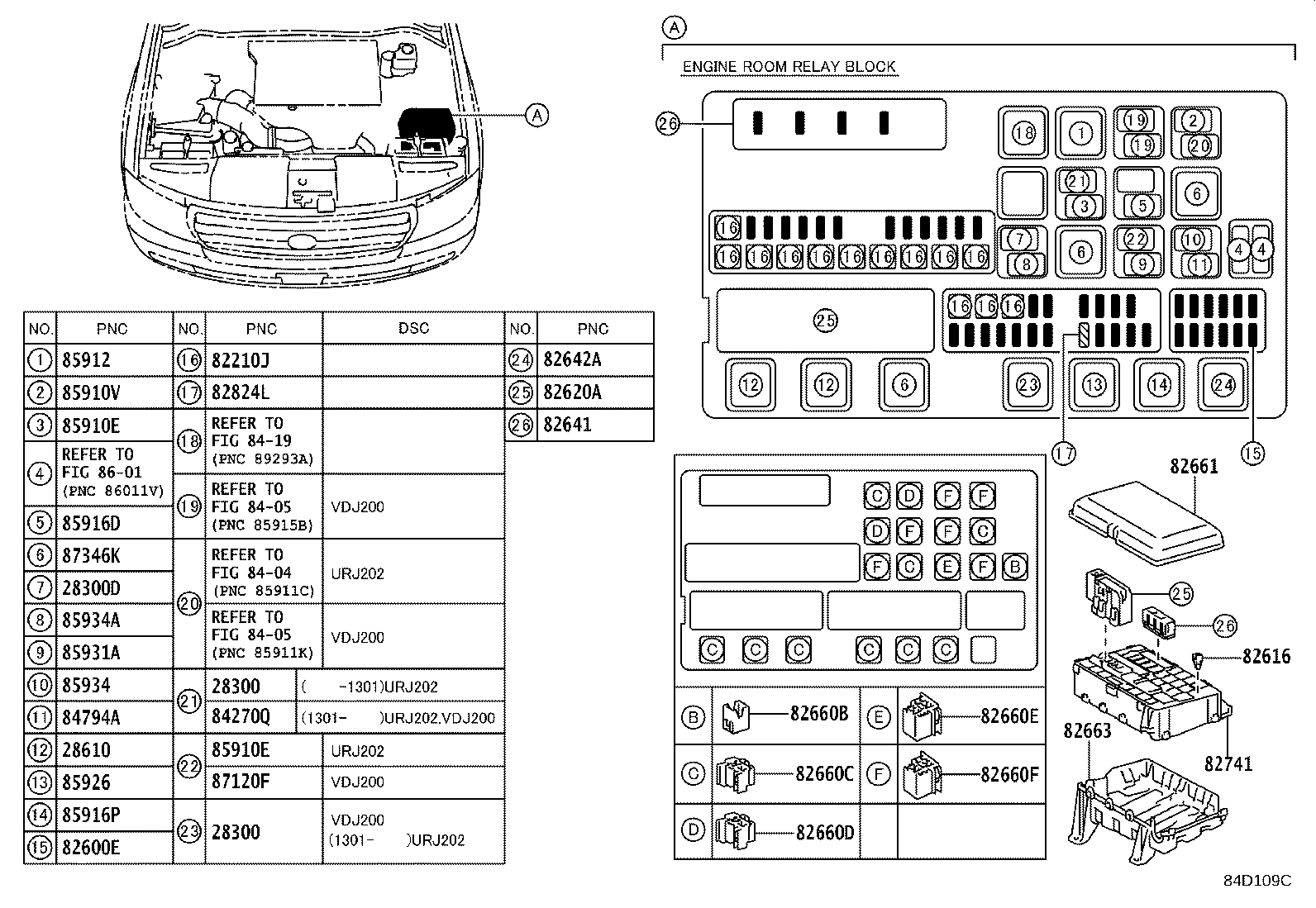

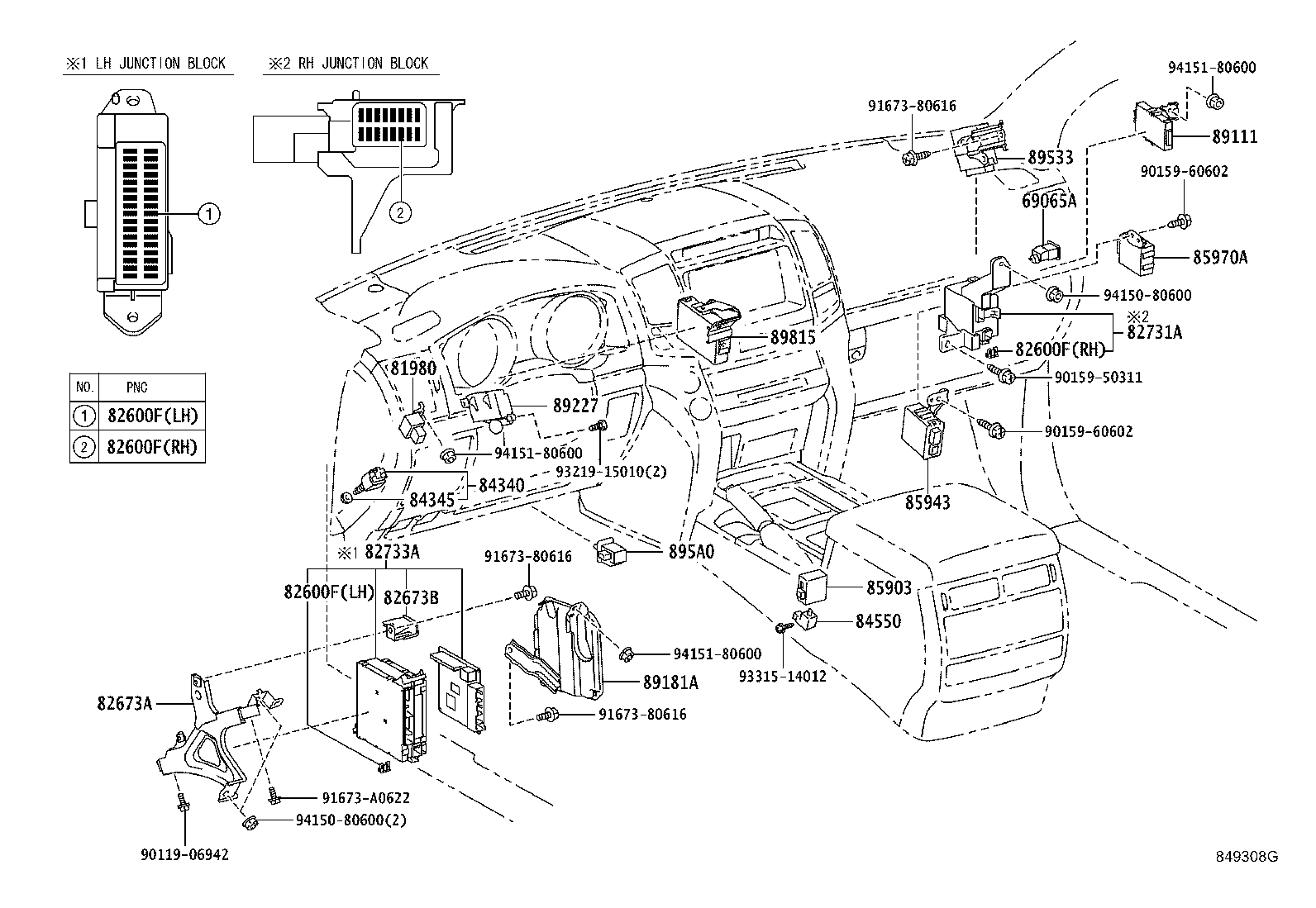

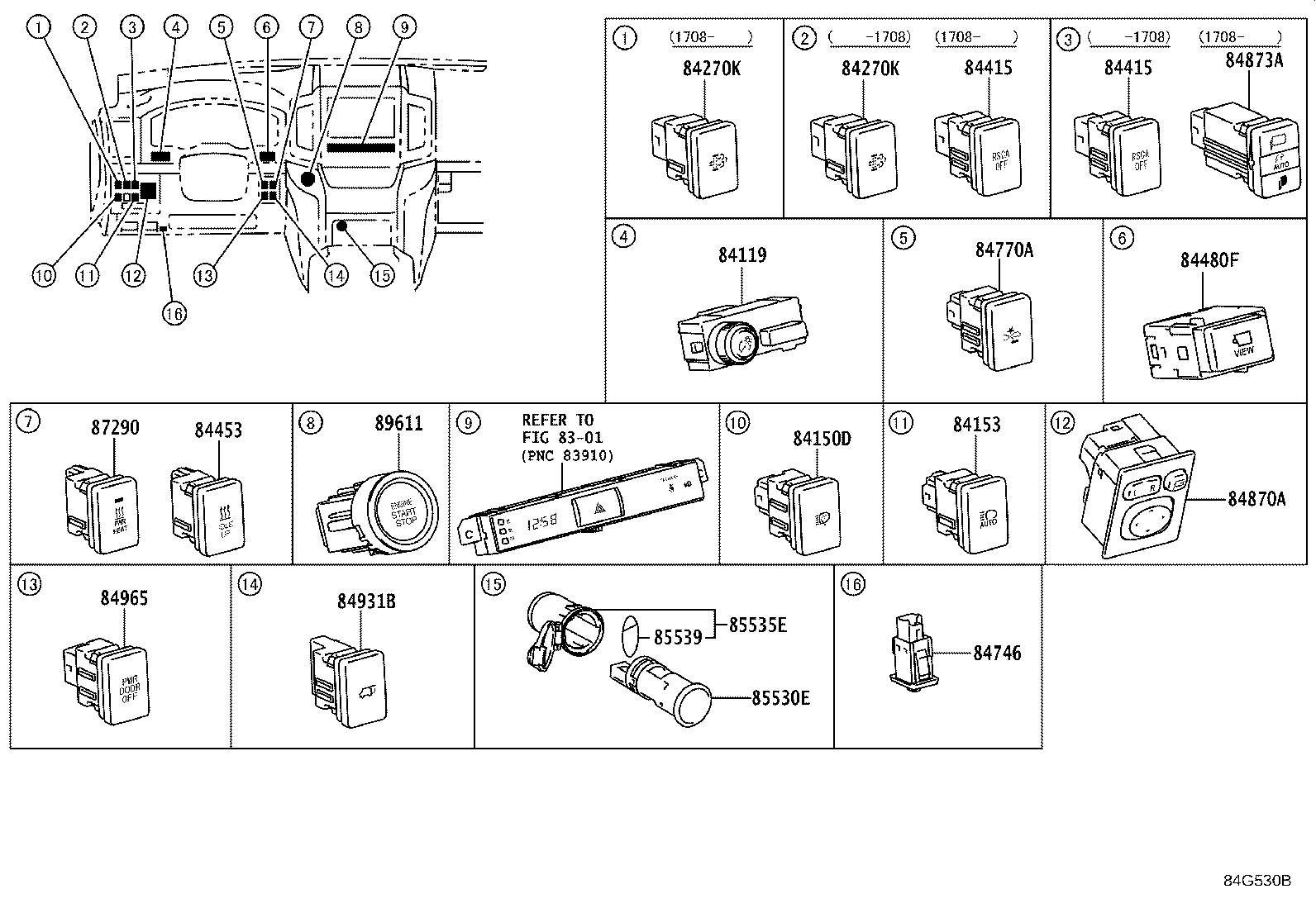

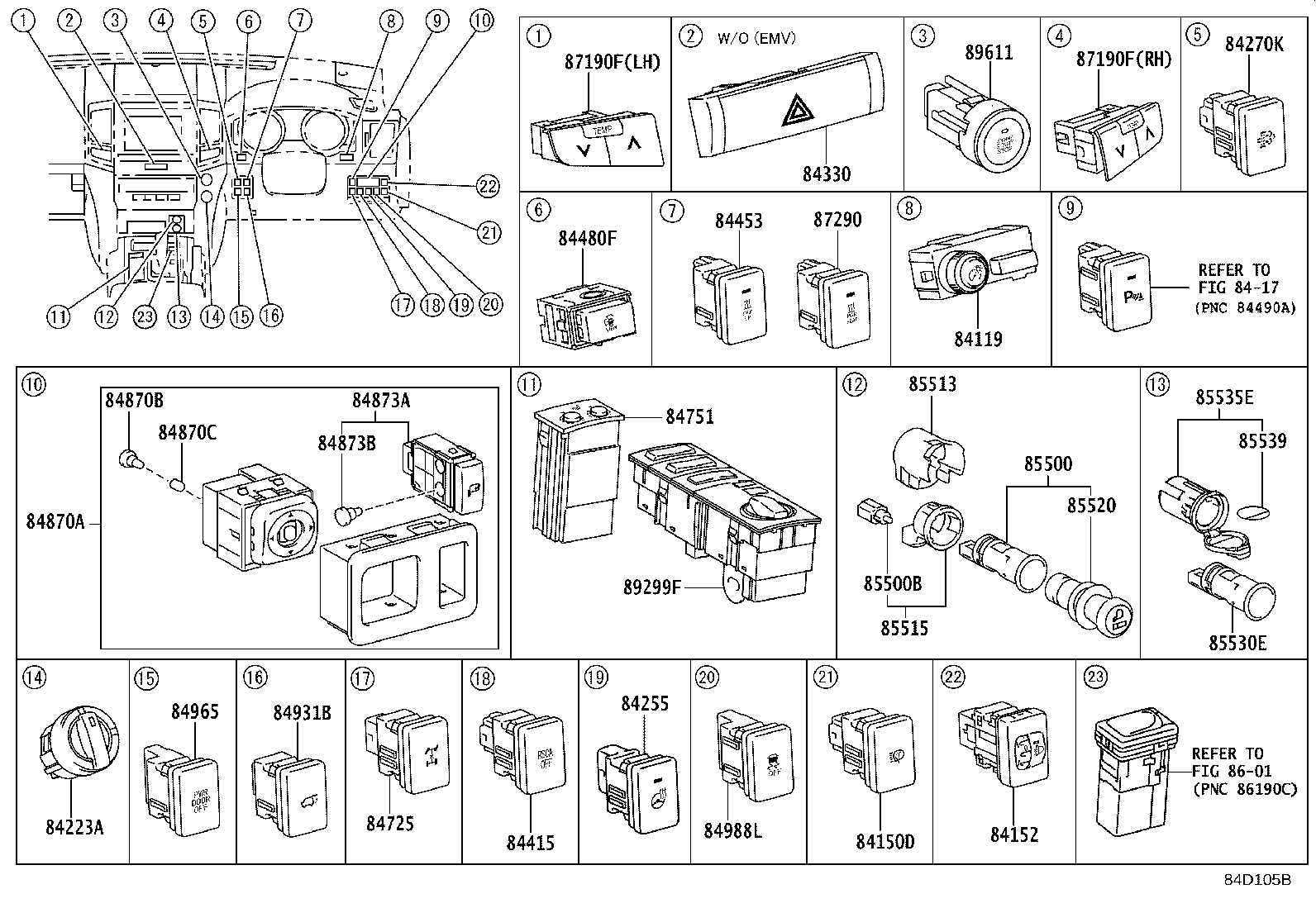

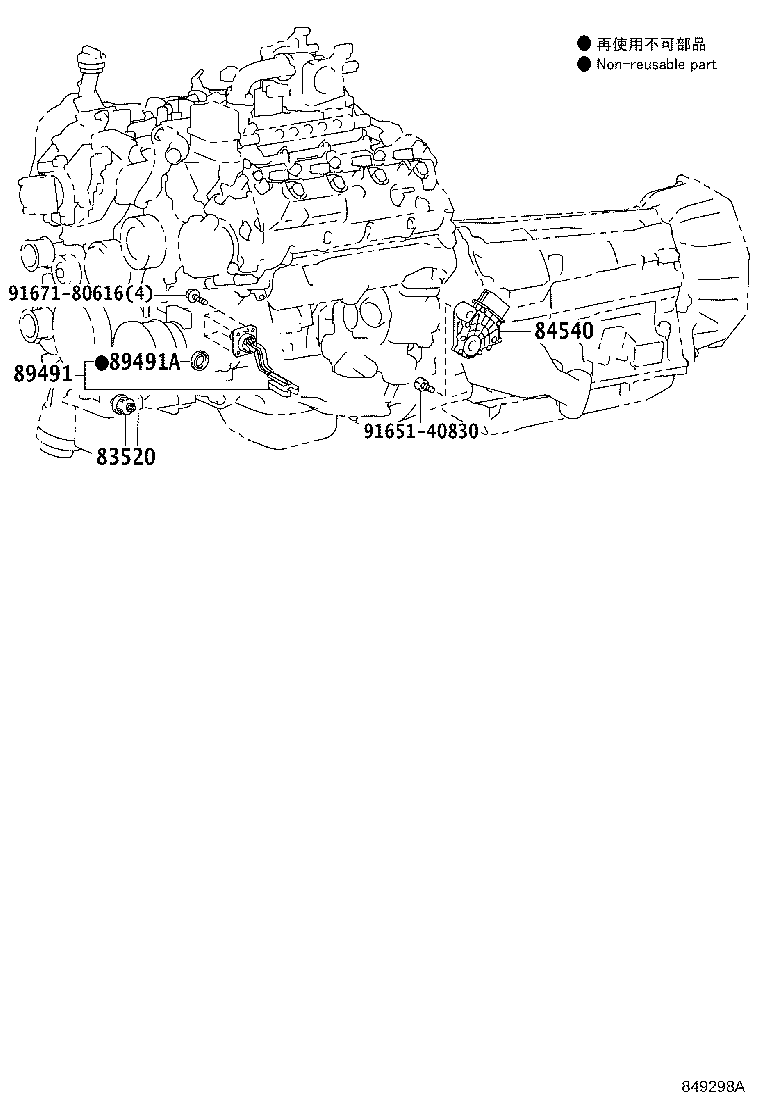

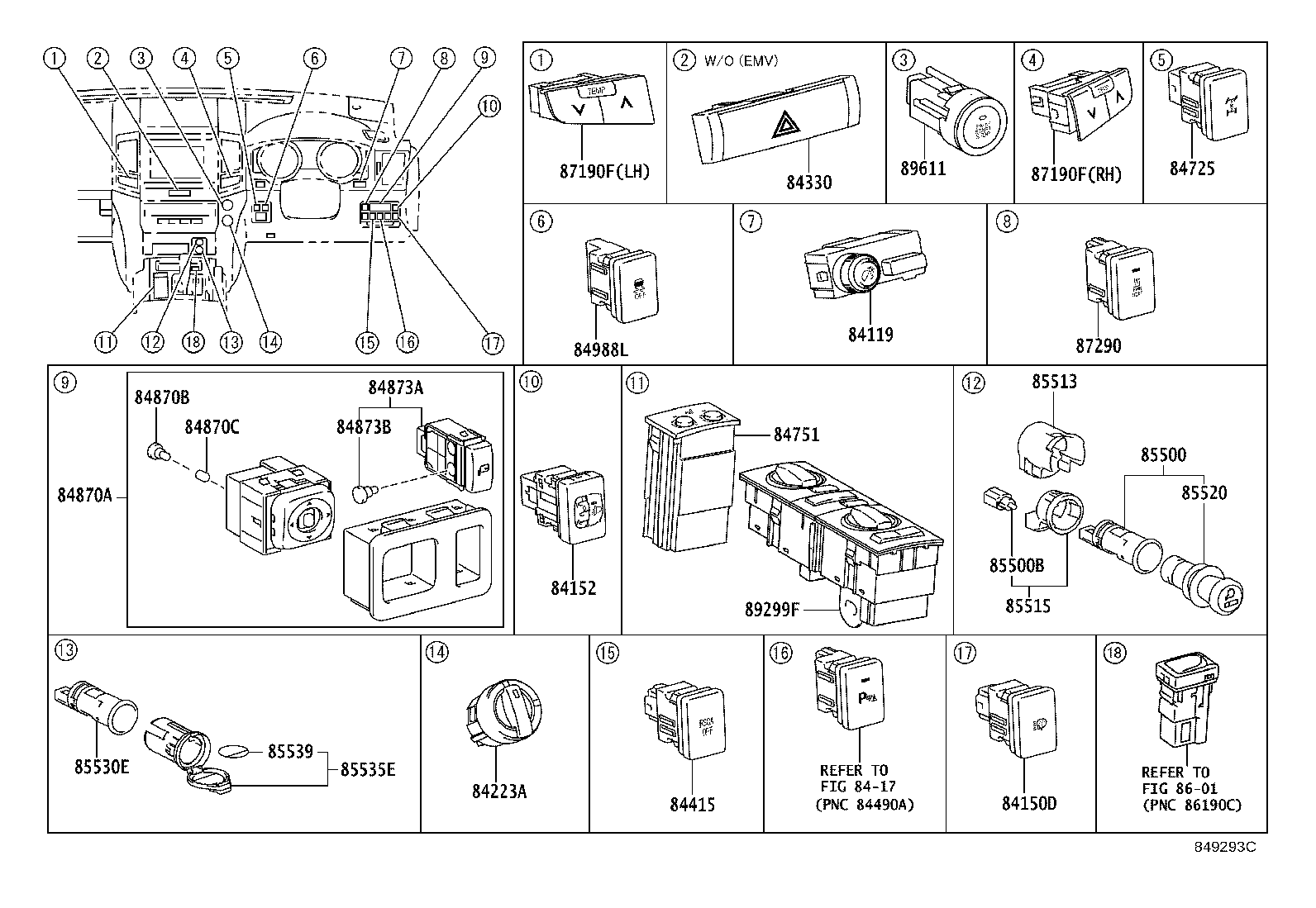

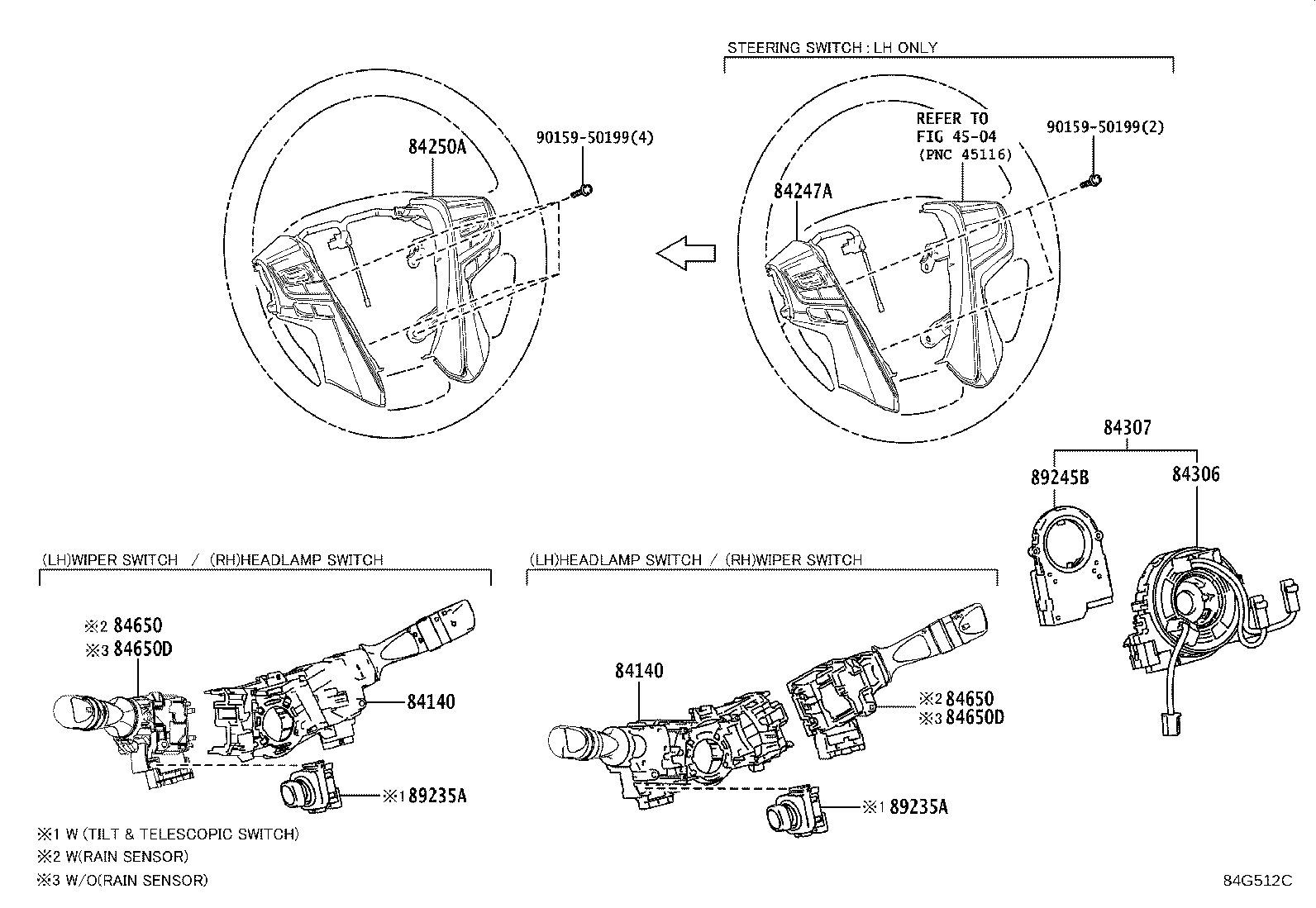

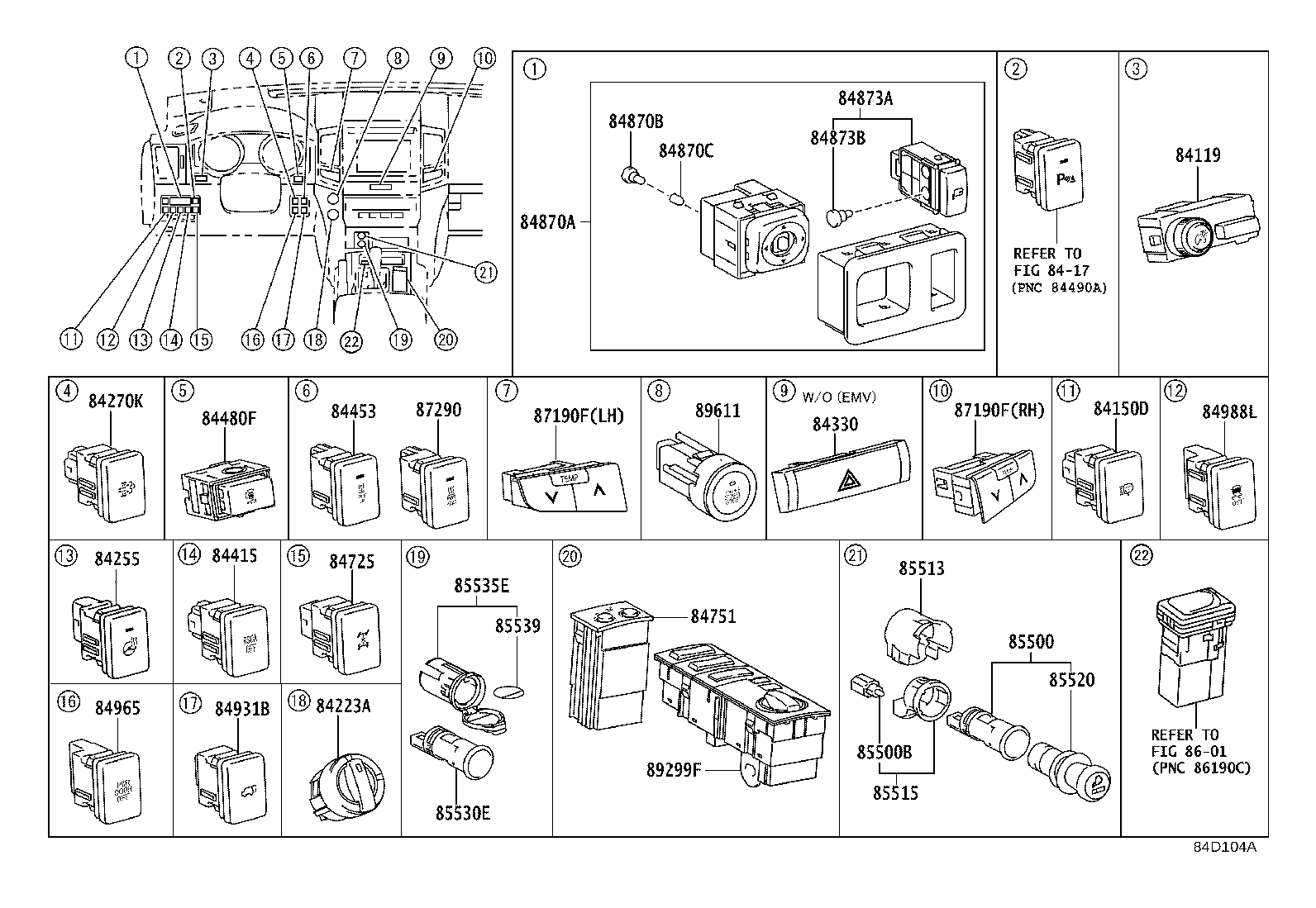

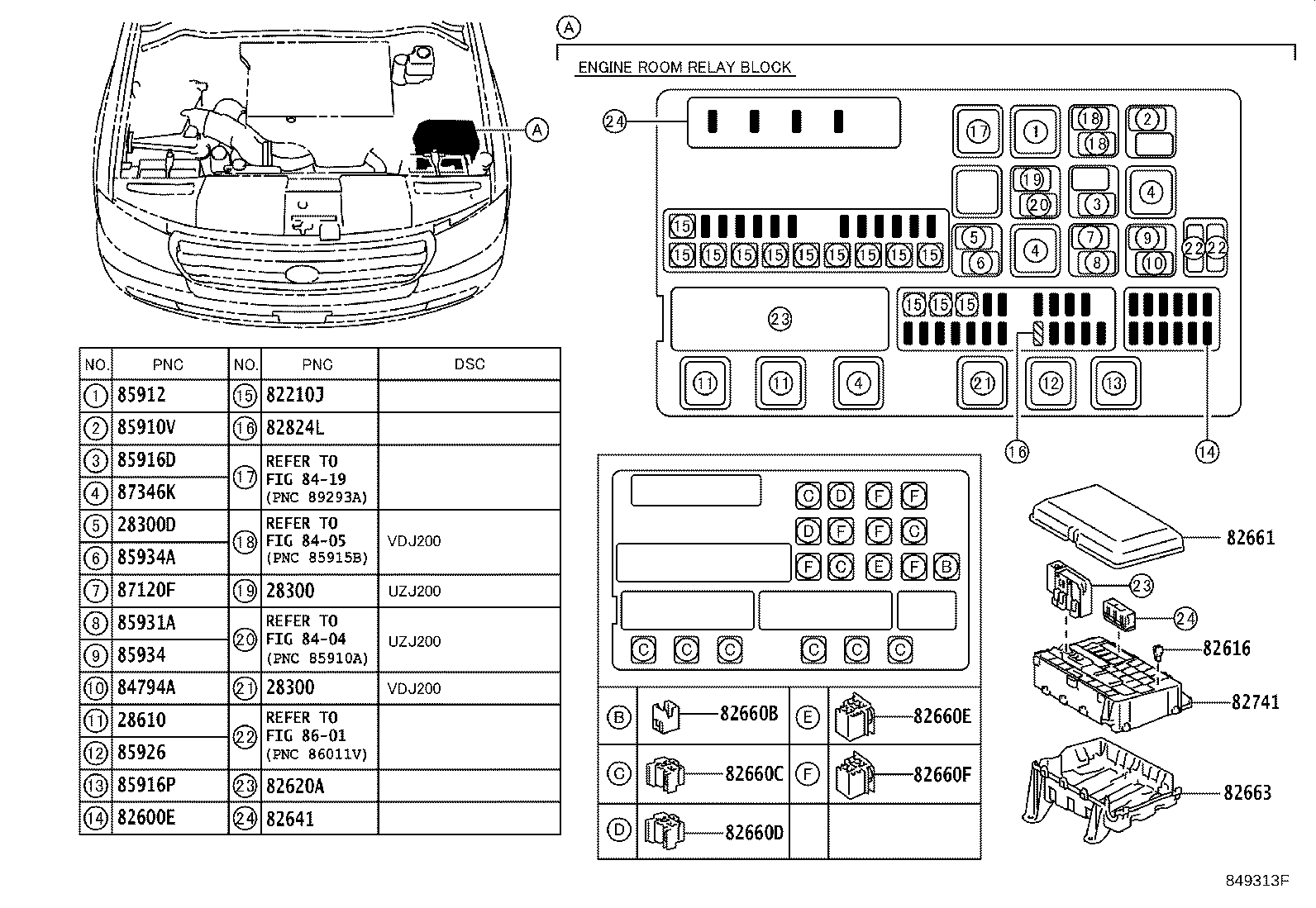

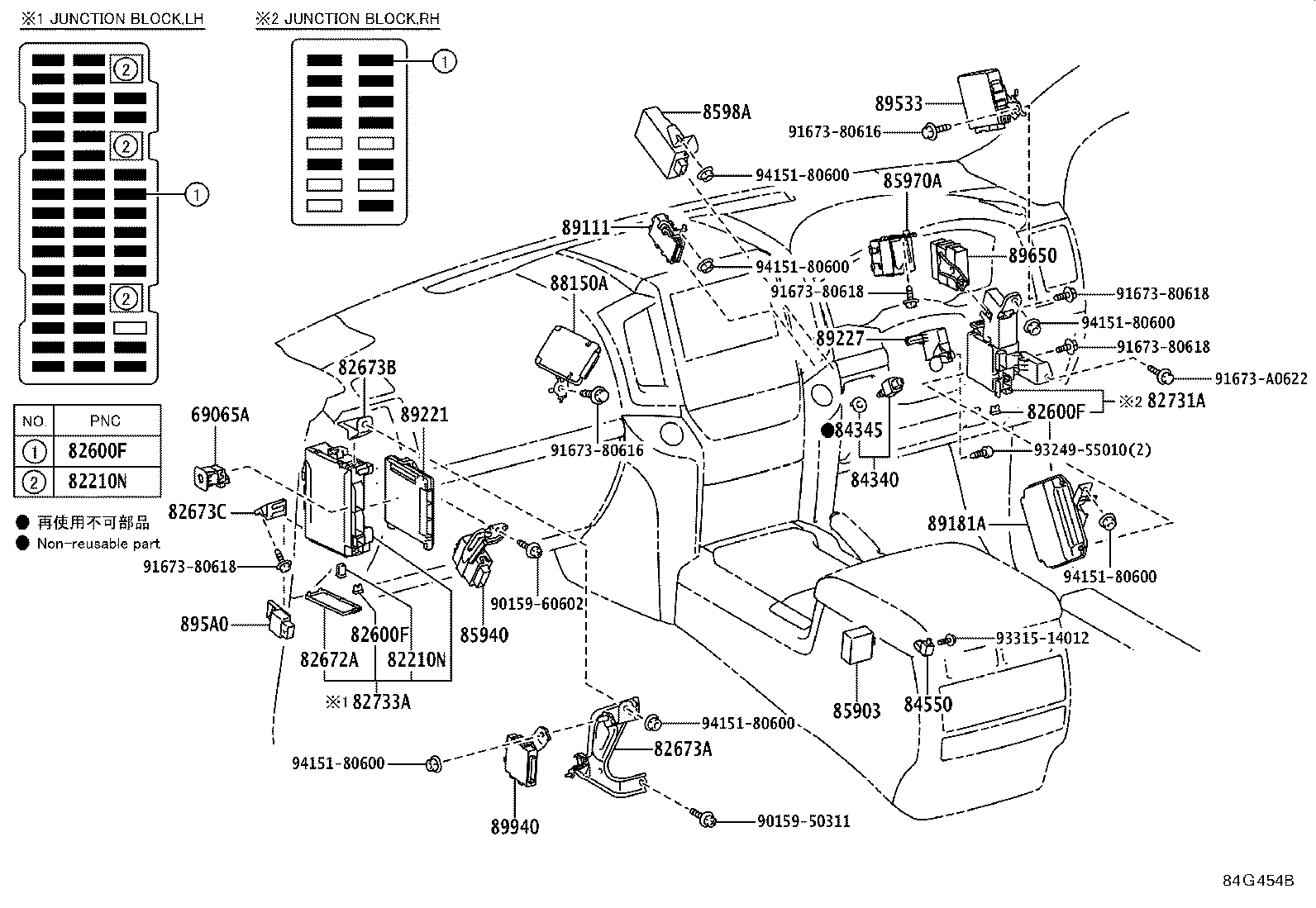

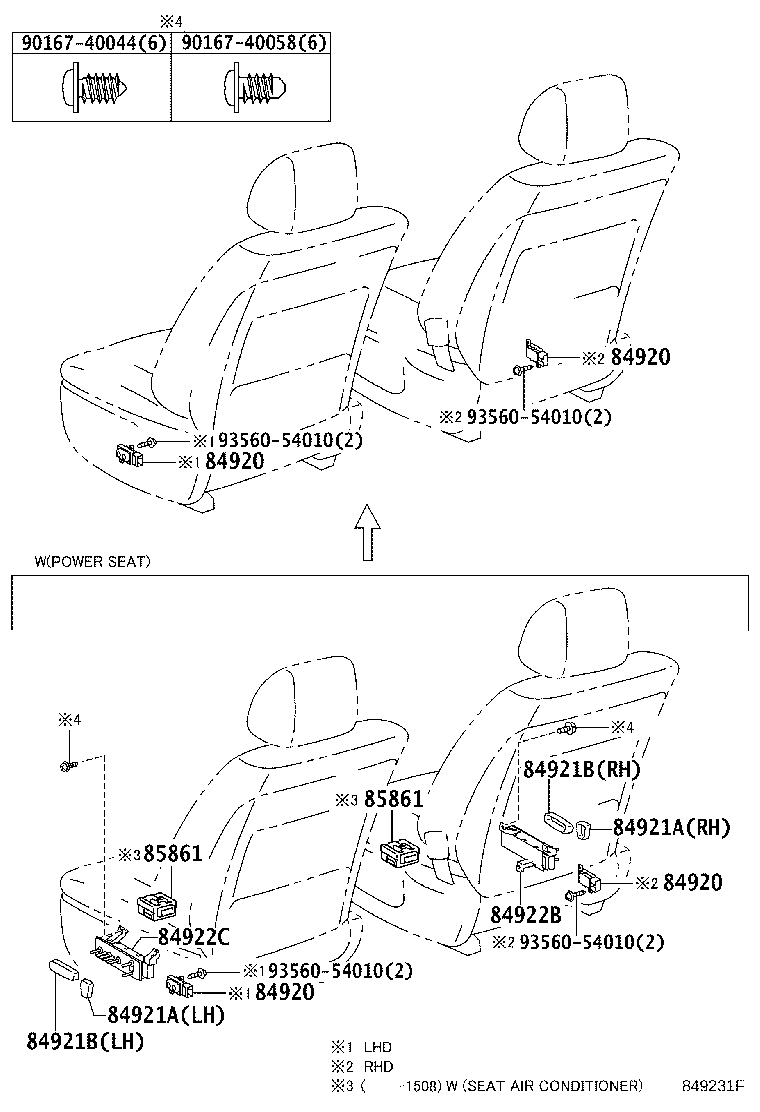

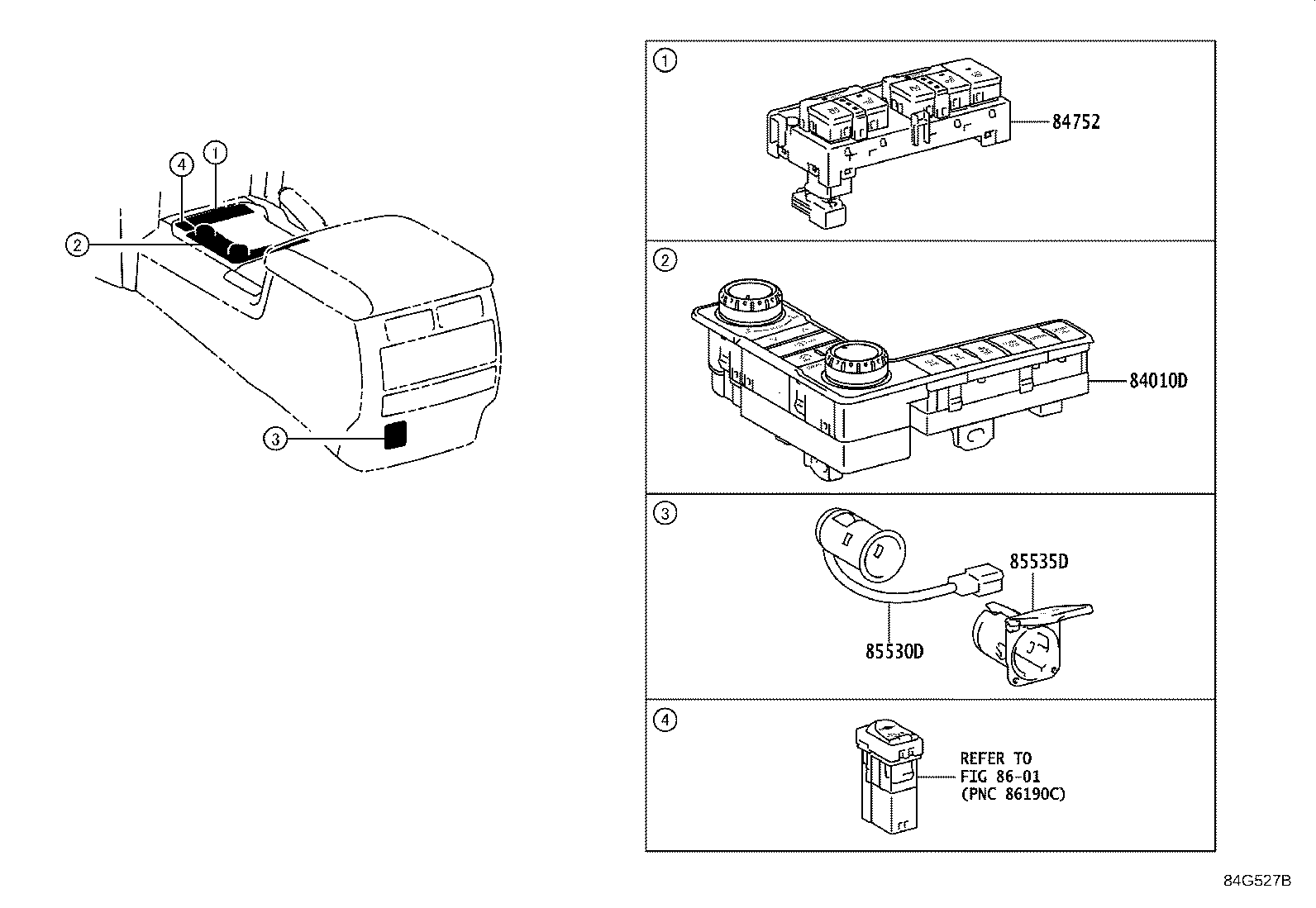

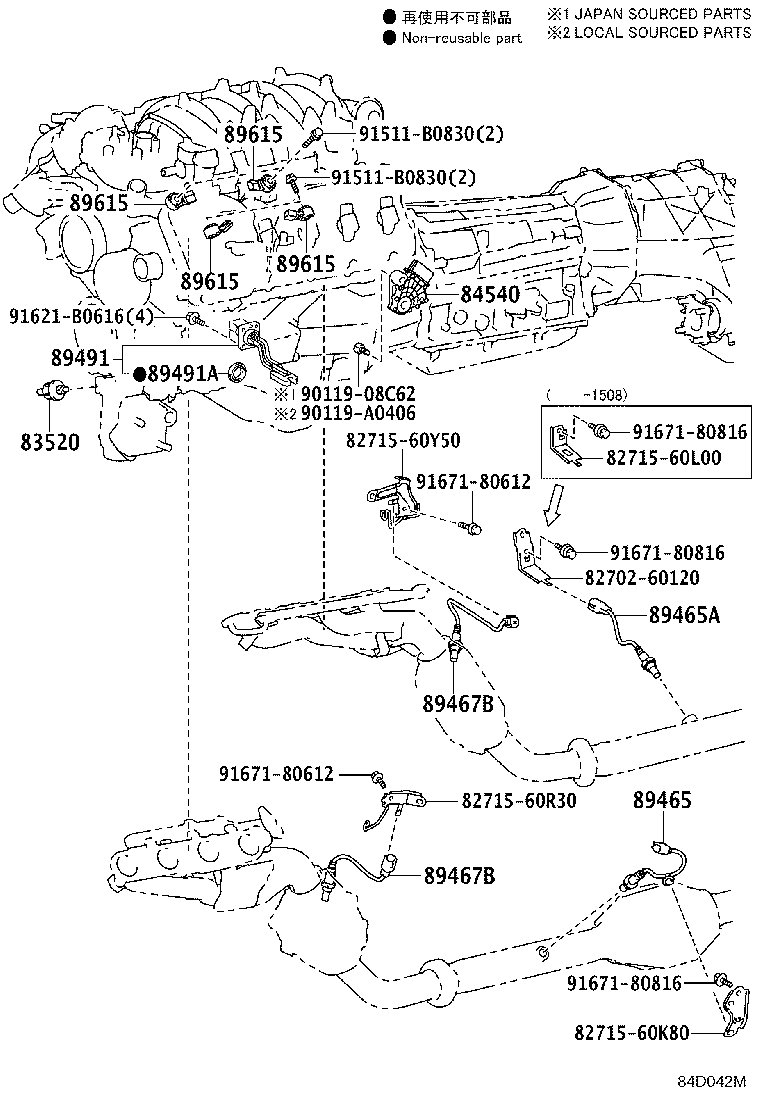

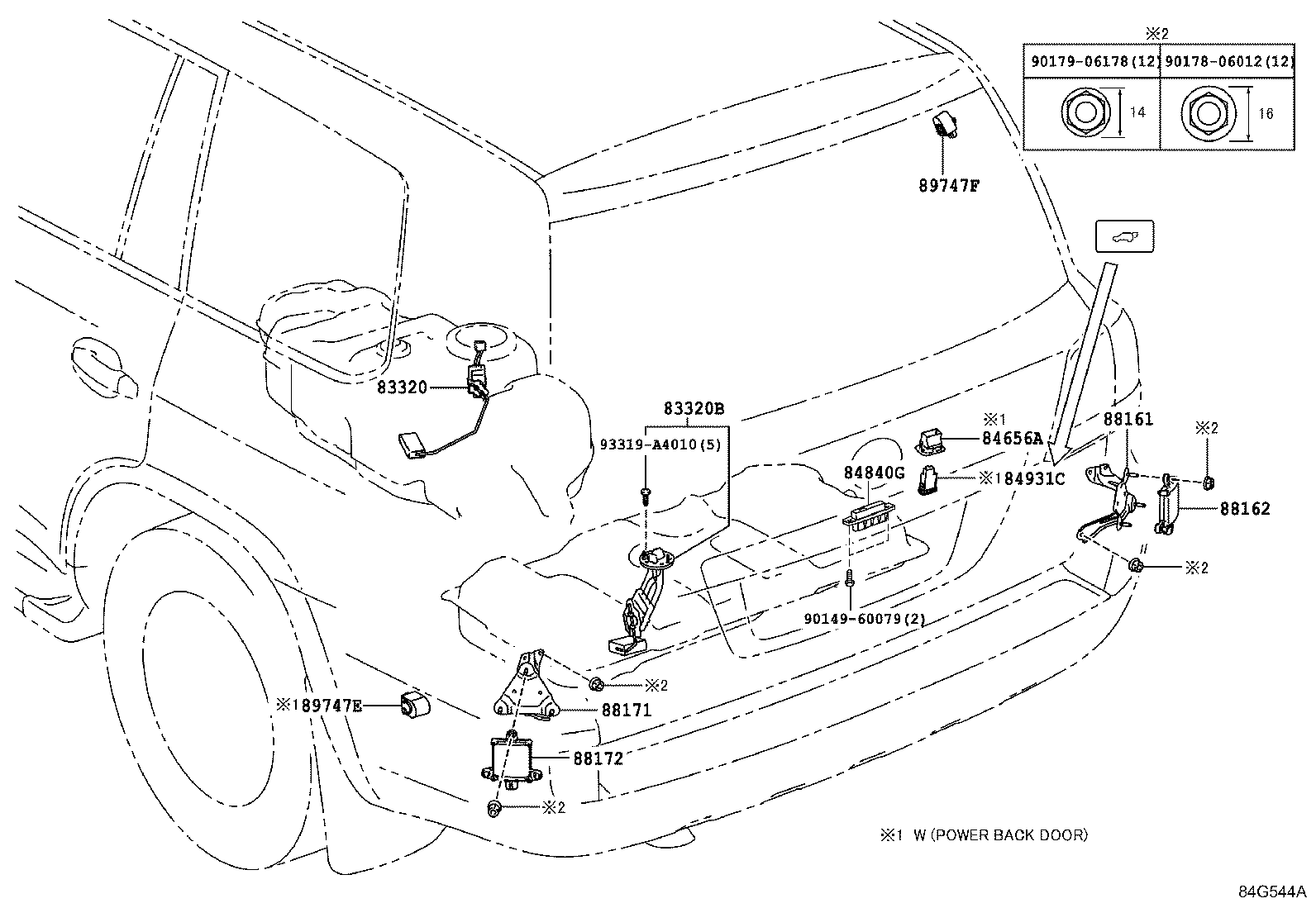

Figure 849296A 849296A 2007-09 → 2012-01 Figure 849298A 849298A 2007-09 → 2012-01 Figure 84D042M 84D042M 2012-01 → — Figure 84D044F 84D044F 2012-01 → — Figure 84E202C 84E202C 2007-09 → — Figure 84L840 84L840 2013-01 → — Figure 849313F 849313F 2007-09 → 2012-01 Figure 84D109C 84D109C 2012-01 → 2015-08 Figure 84G549C 84G549C 2015-08 → — Figure 849308G 849308G 2007-09 → 2012-01 Figure 849310E 849310E 2007-09 → 2012-01 Figure 84D078A 84D078A 2012-01 → 2015-08 Figure 84D079 84D079 2012-01 → 2015-08 Figure 84G453B 84G453B 2015-08 → — Figure 84G454B 84G454B 2015-08 → — Figure 849292C 849292C 2007-09 → 2012-01 Figure 849293C 849293C 2007-09 → 2012-01 Figure 84D104A 84D104A 2012-01 → 2015-08 Figure 84D105B 84D105B 2012-01 → 2015-08 Figure 84G530B 84G530B 2015-08 → — Figure 84G532B 84G532B 2015-08 → — Figure 84G528B 84G528B 2015-08 → — Figure 84G527B 84G527B 2015-08 → — Figure 849277C 849277C 2007-09 → 2015-08 Figure 84G512C 84G512C 2015-08 → — Figure 849231F 849231F 2007-09 → — Figure 849302D 849302D 2007-09 → 2012-01 Figure 84D060B 84D060B 2012-01 → 2015-08 Figure 84G535B 84G535B 2015-08 → — Figure 849300E 849300E 2007-09 → 2015-08 Figure 84G544A 84G544A 2015-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
69065A Cylinder Sub-assy, Airbag Cut Off Switch
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82210N Instrument Panel Fusible Link
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82642A Relay, Running Light
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82731A Block, Cowl Side Junction, RH
82733A Block, Cowl Side Junction, LH
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83520 Gage Assy,Oil Pressure Sender
84010D Control & Panel Assy, Integration
84012 Control & Panel Sub-assy, Integration
84040 Master Switch Assy,Multiplex Network
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84223A Switch, Transfer Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84270K Switch Assy, Dpr
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84415 Switch, Curtain Airbag Cutoff
84453 Switch, Idle UP
84480F Switch Assy, Main
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84725 Switch, Center Differential Lock
84746 Switch, Tire Pressure Warning
84751 Switch, Seat Heater
84752 Switch, Refreshing Seat
84770A Switch Assy, Pre-collision System Cancel
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84870B Bulb, Outer Mirror Switch
84870C Cap, Outer Mirror Switch Bulb
84873A Switch, Retractable Outer Mirror
84873B Bulb, Retractable Outer Mirror Switch
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84931B Switch, Door Control
84931C Switch, Back Door Control
84965 Switch, Power Back Door Main
84988L Switch, Vsc Off
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85535C Cover, Power Outlet Socket, Rear
85535D Cover, Power Outlet Socket, Center
85535E Cover, Power Outlet Socket, NO.2
85536 Bezel, Power Outlet Socket
85539 Label, Power Outlet Notice
85539A Label, Power Outlet Notice, Rear
85861 Computer, Seat Climate Control
85903 Computer Sub-assy, Shift Lock Control
85910E Relay, Injector
85910V Relay, Seat Heater
85912 Relay, Defogger
85915E Relay
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85926 Relay, Headlamp Dimmer
85931A Relay, Brake Lamp
85934 Relay, Magnet-clutch
85934A Relay Condenser Fan
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85943 Computer, Windshield Wiper
85970A Relay Assy, Double Lock Door Control
8598A Battery, Door Control
85999H Bracket, Relay
86210A Inverter Assy, Voltage
86530 Relay Assy, Horn
87120F Relay, Viscous Heater
87190F Switch Assy, Temperature Control
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89181A Computer, Steering Control
89221 Computer, Multiplex Network Body
89226B Computer, Multiplex Network Body, NO.2
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89299F Switch, Suspension Control
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89425C Sensor, Exhaust Gas Temperature, NO.4
89430 Computer Assy, Outer Mirror Control
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89533 Computer, 4 Wheel Drive Control
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89747E Buzzer, Power Back Door Warning
89747F Buzzer, Blind Spot Monitor
89815 Computer, Seat Belt Control
89940 Computer Assy, Headlamp Swivel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
