Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 3 illustrations

Illustrations

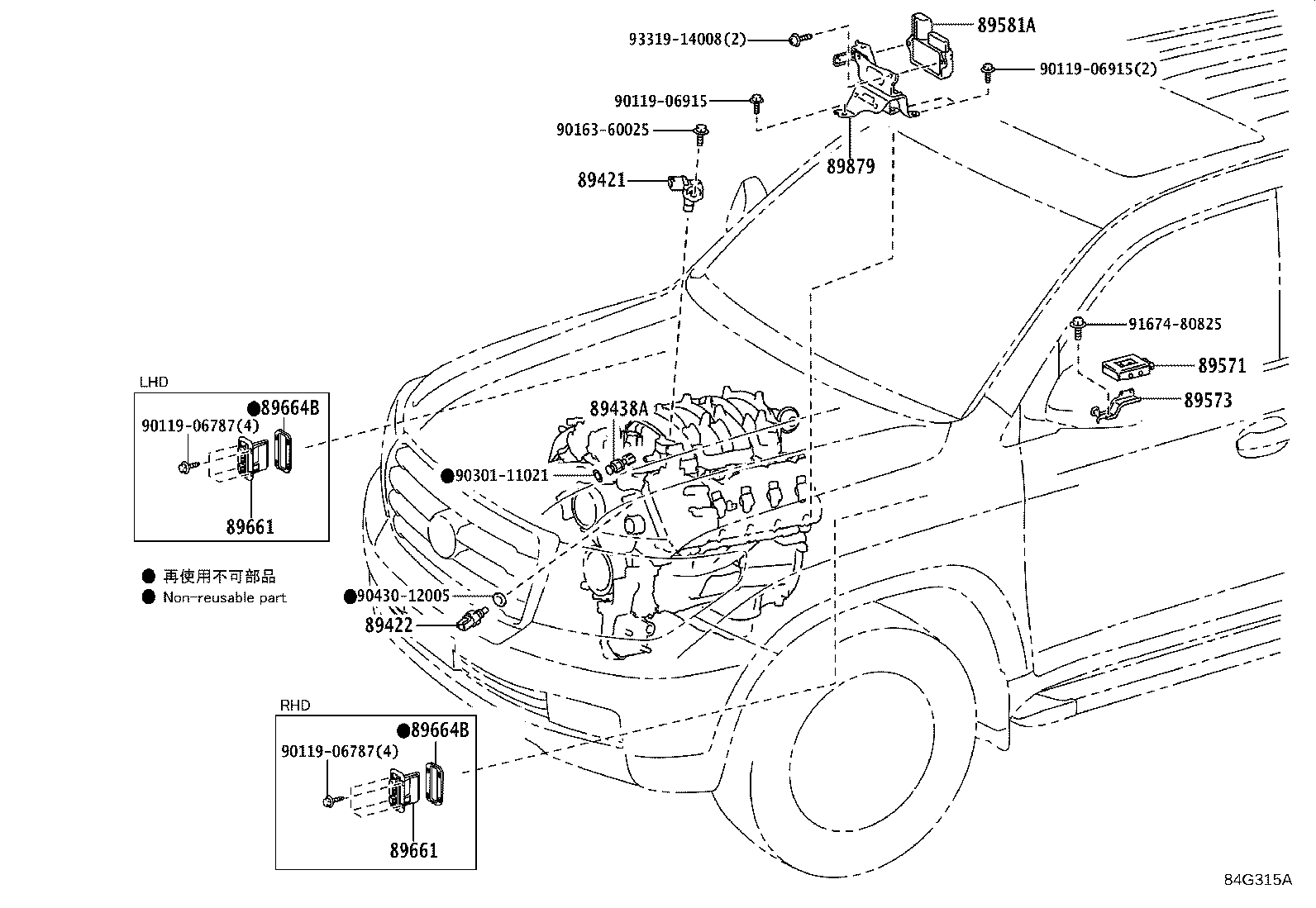

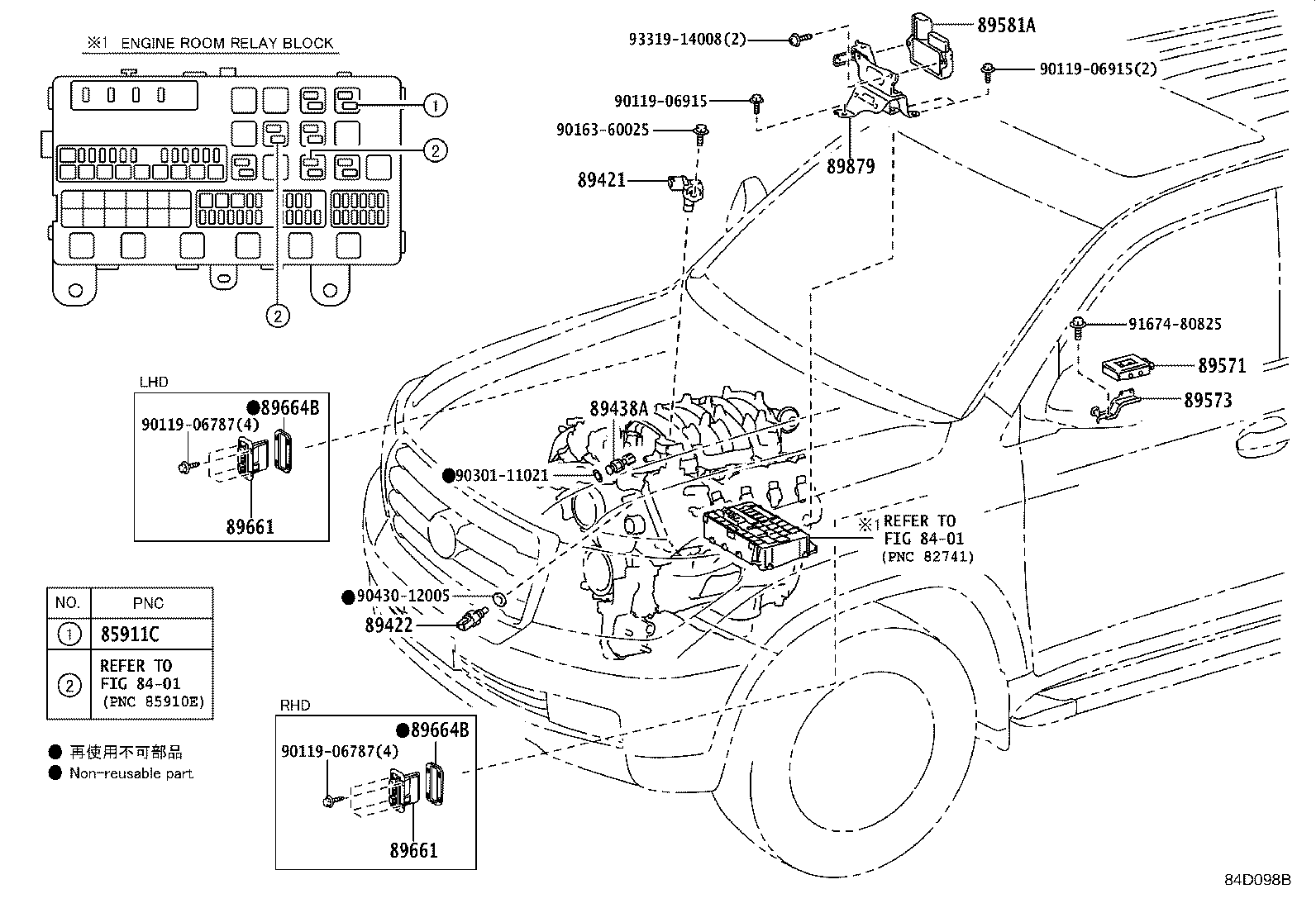

Figure 849317E 849317E 2007-09 → 2012-01 Figure 84D098B 84D098B 2012-01 → 2015-08 Figure 84G315A 84G315A 2015-08 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85911C Relay, Efi 2
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89438A Switch, Power Steering Oil Pressure
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89581A Driver, Air Injection Control
89661 Computer, Engine Control
89664B Seal, Engine Control Computer
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
