Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

14 part groups · 3 illustrations

Illustrations

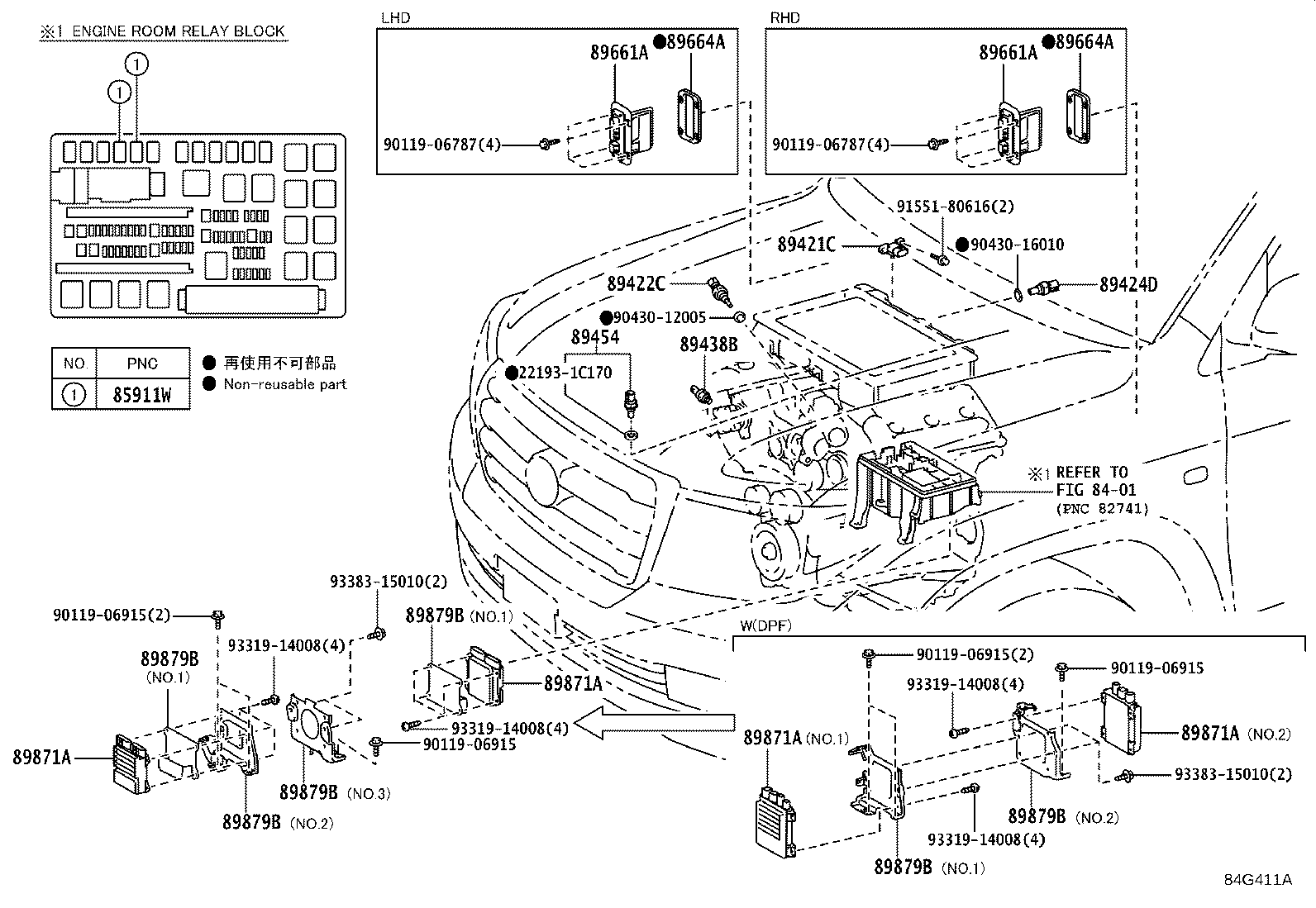

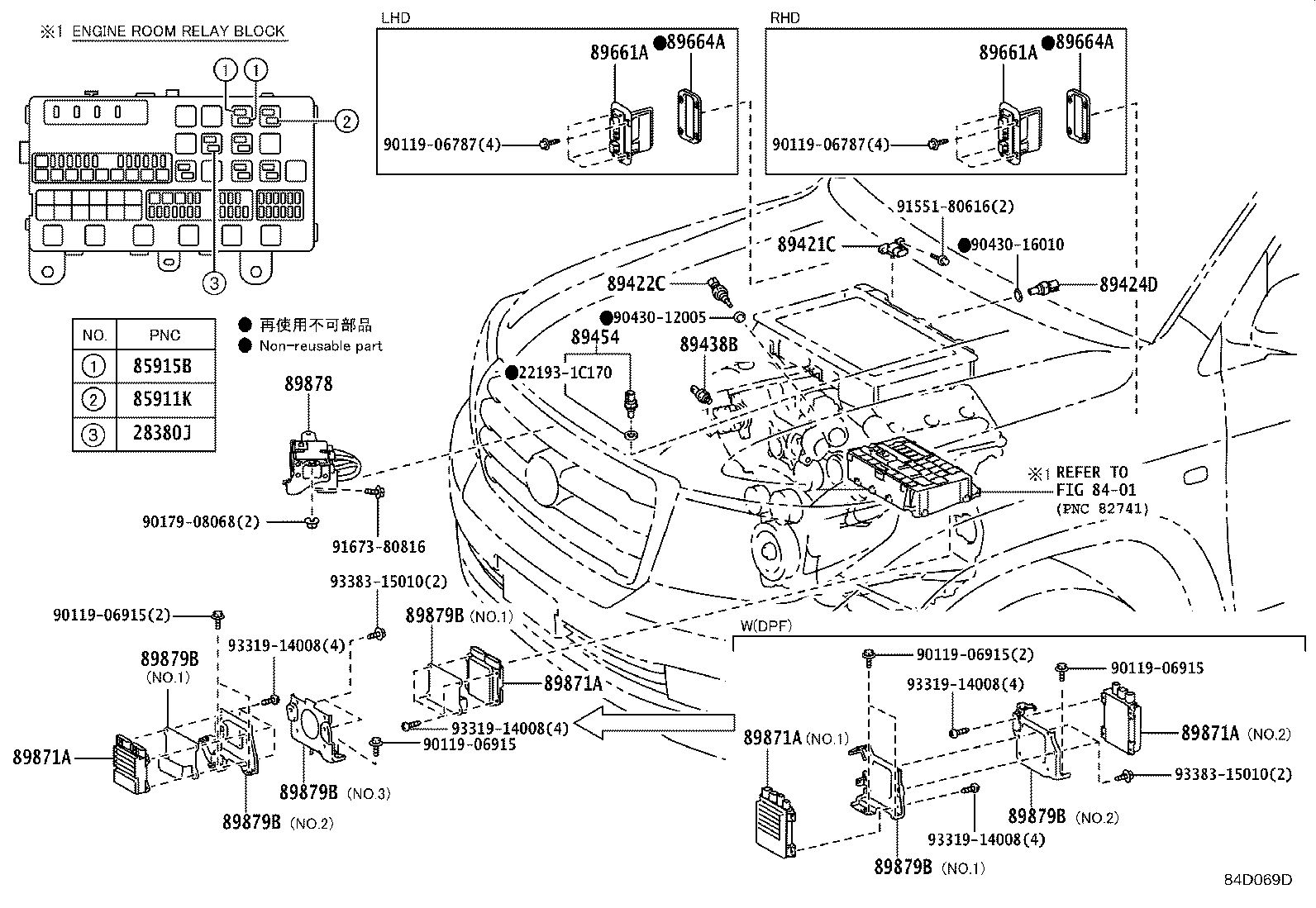

Figure 849318C 849318C 2007-09 → 2012-01 Figure 84D069D 84D069D 2012-01 → 2015-08 Figure 84G411A 84G411A 2015-08 → —

Part groups

PNCDescription
28380J Relay, Fuel Pump
85911K Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85911W Relay, Electronic Driver Unit
85915B Relay, Main (FOR DIESEL TURBO)
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424D Sensor, Inlet Air Temperature
89438B Switch, Power Steering Oil Pressure
89454 Sensor, Fuel Temperature
89661A Computer, Engine Control
89664A Seal, Engine Control Computer
89871A Driver, Injector
89878 Driver, Turbo Motor
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
