Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202,VDJ200 · catalogue 791560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

7 part groups · 2 illustrations

Illustrations

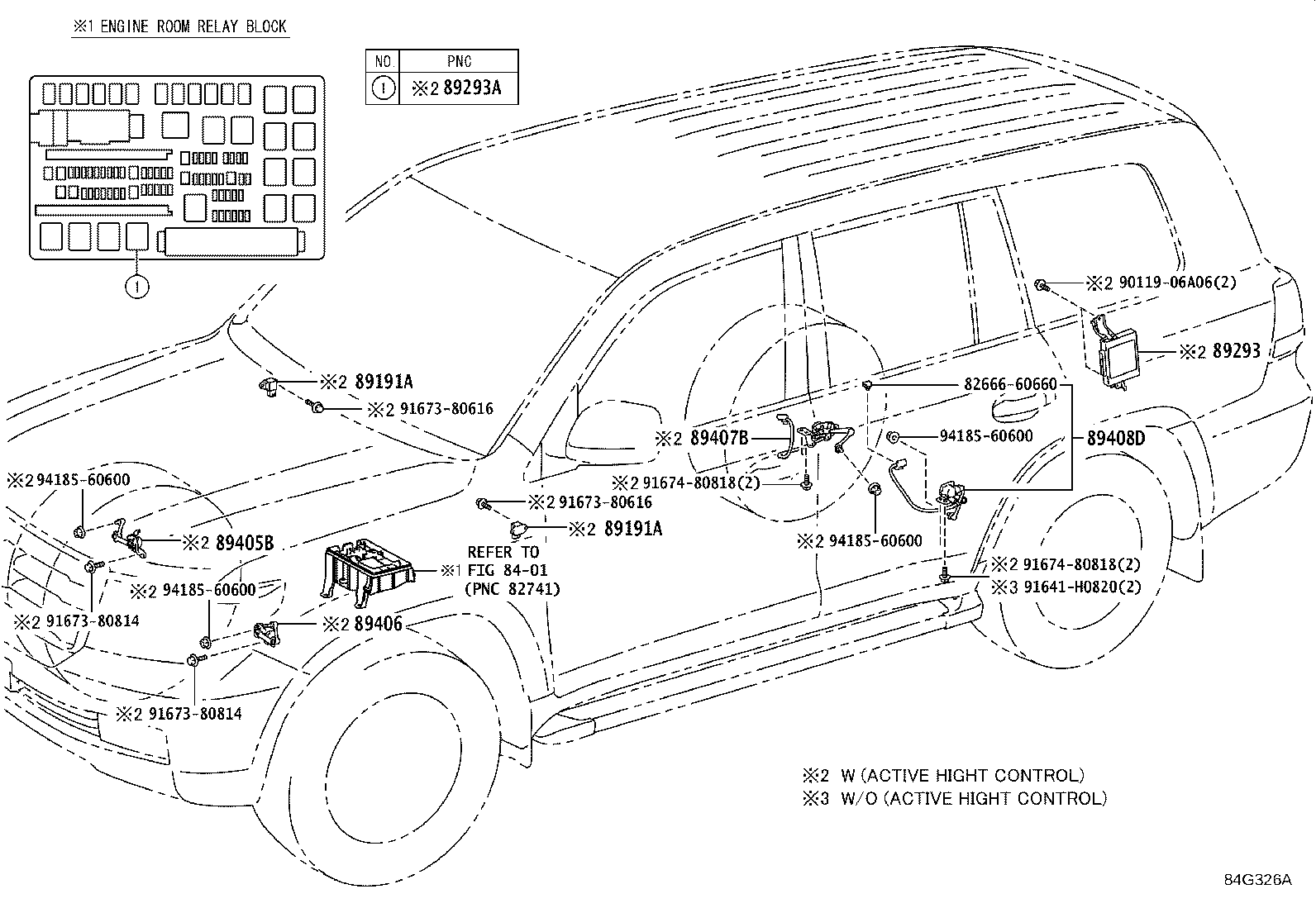

Figure 849164C 849164C 2007-09 → 2015-08 Figure 84G326A 84G326A 2015-08 → —

Part groups

PNCDescription
89191A Sensor, Acceleration
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89405B Sensor Sub-assy, Height Control, Front RH
89406 Sensor Sub-assy, Height Control, Front LH
89407B Sensor Sub-assy, Height Control, Rear RH
89408D Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
